A practical approach to imaging the axilla
© The Author(s) 2014
- Received: 7 July 2014
- Accepted: 5 November 2014
- Published: 23 December 2014
Imaging of the axilla typically occurs when patients present with axillary symptoms or newly diagnosed breast cancer. An awareness of the axillary anatomy is essential in order to generate an accurate differential diagnosis and guide patient management. The purpose of this article is to review the indications for axillary imaging, discuss the logistics of the scanning technique and percutaneous interventions, and present the imaging findings and management of a variety of breast diseases involving the axilla.
• Knowledge of normal axillary anatomy aids in determining the aetiology of an axillary mass.
• The differential diagnosis of an axillary mass is broad and can be subdivided by the location of the lesion.
• Imaging evaluation of the axilla usually entails diagnostic mammography and targeted ultrasound.
• FNA or core needle biopsies are safe and accurate methods for diagnosis and guiding management.
- Targeted ultrasound
Over the past several decades, coinciding with the introduction of ultrasound, radiologists have increasingly imaged the axilla in females presenting with axillary symptoms and newly diagnosed breast cancer. In addition, image-guided axillary procedures have been embraced as a means to diagnose findings and guide patient management. The purpose of this article is to review the indications for axillary imaging, discuss the logistics of the scanning technique and percutaneous interventions, and present the imaging findings and management of a variety of breast diseases involving the axilla.

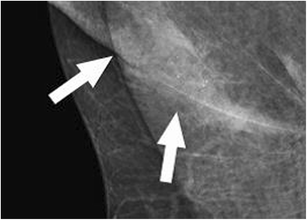

- Level I:
Lymph nodes lateral and inferior to the pectoralis minor muscle
- Level II:
Lymph nodes beneath the pectoralis minor muscle
- Level III:
Lymph nodes deep and medial to the medial border of the pectoralis minor muscle
The standard imaging evaluation of a palpable axillary lump for females over the age of 30 years in most of the USA typically includes a mammogram with a “skin marker” overlying the palpable finding followed by a focussed ultrasound of the area of concern. This may vary in different countries and typically in the UK, for example, mammographic evaluation begins at age 40 years. In younger patients, imaging begins with ultrasound. For patients with a focal lump, scanning is typically targeted over the area of concern; however, if there is a suspicious finding, it is important to cover the entire axillary region to evaluate for any associated findings. When the study is being performed in a female newly diagnosed with breast cancer, imaging should be performed broadly to include the entire extent of the axillary contents. Examination of level I lymph nodes necessitates visualising the axillary vessels as well as scanning the entire fatty contents from the margin of the pectoralis muscles anteromedially to the latissimus dorsi and teres major margin posterolaterally. The lateral thoracic and thoracodorsal arteries and smaller branches will be seen variably along each margin, respectively. Although node groups typically follow these vessels, lymph nodes are frequently found in isolation within the axillary fat. It is also very important to scan inferiorly, down through the axillary tail, because abnormal nodes are frequently found in this location as well. Levels II and III are not routinely scanned, although large level II nodes can sometimes be seen .
Axillary ultrasound should be performed using a high-frequency (7.5–17-MHz) linear-array transducer. A lower frequency (5–7.5-MHz) setting may be needed for larger patients or for patients with a large axillary fat pad; however, the spatial resolution will be compromised. The patient should lie in a supine oblique position, with her hand above her head with the arm abducted and externally rotated (“bathing beauty” position). All findings should be documented in orthogonal planes with and without calipers and a lesion’s largest dimension should also be recorded. Some facilities employ grey-scale and colour Doppler US or power Doppler US during the study, especially when assessing lymph nodes. When colour Doppler US is used, it is important to use low wall filter settings and low velocity settings (higher pulse repetition frequency) to detect abnormal blood flow. The colour gain should be increased high enough to detect subtle flow without causing a colour noise artefact. When evaluating lymph nodes, ultrasound is 94 % sensitive and 72 % specific in characterising nodes as suspicious or benign based on size and morphologic features .
If the initial imaging evaluation of the axilla reveals a suspicious finding, percutaneous procedures, such as ultrasound-guided fine-needle aspiration (FNA) or ultrasound-guided core biopsy, may be performed. At most institutions, FNA is currently the preferred approach as the procedure is usually diagnostic and potential complications are minimal (bleeding, infection, non-diagnostic sample). FNA is typically performed using 22–25-gauge needles with aspirates sent to cytology. In most cases, at least three passes are made, especially if the cytologist is not on site during the procedure. If lymphoma is of clinical concern, additional aspirates should be obtained for flow cytometry. However, limitations do exist for FNA as it can be operator dependent, requires access to reliable cytology and carries a relatively high false-negative rate of 12–23 %  . Most commonly performed for suspicious lymphadenopathy, the confirmation of metastatic involvement in a lymph node precludes sentinel lymph node biopsy in females with newly diagnosed breast cancer leading to full axillary node dissection. In one study of 224 patients, the sensitivity of ultrasound-guided FNA for suspicious, indeterminate and normal-appearing axillary nodes was 93, 44 and 11 %, respectively, with an overall sensitivity of 59 % and overall specificity of 100 % . The likelihood of a positive FNA correlated directly with the size of the primary breast malignancy, being 29 % for tumours <1 cm, 50 % for tumours 1–2 cm, 69 % for tumours 2–5 cm and 100 % for tumours >5 cm . Alternatively, percutaneous core needle biopsy using 12–18 gauge spring-loaded or vacuum-assisted devices can safely be performed [4–7]. The risks of axillary core biopsy are similar to other image-guided procedures, namely bleeding and infection. However, given the presence of axillary vessels and nerves coursing through the axilla, a “no-throw” technique is preferred as this minimises the risk of haematoma or unintended nerve damage. If a spring-loaded device is used, this most commonly is performed on masses that exceed the throw of the device so that the needle does not pass into unaffected axillary tissue, thereby minimising the risk of unintended complications. In one study of 39 patients with suspicious lymphadenopathy, axillary core biopsy revealed 90 % sensitivity, 100 % specificity and 92 % accuracy  without any clinically significant complications. By recognising that the nerves course alongside the axillary vessels, the risk of bleeding and untoward nerve injury can easily be avoided in almost all cases. Although core biopsy may yield a benign aetiology, there is conflicting evidence concerning whether this approach is substantially better than FNA as the upgrade rate on surgical excision ranges from 0 to 36 % in several studies, possibly related to the small cohort size and inherent sampling error .
Skin and subcutaneous tissues
Seborrheic keratosis, sebaceous cyst, epidermoid inclusion cyst
Skin metastases, melanoma
Accessory breast tissue
Fibroadenoma, pseudoangiomatous stromal hyperplasia (PASH), fibrocystic change

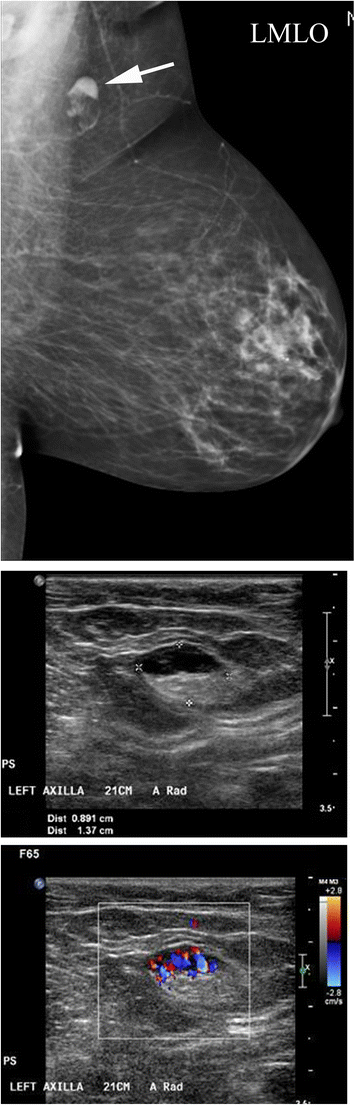

Lymph node enlargement
Hyperplasia/reactive node, HIV/immunocompromised state, granulomatous disease-sarcoidosis, lymphoma/leukaemia, Castleman’s disease
Primary breast malignancy, metastatic disease (breast, lung, ovarian, gastric, melanoma)
Lymph node calcifications/punctuate densities
Granulomatous disease, gold therapy (rheumatoid arthritis treatment)
Ductal carcinoma in situ (DCIS), metastatic disease [thyroid (papillary), ovarian]
Skin thickening, lymphoedema, post-operative fluid collections/lymphocele, fat necrosis, abscess, haematoma
Primary or metastatic recurrence
Granular cell tumour, schwannoma
Primary breast cancer
Contrast-enhanced ultrasonography has been used with some success to visualise enhancing abnormal nodes after periareolar injection of microbubbles. Server et al. in their study showed that sentinel lymph node can be successfully identified and biopsied using microbubble contrast-enhanced ultrasound, thereby avoiding surgical biopsy in some patients .
Ultrasound and axillary core biopsy enable adequate pretreatment staging in patients with breast cancer and has a positive impact on their management [18, 19]. The benefit of pre-operative identification of axillary metastases is that it allows the surgeon to proceed directly to full axillary lymph node dissection and to avoid an unnecessary sentinel lymph node biopsy, thereby avoiding a second surgical procedure involving the axillary nodes. Houssami et al. in their meta-analysis found that axillary ultrasound-guided needle biopsy (UNB) had better utility in females with average or higher underlying risk of nodal metastases  and found that a median proportion of 18.4 % (inter-quartile range = 13.3 %–27.4 %) from 7,097 patients can be effectively triaged to axillary treatment and avoid sentinel node biopsy (SNB). However, the changing algorithm of axillary surgical treatment means that ultrasound-guided FNA will have relatively less utility where surgeons omit axillary lymph node dissection (ALND) for minimal nodal metastatic disease. Research that allows enhanced application of ultrasound and UNB to specifically identify and biopsy sentinel nodes and to discriminate between patients with minimal versus advanced nodal metastatic involvement is likely to have the most impact on future management of the axilla in patients newly diagnosed with breast cancer .
Recently, the field of breast cancer surgery has seen a dramatic shift with the results of the American College of Surgeons Oncology Group Z0011 trial . This study, which randomly assigned patients with sentinel lymph node (SLN)-positive breast cancer to SNB and (ALND) or to SNB alone, reported that ALND was not associated with any survival benefit and that both groups had an extremely low regional recurrence rate (0.9 % for SNB alone and 0.5 % for ALND). This was despite the fact that 27.3 % of the patients who received ALND had additional positive non-sentinel lymph nodes. This study confirmed what many surgical oncologists had suspected: that ALND provided minimal benefit while exposing a substantial number of patients to long-term morbidity, specifically lymphoedema. Therefore, there was great interest in shifting away from routine ALND for patients with SLN-positive disease, instead reserving this operation for patients who did not meet the Z0011 criteria (i.e. patients undergoing neoadjuvant chemotherapy, patients with palpable nodes, patients having mastectomy or patients with more than three involved nodes). With the results of Z0011, there has been some shift in the approach to staging the axilla. Some surgeons have advocated to no longer obtain axillary ultrasound and fine-needle aspiration (FNA) biopsy of suspicious nodes because this practice identifies women with “clinically evident” disease who, in the absence of the ultrasound, would have been “SLN positive” and thus eligible for avoidance of the ALND. However, a point to remember is that pre-operative ultrasound of the axilla is still an extremely useful staging test as nodal disease identified by ultrasound and FNA biopsy is strongly correlated with tumour burden and the number of involved nodes [23, 24].
There are several rare benign neoplasms that can occur in the axilla, which also can mimic breast cancer in the axillary tail of Spence. These tumours are most frequently are neural in origin and asymptomatic. Therefore, they are most commonly encountered on screening mammography. As these tumours are almost always benign, percutaneous biopsy to confirm a benign entity is sufficient and most often surgery is avoided.
Granular cell tumour (GCT)
Knowledge of the normal axillary anatomy aids in determining the underlying aetiology of an axillary mass. The differential diagnosis of an axillary mass is broad, including skin lesions, infections, haematoma, lymphadenopathy (hyperplastic, inflammatory, neoplastic or metastatic), accessory breast tissue, fibroadenoma, fibrocystic change, post-operative fluid collections, primary breast cancer and intramuscular neoplasms. For most cases, imaging evaluation entails diagnostic mammography and targeted ultrasound. If intervention is warranted, FNA or core needle biopsies are safe and accurate methods for diagnosis and for guiding the management of an axillary mass.
