Magnetic resonance assessment of left ventricular volumes and mass using a single-breath-hold 3D k-t BLAST cine b-SSFP in comparison with multiple-breath-hold 2D cine b-SSFP



To assess the feasibility of single-breath-hold three-dimensional cine b-SSFP (balanced steady-state free precession gradient echo) sequence (3D-cine), accelerated with k-t BLAST (broad-use linear acquisition speed-up technique), compared with multiple-breath-hold 2D cine b-SSFP (2D-cine) sequence for assessment of left ventricular (LV) function.


Imaging was performed using 1.5-T MRI (Achieva, Philips, The Netherlands) in 46 patients with different cardiac diseases. Global functional parameters, LV mass, imaging time and reporting time were evaluated and compared in each patient.


Functional parameters and mass were significantly different in the two sequences [3D end-diastolic volume (EDV) = 129 ± 44 ml vs 2D EDV = 134 ± 49 ml; 3D end-systolic volume (ESV) = 77 ± 44 ml vs 2D ESV = 73 ± 50 ml; 3D ejection fraction (EF) = 43 ± 15% vs 2D EF = 48 ± 15%; p < 0.05], although an excellent correlation was found for LV EF (r = 0.99). Bland-Altman analysis showed small confidence intervals with no interactions on volumes (EF limits of agreement = 2.7; 7.6; mean bias 5%). Imaging time was significantly lower for 3D-cine sequence (18 ± 1 s vs 95 ± 23 s; p < 0.05), although reporting time was significantly longer for the 3D-cine sequence (29 ± 7 min vs 8 ± 3 min; p < 0.05).


A 3D-cine sequence can be advocated as an alternative to 2D-cine sequence for LV EF assessment in patients for whom shorter imaging time is desirable.


Significant left ventricular (LV) dysfunction is associated with poor prognosis. The reliable determination of LV function is an important component of the cardiac evaluation in several clinical settings [13].

Previous studies demonstrated that magnetic resonance imaging (MRI) is an accurate and reproducible technique for the measurement of LV volumes and is currently regarded as the reference standard [46]. A two-dimensional (2D) balanced steady-state free precession gradient echo sequence (b-SSFP) is currently considered the preferred method to assess LV volume and function because of its high spatial and temporal resolution [5, 79]. However, 2D b-SSFP sequence has an important limitation in that it requires multiple prolonged breath-holds that increase examination time and may cause patient restlessness and slice mis-registration [10, 11]. Recently, a new speed-up technique, k-t BLAST (broad-use linear acquisition speed-up technique), has become available; it allows an undersampling in the temporal domain and, applied to a 3D-cine b-SSFP sequence, may allow coverage of the entire left ventricle in a single breath-hold, as explained in previous papers [1114]. The performance of this 3D-cine sequence has until now not been evaluated in a clinical setting [15, 16]. Furthermore, most authors used two breath-holds to have the volume dataset acquired available for analysis; they performed the second breath-hold to acquire the “training dataset” [16, 17].

We set a true single breath-hold 3D sequence, with no necessity to acquire the “training data” with a second breath-hold, and we sought to investigate the variability of LV volume and mass measurements and the time efficiency of this new single breath-hold 3D-cine sequence using a standard multiple breath-hold 2D-cine sequence as reference.

Materials and methods

Patient population

Forty-eight patients, who were referred for MRI assessment of LV function for different indications, were prospectively enrolled for the study. Exclusion criteria for MRI were the standard absolute and relative contraindications for MRI: patients with claustrophobia, pace-maker and other MRI-incompatible devices were not considered for this study [18]. The inclusion criterion was the ability to perform a breath-hold of at least 18 s. The study was approved by the local Ethics Committee and all patients gave informed consent.

MRI data

All imaging was performed in the Tertiary Referral Hospital (Parma, Italy), using a 1.5-T MRI (Achieva, Philips Medical Systems, Best, The Netherlands) with: maximum gradient strength 66 mT/m, maximum slew rate 180 mT/m × ms, maximum gradient strength during cine-cardiac MRI acquisition 33 mT/m, and maximum slew rate during cine-cardiac MRI acquisition 180 mT/m × ms. Five-element synergy cardiac coil and vector electrocardiography were used for signal detection and cardiac gating. One experienced operator (3 years’ cardiac MRI) performed all the examinations. After initial scout imaging and reference acquisition, both the 2D b-SSFP (2D-cine) and the 3D b-SSFP k-t BLAST (3D-cine) sequences were acquired on the short axis plane covering the entire left ventricle. The imaging parameters for 2D and 3D sequences are listed in Table 1.

Table 1 Sequence parameters

We used a retrospective gated sequence for 2D-cine and a gated sequence for 3D-cine because software constraints did not permit a true retrospective gating.

Data analysis

Two experienced observers (3 and 4 years’ cardiac MRI) analysed images with an off-line post-processing workstation (ViewForum release 4.2, Philips Medical System). First, a visual evaluation was performed on each volume dataset distinguishing reportable and non-reportable datasets. Next, the end-diastolic and end-systolic phases were identified; the first image of the cardiac cycle (0%) was considered to be end-diastolic, whereas the image with the smallest LV cavity was considered to be end-systolic; then both the endocardial and epicardial contours were manually traced on the short-axis views on end-diastolic phase images, endocardial borders were “propagated” thanks to the software on end-systolic phase images and finally manual correction of contours was performed by the operators. On end-diastolic and end-systolic phase images, the first section of the LV with a visible lumen was defined as the apex, whereas the base was defined as the most basal section surrounded by at least 50% myocardium. Papillary muscles and trabeculations in the LV cavity were included in the LV volume as previously described [19]. One observer analysed images a second time to assess the intra-observer variability.

Cardiac functional parameters were evaluated in both 2D-cine and 3D-cine sequences (Fig. 1). In particular, end-diastolic volume (EDV), end-systolic volume (ESV), LV ejection fraction (EF), stroke volume (SV) and end-diastolic wall mass of the left ventricle (ED wall mass). We reported the acquisition time and the evaluation time for each patient and for each sequence. Acquisition time for 2D cine multiple breath-holds was reported as “effective acquisition time”, where the effective acquisition time was calculated taking into account the “recovery time” between the single breath-holds. We also calculated the temporal resolution obtained with 2D-cine and 3D-cine sequences for each patient: temporal resolution was calculated by dividing the R-R interval for the number of phases inherent to each type of sequence.

Fig. 1a–d
figure 1

Examples of 2D and 3D sequences. The figure shows the same patient studied with the two different sequences. In a and b the 2D- and 3D-sequences are displayed in the ARGUS (Siemens, Germany) platform before the quantitative assessment. In c and d, the 2D and 3D sequence are displayed during the contour detection in the end-diastolic phase, respectively

Statistical analysis

The 2D-cine sequence was used as the reference standard. The performance of 2D-cine and 3D-cine were compared using the paired Student’s t-test and a p < 0.05 was defined as statistically significant. Correlations between EDV, ESV, LV EF, and LV ED wall mass between the two sequences were assessed using Pearson’s correlation analysis. Agreement on the LV parameters between 2D and 3D sequences were assessed using Bland-Altman analysis.

The time-efficiency differences were made using the paired Student’s t-test and a p < 0.05 was defined as statistically significant.

Statistical analysis exploring the impact of intra- and inter-observer variability was performed using the same methodology.


Of the enrolled population (48 patients) undergoing 2D-cine and 3D-cine sequences, 46 patients had visually optimal image quality, and we had to exclude two patients because of blurring artefacts. The population’s characteristics are summarised in Table 2. All calculated parameters with the two sequences showed significant differences (p < 0.05). In particular, we observed an under-estimation of EDV (129 ± 44 ml vs 134 ± 49 ml, p < 0.05) and over-estimation of the ESV (77 ± 44 ml vs 73 ± 50 ml, p < 0.05) in 3D-cine. This resulted in an under-estimation of EF (43 ± 15% vs 48 ± 15% with p < 0.01), SV (52 ± 19 ml vs 60 ± 21 ml with p < 0.05) and CO (3.3 ± 1.3 ml vs 3.9 ± 1.3 ml with p < 0.05) in 3D-cine. Despite the differences, an excellent correlation was found between measurements, in particular for EF (r = 0.99; Table 3). Bland-Altman analysis on LV functional parameters between 2D-cine and 3D-cine sequences, using limits of agreement (±1.96 SDs from the mean difference), showed good results. The mean difference for the EF was 5% (limits of agreement 2.7–7.6%; Fig. 2).

Table 2 Baseline characteristics
Table 3 Comparison of global LV parameters calculated with 2D and 3D k-t BLAST sequences. Parameters are expressed as mean ± SD; p value Student’s paired test; r value Pearson’s correlation; 95% LA limits of agreement with Bland-Altman analysis

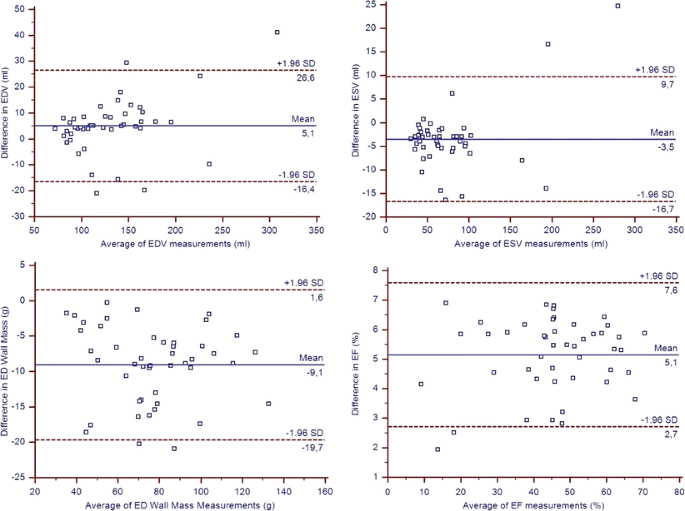

Fig. 2
figure 2

Bland-Altman plots. A good agreement was found for EDV and ESV; a dispersion of measurement was found for the EF and the ED wall mass

Time-efficiency was calculated taking into account the effective acquisition time and reporting time. Total imaging time was significantly shorter for 3D-cine than for multiple 2D-cine (18 ± 1 s vs 95 ± 23 s with p < 0.05). The average heart rate was not significantly different during 3D-cine and 2D-cine sequences (65 ± 13 bpm vs 66 ± 13 bpm with p = 0.50) and sequence-related temporal resolution was significantly lower in 3D acquisition (59 ± 11 ms vs 32 ± 6 ms with p < 0.0001). However, reporting time was significantly longer for the 3D-cine sequence (29 ± 7 min vs 8 ± 3 min with p < 0.05). Intra- and inter-observer variability was within expected ranges (Table 4) [9, 20].

Table 4 Intra- and inter-observer variability and the comparison between 2D and 3D k-t BLAST in terms of global LV volume parameters and reporting time. Parameters are expressed as mean ± SD; p value Student’s paired test; r value Pearson’s correlation; 95% LA limits of agreement with Bland-Altman analysis


MRI 2D-cine b-SSFP sequences are considered the reference standard for the assessment of LV volumes and mass [21]. The idea of a single breath-hold MR sequence is appealing because it may reduce inaccuracies introduced by prolonged multiple breath-holds, such as slice mis-registration, but it requires speeding up image acquisition.

In cardiac imaging, acquisition speed has always been of primary importance; during the past few years several tricks have been used with this aim; in the beginning, speed improvement was achieved thanks to gradient hardware but a further improvement has been limited by physiological constraints such as peripheral nerve stimulation. Thanks to the parallel imaging (such as SENSE and SMASH), using information from multiple receiver coils, it has been possible to reconstruct images from a sparsely sampled set of data recovering the missed information by exploiting the differences in signals detected by multiple receiver coils [21]. In clinical practice with parallel imaging, a maximum acceleration factor of two can be achieved, and it is not possible to further increase it without decreasing the signal-to-noise ratio. To further improve the acquisition speed, undersampling techniques, operating in the temporal domain, have been developed, such as k-t BLAST, which can easily handle a fourfold acceleration factor. This new approach is based on the fact that image frames are only slightly different if acquired at different time points; by identifying the redundant information among the image frames, only the novel portions of the images need to be acquired, thus reducing the total amount of sampled information [21].

We evaluated a recently introduced volumetric sequence (i.e. 3D k-t BLAST) allowing single breath-hold functional assessment of the left ventricle.

Correlation and reproducibility of parameters were optimal. However, all measurements of the major cardiac indexes were significantly different (p < 0.05); differences may be explained as follows.

First, there are some intrinsic constraints in the software and hardware that do not permit the implementation of a true retrospective gating with 3D-cine sequence on commercially available systems, as extensively explained in a previous technical paper [16]. We think that even if our sequence parameters were optimally set, we may still not have been able to acquire the correct end-diastolic phase during acquisition and therefore it was not available for image analysis; this problem is highlighted by the constant underestimation of EDV assessed with the 3D-cine sequence compared with the 2D-cine sequence; this observation is in agreement with previous studies [14]. This observation may also explain the overestimation of the ED wall mass by the 3D-cine sequence. LV myocardium may have been evaluated when incompletely relaxed, producing an overestimation of ED wall mass.

Second, we found a constant overestimation of ESV with 3D-cine. The explanation may be related to the lower temporal resolution of 3D-cine, which reduces the accuracy in the selection of the proper end-systolic phase compared with the 2D-cine sequence; this is in agreement with previous studies exploring the impact of sequences with low temporal resolution [22].

Despite significant differences in the absolute values, the over- and under-estimation of LV volumes appeared systematic, resulting in a good correlation between functional parameters.

The most useful LV parameter is arguably the LV ejection fraction. The mean difference in the calculated EF between 3D-cine and 2D-cine was 5%, with relatively low limits of agreement. Our results suggests that the 3D-cine sequence may be used to obtain useful LV EF measurements in a single breath-hold in patients for whom shorter imaging time is desirable, taking into account both systematic bias and that follow-up studies should be performed with same technique. Anyway, in the future, implementation of a truly retrospectively gated 3D sequence is expected to overcome even the systematic bias encountered.

In order to perform a complete LV volumetric quantification, the 3D-cine sequence was more time consuming despite the shorter imaging time; this was because 3D-cine sequences (5-mm slice thickness and no gap) generate more slices to be analysed than 2D-cine sequences (8-mm slice thickness and 2-mm slice gap).


Three-dimensional sequence analysis could benefit from using a 3D analysis tool which permits the valvular and apex contours to be traced in long-axis views to better delineate endo- and epi-cardial borders at these levels; however, this tool was not yet available in our institute and therefore we did not use it.


The parameters assessed in the 3D k-t BLAST cine b-SSFP sequence showed significant difference but excellent correlation and good agreement compared with the current 2D-cine sequence. This sequence may be an alternative technique for evaluating LV EF in patients for whom shorter imaging times are desirable.


  1. Pfeffer MA, Braunwald E, Moye LA et al (1992) Effect of captopril on mortality and morbidity in patients with left ventricular dysfunction after myocardial infarction. Results of the survival and ventricular enlargement trial. The SAVE Investigators. N Engl J Med 327:669–677

    Article  PubMed  CAS  Google Scholar

  2. White HD, Norris RM, Brown MA, Brandt PW, Whitlock RM, Wild CJ (1987) Left ventricular end-systolic volume as the major determinant of survival after recovery from myocardial infarction. Circulation 76:44–51

    Article  PubMed  CAS  Google Scholar

  3. Koren MJ, Devereux RB, Casale PN et al (1991) Relation of left ventricular mass and geometry to morbidity and mortality in uncomplicated essential hypertension. Ann Intern Med 114:345–352

    Article  PubMed  CAS  Google Scholar

  4. Alfakih K, Plein S, Thiele H et al (2003) Normal human left and right ventricular dimensions for MRI as assessed by turbo gradient echo and steady-state free precession imaging sequences. J Magn Reson Imaging 17:323–329

    Article  PubMed  Google Scholar

  5. Thiele H, Nagel E, Paetsch I et al (2001) Functional cardiac MR imaging with steady-state free precession (SSFP) significantly improves endocardial border delineation without contrast agents. J Magn Reson Imaging 14:362–367

    Article  PubMed  CAS  Google Scholar

  6. Bellenger NG, Davies LC et al (2000) Reduction in sample size for studies of remodeling in heart failure by the use of cardiovascular magnetic resonance. J Cardiovasc Magn Reson 2(4):271–278

    Article  PubMed  CAS  Google Scholar

  7. Plein S, Bloomer TN, Ridgway JP et al (2001) Steady-state free precession magnetic resonance imaging of the heart: comparison with segmented k-space gradient-echo imaging. J Magn Reson Imaging 14:230–236

    Article  PubMed  CAS  Google Scholar

  8. Barkhausen J, Ruehm SG, Goyen M et al (2001) MR evaluation of ventricular function: true fast imaging with steady-state precession versus fast low-angle shot cine MR imaging: feasibility study. Radiology 219:264–269

    Article  PubMed  CAS  Google Scholar

  9. Moon JC, Lorenz CH, Francis JM et al (2002) Breath-hold FLASH and FISP cardiovascular MR imaging: left ventricular volume differences and reproducibility. Radiology 223:789–797

    Article  PubMed  Google Scholar

  10. Kaus MR, von Berg J, Weese J et al (2004) Automated segmentation of the left ventricle in cardiac MRI. Med Image Anal 8:245–254

    Article  PubMed  Google Scholar

  11. Peters DC, Ennis DB, Rohatgi P et al (2004) 3D breath-held cardiac function with projection reconstruction in steady state free precession validated using 2D cine MRI. J Magn Reson Imaging 20:411–416

    Article  PubMed  PubMed Central  Google Scholar

  12. Uribe S, Tangchaoren T, Parish V et al (2008) Volumetric cardiac quantification by using 3D dual-phase whole-heart MR imaging. Radiology 248:606–614

    Article  PubMed  Google Scholar

  13. Mascarenhas NB, Muthupillai R, Cheong B et al (2006) Fast 3D cine steady-state free precession imaging with sensitivity encoding for assessment of left ventricular function in a single breath-hold. AJR Am J Roentgenol 187:1235–1239

    Article  PubMed  Google Scholar

  14. Amano Y, Suzuki Y, van Cauteren M (2008) Evaluation of global cardiac functional parameters using single-breath-hold three-dimensional cine steady-state free precession MR imaging with two types of speed-up techniques: comparison with two-dimensional cine imaging. Comput Med Imaging Graph 32:61–66

    Article  PubMed  Google Scholar

  15. Greil GF, Germann S, Kozerke S et al (2008) Assessment of left ventricular volumes and mass with fast 3D cine steady-state free precession k-t space broad-use linear acquisition speed-up technique (k-t BLAST). J Magn Reson Imaging 27:510–515

    Article  PubMed  Google Scholar

  16. Tsao J, Boesiger P, Pruessmann KP (2003) k-t BLAST and k-t SENSE: dynamic MRI with high frame rate exploiting spatiotemporal correlations. Magn Reson Med 50:1031–1042

    Article  PubMed  Google Scholar

  17. Jahnke C, Nagel E et al (2007) Four-dimensional single breathhold magnetic resonance imaging using kt-BLAST enables reliable assessment of left- and right-ventricular volumes and mass. J Magn Reson Imaging 25:737–742

    Article  PubMed  Google Scholar

  18. Ahmed S, Shellock FG (2001) Magnetic resonance imaging safety: implications for cardiovascular patients. J Cardiovasc Magn Reson 3:171–182

    Article  PubMed  CAS  Google Scholar

  19. Papavassiliu T, Kuhl HP, Schroder M et al (2005) Effect of endocardial trabeculae on left ventricular measurements and measurement reproducibility at cardiovascular MR imaging. Radiology 236:57–64

    Article  PubMed  Google Scholar

  20. van Geuns RJ, Baks T, Gronenschild EH et al (2006) Automatic quantitative left ventricular analysis of cine MR images by using three-dimensional information for contour detection. Radiology 240:215–221

    Article  PubMed  Google Scholar

  21. Kozerke S, Tsao J (2004) Reduced data acquisition methods in cardiac imaging. Top Magn Reson Imaging 15:161–168

    Article  PubMed  Google Scholar

  22. Miller S, Simonetti OP, Carr J et al (2002) MR Imaging of the heart with cine true fast imaging with steady-state precession: influence of spatial and temporal resolutions on left ventricular functional parameters. Radiology 223:263–269

    Article  PubMed  Google Scholar
