A holistic approach to implementing artificial intelligence in radiology

Abstract

Objective

Despite the widespread recognition of the importance of artificial intelligence (AI) in healthcare, its implementation is often limited. This article aims to address this implementation gap by presenting insights from an in-depth case study of an organisation that approached AI implementation with a holistic approach.

Materials and methods

We conducted a longitudinal, qualitative case study of the implementation of AI in radiology at a large academic medical centre in the Netherlands for three years. Collected data consists of 43 days of work observations, 30 meeting observations, 18 interviews and 41 relevant documents. Abductive reasoning was used for systematic data analysis, which revealed three change initiative themes responding to specific AI implementation challenges.

Results

This study identifies challenges of implementing AI in radiology at different levels and proposes a holistic approach to tackle those challenges. At the technology level, there is the issue of multiple narrow AI applications with no standard use interface; at the workflow level, AI results allow limited interaction with radiologists; at the people and organisational level, there are divergent expectations and limited experience with AI. The case of Southern illustrates that organisations can reap more benefits from AI implementation by investing in long-term initiatives that holistically align both social and technological aspects of clinical practice.

Conclusion

This study highlights the importance of a holistic approach to AI implementation that addresses challenges spanning technology, workflow, and organisational levels. Aligning change initiatives between these different levels has proven to be important to facilitate wide-scale implementation of AI in clinical practice.

Critical relevance statement

Adoption of artificial intelligence is crucial for future-ready radiological care. This case study highlights the importance of a holistic approach that addresses technological, workflow, and organisational aspects, offering practical insights and solutions to facilitate successful AI adoption in clinical practice.

Key points

1. Practical and actionable insights into successful AI implementation in radiology are lacking.

2. Aligning technology, workflow, organisational aspects is crucial for a successful AI implementation

3. Holistic approach aids organisations to create sustainable value through AI implementation.

Graphical Abstract

Objectives

Recent years have seen an upsurge of interest in artificial Intelligence (AI), especially deep learning (DL), for radiology [1]. More than half of CE-marked medical AI devices between 2015 and 2020 were targeted for use in radiology [2], and the number of participating AI companies nearly doubled in RSNA 2019 compared to the year before [3]. Nevertheless, the adoption of AI applications in clinical practice remains limited [4,5,6,7,8].

Studies have shown that the implementation of AI in healthcare, particularly in radiology, faces several challenges spanning technological, workflow and organisational levels. These challenges include the complexity of IT infrastructure [6], the lack of automated data routing and processing [5], limited infrastructure to deploy and scale narrow AI applications [8] and the poor definition of clinical use cases [4]. Additionally, different stakeholders including clinicians and managers have limited knowledge on how to optimally deploy AI [9, 10].

Despite the widespread recognition that overcoming these challenges is key to implementing AI in clinical practice, few efforts have been made to capture how organisations navigate these challenges in practice, especially through a holistic approach. The purpose of this article is to discuss lessons learned from an in-depth case study of one such pioneering organisation and provide applicable insights for organisations seeking to implement AI. In this paper, our focus lies primarily on the application of AI in radiology; however, it is important to note that the holistic approach and its associated lessons are relevant beyond this specific field. We show how an organisation navigated concrete challenges around AI implementation preemptively and with what results. We conclude by providing an overview of the lessons learned for other organisations towards a holistic AI implementation.

Methods

We performed a longitudinal, qualitative case study to investigate the implementation and deployment of AI applications in radiology in a real-life context [11]. Based on detailed empirical observations, we aimed to develop transferable insights for informing actions in comparable organisational contexts [12, 13]. We selected our research site to be Southern (pseudonym), a large academic medical centre in the Netherlands, because it provided a rich case where the phenomenon of interest is easily observable [14]. Given the scale and scope of its AI-related initiatives (more than 15 ongoing AI implementation projects), Southern qualified as a pioneering case for AI implementation in healthcare within the European context.

Between November 2019 and September 2022, the first author conducted work observations over 43 non-consecutive days, 30 meeting observations, 18 interviews and collected 41 documents that were analysed for this study (see Table 1). To ensure validity in our data, we triangulated both data collection methods and data sources [15].

Table 1 Overview of collected data

We systematically analysed our data in three steps following abductive reasoning [16], as described in Table 2. First, we coded concrete change initiatives related to AI implementation at Southern. Next, we coded unique challenges around AI implementation, which were observed at Southern as well as recognised in the literature on AI in radiology. Then, we related the two and removed change initiatives that did not respond to specific AI implementation challenges. The analysis resulted in three themes that span technology, workflow and organisational levels and structure the change initiatives, which are presented in Table 3.

Table 2 Data analysis steps

Table 3 Overview of challenges around AI implementation, change initiatives at Southern and learnings based on performed case study

We provide an overview of the AI applications implemented in the radiology department at Southern in Table 4. The table provides a detailed breakdown of each application, including an evaluation of its impact on clinical practice. It shows the wide range and variety of AI applications in Southern, their adoption stage and observed (or potential) impact on clinical practice.

Table 4 Overview of integrated AI applications in Southern

Results

In this section, we present our results following the structure of Table 3. We review the unique challenges that Southern faced in its attempt to implement AI and how Southern responded to these challenges with concrete change initiatives.

Technology level: scalable and seamless AI implementation

Because current AI applications have narrow functionality, capable of performing specific functions on specific types of data [7], organisations need to orchestrate the combined use of multiple AI applications [8]. Considering this challenge, Southern implemented a hospital-level vendor-neutral AI (VNAI) platform, which enables the upscaling and streamlining of AI implementations and clinical use. For radiology AI applications, the VNAI uses metadata (e.g. imaging modality, scanning protocol, patient age cut-off) of acquired scans and automatically routes eligible data to relevant AI applications for processing as presented in Fig. 1. This way, it can orchestrate the simultaneous use of multiple AI algorithms in the desired sequence, thereby ensuring a workflow-centric AI implementation without the radiologist experiencing workflow disruptions: “I know that all too often, data generated by AI may not be available on the work floor at the right time. That is essential before they can add value.” (Radiologist L).

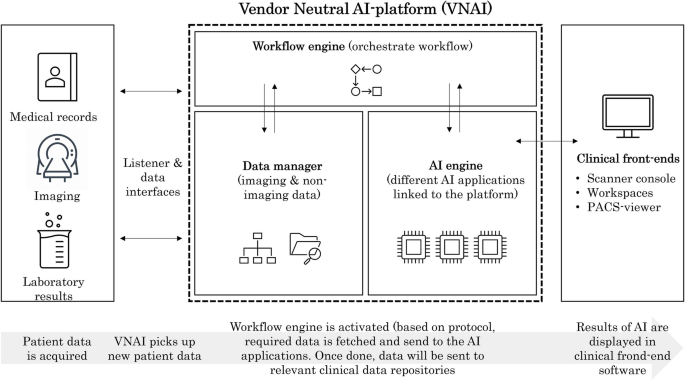

Fig. 1

Hospital-level vendor-neutral AI (VNAI) platform towards a scalable and seamless AI implementation

Another challenge in the current AI landscape is that organisations need to work with multiple vendors, each providing a narrow AI application, which results in considerable overhead costs [17]. The VNAI helps here too by centralising security review, contractual issues, and technical installation of multiple AI projects. It acts as a centralised data processor for all AI applications hosted on the platform, reducing the need for privacy and data security paperwork with individual AI vendors. In this manner, an overarching and fortified regulatory framework is established for all AI projects, consequently yielding faster and less costly AI implementation. To illustrate, the VNAI expedited implementing AI applications to a couple of months, whereas before the VNAI, implementing stand-alone AI applications with individual AI vendors took over a year, especially due to the lengthy process of drafting and signing legal and contractual documents. Additionally, the VNAI only hosts certified AI applications, allowing Southern to quickly instal and test credible AI applications that can be used in clinical practice. In addition, Southern recently moved from an on-premise VNAI to a cloud-based VNAI to facilitate future software upgrades and to shift maintenance work to the VNAI provider, thereby further reducing overhead costs.

Lastly, the lack of standard user interfaces to integrate AI results into clinical front-end software further challenges the implementation and deployment of AI in clinical practice. Suboptimal AI integration diminishes the added value of AI and hinders easy utilisation by end-users [4, 17, 18]. To tackle this challenge, Southern prioritised seamless integration of AI applications into their clinical front-end software (e.g. PACS viewer), allowing clinicians to seamlessly access and view AI results in their viewer with minimum additional clicks. This reduces workflow disruptions, freeing clinicians from having to fire up separate software and switch between interfaces. Whilst a superficial URL integration, which fires up a separate web browser with AI results, would result in a quicker integration of any individual AI application, managers and clinicians at Southern were adamant that it was not scalable nor sustainable. Thus, they pushed for seamless integration of AI into clinical front-end software as a prerequisite for their clinical use. This was done through co-creation with AI vendors to get specific AI outputs and through configuration of APIs of existing clinical front-end software applications (e.g. PACS and other advanced image viewers).

Figure 2 summarises the evolution of AI projects within the radiology department of Southern. Southern started exploring various AI applications in 2018. Several projects stayed for a whilst in the development and validation phase in 2019 and 2020. However, after the VNAI became available in 2020, multiple projects accelerated and resulted in the first implementation of AI in clinical practice. The acceleration, although for the significant part, was not entirely due to the VNAI, and it should be noted that multiple internal and external factors were at play, such as availability of resources from AI vendors, IT infrastructure and knowledge on legal and ethical issues.

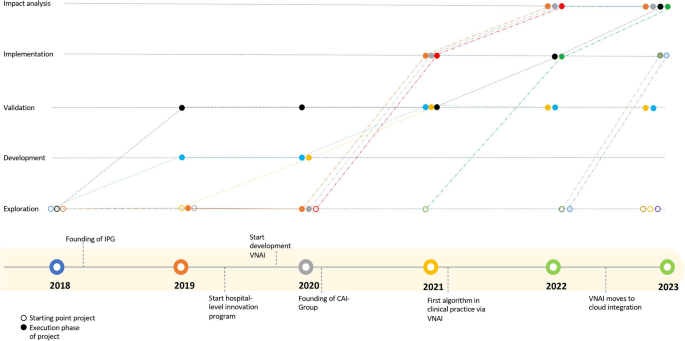

Fig. 2

Overview of progress of AI projects over time. Open dots represent the starting point of the project, whereas solid dots represent the progress of the projects over time. Important events are presented on the timeline at the bottom of the figure

Workflow level: value-centric AI implementation

Because there is no guideline regarding how best to implement AI into clinical workflows, their use in clinical practice shows significant variations [4, 17, 18]. As a result, organisations struggle to establish empirical evidence on the value of AI applications. Managers at Southern knew that to tackle this challenge, AI applications needed to be used in a standardised, consistent manner: “Although costing a fortune, image analysis tools were not being used in a consistent manner.” (chairman, department of radiology). To this end, Southern established the Image Processing Group (IPG, pseudonym) inside the radiology department in 2018 as a central hub for technology deployment and integration. In the IPG, nine radiographers and two technical physicians deploy and integrate advanced technologies including, but not limited to, AI. Using technology, radiographers analyse radiological images and pre-populate radiological reports before radiologists report on the case. In doing so, they apply technology in a structured and standardised manner through the use of detailed protocols. The IPG further realises value from technology by not merely using technology but reorganising work around it and shifting tasks from radiologists to radiographers. Lastly, the IPG also fosters technology expertise by being a central hub for technology use: “We have more knowledge on [image analysis software] to make quick changes. What would take me just a couple of minutes, the radiologist needs to turn on the program, figure out where the tool is, how to use it, etc.” (IPG radiographer).

Meanwhile, unlike other software, AI applications are trained on specific datasets. Hence, their performance can vary when the training data and the local data it is being applied to are different (e.g. patient population, prevalence of pathologies) [20]. To tackle this challenge, the two technical physicians in the IPG play an important role of locally validating the algorithms, measuring their performance metrics such as accuracy, precision and continuously evaluating their performance over time. Furthermore, they communicate the wishes of clinicians to AI vendors and are responsible for the seamless integration of AI in the clinical workflow. For instance, they collaborated with the AI vendor to perform a retrospective analysis on over 15,000 chest X-rays from Southern to validate an AI application providing normal/abnormal detection on chest X-rays, which was developed in a different country. After the successful retrospective analysis of the algorithm together with the vendor, they created a dashboard to automatically analyse findings from radiology reports and compare them to the AI results. The dashboard enables managers to monitor AI results and enables radiologists to control the quality of their work. Throughout this process, the IPG technical physicians’ multidisciplinary background in medicine and engineering facilitated the coordination and collaboration of stakeholders within and beyond Southern.

Finally, current AI applications have limited ability to interact with radiologists and receive their feedback real-time [7]. To tackle this challenge, radiologists at Southern demanded modifiable AI results so that they can have more control over radiological reports. Making AI results modifiable usually requires the interface of multiple software packages to communicate, such as the PACS viewer and the AI software. Since software interfaces usually have different communication standards and implementations, managing such communication requires an intensive and prolonged collaboration with the vendors of all software packages. To illustrate, in 2021, Southern implemented an AI application which detects and quantifies lung nodules on CT scans in 2021. Initially, the AI results were presented in a PDF file in PACS, with findings that were fixed. To make AI results modifiable, Southern collaborated with both the AI and PACS vendors and used existing application programming interfaces (APIs) to enable an accept/reject module to be used as well as to adjust measurement in the PACS viewer. Although this delayed the integration by several months, radiologists were more convinced of the value that the AI application adds to their work and, as a result, more eager to use the AI application.

People and organisation level: continuous learning from AI implementation

Radiologists have diverging expectations of the benefits and risks that AI can bring to their work [19], partly due to having limited experience with AI in clinical practice: “there were a lot of talks, a lot of presentations going on about AI, but in practice, you never get in touch with AI.” (radiology resident). To help radiologists and other clinicians with limited experience select and invest in the right AI projects, Southern established the Clinical AI Implementation Group (CAI Group, pseudonym) in 2020. When those interested in AI projects submit their proposal, data scientists, legal and ethical experts and clinicians in the CAI Group altogether assess the viability of the proposal, if there are enough resources and if there is concrete value added from using AI. More fundamentally, it is assessed whether AI is required to solve the clinical question in the first place or if other technology can answer the question as well. The CAI Group also provides clinicians with a comprehensive and concrete checklist for the entire AI cycle, including guidelines on privacy considerations and handling of ethical issues.

Additionally, the CAI Group fostered learning among radiologists and other clinicians and prevented them from reinventing the wheel. It actively disseminates lessons learned from various AI projects through multiple communication channels such as blog posts, meetups and internal newsletters. Particularly, by being an umbrella organisation and affiliating diverse actors who are members of various departments, it facilitates cross-departmental communication and mobilises a broad web of knowledge and other resources across formal departments more easily: “For a trustworthy implementation of AI in clinical practice, we need to bundle hospital-wide knowledge. CAI Group is a perfect example of this. This way we can achieve our goal of scaling AI within the hospital.” (Board member of Southern).

Lastly, to streamline the implementation of AI projects, Southern established an extended network by nominating AI champions from each subspecialty in the radiology department (e.g. neuroradiology). The AI champions gather ideas on potential AI use cases from their subspecialty through internal discussions, which are centralised in the Innovation Steering Committee for further investigation and prioritisation. When a project is selected, a project team is created consisting of clinicians and IT personnel to implement and evaluate the idea gathered through a bottom-up approach. The aim is not to have one-off AI implementations but to establish a feedback loop which leads to peer-to-peer teaching and informs future decisions on AI. This streamlined procedure has resulted in radiologists bringing more realistic use cases and having grounded expectations regarding AI applications.

Discussion

In this paper, we present a holistic approach to AI implementation by drawing on the case of Southern, a large academic medical centre in the Netherlands, which successfully implemented multiple AI applications over the course of 5 years. Their success is evidenced by the broad range of AI applications already adopted or in use and their consistent integration as well as expedited process and reduced efforts for testing, validating, implementing and monitoring AI applications (see Fig. 2 and Table 4). In this section, we discuss how the change initiatives observed at Southern illustrate a holistic approach to AI implementation and derive lessons learned that can be helpful for other organisations.

With a holistic approach to implementing AI, organisations comprehensively reconsider, restructure and realign technology, workflows, people and organisational structures to create and sustain value with AI. In doing so, they go beyond the possibilities offered by the status quo, as opposed to simply inserting an AI application to legacy systems that may only temporarily improve the status quo without creating lasting value. AI implementation can be at risk of lapsing back to pre-existing states of performing medical tasks, so it is important to ensure that long-term initiatives are in place to keep the change process moving forward. The case of Southern shows that organisations can reap more benefits by investing in long-term initiatives that holistically align both social and technological aspects of clinical practice. Across all the change initiatives of Southern, we observe the following three general patterns. Firstly, efforts are centralised and stakeholders are gathered to foster an effective selection of AI projects, efficient use of AI applications, cross-departmental knowledge sharing and collaboration and expertise on technology use. Secondly, long-term investments are made in AI implementation infrastructure that standardises and automates processes to prevent recurrent (overhead) costs and reinventing the wheel. Lastly, intended end-users are included from the start so that AI implementation delivers value in everyday clinical practice. In Table 3, we summarise the results of our case study and provide more detailed lessons learned on the holistic approach to AI implementation that can be helpful to other organisations.

Limitations and future research

This research is not without limitations. Firstly, we delved into a single case to derive transferable insights that are rich in context, on a holistic approach to AI implementation. The insights and change initiatives are not aimed to be directly generalisable for different situations but transferable through concepts and lessons that can be learned about a holistic approach to AI implementation [12, 21]. Hence, although we believe that these insights could facilitate AI implementation in different organisations and help realise sustainable value from AI, readers should note that the insights and change initiatives are tuned to the specific organisational and historical context of the selected case.

Relatedly, we do not argue that the holistic approach to AI implementation is the best nor the only approach for all cases. The holistic approach is suitable for organisations with complex workflows and information systems such as tertiary medical institutions, where locally implementing AI applications can produce unforeseen problems due to misalignments between different elements interacting in the organisation. We acknowledge that a local implementation of AI may suffice, for example in organisations with uniform or parallel workflows with smaller scope of operations where implementing a limited number of AI applications can already generate significant value for the organisation. Future research could study multiple cases to investigate under which conditions local implementation of AI may suffice and where the threshold between the two approaches lies in practice.

Lastly, the financial sustainability of the proposed holistic approach to AI implementation is still a separate topic to be addressed. Whilst increasing the number of local-implementation AI applications lacks financial sustainability and scalability, the question remains as to if and when the higher (initial) investments (in both personnel and technology) required for the holistic approach will break even. Our case shows that a holistic approach, especially when data, workflow and algorithms are integrated through platforms (e.g. VNAI) can reduce the costs of validation and implementation, hence contributing to financial sustainability. We also notice that this might be a potential business model for AI companies to provide their services through these platforms, thereby reducing their costs and becoming more financially affordable for user organisations.

It is important to recognise that quantifying the precise financial impact and benefits is a complex and multifaceted issue in itself and requires dedicated research efforts. It is therefore important to note that this specific issue is beyond the scope of this paper. Hence, in addition to the socio-technical alignment addressed in this paper, future research should look into issues of financial sustainability and scalability for a truly wide-scale AI implementation to be achieved.
