Visible T1-hyperintensity of the dentate nucleus after multiple administrations of macrocyclic gadolinium-based contrast agents: yes or no?

Insights into Imaging volume 10, Article number: 82 (2019) Cite this article

Abstract

Objectives

To investigate the appearance of visible dentate nucleus (DN) T1-hyperintensity and quantify changes in DN/pons (DN/P) signal intensity (SI) ratio in MS patients after the exclusive administration of macrocyclic GBCAs.

Materials and methods

One hundred forty-nine patients with confirmed MS were evaluated. Patients received at least two administrations of gadobutrol (n = 63), gadoterate (n = 57), or both (n = 29). Two experienced neuroradiologists in consensus evaluated unenhanced T1-weighted MR images from all examinations in each patient for evidence of visible DN hyperintensity. Thereafter, SI measurements were made in the left and right DN and pons on unenhanced T1-weighted images from the first and last scans. A two-sample t test compared the DN/P SI ratios for patients with and without visible T1-hyperintensity.

Results

Visible T1-hyperintensity was observed in 42/149 (28.2%) patients (19 after gadobutrol only, 15 after gadoterate only, 8 after both), typically at the 4th or 5th follow-up exam at 3–4 years after the initial examination. Significant increases in DN/P SI ratio from first to last examination were determined for patients with visible T1-hyperintensity (0.998 ± 0.002 to 1.153 ± 0.016, p < 0.0001 for gadobutrol; 1.003 ± 0.004 to 1.110 ± 0.014, p < 0.0001 for gadoterate; 1.004 ± 0.011 to 1.163 ± 0.032, p = 0.0004 for both) but not for patients without visible T1-hyperintensity (p > 0.05; all groups).

Conclusion

Multiple injections of gadobutrol and/or gadoterate can lead to visible and quantifiable increases in DN/P SI ratio in some patients with MS.

Key points

  • Visible T1-hyperintensity of the dentate nucleus on unenhanced T1-weighted images of MS patients can occur after the exclusive administration of the macrocyclic GBCAs Dotarem and Gadovist.

  • Visible T1-hyperintensity is associated with significant increases in DN/P SI ratio.

  • 11Variation of changes in DN/P SI ration across patients suggests the appearance of visible T1-hyperintensity is a patient-specific process rather than a GBCA-specific process.

  • There is no evidence that the appearance of visible T1-hyperintensity or changes in DN/P SI ratio has any impact on patient health or safety.

Introduction

High signal intensity (SI) in the dentate nucleus (DN) and globus pallidus (GP) on unenhanced T1-weighted MR images following the cumulative administration of exclusively macrocyclic gadolinium-based contrast agents (GBCAs) is currently a source of debate and controversy. The widely held view is that visible T1-hyperintensity occurs primarily after the cumulative administration of so-called linear GBCAs rather than macrocyclic GBCAs and that the observed high T1-signal possibly reflects the release of gadolinium (Gd) from the linear chelating molecule and its subsequent retention in the brain, possibly through binding to cellular macromolecules [1,2,3,4,5,6]. Although no clinical signs or symptoms attributable to brain Gd retention have yet been observed after cumulative exposure to any GBCA, linear or macrocyclic [7,8,9,10,11], the widespread assumption is that retained Gd presumed to have been released from linear GBCAs and “visible” on unenhanced T1-weighted images potentially poses a long-term risk to human health [12] while the absence of manifest T1-signal increases with macrocyclic GBCAs is taken as indicating their inherent “safety”. A consequence of this assumption in Europe has been the suspension or restriction of certain linear GBCAs for clinical use [12].

In recent years, numerous studies have demonstrated T1-signal increases in the brain after the exclusive administration of macrocyclic GBCAs [13,14,15,16,17,18,19]. Invariably, however, these studies have been criticized and marginalized, often by the manufacturers of the GBCA in question [20,21,22,23], in part, because the images presented do not show obvious T1-hyperintensity of the DN or GP to the extent seen with linear GBCAs [20]. Unfortunately, such criticism overlooks the fact that brain Gd retention has unequivocally been demonstrated not only in myriad animal studies [24,25,26,27,28,29,30,31] but also in human brain autopsy samples after the exclusive administration of macrocyclic GBCAs [32].

Patients with relapsing-remitting multiple sclerosis (RR-MS) typically undergo frequent GBCA-enhanced MR studies as part of their routine clinical follow-up. Studies looking at T1-signal changes in the DN and/or GP of patients with RR-MS after the exclusive serial administration of macrocyclic GBCAs have yielded conflicting results. Whereas some studies have failed to observe T1-signal changes [33,34,35,36,37,38], others have noted marked quantitative changes [13, 17]. Recently, Splendiani et al. [15] reported visible T1-hyperintensity in the DN in roughly one third of patients with RR-MS who had received cumulative doses of the macrocyclic GBCAs gadobutrol and/or gadoterate. The aim of our study was to further investigate patients with RR-MS for the presence of visible signal enhancement of the DN on unenhanced T1-weighted images following multiple exposures to macrocyclic GBCAs.

Methods and materials

Patients

This single-center retrospective study was approved by the institutional review board and the need for patient informed consent was waived. We reviewed our PACS database for all patients with confirmed RR-MS who underwent two or more MRI exams exclusively at our center with the macrocyclic GBCAs gadoterate meglumine (Dotarem; Guerbet, Aulnay-sous-Bois, France) and/or gadobutrol (Gadovist; Bayer Healthcare, Berlin, Germany) between January 2005 and December 2017. Patients were included only if complete documentation regarding contrast administration (i.e., date of exam, type, and dose of GBCA administered) was available for each MRI exam. Patients were ineligible for inclusion if they had an eGFR of ≤ 60 mL/min/1.73 m2 based on a blood sample taken close to the date of the last MR examination; a history of cerebrovascular events including hemorrhage, stroke, or brain ischemia; previous cerebral neurosurgical treatments or radiation therapy; intra-axial brain tumor or other lesions such as vascular malformations located in the cerebellum or pons; a history of intracranial infection, such as meningitis or encephalitis; abnormal liver function or hepatic deficiency. Abnormal liver function was defined as the alteration of one or more of serum parameters as alanine aminotransferase, γ-glutamyl transpeptidase, or aspartate aminotransferase. Hepatic deficiency was considered an exclusion criterion as it can modify GBCA pharmacokinetics and because high signal intensity in basal ganglia on T1-weighted images is associated with hepatic cirrhosis and other forms of liver disease [39, 40].

For all included patients the age, sex, number of GBCA administrations, and accumulated dose were recorded. An estimation of the mean interval (± standard deviation) between GBCA administrations was calculated by dividing the time in weeks between the first and last MRI examinations by the total number of GBCA administrations made during that period.

MRI protocol

All MRI exams were performed on a 3 T scanner (GE Healthcare-Signa EXCITE). Axial T1-weighted spin-echo images were acquired before and after GBCA injection with repetition time (TR) = 500–588 ms, echo time (TE) = 7.7–12 ms, matrix = 256 × 256, section thickness = 4 mm, and field of view (FOV) = 250 mm. Axial T2-weighted images were acquired with TR = 4890 ms, TE = 85 ms, section thickness = 4 mm, matrix = 256 × 256 and FOV = 250 mm. Axial susceptibility weighted images (SWI) were acquired with TR/TE = 85.2/32.6 ms, a slab of 64 slices of 3 mm thickness, no gap, FOV = 220 mm, an acquisition matrix of 384 × 256, number of excitations (NEX) = 2, and a flip angle of 20°. Fluid-attenuated inversion recovery (FLAIR) and T1-weighted non-contrast sequences were used to precisely identify the DN and verify visible T1-hyperintensity after multiple contrast administrations.

All patients received a standardized dose of 0.1 mmol/kg body weight of either gadoterate or gadobutrol for each examination.

Data collection

Two neuroradiologists in consensus (AS and AC with 25 and 4 years’ experience, respectively) evaluated unenhanced T1-weighted images from each MRI examination in each patient for visible T1-hyperintensity in the DN. Patients without visible T1-hyperintensity on any image were considered negative whereas patients with clearly discernable T1-hyperintensity of the DN relative to the pons were considered positive. Full details of the visible T1-hyperintensity, including the examination in which visible T1-hyperintensity first appeared and the total GBCA dose and time interval between examinations, was recorded for each positive patient.

Thereafter, SI values were determined in operator-defined oval regions-of-interest (ROI) positioned within the DN and pons of all positive patients, as described by Kanda et al. [1]. ROIs were made as large as possible (mean size, 10 mm2; range, 6–18 mm2) on both the left and right DN with care taken to avoid pulsating vessels (if present) and rim aspects. ROIs in the central pons were adjusted as appropriate to ensure homogeneity. The left and right DN visible on T2-FLAIR images (and, if required, the SWI images) were used to guide accurate ROI positioning on the corresponding unenhanced T1-weighted images.

Statistical analysis

Unpaired t tests were performed to compare the mean DN/Pons (DN/P) SI ratio on unenhanced T1-weighted images at the last MRI examination with the DN/P SI ratio prior to the first contrast-enhanced examination. Separate analyses were performed for patients considered positive for visible T1-hyperintensity and for patients considered negative for visible T1-hyperintensity. The DN/P SI ratio for each patient was calculated after averaging the SI values in the left and right DN. Within each group, separate analyses were performed for all patients combined, for patients that received only gadoterate, for patients that received only gadobutrol, and for patients that received both gadoterate and gadobutrol during imaging follow-up. A significant change in DN/P SI ratio was considered for p < 0.05.

Results

A summary of results is presented in Table 1. A total of 149 patients with confirmed RR-MS underwent two or more MRI exams exclusively at our center with gadoterate meglumine (n = 57), gadobutrol (n = 63), or both (n = 29). These 149 patients included 107 (71.8%) for which visible T1-hyperintensity was not evident on any follow-up MRI exam and 42 (28.2%) for which visible T1-hyperintensity was noted. Highly significant (p ≤ 0.0004) quantitative differences in mean DN/P SI ratio were noted for all groups in which visible T1-hyperintensity was noted. Conversely, no significant differences in mean DN/P SI ratio were apparent in any group in which visible T1-hyperintensity was not observed.

Table 1 Summary of patients with and without visible T1-hyperintensity of the DN and changes in DN/P SI ratio
Full size table

The number of administrations per patient in each sub-group is presented in Table 2. A tendency towards a lower number of GBCA administrations per patient was noted for patients with no evidence of visible T1-hyperintensity: 43/107 (40.2%) patients without evidence of visible T1-hyperintensity received five or fewer GBCA administrations compared with only 7/42 (16.7%) patients with evidence of visible T1-hyperintensity. Typically, the first appearance of visible T1-hyperintensity in positive patients occurred at the fourth or fifth follow-up exam, between approximately 3 and 4 years after the initial MRI examination. Few differences were apparent between groups in terms of the time to appearance of the first visible hyperintensity.

Table 2 Number of GBCA administrations given to patients with and without visible T1-hyperintensity of the DN
Full size table

Examples of the T1-hyperintensity seen after the exclusive administration of gadoterate meglumine and gadobutrol are shown in Figs. 1 and 2, respectively. The increase in DN/P SI ratio from first to last MRI exam in patients with visible T1-hyperintensity is shown in Figs. 3 and 4, respectively.

Fig. 1
figure 1

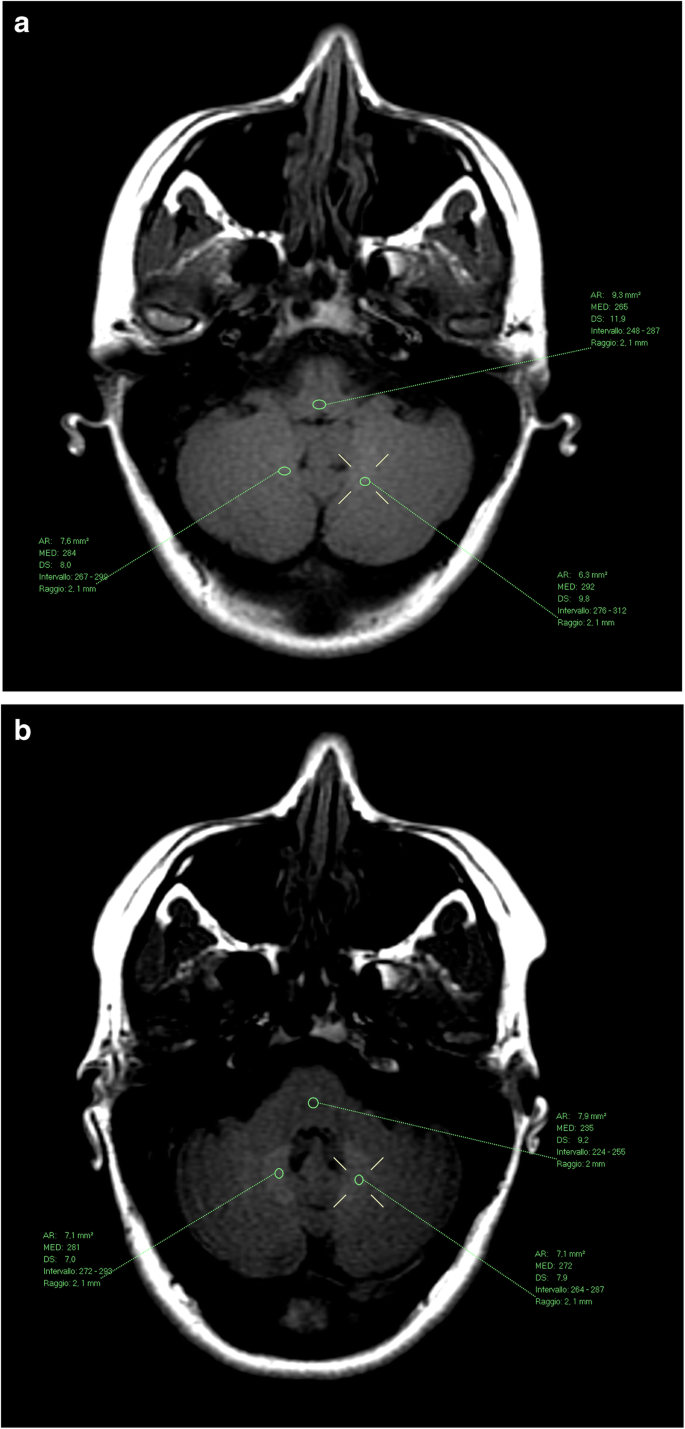

Female patient, 36 years old, before (a) and after (b) seven administrations of gadoterate meglumine. The mean DN/P SI ratio on T1wSE images increased from 1.09 at the first exam in July 2006 to 1.18 at the last exam in February 2010

Full size image
Fig. 2
figure 2

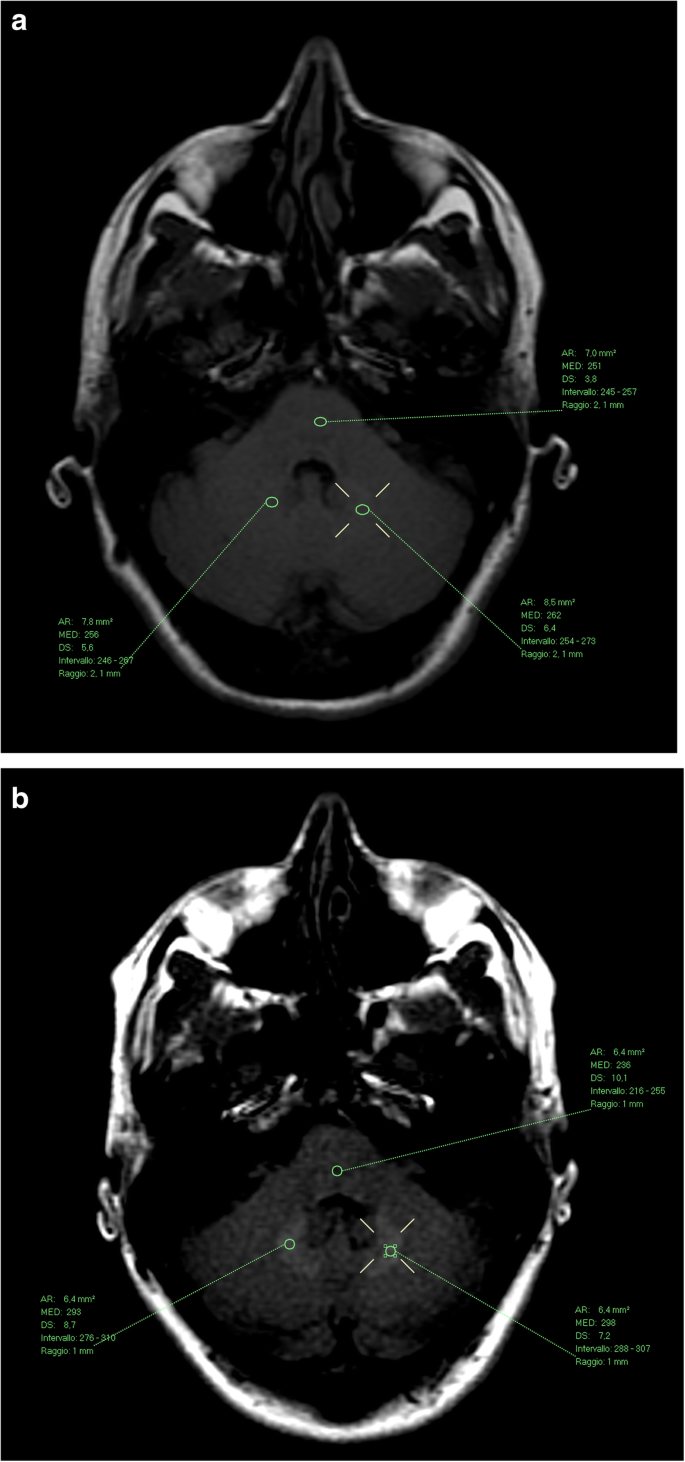

Female patient, 49 years old, before (a) and after (b) 11 administrations of gadobutrol. The mean DN/P SI ratio increased from 1.03 at the first exam in March 2006 to 1.25 at the last exam in July 2014

Full size image
Fig. 3
figure 3

First and last DN/P SI ratios for patients with visible T1-signal changes after two or more administrations of gadoterate meglumine

Full size image
Fig. 4
figure 4

First and last DN/P SI ratios for patients with visible T1-signal changes after two or more administrations of gadobutrol

Full size image

Discussion

Although numerous studies have reported quantitative changes in T1-signal in the DN and/or GP following cumulative administration of macrocyclic GBCAs [13,14,15,16,17,18,19, 41, 42], comparatively few [15, 16, 18, 42] have reported visible T1-hyperintensity. Those studies that have reported visible T1-signal changes following the administration of macrocyclic GBCAs have largely been overlooked or disregarded, even in official guidelines and recommendations [12]. The results of our study provide clear evidence that T1-signal changes can and do occur in the DN after multiple administrations of the macrocyclic GBCAs, gadobutrol and gadoterate meglumine, and that the appearance of visible T1-hyperintensity is associated with significant increases in DN/P SI ratio.

To note is that not all patients that received multiple administrations of macrocyclic GBCAs demonstrated visible T1-hyperintensity. In common with the findings of many previous studies [3,4,5,6], 107/149 (71.8%) patients showed no evidence of visible hyperintensity, even after as many as 20 GBCA administrations. However, it should be noted that patients that demonstrated no signs of visible T1-hyperintensity tended to have received fewer GBCA administrations overall. The appearance of visible T1-hyperintensity in our cohort tended to occur at the 4th or 5th MRI examination whereas approximately 40% of patients negative for visible T1-hyperintensity received five or fewer MRI examinations. It is unclear why some patients demonstrated clear visible T1-hyperintensity of the DN while others did not. Likewise, it is unclear why the relative change in DN/P SI ratio from first to last GBCA administration differed across patients in terms of both magnitude and time course or why the appearance of visible T1-hyperintensity in the DN showed no obvious correlation with quantitative DN/P SI ratio. A recent study by Moreno et al. [18] in melanoma patients referred for serial follow-up gadobutrol-enhanced MRI similarly revealed visible T1-hyperintensity in some, but not all, patients without any association between the DN/P SI ratio and the dose administered or the number of MR examinations. In common with our study, Moreno et al. [18] found a significantly (p = 0.024) higher DN/P SI ratio in patients with visible DN T1-hyperintensity than in patients without visible T1-hyperintensity. Other authors have similarly revealed differences over time in terms of DN/P SI ratio with marked differences across patients in terms of the magnitude of changes [43].

Importantly, none of the patients in our cohort had hepatic deficiency or other clinical issues which might explain a differential appearance of DN T1-hyperintensity and none had had previous cerebral neurosurgical treatments or radiation therapy which might explain the appearance of T1-hyperintensity [39, 40, 44,45,46]. Furthermore, there were no relevant differences between SI measurements in the left and right DN of each patient that might suggest a direct association with MS disease progression. On the other hand, MS is a progressive neurodegenerative disease for which patients undergo frequent follow-up MRI examinations and for which disease progression is a potential confounding variable [8]. An early study reported more frequent T1-hyperintensity of the DN in patients with secondary-progressive MS than in patients with primary progressive disease (46% versus 8%, respectively) and found that this correlated with a higher score on the Expanded Disability Status Scale (EDSS), a higher brain lesion load, and greater tissue loss [47]. However, whereas contrast-enhanced T1-weighted images were acquired with either gadoterate or gadodiamide (Omniscan, GE Healthcare) no information was provided on prior GBCA administrations, so it is difficult to determine whether the observed T1-hyperintensity reflected differences in the stage/extent of disease or differences in the amount/type of GBCA administered. Although some studies [48, 49] have looked to correlate T1-hyperintensity of the DN in patients with MS with loss of verbal fluency and cognition, it is difficult to separate a hypothetic effect of Gd retention from the normal effects of MS progression, especially given the difficulties in finding a matched MS group not exposed to any GBCA. Recent studies by Cocozza et al. [9] and Ackermans et al. [10] suggest that MRI features suggestive of Gd retention do not correlate with EDSS worsening in patients with MS. These findings are supported by studies that have shown no effects of DN T1-hyperintensity on DN tissue integrity [11, 50, 51].

Our findings support those of Stojanov et al. [13] and Splendiani et al. [15] in showing significant increases in DN/P SI ratio following the cumulative administration of macrocyclic GBCAs in patients with RR-MS. Conversely, they are at variance with the findings of others [33,34,35,36,37,38]. The clear disparity in study findings between research groups highlights the complexity of the issues at hand and the need for carefully controlled large-scale studies to investigate the processes underlying T1-signal changes in these patients. Studies are needed to ascertain whether T1-hyperintensity in the DN is in fact indicative of Gd retention or whether it represents some other process specific to MS and/or other diseases. In the absence of histologic verification of Gd retention, no conclusions can be made as to the processes underlying the T1-signal changes observed in our patient cohort. However, this is the same for all studies that focus solely on observations from imaging studies.

The strength of our study lies in the fact that all patients received only macrocyclic GBCAs and that imaging was performed in a carefully monitored manner exclusively at our center. Therefore, the possibility that patients with visible T1-hyperintensity could have received prior administrations of certain linear GBCAs that are more widely associated with T1-signal changes in the DN can be excluded. Secondly, images from all patients that received at least two macrocyclic GBCA administrations were carefully assessed for visible T1-hyperintensity by two neuroradiologists in consensus. Prior studies to evaluate T1-signal changes have frequently limited the number of patients to a convenient round number (e.g., n = 50 [6]), restricted patient inclusion to only those that received a minimum number of GBCA administrations (e.g., n = 6), and cited SI values determined by just a solitary reader. Our approach avoided any form of selection bias and was based solely on the visual appearance of the DN relative to the pons. Our approach therefore more typically reflects the assessment process routinely undertaken in clinical practice. Finally, our study included patients with RR-MS evaluated exclusively at our center over an extended period (approximately 13 years). Other studies have drawn conclusions based on very few evaluated patients imaged over a relatively short time frame [37].

A limitation of our study is the absence of an age-matched control group of MS patients that had never been exposed to any GBCA. However, such patients would be extremely difficult to find given that contrast-enhanced MRI is one of the principal imaging techniques for MS patients, both for initial diagnosis and follow-up. A second limitation is that we did not quantify the DN/P SI ratio at every follow-up exam and thus were unable to detail a time course for T1-signal changes in individual patients. However, in quantifying changes in DN/P SI ratio from SI measurements determined prior to the first and last contrast-enhanced exam in each patient, we showed that increases in DN/P SI ratio can and do occur after both gadoterate and gadobutrol and that the changes in T1-signal are variable across patients both in terms of magnitude and time course. Unfortunately, a statistical comparison of these two GBCAs in terms of the changes observed was beyond the scope of this initial study given the relatively small number of positive patients in each group. Finally, we did not attempt to correlate the appearance of visible T1-hyperintensity with cognitive or physical disability as performed elsewhere [9, 10, 49]. Moreover, we did not look at a possible correlation with brain lesion load and tissue loss. This was considered beyond the scope of this initial investigation but should be considered for further large-scale studies in MS patients. Further research should additionally look at changes in R1 relaxation rates which are less prone to potential sources of inaccuracy.

In conclusion, we observed visible T1-hyperintensity of the DN in 42/149 (28.2%) patients with RR-MS who had received at least two administrations of gadobutrol, gadoterate, or both. The appearance of visible T1-hyperintensity correlated with significant increases in DN/P SI ratio from first to last examination.

Availability of data and materials

All data on patients with confirmed RR-MS are taken from our PACS database.

Abbreviations

DN:

Dentate nucleus

eGFR:

Estimated glomerular filtration rate

FLAIR:

Fluid-attenuated inversion recovery

FOV:

Field of view

GBCA:

Gadolinium-based contrast agent

GP:

Globus pallidus

MS:

Multiple sclerosis

NEX:

Number of excitations

P:

Pons

ROI:

Region of interest

SI:

Signal intensity

SWI:

Susceptibility weighted images

TE:

Echo time

TR:

Repetition time

References

  1. Kanda T, Ishii K, Kawaguchi H, Kitajima K, Takenaka D (2014) High signal intensity in the dentate nucleus and globus pallidus on unenhanced T1-weighted MR images: relationship with increasing cumulative dose of a gadolinium-based contrast material. Radiology 270:834–841

    Article  Google Scholar

  2. Errante Y, Cirimele V, Mallio CA, Di Lazzaro V, Zobel BB, Quattrocchi CC (2014) Progressive increase of T1 signal intensity of the dentate nucleus on unenhanced magnetic resonance images is associated with cumulative doses of intravenously administered gadodiamide in patients with normal renal function, suggesting dechelation. Invest Radiol 49:685–690

    Article  CAS  Google Scholar

  3. Kanda T, Osawa M, Oba H et al (2015) High signal intensity in dentate nucleus on unenhanced T1-weighted MR images: association with linear versus macrocyclic gadolinium chelate administration. Radiology 275:803–809

    Article  Google Scholar

  4. Radbruch A, Weberling LD, Kieslich PJ et al (2016) Intraindividual analysis of signal intensity changes in the dentate nucleus after consecutive serial applications of linear and macrocyclic gadolinium-based contrast agents. Invest Radiol 51:683–690

    Article  CAS  Google Scholar

  5. Radbruch A, Weberling LD, Kieslich PJ et al (2015) Gadolinium retention in the dentate nucleus and globus pallidus is dependent on the class of contrast agent. Radiology 275:783–791

    Article  Google Scholar

  6. Guo BJ, Yang ZL, Zhang LJ (2018) Gadolinium deposition in brain: current scientific evidence and future perspectives. Front Mol Neurosci 11:335

  7. Welk B, McArthur E, Morrow SA et al (2016) Association between gadolinium contrast exposure and the risk of parkinsonism. JAMA 316:96–98

    Article  Google Scholar

  8. Gulani V, Calamante F, Shellock FG et al (2017) Gadolinium deposition in the brain: summary of evidence and recommendations. Lancet Neurol 16:564–570

    Article  Google Scholar

  9. Cocozza S, Pontillo G, Lanzillo R et al (2019) MRI features suggestive of gadolinium retention do not correlate with expanded disability status scale worsening in multiple sclerosis. Neuroradiology 61:155–162

    Article  Google Scholar

  10. Ackermans N, Taylor C, Tam R et al (2019) Effect of different doses of gadolinium contrast agent on clinical outcomes in MS. Mult Scler J Exp Transl Clin. https://doi.org/10.1177/2055217318823796

    Article  Google Scholar

  11. Mallio CA, Piervincenzi C, Gianolio E et al (2019) Absence of dentate nucleus resting-state functional connectivity changes in nonneurological patients with gadolinium-related hyperintensity on T1-weighted images. J Magn Reson Imaging. https://doi.org/10.1002/jmri.26669

    Article  Google Scholar

  12. (2017) EMA’s final opinion confirms restrictions on use of linear gadolinium agents in body scans. Available via https://www.ema.europa.eu/documents/referral/gadolinium-article-31-referral-emas-final-opinion-confirms-restrictions-use-linear-gadoliniumagents_en.pdf. Accessed 18 Apr 2019.

  13. Stojanov DA, Aracki-Trenkic A, Vojinovic S, Benedeto-Stojanov D, Ljubisavljevic S (2016) Increasing signal intensity within the dentate nucleus and globus pallidus on unenhanced T1W magnetic resonance images in patients with relapsing-remitting multiple sclerosis: correlation with cumulative dose of a macrocyclic gadolinium-based contrast agent, gadobutrol. Eur Radiol 26:807–815

    Article  Google Scholar

  14. Rossi Espagnet MC, Bernardi B, Pasquini L, Figà-Talamanca L, Tomà P, Napolitano A (2017) Signal intensity at unenhanced T1-weighted magnetic resonance in the globus pallidus and dentate nucleus after serial administrations of a macrocyclic gadolinium-based contrast agent in children. Pediatr Radiol 47:1345–1352

    Article  Google Scholar

  15. Splendiani A, Perri M, Marsecano C et al (2018) Effects of serial macrocyclic-based contrast materials gadoterate meglumine and gadobutrol administrations on gadolinium-related dentate nuclei signal increases in unenhanced T1-weighted brain: a retrospective study in 158 multiple sclerosis (MS) patients. Radiol Med 123:125–134

    Article  Google Scholar

  16. Bjørnerud A, Vatnehol SAS, Larsson C, Due-Tønnessen P, Hol PK, Groote IR (2017) Signal enhancement of the dentate nucleus at unenhanced MR imaging after very high cumulative doses of the macrocyclic gadolinium-based contrast agent Gadobutrol: an observational study. Radiology 285:434–444

    Article  Google Scholar

  17. Kelemen P, Alaoui J, Sieron D et al (2018) T1-weighted grey matter signal intensity alterations after multiple administrations of gadobutrol in patients with multiple sclerosis, referenced to white matter. Sci Rep 8:16844

    Article  Google Scholar

  18. Moreno J, Vaz NB, Soler JC et al (2018) High signal intensity in the dentate nucleus on unenhanced T1-weighted MR images in melanoma patients receiving macrocyclic gadolinium-based contrast. J Radiol Diagn Methods 1:101–107

    Google Scholar

  19. Gehweiler J, Re T, Amann M, Schadelin S, Cabezon R, Stieltjes B (2018) The gadolinium deposition debate revisited using a fully automated big data approach. Radiological Society of North America 2018 Scientific Assembly and Annual Meeting, 2018, Chicago. archive.rsna.org/2018/18015095.html. Accessed 18 Apr 2019

  20. Agris J, Pietsch H, Balzer T (2016) What evidence is there that gadobutrol causes increasing signal intensity within the dentate nucleus and globus pallidus on unenhanced T1W MRI in patients with RRMS? Eur Radiol 26:816–817

    Article  Google Scholar

  21. Lancelot E, Raynaud JS, Desché P (2017) Lack of evidence of a relationship between magnetic resonance signal intensity changes in the globus pallidus and dentate nucleus, and repeated administrations of gadoterate meglumine in children. Pediatr Radiol 47:1692–1693

    Article  Google Scholar

  22. Raynaud JS, Darmon-Kern E, Lancelot E, Laurent AC, Desché P (2018) Re: effects of serial macrocyclic-based contrast materials gadoterate meglumine and gadobutrol administrations on gadolinium-related dentate nuclei signal increases in unenhanced T1-weighted brain: a retrospective study in 158 multiple sclerosis (MS) patients. Radiol Med 123:432–433

    Article  Google Scholar

  23. Radbruch A, Quattrocchi CC (2017) Interpreting signal-intensity ratios without visible T1 hyperintensities in clinical gadolinium retention studies. Pediatr Radiol 47:1688–1689

    Article  Google Scholar

  24. Jost G, Lenhard DC, Sieber MA, Lohrke J, Frenzel T, Pietsch H (2016) Signal increase on unenhanced T1-weighted images in the rat brain after repeated, extended doses of gadolinium-based contrast agents: comparison of linear and macrocyclic agents. Invest Radiol 51:83–89

    Article  CAS  Google Scholar

  25. Robert P, Lehericy S, Grand S et al (2015) T1-weighted hypersignal in the deep cerebellar nuclei after repeated administrations of Gd-based contrast agents in healthy rats: difference between linear and macrocyclic agents. Invest Radiol 50:473–480

  26. Frenzel T, Apte C, Jost G, Schöckel L, Lohrke J, Pietsch H (2017) Quantification and assessment of the chemical form of residual gadolinium in the brain after repeated administration of gadolinium-based contrast agents: comparative study in rats. Invest Radiol 52:396–404

    Article  CAS  Google Scholar

  27. Lohrke J, Frisk AL, Frenzel T et al (2017) Histology and gadolinium distribution in the rodent brain after the administration of cumulative high doses of linear and macrocyclic gadolinium-based contrast agents. Invest Radiol 52:324–323

    Article  CAS  Google Scholar

  28. Jost G, Frenzel T, Lohrke J, Lenhard DC, Naganawa S, Pietsch H (2017) Penetration and distribution of gadolinium-based contrast agents into the cerebrospinal fluid in healthy rats: a potential pathway of entry into the brain tissue. Eur Radiol 27:2877–2885

    Article  Google Scholar

  29. McDonald RJ, McDonald JS, Dai D et al (2017) Comparison of gadolinium concentrations within multiple rat organs after intravenous administration of linear versus macrocyclic gadolinium chelates. Radiology 285:536–545

    Article  Google Scholar

  30. Boyken J, Frenzel T, Lohrke J, Jost G, Pietsch H (2018) Gadolinium accumulation in the deep cerebellar nuclei and Globus pallidus after exposure to linear but not macrocyclic gadolinium-based contrast agents in a retrospective pig study with high similarity to clinical conditions. Invest Radiol 53:278–285

    Article  CAS  Google Scholar

  31. Bussi S, Coppo A, Botteron C et al (2018) Differences in gadolinium retention after repeated injections of macrocyclic MR contrast agents to rats. J Magn Reson Imaging 47:746–752

    Article  Google Scholar

  32. Murata N, Gonzalez-Cuyar LF, Murata K et al (2016) Macrocyclic and other non-group 1 gadolinium contrast agents deposit low levels of gadolinium in brain and bone tissue: preliminary results from 9 patients with normal renal function. Invest Radiol 51:447–453

  33. Eisele P, Alonso A, Szabo K et al (2016) Lack of increased signal intensity in the dentate nucleus after repeated administration of a macrocyclic contrast agent in multiple sclerosis: an observational study. Medicine (Baltimore) 95(39):e4624

    Article  CAS  Google Scholar

  34. Schlemm L, Chien C, Bellmann-Strobl J et al (2017) Gadopentetate but not gadobutrol accumulates in the dentate nucleus of multiple sclerosis patients. Mult Scler 23:963–972

    Article  CAS  Google Scholar

  35. Eisele P, Szabo K, Alonso A et al (2018) Lack of T1 hyperintensity in the dentate nucleus after 15 administrations of a macrocyclic contrast agent in multiple sclerosis. J Neurol Neurosurg Psychiatry 89:324–326

    Article  Google Scholar

  36. Tedeschi E, Cocozza S, Borrelli P, Ugga L, Morra VB, Palma G (2018) Longitudinal assessment of dentate nuclei relaxometry during massive gadobutrol exposure. Magn Reson Med Sci 17:100–104

    Article  CAS  Google Scholar

  37. Jaulent P, Hannoun S, Kocevar G et al (2018) Weekly enhanced T1-weighted MRI with Gadobutrol injections in MS patients: is there a signal intensity increase in the dentate nucleus and the globus pallidus? Eur J Radiol 105:204–208

    Article  Google Scholar

  38. Hannoun S, Issa R, El Ayoubi NK et al (2018) Gadoterate meglumine administration in multiple sclerosis has no effect on the dentate nucleus and the globus pallidus signal intensities. Acad Radiol S1076–6332(18):30525–30527

    Google Scholar

  39. Maeda H, Sato M, Yoshikawa A et al (1997) Brain MR imaging in patients with hepatic cirrhosis: relationship between high intensity signal in basal ganglia on T1-weighted images and elemental concentrations in brain. Neuroradiology 39:546–550

    Article  CAS  Google Scholar

  40. Mochizuki H, Kamakura K, Masaki T et al (1997) Atypical MRI features of Wilson’s disease: high signal in globus pallidus on T1-weighted images. Neuroradiology 39:171–174

    Article  CAS  Google Scholar

  41. Kang KM, Choi SH, Hwang M, Yun TJ, Kim JH, Sohn CH (2018) T1 shortening in the globus pallidus after multiple administrations of gadobutrol: assessment with a multidynamic multiecho sequence. Radiology 287:258–266

    Article  Google Scholar

  42. Pasquini L, Rossi Espagnet MC, Napolitano A et al (2018) Dentate nucleus T1 hyperintensity: is it always gadolinium all that glitters. Radiol Med 123:469–473

    Article  Google Scholar

  43. Malhotra A, LeSar B, Wu X et al (2018) Progressive T1 shortening of the dentate nucleus in patients with multiple sclerosis: result of multiple administrations of linear gadolinium contrast agents versus intrinsic disease. AJR Am J Roentgenol 211:1099–1105

    Article  Google Scholar

  44. Prosch H, Grois N, Wnorowski M, Steiner M, Prayer D (2007) Long-term MR imaging course of neurodegenerative Langerhans cell histiocytosis. AJNR Am J Neuroradiol 28:1022–1028

    Article  CAS  Google Scholar

  45. Herynek V, Wagnerová D, Malucelli A, Vymazal J, Sameš M, Hájek M (2015) Alterations in the basal ganglia in patients with brain tumours may be due to excessive iron deposition. Oncol Lett 9:43–46

    Article  Google Scholar

  46. Kasahara S, Miki Y, Kanagaki M et al (2011) Hyperintense dentate nucleus on unenhanced T1-weighted MR images is associated with a history of brain irradiation. Radiology 258:222–228

    Article  Google Scholar

  47. Roccatagliata L, Vuolo L, Bonzano L, Pichiecchio A, Mancardi GL (2009) Multiple sclerosis: hyperintense dentate nucleus on unenhanced T1-weighted MR images is associated with the secondary progressive subtype. Radiology 251:503–510

    Article  Google Scholar

  48. Absinta M, Rocca MA, Filippi M (2011) Dentate nucleus T1 hyperintensity in multiple sclerosis. AJNR Am J Neuroradiol 32:E120–E121

    Article  CAS  Google Scholar

  49. Forslin Y, Shams S, Hashim F et al (2017) Retention of gadolinium-based contrast agents in multiple sclerosis: retrospective analysis of an 18-year longitudinal study. AJNR Am J Neuroradiol 38:1311–1316

    Article  CAS  Google Scholar

  50. Eisele P, Konstandin S, Szabo K et al (2017) Sodium MRI of T1 high signal intensity in the dentate nucleus due to gadolinium deposition in multiple sclerosis. J Neuroimaging 27:372–375

    Article  Google Scholar

  51. Eisele P, Szabo K, Ebert A et al (2019) Diffusion-weighted imaging of the dentate nucleus after repeated application of gadolinium-based contrast agents in multiple sclerosis. Magn Reson Imaging 58:1–5

    Article  CAS  Google Scholar
