The number and complexity of endovascular procedures performed via either arterial or venous access are steadily increasing. Albeit associated with higher morbidity compared to the radial approach, the traditional common femoral artery remains the preferred access site in a variety of cardiac, aortic, oncologic and peripheral vascular procedures. Both transarterial and venous cannulation (for electrophysiology, intravenous laser ablation and central catheterisation) at the groin may result in potentially severe vascular access site complications (VASC). Furthermore, vascular and soft-tissue groin infections may develop after untreated VASC or secondarily to non-sterile injections for recreational drug use. VASC and groin infections require rapid diagnosis and appropriate treatment to avoid further, potentially devastating harm. Whereas in the past colour Doppler ultrasound was generally used, in recent years cardiologists, vascular surgeons and interventional radiologists increasingly rely on pelvic and femoral CT angiography. Despite drawbacks of ionising radiation and the need for intravenous contrast, multidetector CT rapidly and consistently provides a panoramic, comprehensive visualisation, which is crucial for correct choice between conservative, endovascular and surgical management. This paper aims to provide radiologists with an increased familiarity with iatrogenic and self-inflicted VASC and infections at the groin by presenting examples of haematomas, active bleeding, pseudoaneurysms, arterial occlusion, arterio-venous fistula, endovenous heat-induced thrombosis, septic thrombophlebitis, soft-tissue infections at the groin, and late sequelae of venous injuries.
• Complications may develop after femoral arterial or venous access for interventional procedures.
• Arterial injuries include bleeding, pseudoaneurysm, occlusion, arteriovenous fistula, dissection.
• Endovenous heat-induced thrombosis is a specific form of iatrogenic venous complication.
• Iatrogenic infections include groin cellulitis, abscesses and septic thrombophlebitis.
• CT angiography reliably triages vascular access site complications and groin infections.
The number of endovascular procedures performed via either arterial or venous access by cardiologists, vascular surgeons and interventional radiologists has been steadily increasing over the past decades. Percutaneous transarterial access represents the initial step in a variety of cardiac, peripheral vascular, aortic and oncologic procedures. The radial approach is associated with lower morbidity and is therefore recommended by the European Society of Cardiology . However, the traditional common femoral artery (CFA) access remains the preferred technique by many operators due to its easiness and familiarity, particularly when the radial access is unfeasible or large-bore access is needed. Unfortunately, piercing into the arterial system carries the potential risk of vascular access site complications (VASC) that result in prolonged hospitalisation, higher costs, increased morbidity and, occasionally, mortality [2,3,4,5,6].
Alternatively, VASC at the groin may occur following endovascular procedures performed via venous access such as electrophysiology, intravenous laser ablation, or short- or mid-term central venous catheter (CVC) placement. Unfortunately, compared to subclavian veins the femoral venous access suffers from a higher rate of thrombosis and bacterial colonisation [7,8,9,10]. Furthermore, vascular and soft-tissue inguinal infections may develop following unrecognised VASC, particularly with use of vascular closure devices (VCD) [11,12,13] and secondarily to non-sterile injections performed for recreational drug use [14, 15].
Potentially severe vascular and soft-tissue injuries require rapid diagnosis and proper treatment to limit the associated morbidity and avoid further complications. Traditionally, colour Doppler ultrasound (CDUS) was used to investigate suspected VASC, and CT was reserved for those patients with inconclusive sonographic findings. However, in our experience cardiologists and interventional radiologists increasingly rely on pelvic and femoral CT angiography to rapidly and consistently provide a panoramic, comprehensive visualisation of both vascular and infectious complications, which proves crucial for a correct choice between conservative, endovascular and surgical management. This paper aims to provide radiologists with an increased familiarity with iatrogenic and self-inflicted VASC and infections at the groin.
Complications of femoral arterial access
Incidence and risk factors
In the cardiologic literature, clinically significant VASC have been reported to occur after 0.8–1.8% of diagnostic coronary angiography (CA) and up to 9% of coronary interventions (CI). Summarised in Table 1, the commonest VASC of CFA access include bleeding, pseudoaneurysm (PA), arterio-venous fistula (AVF), CFA occlusion and dissection. Other occasional complications include local lymphatic leakage and femoral neuropathy secondary to large haematomas or PA [2,3,4,5, 16].
In recent years, the increasing use of ultrasound guidance has resulted in significantly decreased (roughly 50%) overall complications and bleeding rates, particularly in elderly and obese patients [6, 17].
General predisposing factors related to VASC development include operator experience, technical and patient-related conditions. Meticulous technique is crucial to minimising risks during transarterial interventions, including correct choice of access site, proper closure, and appropriate management of antithrombotic medications. Repeated puncture attempts and arterial access distal or proximal to the CFA bifurcation are associated with higher risk. The key technical issue is represented by use of large catheters (>6 French) [2, 3].
Patient-related risk factors include female gender, high body mass index, advanced age, low platelet count, hypertension and severity of peripheral atherosclerotic disease. Due to smaller vessels and higher comorbidities, women have a risk of complications double that of men. Left-sided CFA cannulation carries a four times higher risk, probably related to severe atheromatous disease and previous failed right-sided puncture [2,3,4,5, 16].
Haematomas and active bleeding
Haemorrhage represents the commonest form of VASC after transarterial diagnostic and interventional procedures. The degree of severity is quantified by the haemoglobin level drop, and blood transfusions are required in 1% to 6% of patients. Minor bleeding is generally apparent as persistent ecchymosis radiating from the puncture site. Major haemorrhage manifests with a combination of haemodynamic instability, dropping haemoglobin, abdominal pain, neurologic symptoms and swelling of the ipsilateral thigh. Arterial puncture above the inguinal ligament may lead to the uncommon retroperitoneal haemorrhage, which is associated with higher need for transfusions, longer hospital stay and non-negligible mortality (6.6%) [2, 5, 6, 16, 18].
In our experience, multidetector CT angiography is beneficial in patients with suspected groin VASC, particularly when there is concern for deep-seated haemorrhage . The CT protocol should include a preliminary unenhanced acquisition extending at least from the iliac crests to the mid-thigh, which allows assessing presence, site, and entity of extravascular blood. The expected early CT appearance following uncomplicated transarterial access is represented by fat stranding and fluid abutting the ventral aspect of the punctured CFA, and mild high-attenuation fascial blood (Fig. 1).
From the injured CFA, post-catheterisation haemorrhage may either collect locally at the groin (Fig. 2), or extend downwards in the adductor or quadriceps thigh muscles (Fig. 3) or upwards in the pelvis (Fig. 4). The imaging diagnosis of haematoma relies on the identification of its characteristic precontrast hyperattenuation: hyperacute blood measures 40–60 Hounsfield Units (HU) due to its high protein content, which becomes even denser (60..80 HU) from clotting within a few hours and thus appears hyperdense compared to normal muscles. The involved muscles may be more or less enlarged compared to the contralateral ones. Subsequently, progressive haemoglobin lysis leads to a characteristic mixed-density appearance including geographic areas of lower attenuation and fluid-fluid levels (the so-called “haematocrit sign”) corresponding to different blood components stratified because of dependent settling of denser cellular elements .
If not contraindicated by impaired renal function or history of allergy, administration of iodinated contrast medium (CM) is warranted to detect ongoing bleeding, a finding which requires directed endovascular or surgical treatment. Arterial CT angiography is better acquired using high-flow (>3 ml/s) injection and automatic bolus-triggering technique with the region of interest placed in the infrarenal aorta and >100 HU cut-off. Active CM extravasation (Figs. 2, 3, 4) may be identified on either arterial or portal venous phase acquisitions depending on the injured vessel, and is best visualised using maximum intensity projection (MIP) or three-dimensional volume-rendering reconstructions .
Iatrogenic PA develop secondarily to failed sealing of an arterial puncture, from which blood dissects nearby causing the formation of a perfused “sac” contained by the media or adventitia, sometimes by soft tissues only. PA differs from haematoma because it is encapsulated and communicates with the arterial lumen [20, 21].
Sometimes clinically silent, PSA often manifest with tenderness and swelling at the site of arterial puncture. A pulsatile mass with associated palpable thrill or audible bruit is strongly suggestive for the diagnosis. Traditionally, the hallmark CDUS appearance is the “to-and-from” waveform through the feeding tract (FT). At CT angiography PA are demonstrated as round-shaped, peripherally haemorrhagic structures, internally perfused by CM from the CFA (Fig. 5). The length and calibre of the FT should be assessed, as it may impact the therapeutic choice [22, 23].

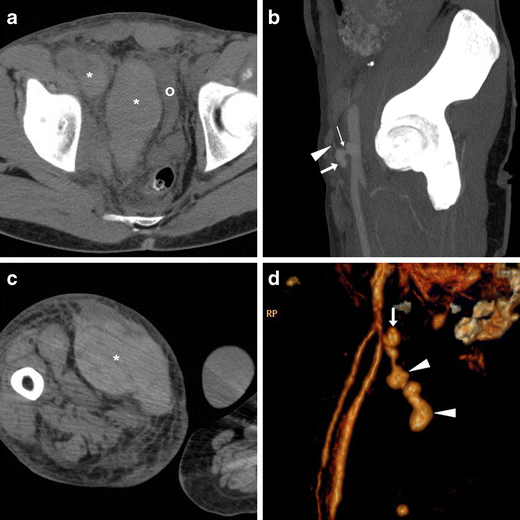

The key and most feared complication of a PA is rupture in either retroperitoneum or upper thigh, which depends on its size and is heralded by non-contained CM extravasation (Fig. 6). Other complications include pain from compression neuropathy, distal venous thrombosis, and limb ischaemia [5, 20, 21].
Rare vascular complications
Other VASC following CFA access include AVF, arterial occlusion and dissection (Table 1). Their manifestations may be similar to those of a groin PA. Alternatively, these injuries may cause limited complaints and be incidentally discovered later [2,3,4,5, 16].
Resulting from puncture-induced connection between the accessed CFA and the adjacent femoral vein, AVF manifests at CT angiography by synchronous luminal opacification (Fig. 7). Occlusion of the CFA is optimally demonstrated in its longitudinal extent as segmental non-opacification of the arterial lumen (Fig. 8). The rare dissection is heralded by the identification of an intimal flap separating the true from the false lumen in the CFA or iliac artery .
Traditionally, manual compression represented the “gold standard” in achieving haemostasis at an arterial access site. In the majority of VASC cases, further endovascular or surgical treatment is unnecessary, and a watchful conservative approach is sufficient. Most bleeding complications are self-limiting and are treated by re-application of pressure dressings. In major haemorrhage, haemodynamic stabilisation with blood transfusions is required. Endovascular therapies effectively use covered stents to seal active CFA bleeding, but may be limited by the considerable risk of bend-induced stent deformation at the level of the groin [3, 24].
According to the American College of Cardiology guidelines, in small-sized asymptomatic PA (up to 3 cm) and AVF a conservative approach is generally justified. PA with shorter (>1 cm) and wider FT close less easily compared to thin, long (>1 cm) ones. Therapeutic options include ultrasound-guided compression, percutaneous instillation of procoagulants (thrombin) into the aneurysmal sac, and stent implantation. Surgical revision is nowadays reserved for those cases refractory to conservative treatment. Finally, iatrogenic dissections may heal spontaneously or require endovascular treatment via contralateral or brachial access. Whereas self-expanding stents are used in the external iliac arteries, CFA dissection requires balloon angioplasty, since stents placed there are at high risk of fracture [5, 16, 20, 25, 26].
Use of vascular closure devices (VCD)
During the last decade, VCD have been extensively investigated to improve haemostasis. Compared to manual compression, CD consistently achieved earlier mobilisation, and decreased patient discomfort and hospital stay. Although discussion of VCD types is beyond the scope of this article, they can be categorised as metal clips, suture-based, and collagen-plug devices. However, use of first-generation VCDs remains controversial due to a combination of factors, namely: a) the increased risk of local infections reported with AngioSeal and Perclose; b) the possibility of masking an ongoing bleeding; c) the possible development of lower limb ischaemia from device entrapment, dissection or thrombosis secondary to reaction to collagen plugs [11, 12] [13, 27, 28].
Complications of iatrogenic and self-inflicted venous access
Vascular complications after venous cannulation and interventions
Following endovascular interventions performed via femoral venous access, haemorrhage (Fig. 3D-F) occurs rarely (0.3–1% of all procedures) compared to transarterial ones. Conversely, deep venous thrombosis (DVT) is relatively common (reported in up to 21% of patients) and often asymptomatic. In the electrophysiology setting, the incidence of DVT is lower (0.33% versus 2.38%) following treatment of atrial fibrillation (AF) compared to non-AF procedures, due to routine periprocedural anticoagulation. Albeit most instances are initially diagnosed using CDUS, using an appropriate CT-venography technique with delayed post-CM acquisition, multidetector CT effectively detects DVT in iliac and femoral veins with the usual appearance as luminal non-opacification and filling defects, causing variable degrees of venous enlargement . A peculiar form of DVT is endovenous heat-induced thrombosis (EHIT), which represents the most feared complication (1% incidence within 72 h) of endovenous laser ablation (ELA), and requires anticoagulation to prevent development of pulmonary embolism. ELA is a minimally invasive treatment for lower-extremity venous insufficiency, which achieves venous obliteration by heat-induced irreversible damage to the vein lining, followed by fibrotic sealing of the lumen. CT allows for a comprehensive evaluation of EHIT proximal extension, which is categorised as grade 1 (thrombosis below the saphenous-femoral junction), 2, 3 and 4 respectively corresponding to thrombus occupying <50%, >50% or occluding the femoral vein diameter (Fig. 9) [29,30,31].
Iatrogenic and self-inflicted groin infections
Compared to vascular injuries, iatrogenic groin infections have a similar incidence (below 1%) but tend to present later. Local cellulitis and abscesses may develop from superinfection of unrecognised or conservatively treated haematomas, and appear at CT as persistent inflammatory fat stranding and hypoattenuating collections with peripheral “ring” enhancement (Fig. 10) [16, 22, 23].
Furthermore, vascular and soft-tissue infections represent well-known complications of self-inflicted injection at the groin for recreational drug use. The risk is increased by non-sterile technique and by human immunodeficiency virus (HIV) infection . Septic thrombophlebitis (STP) manifests with unspecific lower abdominal, flank or groin pain, leg oedema, and spiking fever despite broad-spectrum antibiotics, associated with variable leukocytosis and abnormal inflammatory markers. At haemocultures, Staphylococcus aureus is the most common causative organism [33, 34].
Albeit chronic, non-occlusive thrombosis is commonly found in intravenous drug users at their usual injection site, STP is diagnosed on the basis of venous enlargement with partially or entirely non-opacified lumen, occasional intraluminal gas bubbles, thickened and/or strongly enhancing venous wall and inflammatory “stranding” of the surrounding fat planes (Fig. 11) [33, 35, 36]. If untreated, STP may be further complicated by septic embolisation to distant organs, most usually the lungs (Fig. 11E-F) .
Sequelae of iatrogenic and self-inflicted venous injuries

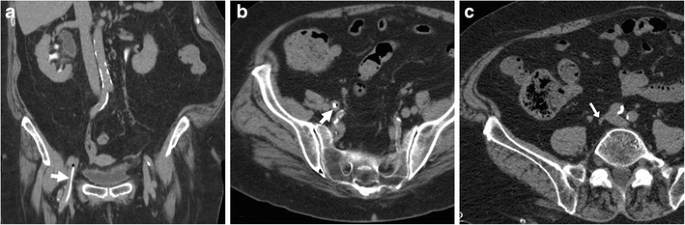

Long-term consequences of venous thrombosis include collapsed veins (Fig. 12) and the very rare venous aneurysms (VA). Multidetector CT is required to correctly characterise VA as segmental dilatation of venous structures, with enhancement paralleling that of other veins in the same system (Fig. 13), thus avoiding misinterpretation as lymphadenopathy, retroperitoneal or adnexal tumours which may result in dangerous procedures such as biopsy .
Despite the shift towards establishing vascular access via the radial artery instead of the CFA, cannulation of the latter remains frequent in coronary and non-cardiac interventions. In recent years, we have witnessed a significant increase in urgent requests for pelvic and femoral CT angiography studies in patients with suspected iatrogenic injuries. Despite the disadvantages of ionising radiation and need for intravenous contrast, multidetector CT provides rapid and effective triage of troublesome groin complications secondarily to femoral arterial or venous access, which is required for correct choice between conservative, endovascular and surgical treatment. Familiarity with CT findings of iatrogenic and self-inflicted VASC and infections at the groin is warranted.
Means G, End C, Kaul P (2017) Management of percutaneous coronary intervention complications. Curr Treat Options Cardiovasc Med 19:25
Dencker D, Taudorf M, Luk NH et al (2016) Frequency and effect of access-related vascular injury and subsequent vascular intervention after transcatheter aortic valve replacement. Am J Cardiol 118:1244–1250
Mackenzie AR, Laing RB, Douglas JG et al (2000) High prevalence of iliofemoral venous thrombosis with severe groin infection among injecting drug users in North East Scotland: successful use of low molecular weight heparin with antibiotics. Postgrad Med J 76:561–565
Sobolev M, Slovut DP, Lee Chang A et al (2015) Ultrasound-guided catheterization of the femoral artery: a systematic review and meta-analysis of randomized controlled trials. J Invasive Cardiol 27:318–323
Smilowitz NR, Kirtane AJ, Guiry M et al (2012) Practices and complications of vascular closure devices and manual compression in patients undergoing elective transfemoral coronary procedures. Am J Cardiol 110:177–182
Tonolini M, Ippolito S, Patella F et al (2012) Hemorrhagic complications of anticoagulant therapy: role of multidetector computed tomography and spectrum of imaging findings from head to toe. Curr Probl Diagn Radiol 41:233–247
Arat A, Turkbey B, Cil BE et al (2007) Emergent treatment of an iatrogenic arterial injury at femoral puncture site with Symbiot self-expanding PTFE-covered coronary stent-graft. Australas Radiol 51(Suppl):B331–B333
Kontopodis N, Tsetis D, Tavlas E et al (2016) Ultrasound guided compression versus ultrasound guided thrombin injection for the treatment of post-catheterization femoral pseudoaneurysms: systematic review and meta-analysis of comparative studies. Eur J Vasc Endovasc Surg 51:815–823
Memetoglu ME, Kurtcan S, Erbasan O et al (2012) Endovenous ablation with a 940 nm laser for the treatment of great saphenous vein insufficiency: short- to mid-term results. Diagn Interv Radiol 18:106–110
