Radiographic features of osteogenesis imperfecta
Insights into Imaging volume 4, pages 417–429 (2013)
Abstract
Background
Osteogenesis imperfecta (OI), commonly called “brittle bone disease”, is a genetic disorder characterised by increased bone fragility and decreased bone density due to quantitative and/or qualitative abnormalities of type I collagen. Different types of OI exist, from mild to severe; they may lead to death, multiple bone fractures, skeletal deformity and short stature.
Methods
Severe cases are usually diagnosed before birth and may incite the parents to choose therapeutic abortion, whereas milder cases are much more difficult to diagnose and may be sometimes confused with non-accidental injury (NAI) (“child abuse”) in young children. Whatever the degree of severity, conventional radiography still remains the mainstay in diagnosing OI.
Results
The prognosis of this disorder has changed in the last few years thanks to biphosphonate therapy.
Conclusion
The aim of this pictorial review is to illustrate the radiographic manifestations of OI, including in children receiving biphosphonates, and to outline specific patterns that help differentiate OI from NAI when necessary.
Key Points
• The main radiographic features of OI are osteopenia, bone fractures and bone deformities.
• Some radiographic features depend on the type of OI or may be encountered with biphosphonates.
Introduction
Also known as “brittle bone disease”, osteogenesis imperfecta (OI) is a genetic disorder characterised by increased bone fragility and low bone mass density due to quantitative and/or qualitative abnormalities of type I collagen [1, 2]. It is usually characterised by an autosomal dominant mode of inheritance (95 % of cases), but some cases are related to autosomal recessive traits or to a spontaneous mutation [3].
OI is rare but far from exceptional, affecting approximately 1 in 10,000–20,000 births. In the vast majority of cases, it results from mutations in either the COL1A1 or the COL1A2 gene, encoding the pro-alpha 1 and pro-alpha 2 chains, respectively. These polypeptide chains form a triple helix of intracellular type I procollagen, which is the precursor of extracellular type I collagen. The latter is a component of many tissues such as bone, dental enamel, eye sclera, skin, tendons and ligaments. Genetic mutations affect the spatial arrangement of the polypeptide chains and consequently alter the biomechanical properties of type I collagen, particularly its resistance to stretching. The hallmarks of OI are therefore bone fragility and other connective-tissue manifestations, with a large variation in phenotype.
The classification most widely used for OI distinguishes four types, based on clinical findings and disease severity (Table 1) [3]. More recently, three types whose phenotype is similar to other types of OI but that are not associated with type I collagen mutations have been added by Glorieux et al. [4] (Table 1). This classification is not always easy to use, as some patients cannot be included (and some genetic mutations are still to be discovered), and it is usually more convenient in practice to distinguish between cases diagnosed before or at birth (i.e., severe forms of OI) and cases diagnosed after birth (i.e., milder forms of OI).
Antenatal diagnosis of OI

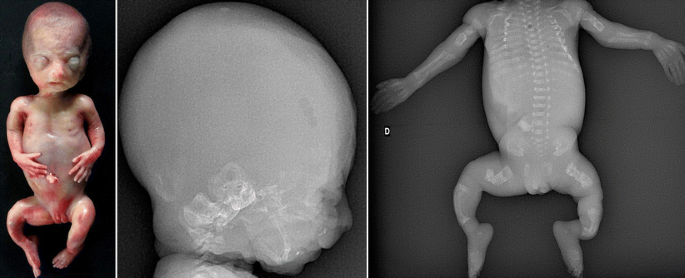

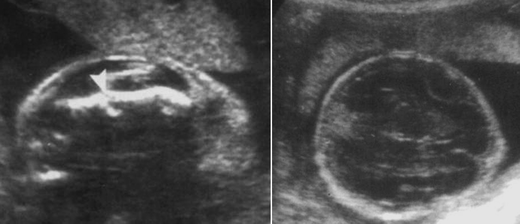

Severe forms of OI (mainly type II) can be diagnosed by ultrasound during the second trimester of pregnancy [5, 6]. Nonspecific signs such as intra-uterine growth retardation or hydramnios may be seen. Otherwise, examination may show abnormalities of the skull, the rib cage, the spine or the limbs, such as decreased echogenicity due to insufficient mineralisation, deformities related to fractures, callus formation and increased bone plasticity, and micromelia, especially of the femur (Fig. 1) [5, 6]. In case of doubt and when a termination of pregnancy is being considered, low-dose computed tomography (CT) with three-dimensional reconstructions of the whole foetal skeleton can be performed, after 26 weeks of gestation, to yield a correct diagnosis. The role of MRI is limited, except when visualisation of the foetal brain or visceral organs is required to look for associated abnormalities or to assess foetal lung volume [7]. When termination of pregnancy is performed based on the discovery of ultrasound and CT abnormalities, postmortem radiographs are a very useful adjunct to diagnosis, in confirming and specifying foetal bone abnormalities (Fig. 2).
Postnatal diagnosis of OI
OI encompasses a broad range of presentations, from virtually non-apparent forms to more severe ones, and some may go unnoticed for a long time. Positive diagnosis can be made clinically on the basis of skeletal and/or extraskeletal manifestations, but this is only the case in severe forms of OI. A family history of OI can also be helpful in arriving at a diagnosis. In fact, in most cases, imaging is required for diagnosis.
Extraskeletal manifestations
These are inconstant, but their recognition allows a quicker diagnosis of OI. Extraskeletal manifestations are diverse, related as they are to the ubiquitous presence of type I collagen in the human body: blue sclerae (mainly in type I OI); a greyish or yellowish aspect of the teeth, also called “dentinogenesis imperfecta” (mainly in type III OI); skin fragility; joint and ligament hyperlaxity; early hypoacusia; and cardiovascular abnormalities (particularly aortic valve disease) [3, 4, 8]. Less frequently, neurological abnormalities related to basilar impression and platybasia (mainly in type IV OI) or to direct involvement of neurovascular structures may be encountered [9, 10].
Skeletal manifestations
OI is generally recognised in children presenting with multiple, repeated or unexplained fractures, especially when the causative trauma is minor or when there is no history of trauma. Other skeletal manifestations depend on the severity of the disease and may include short stature and progressive deformities of the spine (kyphosis, scoliosis), the rib cage or the lower limbs (discrepancy in length, bowing).
Radiographic findings in OI
The main radiographic features are osteopenia, bone fractures and bone deformities. They result from constitutional bone fragility (cortical bone thinning, trabecular bone rarefaction) but also from acquired bone fragility due to muscle wasting and immobilisation. None of them are specific enough, but their association, together with a suggestive clinical history (propensity for fractures, family history of presenile loss of hearing, etc.) may suffice to confirm the diagnosis of OI.
Osteopenia

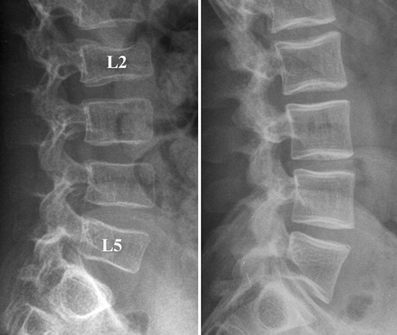

Radiographs reveal cortical bone thinning and excessive trabecular bone transparency (Figs. 3, 4, 5). This finding, however, is subjective and may be difficult to assess with conventional radiography, and its detection requires a significant reduction (about 30 to 50 %) in calcified bone mass. Bone densitometry by dual-energy X-ray absorptiometry (DEXA) is currently the optimal method to detect decreased bone mineral density, but in children, accurate interpretation of the results requires a good knowledge of the potential pitfalls related to age, sex, pubertal stage and skeletal maturation [11]. Decreased bone mineral density is not specific for OI; it may be encountered in metabolic disorders (hypogonadism, growth hormone deficiency, hyperthyroidism, juvenile diabetes mellitus, calcium and vitamin D deficiency, etc.). However, when such causes have been excluded, DEXA may help to establish the diagnosis of OI [12] and to monitor the response to biphosphonates.
Bone fractures

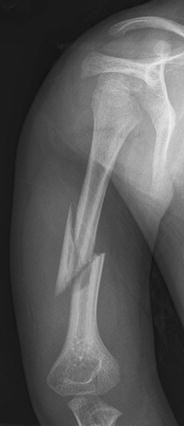

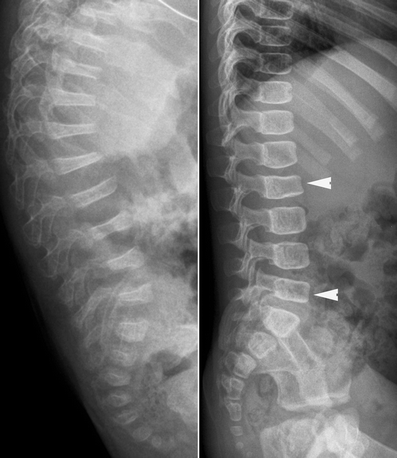

They affect both the axial and appendicular skeletons. These fractures are similar to those seen in normal children who suffer trauma and usually consolidate within the normally expected times. Some children may have few or no fractures, whereas others experience numerous fractures throughout their lives, especially when they start walking. The most common fractures occur in the long bone diaphyses, the spine and the apophyses. Diaphyseal fractures may be complete (Fig. 6) or incomplete (Fig. 7), and more or less displaced. In the spine, multiple thoracolumbar compression fractures may be seen (Fig. 8). Spondylolysis of L5, with or without consecutive spondylolisthesis, is also common in children with OI due to a fracture (Fig. 9) or an elongation of the pars interarticularis of L5, all of which are fostered by bone fragility and/or hyperlordosis [13, 14]. Apophyseal avulsion fractures are less common; they are often displaced and sometimes bilateral [15, 16]. They classically involve the olecranon or the tibial tubercle, and usually require internal fixation [15, 16].
Bone deformities

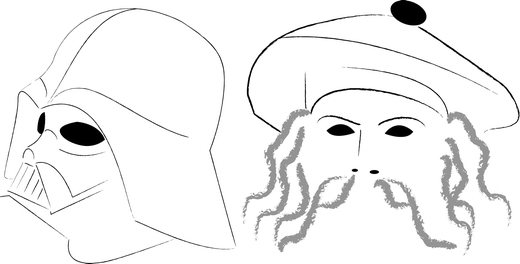

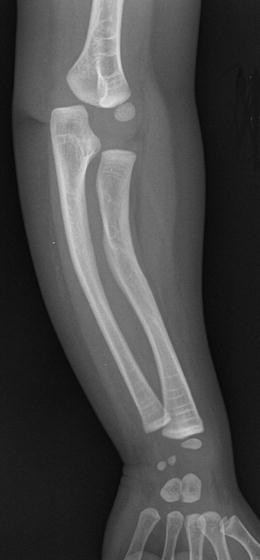

They most frequently affect the appendicular skeleton, especially the lower limbs, but the upper limbs (Fig. 10) and skull may be involved. These deformities are due to excessive bone malleability and plasticity. In the skull, radiography may show a prominent occipital region (so-called the “Darth Vader” appearance) (Figs. 11, 12) or a flattening of the cranial vault with transverse infolding of the cranial base (the so-called “Tam O’Shanter skull”) (Fig. 11); however, such deformities are rare. Much more frequently, radiographs reveal multiple wormian bones (defined as the presence of 10 or more wormian bones [17]) that lend a “mosaic” or “paving” appearance to the cranial vault (Fig. 13). A significant number of wormian bones occur more frequently in more severely affected OI patients [17]. In the long bones, bending (Fig. 14) and thinning of the diaphyses may be seen, sometimes complicated by progressive fractures in the concave aspect of the deformity that can recur after healing. Severe residual angulation of a healed fracture constitutes another mechanism accounting for long bone deformities. In the lower limbs, diaphyseal bending or angulation may be responsible for lower leg-length discrepancy. In the pelvis, coxa vara and acetabular protrusion have occasionally been reported.

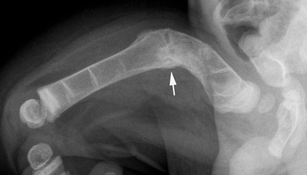

In toddlers with severe forms of OI (mainly type III), the long bones may appear thick and broad, instead of thin and markedly shortened and bowed (Fig. 15). They exhibit a lack of bone modelling with a “bamboo cane appearance” linked to multiple healed fractures and severe bone deformities of the femur (anterolateral bowing or “shepherd’s crook” deformity) (Fig. 15) and the tibia (anterior bowing or “saber shin” deformity) (Fig. 16).
Radiographic features depending on the type of OI
Hyperplastic callus formation

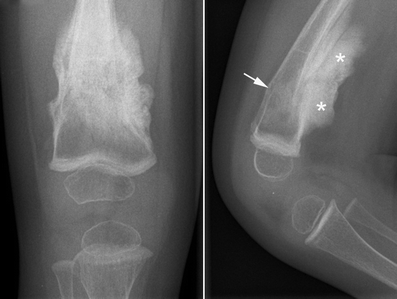

This has occasionally been reported in type V OI, especially in males and in the femur [18–20]. Hyperplastic callus formation can occur either after a fracture (Fig. 17) or surgery or spontaneously, and may mimic osteosarcoma clinically and radiographically. In this case, CT and MRI are useful to avoid misdiagnosis, as they will respectively detect the absence of osteolysis and of bone marrow infiltration. CT may reveal an occult fracture, whereas MRI may show a thick calcified rim with low signal on T1- and T2-weighted images at the periphery of the callus [18–20]. Hyperplastic callus formation is not specific to OI; it can also be seen in children with spinal dysraphism or with subperiosteal hematomas related to NAI, bleeding disorders or neurofibromatosis.
Ossifications of the interosseous membrane
These are encountered in type V OI, in the forearm (Fig. 18) or leg, and may be associated in some cases with a congenital dislocation of the radial head [20, 21].
“Popcorn” calcifications
They are more commonly seen in type III OI, in the metaphyseal and epiphyseal regions of the knee (Fig. 19), and may contribute to femoral growth deficiency and lower leg-length discrepancy [22, 23]. These intraosseous calcifications are thought to result from microtraumatic fragmentation and disordered maturation of the growth plate.
Dense metaphyseal bands
These are usually encountered in children with OI receiving biphosphonates, but have been reported in type V OI independently of any treatment. Dense metaphyseal bands can also be seen in children receiving biphosphonates for secondary osteoporosis (cerebral palsy, glucocorticoid-treated disorders, etc.).
Radiographic findings with biphosphonate therapy
Biphosphonates are potent inhibitors of osteoclast-mediated bone resorption and have demonstrated clinical usefulness in the treatment of children with severe forms of OI [24]. The treatment usually consists of cyclic intravenous infusions and may be initiated after birth. Several studies have reported beneficial effects of biphosphonates on pain, mobility, growth, bone mineral density and bone turnover and fracture rate [25–28]. However, long-term effects of these agents on the immature growing skeleton have to be assessed.
On radiographs, specific findings in children receiving biphosphonates include increased bone density in the spine and long bones, as compared with previous radiographs, dense metaphyseal lines (so-called “zebra lines”), very similar to Harris growth arrest lines, and dense metaphyseal bands. In long bones, these lines are parallel to the growth plate; they are located in the metaphysis and move towards the diaphysis in step with bone growth (Fig. 14). Each dense line corresponds to one intravenous course, and the space between two lines depends on the bone growth rate and delay between two courses. When multiple, these lines are responsible for a “ladder-rung” appearance (Fig. 14). In the spine or in the flat bones, apophyses and epiphyses, a “bone-within-a-bone” pattern, which may be considered to be the equivalent of metaphyseal dense lines in long bones, may be observed (Fig. 20) [29]. When there is less bone growth between courses of the drug, the metaphyseal lines are more closely spaced and appear as dense metaphyseal bands (Figs. 14, 16) and dense vertebral endplates.
Differential diagnosis of OI
A positive diagnosis of OI can be difficult, particularly in young children (before the age of 2 years) with mild forms of OI (types I, IV) and when there are few or no obvious extraskeletal manifestations and no familial history of increased bone fragility. These cases of OI may be tragically mistaken for NAI. Indeed, in both OI and NAI, unexplained, multiple and repeated fractures may occur; children may present with bruises and contusions; radiographs may reveal different types of fractures, fractures of various ages that went undetected and no evidence of osteopenia. A thorough radiographic examination, including a skeletal survey, can help differentiate between OI and NAI (Table 2). In NAI, some fractures are very suggestive of abuse (i.e., posterior rib fractures, metaphyseal corner fractures and complex skull fractures) [30, 31].
Posterior rib fractures
Rib fractures usually result from anteroposterior compression of the rib cage when the child is held around the chest and violently shaken back and forth. The posterior involvement is due to excessive leverage of the posteromedial part of the rib over the transverse process of the spine and is highly specific of abuse [30, 31]. In this situation, posterior rib fractures are frequently multiple on radiographs and are often associated with callus formation when discovered (Fig. 21).
Metaphyseal corner fractures

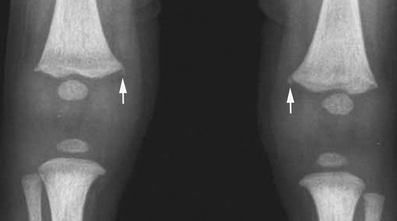

Long bone fractures may be encountered in NAI, but in contrast to OI, where the fractures most commonly affect the diaphyseal regions, they classically involve the metaphysis, especially that of the distal femur (Fig. 22), the proximal and distal tibia and, less frequently, the proximal humerus [30, 31]. Metaphyseal corner fractures, also known as classic metaphyseal lesions, are virtually pathognomonic for abuse [32]. They are due to shearing forces applied to the child’s extremities when shaken. The fracture lines are grossly horizontal, parallel to the growth plate, and detach a “frisbee-shaped” bone fragment (i.e., a fragment that is thin centrally and thick peripherally) [31]. On radiographs, metaphyseal fractures appear as “corner” (Fig. 22) or “bucket-handle” (Fig. 23) fractures, depending on the size of the avulsed piece of bone (Fig. 24) and its relation to the X-ray beam. These fractures may be bilateral and symmetric on radiographs, which is another interesting finding in favour of the diagnosis of NAI (Fig. 22).
Complex skull fractures

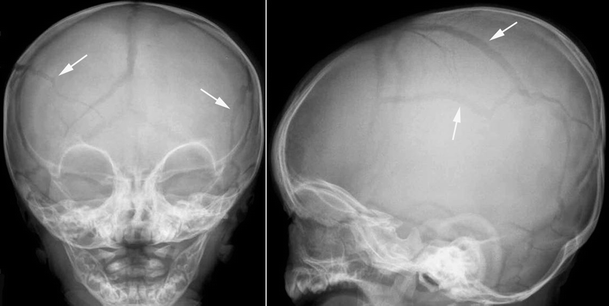

Skull fractures are relatively common in both non-accidental and accidental injuries, and result from direct trauma. Bilateral fractures, fractures involving more than one cranial bone, fractures evidencing a complex configuration (Fig. 25), fractures that cross suture lines, depressed, wide (diastasis ≥ 3 mm) and growing fractures and fractures associated with underlying intracranial lesions all suggest NAI [31].
Other fractures such as sternal, scapular and spinous process fractures are also highly specific for NAI, but they are rarely encountered in practice.
Other disorders such as copper deficiency, Menkes disease (a genetic disorder of copper metabolism, also known as kinky hair disease), scurvy and vitamin D deficiency rickets may also cause diagnostic difficulties in children with unexplained fractures and be confused in some cases with NAI [33, 34]. However, medical history, clinical manifestations, biochemical and radiological findings allow a correct diagnosis in most cases. In copper deficiency and Menkes disease, fractures are usually noted within the first 6 months of life; they are associated with hypopigmented, and brittle hair and progressive neurologic deterioration in Menkes disease. Typical radiographic findings include osteopenia, bone age retardation, increased density of the provisional zone of calcification and symmetrically distributed metaphyseal abnormalities (cupping and fraying, “sickle-shaped” spurs and fractures) [34]. In scurvy, there is no cupping or fraying of the metaphyses, but radiography shows evidence of radiolucent metaphyseal bands beneath the increased density of the provisional zone of calcification and/or periosteal reaction [34]. In rickets, metaphyseal abnormalities similar to copper deficiency are seen on radiographs but with decreased density of the provisional zone of calcification and increased width of the growth plate [34].
Conclusion
OI should be suspected in all children presenting with increased bone fragility, including fractures that occur with little or no trauma. Positive diagnosis is typically made on the basis of personal and familial medical history, physical examination (preferably with a clinician who is familiar with OI), radiography and, in some cases, complementary investigations such as bone densitometry, biochemical tests or DNA-based sequencing. On radiographs, OI has no pathognomonic features, but some of them may be suggestive of the diagnosis. Recent advances in the treatment of OI with biphosphonates have resulted in radiographic findings, of which the physician must be aware. Usually differentiating OI from NAI is not difficult in young children, though the issue is often raised in court in the defence of cases of NAI, but if necessary radiography is very useful for the differential diagnosis.
Abbreviations
- OI:
-
Osteogenesis imperfecta
- NAI:
-
Non accidental injury
- CT:
-
Computed tomography
- MRI:
-
Magnetic resonance imaging
References
Brusin JH (2008) Osteogenesis imperfecta. Radiol Technol 79:535–548
Rauch F, Glorieux FH (2004) Osteogenesis imperfecta. Lancet 363:1377–1385
Sillence DO, Senn A, Danks DM (1979) Genetic heterogeneity in osteogenesis imperfecta. J Med Genet 16:101–116
Glorieux FH (2008) Osteogenesis imperfecta. Best Pract Res Clin Rheumatol 22:85–100
Bulas DI, Stern HJ, Rosenbaum KN, Fonda JA, Glass RB, Tift C (1994) Variable prenatal appearance of osteogenesis imperfecta. J Ultrasound Med 13:419–427
Redon JY, Gloaquen D, Collet M, Parent P, Le Grevellec JY (1993) Osteogenesis imperfecta. Reflections after the prenatal diagnosis of 2 cases. J Gynecol Obstet Biol Reprod 22:173–178
Solopova A, Wisser J, Huisman TA (2008) Osteogenesis imperfecta type II: fetal magnetic resonance imaging findings. Fetal Diagn Ther 24:361–367
Vetter U, Maierhofer B, Müller M, Lang D, Teller WM, Brenner R, Frohneberg D, Wörsdörfer O (1989) Osteogenesis imperfecta in childhood: cardiac and renal manifestations. Eur J Pediatr 149:184–187
Charnas LR, Marini JC (1993) Communicating hydrocephalus, basilar invagination, and other neurologic features in osteogenesis imperfecta. Neurology 43:2603–2608
Janus GJ, Engelbert RH, Beek E, Gooskens RH, Pruijs JE (2003) Osteogenesis imperfecta in childhood: MR imaging of basilar impression. Eur J Radiol 47:19–24
Bachrach LK (2000) Dual energy X-ray absorptiometry (DEXA) measurements of bone density and body composition: promise and pitfalls. J Pediatr Endocrinol Metab 13:983–988
Moore MS, Minch CM, Kruse RW et al (1998) The role of dual energy x-ray absorptiometry in aiding the diagnosis of pediatric osteogenesis imperfecta. Am J Orthop 27:797–801
Hatz D, Esposito PW, Schroeder B, Burke B, Lutz R, Hasley BP (2011) The incidence of spondylolysis and spondylolisthesis in children with osteogenesis imperfecta. J Pediatr Orthop 31:655–660
Ivo R, Fuerderer S, Eysel P (2007) Spondylolisthesis caused by extreme pedicle elongation in osteogenesis imperfecta. Eur Spine J 10:1636–1640
Zionts LE, Moon CN (2002) Olecranon apophysis fractures in children with osteogenesis imperfecta revisited. J Pediatr Orthop 22:745–750
Tamborlane JW, Lin DY, Denton JR (2004) Osteogenesis imperfecta presenting as simultaneous bilateral tibial tubercle avulsion fractures in a child: a case report. J Pediatr Orthop 24:620–622
Semler O, Cheung MS, Glorieux GH, Rauch F (2010) Wormian bones in osteogenesis imperfecta: correlation to clinical findings and genotype. Am J Med Genet A 152A:1681–1687
Rieker O, Kreitner KF, Karbowski A (1998) Hyperplastic callus formation in osteogenesis imperfecta: CT and MRI findings. Eur Radiol 8:1137–1139
Dobrocky I, Seidl G, Grill F (1999) MRI and CT features of hyperplastic callus in osteogenesis imperfecta tarda. Eur Radiol 9:665–668
Cheung MS, Azouz EM, Glorieux FH, Rauch F (2008) Hyperplastic callus formation in osteogenesis imperfecta type V: follow-up of three generations over ten years. Skeletal Radiol 37:465–467
Hui PK, Tung JY, Lam WW, Chau MT (2011) Osteogenesis imperfecta type V. Skeletal Radiol 40:1633
Obafemi AA, Bulas DI, Troendle J, Marini JC (2008) Popcorn calcification in osteogenesis imperfecta: incidence, progression, and molecular correlation. Am J Med Genet A 146A:2725–2732
Snoeckx A, Vanhoenacker FM, Parizel PM (2008) Popcorn calcifications in osteogenesis imperfecta. JBR-BTR 91:176
Glorieux FH (2007) Experience with biphosphonates in osteogenesis imperfecta. Pediatrics 119:S163–165
Martinez-Soto T, Pacaud D, Stephure D, Trussell R, Huang C (2011) Treatment of symptomatic osteoporosis in children: a comparison of two pamidronate dosage regimens. J Pediatr Endoncrinol Metab 24:271–274
Ward LM, Rauch F, Whyte MP et al (2011) Alendronate for the treatment of pediatric osteogenesis imperfecta: a randomized placebo-controlled study. J Clin Endocrinol Metab 96:355–364
Salehpour S, Tavakkoli S (2010) Cyclic pamidronate therapy in children with osteogenesis imperfecta. J Pediatr Endocrinol Metab 23:73–80
Panigrahi I, Das RR, Sharda S, Marwaha RK, Khandelwal N (2010) Response to zolendronic acid in children with type III osteogenesis imperfecta. J Bone Miner Metab 28:451–455
Grissom LE, Harcke HT (2003) Radiographic features of biphosphonates therapy in pediatric patients. Pediatr Radiol 33:226–229
Offiah A, van Rijn RR, Perez-Rossello JM, Kleinman PK (2009) Skeletal imaging in child abuse (non-accidental injury). Pediatr Radiol 39:461–470
Lonergan GJ, Baker AM, Morey MK, Boos SC (2003) From the archives of the AFIP. Child abuse: radiologic-pathologic correlation. Radiographics 23:811–845
Kleinman PK, Marks SC, Blackbourne B (1986) The metaphyseal lesion in abused infants: a radiologic-histopathologic study. AJR 146:895–905
Paterson CR (1990) Osteogenesis imperfecta and other bone disorders in the differential diagnosis of unexplained fractures. J R Soc Med 83:72–74
Grünebaum M, Horodniceanu C, Steinherz R (1980) The radiographic manifestations of bone changes in copper deficiency. Pediatr Radiol 9:101–104
