Right ventricular cardiovascular magnetic resonance imaging: normal anatomy and spectrum of pathological findings



The right ventricle (RV) has been defined as the “forgotten chamber”, as its role in cardiac physiopathology has long been underestimated. Nevertheless, the RV is involved in a wide range of pathological conditions and its altered function may significantly affect the patient’s clinical status.


A selection of the most common cardiovascular magnetic resonance (CMR) features in a spectrum of pathological conditions is illustrated. Although its complex morphology, thin myocardium and trabeculated apex, RV can be accurately imaged by CMR, revealing its involvement in ischaemic and non-ischaemic heart disease. CMR has emerged as the pre-eminent modality in monitoring ventricular performance in congenital heart disease, pulmonary hypertension and cardiomyopathies. Arrhythmogenic right ventricular cardiomyopathy is a difficult diagnosis and the recently revised task force criteria confirmed a crucial role of CMR to increase diagnostic accuracy, by combining detection of RV dilation, regional wall motion and structural abnormalities. Moreover, a multiparametric approach of CMR is often necessary for delineation and characterisation of cardiac masses.


CMR, combining assessment of morphology, structure and function, has definitively emerged as the reference technique to evaluate a large variety of RV diseases.

Teaching Points

CMR offers unique advantages for imaging of many RV congenital, ischaemic and non-ischaemic diseases.

Because of high reproducibility, CMR has a crucial role in decision-making for chronic RV pathology.

The use of CMR increases detection of RV disease as infarction or arrhythmogenic cardiomyopathy.


The right ventricle (RV) is involved in a wide variety of acquired and congenital heart diseases, even though the primary diagnostic focus is attributed to the left ventricle (LV) in most clinical conditions. [1] The importance of RV pathology and dysfunction has been highlighted in several recent publications in terms of impact on a patient’s prognosis and therapeutic management [14].

Cardiovascular magnetic resonance (CMR) has emerged as the referenced standard technique for this purpose due to its unique capability in providing an accurate and reproducible assessment of function and tissue characterisation [5, 6].

Although trans-thoracic echocardiography is recommended as an initial imaging instrument, it has limited diagnostic capabilities for the assessment of RV due to its thin wall, peculiar morphology and the anterior position in the chest [7, 8].

The present pictorial review of the CMR features will illustrate RV anatomy and its range of various pathological conditions, thus leading to a more prompt recognition of disease.

CMR protocol

All CMR exams were performed with a 1.5-T unit (Avanto; Siemens, Erlangen, Germany) with an eight-element phased-array coil.

The standard CMR protocol included T2-weighted black-blood short-inversion time turbo spin-echo imaging (T2WI), cine balanced steady-state free-precession sequences (cine SSFP) and T1-weighted contrast-enhanced inversion recovery segmented gradient echo sequence (LGE-T1WI) acquired 10–15 min after the intravenous administration of 0.2 mmol/kg gadobenate dimeglumine (Gd-BOPTA) for the evaluation of the late gadolinium enhancement (LGE) (see the online-only “Electronic supplementary material” for details).

Morphological T1-weighted TSE black blood sequences were added to the above protocol only for specific indications (e.g. morphology assessment and tissue characterisation in suspected arrhythmogenic right ventricular cardiomyopathy [ARVC]).

Flow measurement using velocity-encoded phase-contrast technique is a pre-eminent strength of CMR, enabling the detection and quantification of any valvular, vessel or conduit stenosis or regurgitation, whose main application is in the assessment of congenital heart disease.

Due to the complex anatomy of the RV, a combination of imaging in different cardiac planes is always helpful to better depict cardiac structures and therefore all sequences were performed on short axis, four-chamber and RV inflow-outflow views.

Normal anatomy of right ventricle

Recognising typical features of each cardiac chamber, in particular the ventricles, is necessary to interpret cardiac morphology, which may not be straightforward in some pathological conditions such as complex congenital heart diseases.

RV morphology is characterised as pyramidal in shape with an inlet portion communicating to the right atrium through the tricuspid valve, an outlet or infundibular portion continuous to the pulmonary valve and a trabecular apex (Fig. 1).

Fig. 1
figure 1

Freehand drawings (a, c) and corresponding cine SSFP images on four-chambers (b) and three-chambers (d) views demonstrating normal RV anatomy: moderator band (arrow), tendinous cords of tricuspid valve and trabeculations (T). RA right atrium, RV right ventricle, LA left atrium, LV left ventricle, orange triangle right atrio-ventricular groove containing the right coronary artery and small cardiac vein, SCV superior vena cava, Ao aorta, PA pulmonary artery, OT right ventricular outflow tract

Some features helpful in recognising the morphological RV are:

  • Chordal attachment of septal leaflet of tricuspid valve to the ventricular septum (never present in LV anatomy)

  • Presence of the moderator band, a muscular structure connecting the apical ventricular septum with the apical part of the RV free wall, involved in the cardiac electrical conduction system

  • “Crista supraventricularis”, a ridge separating the infundibulum and the inlet part

  • A trabeculated RV apex

Notably, there is no muscular or chordal structural inserts on the septum in LV; thus the moderator band and tricuspidal chordal attachment may be very helpful in distinguishing the morphological RV from the LV in congenital malformation.

Conversely, the interventricular septum shape and lateral wall thickness are not reliable features in defining the morphology of the RV.

In a normal subject, the chamber equals the LV in volume while the ventricular wall and trabeculations are substantially thinner than those of the LV (RV wall thickness: 3–5 mm), reflecting the different pressure regimen.

Congenital heart disease

The RV is often abnormal in congenital heart disease, in both isolated and complex malformations.

In this clinical setting, CMR has rapidly become the standard reference, whereas echocardiography suffers a lack of optimal acoustic window [9], particularly in postoperative patients, and CMR is independent of geometrical assumptions.

CMR has become a valid and comprehensive tool to define the anatomy, to assess bi-ventricular function [6] and haemodynamics, and to measure blood-flow by using phase contrast technique. Information provided by the exam can play a crucial role either in establishing the need and type of treatment or during follow-up after correction. For example, assessing the haemodynamic outcome after surgery requires a reproducible and accurate assessment of ventricular function as clinical decisions are usually based on a change in serial measurements rather than a single absolute value [10].

The most common congenital conditions at risk for progressive right ventricular dilatation and dysfunction are pulmonary valve stenosis (PS), repaired tetralogy of Fallot (ToF), chronic pulmonary regurgitation, intra- or extra-cardiac shunts, Ebstein’s disease and transposition of great arteries with systemic RV (Figs. 2, 3 and 4) [1012].

Fig. 2
figure 2

A 35-year-old man with surgically corrected tetralogy of Fallot. a LGE-T1W image demonstrates a typical delayed enhancement pattern characterised by a focal area at the inferior ventricular junction (arrowhead); cine SSFP short-axis images during diastole (b) and systole (c) reveal subvalvular pulmonary residual stenosis (black arrow) and significant right ventricular myocardial hypertrophy due to increased subvalvular flow resistance

Fig. 3
figure 3

A 29-year-old woman with partial anomalous pulmonary venous return: CMR evaluation was required to rule out secondary causes of pulmonary hypertension. Patient was asymptomatic. a MR angiography subtracted image shows anomalous drainage of both superior and inferior right pulmonary veins (white arrows) into the superior vena cava with subsequent signs of RV volume overload on cine-SSFP (b, c RV enlargement + septal flattening) without hypertrophy reflecting low pulmonary vascular resistance

Fig. 4
figure 4

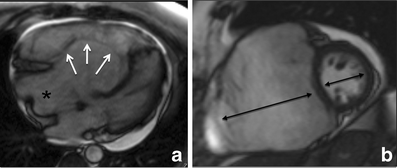

A 12-year-old boy with Ebstein anomaly: cine SSFP four-chamber view (a) shows the anomalous position of the tricuspid valve (white arrows) with leftward displacement of the septum due to RV overload; moderate pericardial effusion is also present; asterisk right atrium. Cine SSFP short-axis view (b) demonstrates huge right chamber enlargement compared with left ventricle (black arrows)

Tetralogy of Fallot

ToF is a complex malformation characterised by four heart defects, including ventricular septal defect, an overriding aorta, PS and RV hypertrophy.

The disease is commonly repaired by closure of the ventricular septal defect and correction of the RV outflow tract stenosis with patches or valvotomy, resulting in a distortion of anatomy.

CMR is commonly required to rule out post-repair complications which variably may consist of residual atrial and/or ventricular septal defect, akinesis or dyskinesis of the right ventricular outflow tract, outflow patch aneurysm and fibrosis of RV free wall or pulmonary artery stenosis [1215].

Pulmonary valve regurgitation is a nearly universal complication, accurately and reliably quantified by CMR using velocity-encoded phase-contrast technique, the degree of which has been demonstrated to be related to RV impairment, dilation or hypertrophy [13].

Velocity-encoded phase-contrast technique may also be useful to evaluate the trans-stenosis pressure gradient, by measuring peak velocity, when stenosis of RV outflow tract or pulmonary artery on cine-MR or MR angiogram images is detected [13].

Furthermore, in patients with corrected ToF, dys-synchrony of RV contraction or abnormal excursion of interventricular septum, easily recognised on cine MR images, contribute to RV dysfunction and are often associated with fibrosis at the interventricular junction points, suggesting a mechanism of adverse interventricular interaction (Fig. 2) [14, 15].

Transposition of great arteries

In patients with congenitally corrected transposition or transposition that has been corrected with atrial switch, the morphological RV pumps blood to the aorta.

For these patients, the accurate measurement of ventricular volumes obtained by CMR is useful in assessing adaptive modification to systemic resistance leading to RV dilation and hypertrophy [10, 11].

In patients treated with arterial switch, the RV may appear normal due to the corrected atrio-ventricular-arterial discordance; however, CMR is performed not only to evaluate bi-ventricular function and morphology but also to rule out potential complications in the vessels, patches or valves [10, 11].

Ebstein’s anomaly

Ebstein’s anomaly is a rare malformation of the tricuspid valve, characterised by the dilatation and apical displacement of the insertion of the septal leaflet and a redundant, elongated anterior leaflet (Fig. 4).

By definition, a part of the RV is anatomically ventricular but functionally atrial (“atrialised”) and entirely contains the tricuspid valve. The remaining functional RV is small.

This anomaly can be associated to a variable degree of tricuspid regurgitation and RV dysfunction, progressively leading to a considerable right atrial and ventricular enlargement [1618].

CMR, using stacks of cine sequences acquired on short-axis, four-chamber and a RV vertical long-axis (RV inflow-outflow plane), allows measurement of the size and systolic function of the right chambers even in cases of severe disease with marked distortion of the RV anatomy [16].

The right atrium and atrialised RV are remarkably enlarged when the sum of the right atrium and atrialised RV area is larger than the combined area of the functional RV, left atrium and left ventricle, measured on four-chamber view at the end diastole [17].

Moreover, the severity of tricuspid regurgitation can be estimated using a through-plane velocity-encoded sequence, oriented perpendicular to the regurgitant jet immediately on the atrial side.

A jet cross-sectional area equal or greater than 6 × 6 mm, setting 250 cm/s as encoding velocity, can be regarded as severe [18].

An atrial septal defect occurs in about 50 % of adult Ebstein patients and should be ruled out on atrial short-axis cine images [18].

Ischaemic cardiac disease

Involvement of the RV occurs in approximately 50 % of patients with inferior myocardial infarction (MI), whereas signs of RV ischaemia have been reported with CMR in around 33 % of anterior LV MI [4, 1921]. Increasing interest in non-invasive recognition of RV MI is justified by its prognostic and therapeutic implications (adverse RV remodelling and worsening of functional recovery at follow-up). These patients have higher rates of in-hospital morbidity and mortality than isolated LV infarction, thus requiring more aggressive treatment approaches [3, 19, 20]. A significant discrepancy, however, between the frequency of RV MI at autopsy and detected cases amongst living patients demonstrates an underestimation of the phenomenon by routine clinical and instrumental criteria (electrocardiography, echocardiography, haemodynamic monitoring)[21].

CMR represents an ideal tool for its detection in both acute and chronic MIs although the thinned infarcted wall of the RV (mostly in chronic lesions) is not always easily detected with either T2WI and LGE-T1WI sequences [4].

Typically, necrosis extends from the LV inferior wall and septum to the posterior RV wall and is caused by the occlusion of the right coronary artery (in the case of right dominance) or circumflex artery (left dominance) (Fig. 5) [19]. However, ischaemic injury affects RV anterolateral free wall in a considerable number of patient with anterior LV MI, by occlusion of anterior descending artery or its branches (Table 1).

Fig. 5
figure 5

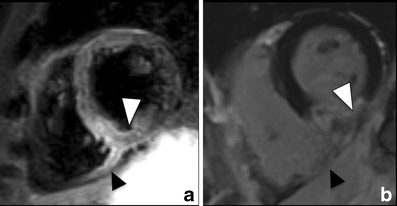

A 57-year-old man with inferior myocardial infarction assessed in the acute phase at the 5th day after reperfusion of right coronary artery. T2-weighted short-axis image (a) demonstrates tissue oedema located within the mid inferior LV wall (white arrowhead) with extension to the medial-inferior wall of the RV (black arrowhead). Corresponding short-axis LGE image (b) shows transmural LGE involving same segments (arrows)

Table 1 MR features of right ventricular myocardial infarction

Right myocardium is less susceptible to ischaemic injury compared with left, due to:

  • Lower demand for oxygen due to lower contractile function

  • Greater oxygen reserve during hemodynamic stress

  • The peculiarity of the right coronary circulation (perfusion during both systole and diastole, and more extensive collateral flow) [3, 19]

Right ventricular dilatation, abnormal right ventricular wall motion, paradoxical motion of septum and tricuspid regurgitation are typical CMR features of RV MI, although RV transient dysfunction is frequently caused by a post-infarct stunning of RV myocardium in a LV MI [3].

A combined T2-weighted imaging/LGE imaging CMR approach enables the characterisation of reversibly and irreversibly damaged myocardium, and monitoring the progression from acute to chronic RV infarction (Fig. 5) [4].

Non-ischaemic cardiomyopathy

Arrhythmogenic right ventricular cardiomyopathy/dysplasia

Arrhythmogenic right ventricular cardiomyopathy (ARVC) is an inherited cardiomyopathy, predisposing patients to ventricular arrhythmias and sudden cardiac death. It is characterised by structural and functional abnormalities of the right ventricular myocardium, such as fibrofatty myocardium replacement, microaneurisms or focal atrophy [22].

Diagnosing ARVC is currently challenging due to the lack of an established and definite “gold standard” test, even including endomyocardial biopsy.

Although the revised criteria proposed by the Task Force of the European Society of Cardiology and the Scientific Council on Cardiomyopathies of the International Society and Federation of Cardiology in 2010 [23] confirmed the crucial role of CMR in diagnosing ARVC, a vigorous debate on the appropriate indications to CMR in patients with suspected ARVC is still ongoing.

CMR features may co-exist in the presence of global or segmental dilation of RV, reduced RV ejection fraction with normal or only mild LV impairment, localised RV aneurysms, regional RV akinesia or dyskinesia and dys-synchronous RV contraction (Table 2) [23].

Table 2 MR features of arrhythmogenic right ventricular cardiomyopathy/dysplasia

Recognition of fibrofatty myocardium replacement on CMR images is not a specific feature for ARVC, as it is frequently observed in elderly patients as part of the ageing process or as result of healed MI [24].

Moreover, differentiating myocardial from epicardial fat is often problematic due to the limited intrinsic spatial and contrast resolution of CMR. Notably, in ARVC, fat infiltration has been described to extend from the epicardium towards the endocardium; hence the RV free wall is remarkably thin. In healed MI, conversely, fat is band-like and mainly located in the subendocardial or mid-wall myocardium. On the other hand, RV free wall maintains normal or increase thickness in healthy patients with physiological fat [24].

In order to distinguish between LGE and fat, and to differentiate pathological fatty infiltration from the epicardial fat, TSE sequences (“black blood”) should be acquired with and without fat saturation covering the entire volume of RV (Table 2).

The use of gadolinium in cases of suspected ARVC may be justified by the possible evidence of late enhancement related to fibrous degeneration in RV myocardium, with special focus to the so-called “triangle of dysplasia” (including diaphragmatic, apical and infundibular regions) [25].

Additionally, a typical morphological feature is the corrugation of right ventricular free wall, known as the “accordion sign” (Fig. 6) [25].

Fig. 6
figure 6

Arrhythmogenic right ventricular dysplasia in a 38-year-old man presenting with syncope and familiar history of sudden cardiac death. Cine SSFP four-chamber image demonstrates multiple aneurysms (arrow) of RV free wall, that appears corrugated (“accordion sign”)

Hypertrophic cardiomyopathy

Hypertrophic cardiomyopathy (HCM) is the most common hereditary heart disease that usually affects the LV and can cause sudden cardiac death and heart failure at any age.

Notwithstanding the fact that the RV has long been considered spared by HCM, the introduction of CMR has revealed an incidence of RV involvement at around 33 % (if considered RV wall thickness > 8 mm) among HCM patients population [26]. It may result in a RV outflow obstruction and/or an impaired RV diastolic filling with potentially severe dyspnea, supraventricular arrythmias and pulmonary thromboembolism.

Patterns of RV hypertrophy range from a diffused form to hypertrophy of RV myocardium contiguous to interventricular septum to a confined focal thickening of apical RV myocardium (Fig. 7) [27]. A typical and highly specific feature, however, is the hypertrophy of the crista supraventricularis muscle.

Fig. 7
figure 7

Biventricular hypertrophic cardiomyopathy in a 37-year-old woman with history of syncope and fatigue. Severe concentric biventricular hypertrophy (septal thickness 27 mm; LV mass 389 g) with volumetric reduction of ventricular cavities and inhomogeneous bi-ventricular spotty areas of signal hyperintensity are depicted on T2WI four-chamber (a) view reflecting diffuse myocardial oedema; late enhancement image (b) shows extensive tissue damage with late enhancement involving both ventricles including the RV free apical wall (arrow). c Endomyocardial biopsy image confirms a severe hypertrophy and disarray of myocardiocites interrupted in short runs by replacement fibrosis (Masson Trichrome, 400×)

Occasionally, myocardial disarray of the right ventricular myocardium can be revealed on LGE imaging and can indicate a potential arrhythmogenic substrate and its extent reflects the severity of the disease [28].

In the quantitative assessment of RV function, ejection fraction is usually similar to normal subjects, whereas end-diastolic volume is slightly lower due to diastolic filling dysfunction (likewise to functional changes observed in hypertrophied LV); this observation may suggest a unique primary hypertrophic process developing similarly in both ventricles [26]

Non-compaction cardiomyopathy

Non-compaction cardiomyopathy (NCCMP) is characterised by a spongy appearance of the ventricular myocardium due to multiple, prominent trabeculations and deep intertrabecular recesses in communication with the ventricular cavity.

Typically, non-compaction involves the apical portion of the LV and predisposes to thromboemboli, arrhythmias, sudden death, ventricular dysfunction and heart failure.

CMR identifies left ventricular NCCMP with a sensitivity of 86 % and a specificity of 99 % using a cut-off ratio of non-compacted/compacted myocardium >2.3, measured on cine images at end-diastole [29].

However, RV non-compaction has been rarely described [30], since shared criteria to distinguish between normal RV trabeculations and non-compacted pattern has not yet been codified, thus making findings easily undiagnosed by inexperienced readers.

Left ventricular LGE was depicted in patients with NCCMP according to the presence of fibrosis, and recently demonstrated to be correlated to clinical severity and ventricular dysfunction [31].

CMR provides unique diagnostic clues to rule out this uncommon clinical entity due to its superior morphological depiction, which allows to objectively and reproducibly identify the extent of pathological hypertrabeculations, to depict eventually associated regional kinetic abnormalities and to exclude endocavitary thrombi.

Cor pulmonale

Cor pulmonale is defined as dilation and hypertrophy of the RV as a response to elevated pulmonary arterial pressure (pulmonary hypertension [PH]).

Although a large spectrum of recognised conditions can cause cor pulmonale, ranging from heritable disorders to chronic pulmonary thromboembolism or lung disease, the aetiology remains unknown in a large number of cases (idiopathic pulmonary arterial hypertension) (Fig. 8).

Fig. 8
figure 8

Severe idiopathic pulmonary hypertension in a 28 year-old man; pulmonary arterial pressure at right catheterisation was 70 mmHg. Focal areas of hyperintense signal are observed at the level of both ventricular junctions on STIR T2WI (a, arrows) matching mesocardial spots of late enhancement in the same location (b, arrows). Severe concentric RV hypertrophy is observed on short-axis cine-SSFP end-systole image with flattening and inversion of the interventricular septum during contraction (c)

CMR with angiographic visualisation of thoracic vessels allows, in a one-step shot, to:

  • Evaluate functional and hemodynamic impairment of RV

  • Detect vascular abnormalities, hypertrophy and fibrotic myocardial replacement of RV (Fig. 9) [32]

Fig. 9
figure 9

Secondary pulmonary hypertension related to patent ductus arteriosus in a 32-year-old man presenting with fatigue and stiffness. a Volume rendering reconstruction of CT Angiography shows a communication between aortic arch (Ao) and pulmonary trunk (PA) for the presence of patent ductus arteriosus (black arrow). b, c In the same patient, cine-SSFP images demonstrate dilated pulmonary artery with valvular regurgitation (white arrow, b) and severe eccentric RV enlargement at four-chamber view (c)

Typical CMR features of PH are RV dilation with unusual hypertrophy, right atrium dilation, flattened or reversed septum curvature (bulging) with dyskinetic movement [15]. LGE imaging shows a characteristic retention of gadolinium at the septal insertion (junctional pattern), predicting RV remodelling in response to increased afterload [32].

Initial and predictive signs of PH at CMR are considered to be a slowed and turbulent flow-pattern of the pulmonary artery. It has recently been utilised in the measurement of the degree of whirling flow on phase-contrast imaging and the distensibility of the pulmonary trunk on the cine CMR images by comparing systolic and diastolic transverse diameters [33, 34].

Other non-ischaemic cardiomyopathies

The RV can be involved in various, other cardiac diseases (e.g. dilated cardiomyopathy, infective or autoimmune myocarditis, Anderson Fabry disease [35]) or associated with systemic disorders (e.g. amyloidosis, sarcoidosis, Wegener’s granulomatosis [36] or storage disease) (Figs. 10 and 11).

Fig. 10
figure 10

Primary biventricular amyloidosis in 41-year-old woman addressed to CMR for characterisation of an unexplained LV concentric hypertrophy and to rule out hypertrophic cardiomiopathy. A concentric LV wall thickening with RV involvement (white arrowheads) and the characteristic diffuse heterogeneous “non-suppressed” appearance of the myocardium is depicted on late-enhanced phase sensitive inversion recovery T1-weighted short axis (a) and four-chamber view images (b). c Endomyocardial biopsy demonstrated extensive amyloid substance occupying the interstitium (asterisk), surrounding myocardiocites (arrows) and small vessels (black arrowhead)

Fig. 11
figure 11

Glycogen storage disease in a 29-year-old man with family history of juvenile sudden cardiac death and unexplained increased left ventricular wall thickness at echocardiography. a. Four-chamber T2WI shows an hyper-trabeculated appearance of the RV with subendocardial hyperintense signal related to “slow-flow” phenomenon caused by diffused hypokinesis. b. Four-chamber LGE-T1WI reveals a diffuse and homogeneous enhancement of the RV myocardium (black arrows) involving the free wall, apex, and right side of the interventricular septum (arrowheads). The late-enhancement pattern of the left ventricle is predominantly subepicardial (white arrows) involving the lateral wall. c. Electron microscopy image of endomyocardial biopsy shows massive accumulation of citosolic glycogen, sometimes engulfing autophagosoms (asterisk)

In the most of these conditions, however, the CMR features resemble the LV pattern, as observed in several case reports.

Right ventricular masses

The masses most frequently encountered in the RV are non-tumoral, such as thrombi, valvular vegetations, focal muscular hypertrophy and pericardial cysts but despite their non-neoplastic nature they may lead to severe complications (embolisation, ventricular function impairment) [37].

RV implication in primary cardiac tumours is extremely rare and the true incidence varies on the different series, being agreed that benign lesions (e.g. myxoma, lipoma, papillary fibroelastoma, rhabdomyoma, fibroma) occur 3–4 times more frequently than primary malignancies (e.g. angiosarcoma, rhabdomyosarcoma, liposarcoma, lymphoma, etc.) (Figs. 12 and 13) [38]: CMR features such as invasion of pericardium, regular edge and preservation of anatomical borders can be helpful in their distinction.

Fig. 12
figure 12

RV fibroelastoma in an asymptomatic 32-year-old man with an intracavitary nodule incidentally depicted at trans-thoracic echocardiography. TSE T1-weighted image shows the presence of a nodular rounded RV mass (arrow) attached to a large trabecula

Fig. 13
figure 13

RV metastasis of renal cancer in a 62-year-old man (histologically proven). A large ovoid secondary lesion is depicted at the lateral atrio-ventricular junction compressing the RV free wall

Finally, it has estimated that secondary cardiac tumours are a hundred times more common compared with primary lesions [39]; and the RV may be reached by direct extension such as (e.g. lung or breast cancer), lymphatic extension (e.g. lymphoma), or metastatic spread (e.g. malignant melanoma or renal cell carcinoma) [37].


CMR allows a comprehensive evaluation of the right ventricle both in terms of anatomical delineation, function quantification and tissue characterisation.

A proper knowledge of the most common CMR features of RV diseases is necessary in order to promptly and accurately identify the RV involvement in various cardiac diseases.
