Myocardial hypertrophy: the differentiation of uremic, hypertensive, and hypertrophic cardiomyopathies by cardiac MRI

Abstract

Objectives

To apply cardiac magnetic resonance imaging (CMR) for detailed myocardial characterization in uremic cardiomyopathy (UC), hypertensive cardiomyopathy (HTN), and hypertrophic cardiomyopathy (HCM) aiming to enrich the understanding of UC’s etiology and further support the development of therapeutic strategies.

Methods

A total of 152 patients (age: 49.2 ± 9.9 years; 65.8% male) underwent routine CMR from June 2016 to March 2023. Retrospectively, 53 patients with UC, 39 patients with HTN, 30 patients with HCM, and 30 healthy controls were included. Functional analysis, feature tracking of the left ventricle and left atrium, and myocardial T1, T2, and T2* mapping were performed. Statistical analysis included Pearson correlation and ROC analysis to define correlations and discriminators between groups.

Results

UC patients demonstrated significantly higher native T1 (p < 0.001 for all) and T2 (p < 0.002 for all) values compared with the other three groups. UC patients revealed higher left atrial reservoir strain rate (p < 0.001 for all) and left atrial conduit strain rate (p < 0.001 for all) absolute values as compared with HTN and HCM patients. A significant correlation between T1 and T2 values in UC patients (r = 0.511, p < 0.001) was found. The combination of T1 values and strain parameters was the best discriminator between UC and HTN patients (AUC = 0.872, 95% CI: 0.801–0.943) and between UC and HCM patients (AUC = 0.840, 95% CI: 0.746–0.934).

Conclusion

UC reveals distinguishing tissue characteristics as evidenced by T1 and T2 mapping, as well as distinguishing functional strain parameters as compared with other hypertrophic phenotypes such as HTN and HCM.

Critical relevance statement

The use of CMR imaging in UC patients offers incremental information to elucidate its complex etiology, contributing to ongoing discourse on effective treatment pathways.

Key Points

• This study investigated uremic, hypertensive, and hypertrophic cardiomyopathies using cardiac MRI.

• UC patients have higher T1 and T2 values and better preserved cardiac function.

• Combined strain and T1 values distinguish UC from other cardiomyopathies.

Graphical Abstract

Introduction

Cardiac disease is a frequent cause of death in patients with end-stage renal disease (ESRD) [1,2,3]. Uremic cardiomyopathy (UC) manifests itself mainly as left ventricular (LV) hypertrophy, diastolic dysfunction, and heart failure [4, 5]. It involves a complex pathophysiological mechanism, and the primary etiological factors remain unknown at present. Investigating the primary pathogenic factors is of substantial significance for the treatment and rehabilitation of it. The advancement of cardiac magnetic resonance imaging (CMR) enables us to obtain more myocardial histological characteristics non-invasively, facilitating further etiological analysis.

CMR is well suited to assess myocardial tissue characteristics by T1, T2, and T2* mapping, as well as functional parameters of the left ventricle and left atrium by analyzing global function and strain analysis in a wide range of cardiomyopathies. Parametric analysis of native T1 values can detect myocardial diffuse changes and reveal early myocardial fibrosis, edema, and infiltrative disease [6]. Native T2 values are mainly used to evaluate myocardial edema and inflammatory changes [7]. In addition, T2* mapping can detect and quantify iron deposition at an early stage [8, 9]. CMR is also well suited to assess global and regional functional parameters of the left ventricle and left atrium. In particular, CMR feature tracking (CMR-FT) [10, 11] can obtain myocardial strain and strain rate which will further characterize global LV and left atrial (LA) function and may detect early changes in cardiac function [12, 13].

The etiology of UC may be complicated by co-existing hypertension, persistent volume overload, fluctuating volume status, and uremic toxin accumulation [14, 15]. An increase in wall stress-driven hypertensive cardiomyopathy (HTN) and genetically determined hypertrophic cardiomyopathy (HCM) manifest themselves also as hypertrophic phenotypes. Distinguishing various hypertrophic phenotypes is a clinical challenge. CMR is the preferred imaging method to characterize various forms of hypertrophic phenotype and may be helpful in diagnosing specific cardiomyopathies by parametric imaging and functional analysis. We hypothesized that UC may be characterized by specific CMR characteristics assessed with myocardial tissue mapping and functional strain analysis in distinction to hypertensive and genetically determined HCM.

Accordingly, we investigated the unique myocardial tissue characteristics and functional attributes in UC patients through CMR, aiming to discern etiology-specific differences when compared to the myocardial profiles seen in hypertensive and HCM.

Material and methods

Study population

This observational and retrospective study included 53 patients with UC, 30 patients with HTN, 39 patients with HCM, and 30 healthy controls who underwent a clinically indicated CMR scan at The First Hospital of China Medical University between June 2016 and March 2023 (Table 1).

Table 1 Baseline clinical characteristics

The UC patients were defined as suffering from ESRD (estimated Glomerular filtration rate < 15 mL/min/1.73 m²) and advanced UC treated with peritoneal dialysis, with LV maximal wall thickness (LVMWT) over 15 mm as determined by CMR [16, 17]. The inclusion criteria of HTN patients were: receiving treatment for hypertension (systolic blood pressure > 140 mmHg or diastolic blood pressure > 90 mmHg) and the presence of concentric LVMWT defined as > 12 mm in the basal septal and inferolateral segments and without evidence of dilated LV cavity on transthoracic echocardiography [18,19,20]. The inclusion criteria of HCM patients were: adults without HCM family history and LVMWT ≥ 15 mm or adults with HCM family history and LVMWT ≥ 13 mm [21,22,23]. Healthy controls consisted of normotensive, age and gender-matched healthy subjects, not taking any medications, normal routine blood tests, normal urine samples, and normal CMR findings including normal LV mass indices. The exclusion criteria were: patients with other hypertrophic phenocopies diseases (n = 43); significant (≥ grade III) valvular heart disease (n = 13); HCM patients with previous septal ablation (n = 4); HTN with evidence of dilated LV cavity on transthoracic echocardiography (n = 3); degraded CMR image quality (n = 5); lack of clinical data (n = 9); LV ejection fraction < 50% (n = 6) [24] (Fig. 1). The protocol was reviewed and approved by the institution ethics review board of the First Hospital of China Medical University (IRB number: KT2021213). Written informed consent was obtained from all participants.

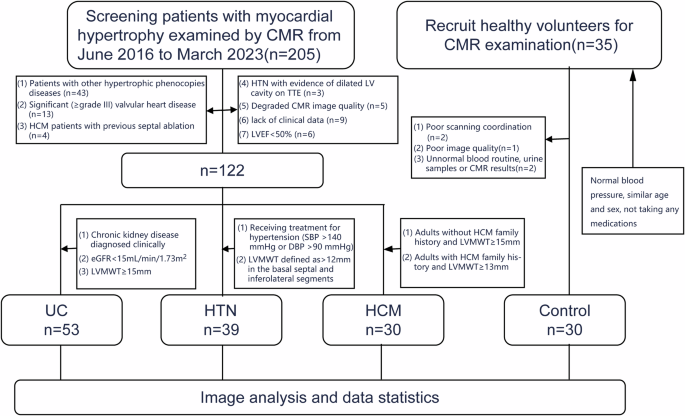

Fig. 1

Patient flowchart. The flowchart shows the involvement of patients and controls. UC, uremic cardiomyopathy; HTN, hypertension; HCM, hypertrophic cardiomyopathy; CMR, cardiac magnetic resonance; TTE, transthoracic echocardiography; LVEF, left ventricular ejection fraction; eGFR, estimated glomerular filtration rate; LVMWT, left ventricular maximal wall thickness; SBP, systolic blood pressure; DBP, diastolic blood pressure

CMR image acquisition

All scans were conducted on 3.0-T MRI. Phantom quality assurance tests were conducted every six months to monitor whether parametric mapping values were drifting over time. At the end of expiration, all individuals had a single breath-holding scan with a heart rate ranging from 60 beats/min to 90 beats/min. Short axis stacks were considered a standard method to quantify LV volume and function, T1, T2, and T2* mapping order from base to apex. For T1 quantification, a modified look-locker inversion recovery sequence was implemented, while T2 quantification utilized a T2-prepared balanced steady-state free precession.

CMR image analysis

Functional and parametric analysis of CMR was performed by two radiologists (Z.T. and T.L., with more than 3 years and 15 years of CMR diagnosis experience) blinded using CVI42 software (version 5.3.4, Circle Cardiovascular Imaging, Canada). All individuals were assigned a sequential number and analyzed blindly. LA and LV deformation, including strain and strain rates, were derived via a feature tracking algorithm after the manual delineation of the LA and LV contours, avoiding the inclusion of pulmonary veins. This process facilitated the automatic generation of strain and strain rate variation curves for the cardiac cycle by the CMR-FT module within CVI42 (version 5.3.4, Circle Cardiovascular Imaging, Canada). To ensure precision, all delineated contours were visually examined and adjusted as necessary. All functional and strain parameters for the three groups of patients and healthy controls are shown in Tables 2 and 3. LV and LA epicardial and endocardial borders were automatically traced at both end-diastole and end-systole to calculate cardiac function and myocardial deformation parameters, with manual adjustments as needed. For mapping images (T1, T2, and T2*), short axis stacks were utilized to match regions of interest (ROIs) placed on hypertrophic myocardium, with manual motion correction. HCM ROIs were inserted at the location of local myocardial hypertrophy, whereas UC and HTN ROIs were implanted at the interventricular septum. Figure 2 depicts typical instances from each of the four groups.

Table 2 CMR-based cardiac function parameters and myocardial characteristics

Table 3 LV and LA strains and strain rates

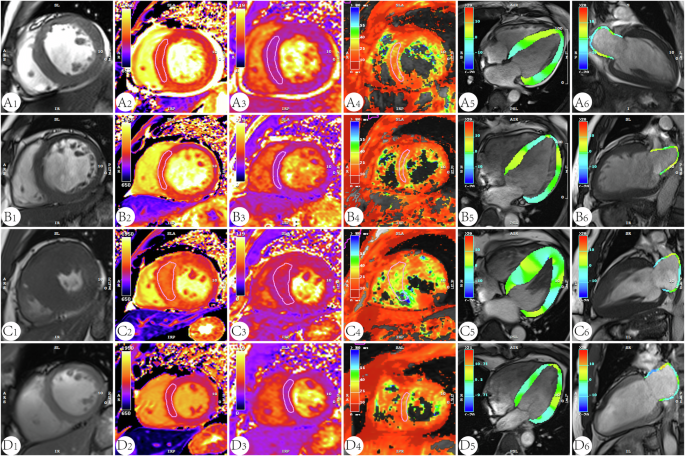

Fig. 2

Quantitative cardiac MRI measurements in a UC patient (A), an HTN patient (B), an HCM patient (C), and a healthy subject (D). A₁, B₁, C₁, and D₁ a single short-axis stack; A_2–4, B_2–4, C_2–4, and D_2–4 quantitative CMR measurements of native T1, T2, and T2* series; A₅, B₅, C₅, and D₅ 4-chamber view of LA systolic phase; A₆, B₆, C₆, and D₆ 2-chamber view of LA systolic phase (the LA color varies with different phases and strain parameters)

Statistical analysis

Quantitative data were presented as mean ± standard deviation (SD), and median (interquartile range), while categorical data were expressed as counts with corresponding percentages. Tests for normality and variance homogeneity were applied to the quantitative variables. For normally distributed quantitative variables, comparisons were conducted using the ANOVA test, whereas the Kruskal–Wallis rank-sum test was employed for non-normally distributed variables, while categorical variables were compared using the Chi-square or Fisher’s exact test. The effects of clinical parameters and CMR parameters were evaluated using covariance analysis. The relationship between quantitative variables and primary CMR findings was assessed using Pearson or Spearman rank correlation methods. The corrections between clinical outcomes and CMR characteristics were assessed using univariate and multivariate logistic regression. Statistical significance was determined using a two-tailed test with a p value < 0.05.

Results

Baseline characteristics and anthropometric variables

The baseline characteristics and anthropometric variables are summarized in Table 1. A total of 152 subjects who underwent CMR were included in this study, including 53 UC patients (mean age, 46.4 ± 8.7 years; 78.4% male), 39 HTN patients (mean age, 51.9 ± 11.0 years; 57.9% male), 30 HCM patients (mean age, 51.3 ± 9.4 years; 60.0% male), and 30 healthy controls (mean age, 48.3 ± 10.0 years; 63.3% male). The flowchart of the study population is shown in Fig. 1. There was no significant difference in age, sex, body mass index (BMI), high-sensitivity cardiac troponin I (hsTnI), dyslipidemia, diabetes mellitus, and smoking history among the four groups. UC and HTN patients had a lower brain natriuretic peptide (BNP) than HCM patients (148.00 [84.00–287.00] vs 537.50 [245.50–870.50] pg/mL; 101.00 [43.00–187.00] vs 537.50 [245.50–870.50], p < 0.001; p = 0.002). Systolic and diastolic blood pressures were significantly elevated in the UC and HTN groups compared to the HCM and control groups. Specifically, UC and HTN patients had higher systolic and diastolic blood pressures (146.62 ± 12.81 mmHg and 95.28 ± 10.90 mmHg; 140.59 ± 11.19 mmHg, and 90.15 ± 5.29 mmHg) compared to HCM (128.67 ± 8.65 mmHg and 75.77 ± 6.80 mmHg) and control groups (111.5 ± 10.02 mmHg and 75.13 ± 7.24 mmHg) (p < 0.001 and p = 0.023, respectively).

CMR-based myocardial characteristics

The myocardial characteristics derived from CMR for the three patient groups and healthy controls are presented in Table 2. The three groups of patients had higher left ventricular end-diastole volume index (LVEDVI), left ventricular end-systolic volume (LVESVI), left ventricular stroke volume index (LVSVI), left ventricular mass index (LVMI) and left ventricular mass (LVMASS) than healthy controls (p < 0.01 for all). Whereas the UC patients’ LVEDVI and LVSVI were lower than HCM patients (p < 0.05). There was no significant difference in HR between the four groups, as well as in LVESVI, LVEF, and LVMI between the UC, HTN, and HCM patients. Native T1 and T2 values were increased in UC, HTN, and HCM patients compared with healthy controls (p < 0.01 for all). UC patients had significantly higher native T1 (1342.83 ± 49.17 vs 1295.00 ± 60.53; 1342.83 ± 49.17 vs 1285.77 ± 67.10; 1342.83 ± 49.17 vs 1189.80 ± 21.43, p < 0.001 for all) and T2 (43.79 ± 2.53 vs 41.51 ± 3.47; 43.79 ± 2.53 vs 41.77 ± 2.21; 43.79 ± 2.53 vs 37.97 ± 1.33, p < 0.002 for all) values compared with HTN and HCM patients (Fig. 3). The covariance analysis revealed that, after adjusting for baseline systolic and diastolic blood pressures, significant differences in myocardial T1 and T2 values persist among the different disease groups (Supplementary Tables 1–4). There was no significant difference in native T2* values between the four groups.

Fig. 3

Group-specific mean values of native T1 and T2 in the study groups. UC, uremic cardiomyopathy; HTN, hypertension; HCM, hypertrophic cardiomyopathy; LV-GCS, left ventricular global radial strain; LA-RSR, left atrial reservoir strain rate; LA-CSR, left atrial conduit strain rate

LV and LA strains and strain rates

LV and LA strains and strain rates derived by CMR-FT are presented in Table 3. The absolute values of left ventricular global longitudinal strain (LV-GLS), left ventricular global circumferential strain (LV-GCS), and left ventricular global radial strain (LV-GRS) were lower in patient groups as compared with healthy controls (p < 0.05 for all). The absolute value of LV-GCS in UC patients was higher than that in HTN patients (−17.90 ± 3.07 vs −15.34 ± 4.58, p < 0.05). The absolute value of LV-GLS rate (LV-GLSR) in UC patients was higher than that in HCM patients (−0.79 ± 0.32 vs −0.62 ± 0.24, p < 0.01). The absolute values of LV-GCS rate (LV-GCSR) and LV-GRS rate (LV-GRSR) in HTN patients were lower than that in healthy controls (p < 0.01 for all). All absolute values of LA reservoir strain (LA-RS), conduit strain (LA-CS), booster strain (LA-BS), and their strain rates were lower in patient groups as compared with those values in the healthy control subject, except for LA-CS and LA-BS rate (LA-BSR) of UC patients (p < 0.05 for all). The absolute values of LA-RS rate (LA-RSR) (1.64 ± 0.72 vs 1.22 ± 0.63; 1.64 ± 0.72 vs 1.04 ± 0.61, p < 0.001 for all) and LA-CS rate (LA-CSR) (−1.68 ± 1.13 vs −0.98 ± 0.53; −1.68 ± 1.13 vs −1.01 ± 0.71, p < 0.001 for all) were higher in UC patients than in HTN and HCM patients.

Analysis of relationships

According to the Pearson correlation coefficient, there was a moderate correlation between T1 and T2 values in UC patients (r = 0.511, p < 0.001) while no such correlation between T1 and T2 values was found in the other three groups. There were weak correlations between T1 and EDVI values, T1 and ESVI values in UC patients (r = 0.353, p < 0.01; r = 0.365, p < 0.01) while no statistical correlations between those values were found in the other three groups. There were weak correlations between T1 and GCS in UC and HTN patients (r = 0.325, p = 0.018; r = 0.319, p = 0.048) while no statistical correlations between those parameters were found in the other two groups (Fig. 4).

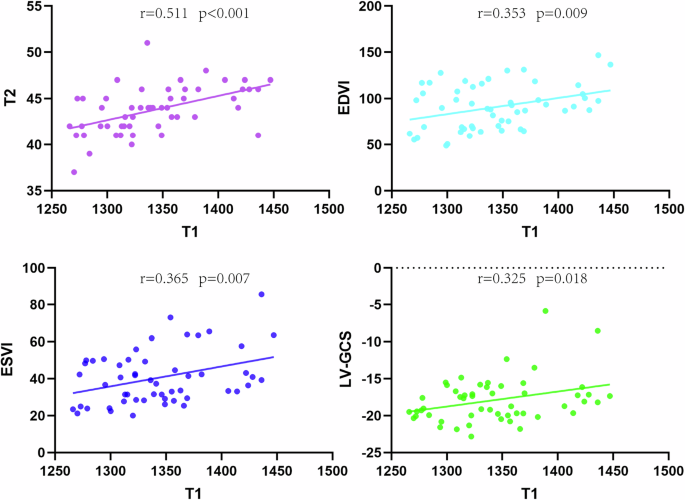

Fig. 4

Association between native T1 and T2, EDVI, ESVI, and LV-GCS. Specific r values are included. EDVI, end-diastole volume index; ESVI, end-systolic volume; LV-GCS, left ventricular global circumferential strain

ROC analysis of LV and LA parameters for differentiating UC patients from HTN and HCM patients

T1, LA-RSR and LV-GCS (area under ROC curve [AUC] 0.711, 95% confidence interval [CI]: 0.604–0.819; AUC 0.706, 95% CI: 0.597–0.815; AUC 0.706, 95% CI: 0.591–0.821; respectively, p < 0.01 for all) were distinguishing between UC and HTN patients (Fig. 5). T1, T2, LA-RSR and LA-CSR (AUC 0.719, 95% CI: 0.598–0.841; AUC 0.730, 95% CI: 0.617–0.843; AUC 0.774, 95% CI: 0.663–0.885; AUC 0.718, 95% CI: 0.600–0.836; respectively, p < 0.01 for all) were distinguishing between UC and HCM patients. The combination of T1, LV-GCS, LA-CS, and LA-RS (AUC 0.872, 95% CI: 0.801–0.943) was the best distinguishing feature between UC and HTN patients. The combination of T1, LV-GCS, and LA-RS was the best distinguishing feature between UC and HCM patients (AUC 0.840, 95% CI: 0.746–0.934).

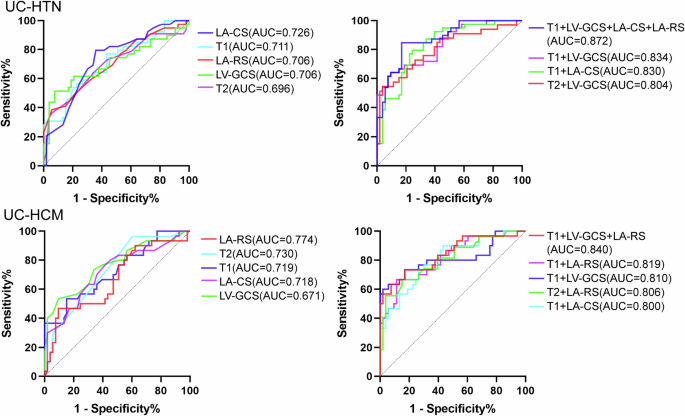

Fig. 5

ROC curve analysis of LV and LA parameters for differentiating UC patients from the other two groups. UC, uremic cardiomyopathy; HTN, hypertension; HCM, hypertrophic cardiomyopathy; LA-CS, left atrial conduit strain; LA-RS, left atrial reservoir strain; LV-GCS, left ventricular global circumferential strain

Discussion

This study compared myocardial tissue features and strain parameters of the left ventricle and left atrium in patients with UC, HTN, and HCM in comparison with healthy control subjects. In previous studies, researchers have usually focused on patients’ LV function and native T1 and T2 values, but rarely paid attention to LA function and T2* values [11, 25]. We have incorporated all the above indicators into our study. The main findings of our study are: (1) native T1 and T2 values are higher in patients with UC as compared to those values in patients with HTN and HCM. And there was also a moderate correlation between them. (2) LA-RS and LA-CS values were higher in patients with UC as compared to the other two hypertrophic phenotypes. (3) The combination of myocardial T1 values and strain parameters was a distinguishing feature between UC and the other two hypertrophic phenotypes.

We found that myocardial T1 and T2 values are higher in UC. In addition, we found a moderate correlation between native T1 and T2 values in UC. In contrast to UC, no such correlation was found in the other two hypertrophic phenotypes. The combination of native T1 values and extracellular volume fraction can reflect myocardial fibrosis. Correlated native T1 and T2 values reflect myocardial edema [26, 27]. Daniel R. Messroghli and colleagues determined that T1 and T2 mapping are equivalently efficacious only in the detection of edema [7]. Thus, edema is more pronounced in UC patients as compared to HTN and HCM patients. Volume overload may play an additional role in enhancing myocardial edema in patients with UC. It has been shown that myocardial T1 and T2 values vary dynamically with humoral volume change in patients on hemodialysis [28]. However, all the patients in our study were treated with peritoneal dialysis to make sure that their humoral volume change was relatively stable. Furthermore, in our study myocardial T2* values as a measure of iron deposition were within the normal range in UC, as well as the other two hypertrophic phenotypes.

Strain and strain rate represents the magnitude and rate of myocardial deformation and may be early markers of cardiac dysfunction. In our study, the absolute value of LV-GCS was significantly higher in UC patients as compared to those values in hypertensive patients. The absolute value of GLSR was significantly higher in UC patients as compared to that measurement in patients with HCM. Apparently, LV function is better preserved in UC as compared to the other two cardiomyopathies. Furthermore, LA strain rates showed in our study significant differences between UC patients and the other two patient groups. LA dysfunction is an early marker of LV dysfunction and prognosis in various cardiac diseases [29, 30]. The LA works as a reservoir for pulmonary venous return during ventricular systole, a conduit for pulmonary venous return during early ventricular diastole, and a booster pump to increase ventricular filling during late ventricular diastole [31]. Reservoir function is mainly affected by atrial compliance during ventricular systole, it is influenced by the decrease of LV base during systole, as well as LV end-systolic volume [32]. Conduit function is affected by atrial compliance, LV relaxation, and compliance. Finally, the atrial booster pump function reflects the magnitude and timing of atrial contractility and depends on venous reflux, LV end-diastolic pressures, and LV systolic reserve [31]. LA strain has high-sensitivity in identifying raised atrial stiffness and wall fibrosis [33, 34]. It plays an important role in the evaluation of LA function. In our study, we mainly estimated reservoir strain, conduit strain, and booster strain to measure the corresponding function. LA-RSR and LA-CSR were significantly higher in UC patients as compared to those values in HTN and HCM patients. Our findings suggest that LA reservoir and conduit function are better preserved in UC patients as compared to HTN and HCM patients. Apparently, UC patients have better preserved LA compliance, LV compliance, and LV relaxation.

We analyzed myocardial and strain parameters that may be helpful in distinguishing UC from hypertensive and HCM. The combined analysis of T1, LV-GCS, LA-CS, and LA-RS was the best-performing distinguishing feature between uremic and HTN. Furthermore, the combined analysis of T1, LV-GCS, and LA-RS was best-performing to distinguish uremic and HCM.

Finally, our findings suggest potential improvements in diagnosing and managing UC. The distinct myocardial T1, T2 and strain parameters in UC patients compared to other cardiomyopathies could lead to more accurate diagnostic criteria enabling earlier identification and timely intervention. Additionally, the potential reversibility of myocardial changes associated with edema in UC warrants further investigation, potentially leading to therapies targeting edema reduction to improve cardiac function. The noninvasive nature of CMR allows for regular monitoring and personalized treatment adjustments. While myocardial biopsy is not routinely recommended for UC, HTN or HCM, future studies could validate our findings by correlating CMR data with myocardial biopsy results in a subset of patients where biopsy is feasible and clinically indicated [35,36,37,38,39]. Furthermore, a longitudinal follow-up of these patients could provide valuable insights into the progression of UC and its comparison with HTN and HCM over time. This approach could help understand the disease trajectory and response to treatments, further enhancing clinical decision-making. These findings underscore CMR’s value in clinical decision-making and highlight the need for further prospective studies to validate and integrate these results into routine practice.

Limitations

This is a retrospective single-center study with a relatively small sample size, we need prospective studies in large and broad populations to validate our findings for exploring the clinical utility of patient management. Potential biases, such as selection bias, might have influenced the results since our study population may not represent the broader patient population. Additionally, the retrospective nature of the study introduces the risk of information bias due to variability in data quality and completeness, which could result in inaccuracies or inconsistencies. Owing to the fact that myocardial biopsy is not conducted as a routine procedure, we were unable to evaluate the correlation between myocardial histology and CMR parameters. In addition, UC patients can not accept enhanced scans considering their safety so we did not evaluate the myocardial extracellular volume and late gadolinium. Still, we can get multiple parameters in a noninvasive way without contrast.

Conclusions

We explored the presence and extent of CMR tissue characteristics and cardiac strain in UC in contrast to hypertensive and HCM. We found distinguishing differences in myocardial T1 and T2 values and strain parameters in UC patients as compared to the other two cardiomyopathies. Myocardial seems to be more apparent in UC as compared to the other two cardiomyopathies. Strain analysis revealed better preserved LA and ventricular function as compared to the other two patient groups. Finally, we explored distinguishing features based on the myocardial tissue characteristics and strain between UC and hypertensive and HCM. The combined analysis of myocardial T1 values and strain revealed promise to distinguish UC from the two other phenotypes. Our findings suggest that the observed differences in myocardial tissue characteristics between UC, HTN, and HCM patients may be indicative of underlying etiological distinctions. However, these hypotheses require further investigation to establish causality and to understand the full clinical implications.
