Insights into Imaging
Download PDF

Differentiation of placenta percreta through MRI features and diffusion-weighted magnetic resonance imaging

Insights into Imaging volume 14, Article number: 93 (2023) Cite this article

Abstract

Objectives

To identify whether parameters measured from diffusion kurtosis and intravoxel incoherent motion help diagnose placenta percreta.

Methods

We retrospectively enrolled 75 patients with PAS disorders including 13 patients with placenta percreta and 40 patients without PAS disorders. Each patients underwent diffusion-weighted imaging (DWI), intravoxel incoherent motion (IVIM), and diffusion kurtosis imaging (DKI). The apparent diffusion coefficient (ADC), perfusion fraction (f), pure diffusion coefficient (D), pseudo-diffusion coefficient (D*), mean diffusion kurtosis (MK) and mean diffusion coefficient (MD) were measured by the volumetric analysis and compared. MRI features were also analyzed and compared. The receiver operating characteristic (ROC) curve and logistic regression analysis were used to evaluate the diagnostic efficiency of different diffusion parameters and MRI features for distinguishing placental percreta.

Results

D* was an independent risk factor from DWI for predicting placenta percreta with sensitivity of 73% and specificity of 76%. Focal exophytic mass remained as independent risk factor from MRI features for predicting placenta percreta with sensitivity of 72.7% and specificity of 88.1%. When the two risk factors were combined together, the AUC was the highest, 0.880 (95% CI 0.8–0.96).

Conclusion

D* and focal exophytic mass were associated with placenta percreta. A combination of the 2 risk factors can be used to predict placenta percreta.

Critical relevance statement

A combination of D* and focal exophytic mass can be used to differentiate placenta percreta.

Key points

  1. 1.

    D* and focal exophytic mass were associated with placenta percreta.

  2. 2.

    DWI parameters help quantify PAS.

  3. 3.

    Placenta percreta can be differentiated with combination of risk factors.

Introduction

Placenta accreta spectrum (PAS) disorders are the abnormal trophoblast invasion into the myometrium where the Nitabuch’s layer is disrupted [1]. The depth of villous tissue invasiveness into the myometrium is different, and placenta percreta is the most aggressive form when the placental villi penetrate through the entire myometrium and even to the surrounding organs. As the abnormal placenta is strongly attached to the myometrium and/or the extrauterine tissues, the risk of postpartum hemorrhage increases when any attempt to remove the abnormal placenta. Placenta percreta is life-threatening and is also associated with other serious maternal complication including local organ damage, peripartum hysterectomy and even death [2, 3]. The maternal morbidity was 3 times greater in patients with placenta percreta than those with accreta/increta [4]. Accurate and timely prenatal diagnosis of placenta percreta allows time for multidisciplinary team work including preparation for blood transfusion, hysterectomy and ICU (intensive care unit) stay to improve maternal outcome.

Currently, MRI (magnetic resonance imaging) is used as a complementary modality to ultrasound in diagnosing PAS. Although the accuracy of MRI and US (ultrasonography) is similar, MRI is better in depicting the topography, depth and extension of placental invasion, particularly in detection of parametrium, uterine ligament and bladder extension. Placental bulge, bladder wall interruption, bladder tenting, bladder vessel sign, serosa vessel sign and parametrial vessel sign have all been reported to be associated with placenta percreta [5, 6]. However, a recent study suggests experience plays a significant role in accurately interpreting PAS-related MRI findings. Interpreting MRI findings is considered challenging even for the most experienced radiologist [7].

Diffusion-weighted magnetic resonance imaging is a functional MRI technique that measures water molecular movement within the tissue. IVIM (intravoxel incoherent motion) is another DWI technique that measures both water molecular diffusion and blood microcirculation in the tissue using enough low b-values [8]. DKI (diffusion kurtosis imaging) is a polynomial DWI model that measures the deviation of water diffusion from a homogeneous, unrestricted and free distribution using more larger b-values [9]. Using IVIM and DKI, our previous studies showed D mean and D max can be used to discriminate PAS disorders, D mean was also significantly higher in patients with placenta increta and percreta [10, 11]. However, our previous studies did not focus on the value of IVIM and DKI for distinguishing placenta percreta and did not investigate if IVIM and DKI can help improve the diagnosis of placenta percreta. Therefore, the purpose of our study was to explore the diagnostic accuracy of IVIM and DKI parameters for differentiation of placenta percreta, and to compare the diagnostic performance of MRI features and DWI parameters.

Materials and methods

Our institutional review board (IRB) approved this study, and we obtained written informed consent from each female participant. From November 2018 to April 2022, 206 patients underwent placental MRI including a DWI sequence. The inclusion criteria were: (1) suspected PAS disorders based on clinical risk factors or uncertain ultrasound (US) results, (2) singleton pregnancy, and (3) fetal development coinciding with gestational age. Patients were excluded for the following reasons: (1) presence of any maternal pathology, (2) inadequate surgical records, (3) suspected placental insufficiency, or (4) severe artifacts on MRI images (Fig. 1).

Fig. 1
figure 1

Study design flowchart

Full size image

Clinical characteristic analysis

Information on maternal age, gravidity, parity, number of previous CDs, and number of abortions, gestational age at examination and gestational age at delivery was recorded from the clinical records of the patients.

MR imaging protocols

All MR images were acquired at a 1.5T MR scanner (Aera, Siemens Healthineers, Erlangen, Germany) using a 16-channel body matrix coil. The following sequences with current scanning parameters were included: (1) axial, coronal, and sagittal half-Fourier acquisition single-shot turbo spin echo (HASTE): field of view (FOV) 420 × 80 mm, 5-mm-thick section, 20% gap, matrix 272 × 320, scan duration 50 s; (2) axial, coronal and sagittal true fast imaging in steady-state precession (TRUFISP): FOV of 420 × 80 mm, 5-mm-thick section, 30% gap, matrix 234 × 384, and a scan duration of 48 s; (3) 3D-volumetric interpolated breath-hold examination (3D-VIBE): FOV 400 mm, 5-mm-thick section, 20% gap, matrix 180 × 320, scan duration 8 s; (4) Diffusion-weighted imaging: FOV 390 mm, 5-mm-thick section, matrix 192 × 120, parallel imaging acceleration factor 2, b values ranging from 0 to 1600 s/mm2 (b = 0, 50, 100, 150, 200, 400, 600, 800, 1000, 1200, and 1600 s/mm2), scan duration 7 min 29 s.

Imaging analysis

For standard monoexponential DWI model, the image data of 2 b-values (0 and 1000 s/mm2) were used to generate ADC map:

$$S_{b} /S_{0} = \exp ( - b \times {\text{ADC}}),$$

where Sb and S0 are the signal intensities in the diffusion gradient factors of b and 0, respectively. ADC is the apparent diffusion coefficient.

For DKI model, the image data of six b-values (b = 0, 400, 800, 1000, 1200, and 1600 s/mm2) were used to generate MD and MK maps [12, 13]:

$$S_{b} /S_{0} = \exp ( - b \times {\text{MD}} + b2\,{\text{MD}}2 \times {\text{MK}}/6),$$

where Sb and S0 are the signal intensities acquired with the diffusion gradient factors of b and 0, respectively. MD is the mean diffusivity representing the corrected ADC, and MK is the diffusion kurtosis.

For the IVIM analysis, a bi-exponential model was fitted using eight b-values (b = 0, 50, 100, 150, 200, 400, 600, and 800 s/mm2) [14, 15]:

$$S_{b} /S_{0} = (1 - f)\,\exp \,( - b \times D) + f\,\exp \,[ - b \, \times (D + D*)],$$

where Sb and S0 are the signal intensities in the diffusion gradient factors of b and 0, respectively, f is the perfusion fraction, D is the diffusion coefficient, and D* is the pseudo-diffusion coefficient.

All ROIs were drawn in all axial slices from b = 0 s/mm2 images including the whole placenta and then, copied to all diffusion parameter maps (Fig. 2). ROIs were drawn independently by 1 radiologist with 3 years of experience in obstetric imaging using research software IMAgenGINE (Vusion Tech) [16]. The ADC, MD, MK, D, D*, and f maps were automatically produced, and the parameters were automatically calculated (Fig. 3).

Fig. 2
figure 2

Schematic illustration of ROI delineation of the whole placenta measurement

Full size image
Fig. 3
figure 3

The diffusion parameter maps of ADC (a), f (b), D (c), D* (d), MD (e) and MK (f)

Full size image

All MRI images were reviewed by 2 radiologists with 5 and 10 years of experience in obstetric imaging; they reached a consensus in cases of disagreement. The readers were blind to ultrasound diagnosis, surgical and pathological findings and were asked to review the MR images and record the presence of any of the following features including T2 dark bands, placental heterogeneity, abnormal intraplacental vascularity, placental cervical protrusion sign, focal exophytic mass, placental recess, placental bulge, abnormal vascularization of the placental bed, myometrial interruption, bladder tenting, bladder vessel sign and parametrial vessel sign [5, 17,18,19].

Reference standard

The diagnosis of PAS disorders was primarily based on intraoperative gross findings. Surgical evidence of placenta percreta included disruption of the outer myometrial layer and visualization of placental tissue invading the uterine serosa and surrounding organs, including the broad ligament, vaginal wall, and bladder visually. Placenta increta was diagnosed when the placenta did not separate after 20 min despite active management, resulting in a difficult manual piecemeal removal of the placenta and heavy bleeding from the implantation site during the 3rd stage of labor. Placenta accreta was diagnosed when the placenta firmly adhered to the endometrium with uncontrollable bleeding at the time of abruption. Pathological examination of the uterine specimens in hysterectomy cases or tissue samples obtained from invasive area were used to confirm surgical diagnosis.

Statistical analysis

Continuous variables with a normal or nonnormal distribution were expressed as means ± standard deviation (SD) or median (range), respectively, and categorical variables were expressed as absolute numbers (proportions, %).The Mann–Whitney U-test and χ2 test were used to compare the clinical features of patients with and without PAS disorders. Kruskal–Wallis H-test was also used to compare the difference in DWI parameters between patients with placenta accreta, increta, percreta and normal placentas. A multivariate logistic regression analysis with a stepwise forward procedure was used to determine the most significant risk factors for predicting placenta percreta. In addition, receiver operating characteristics (ROC) analyses were performed to evaluate the diagnostic performance of significant parameters and to estimate the discriminative ability of MRI features. The significant DWI parameters showing the highest Youden index were included for the differentiation. p values < 0.05 were considered statistically significant. All analyses were performed using SPSS 21.0 (IBM Inc).

Results

A total of 115 patients were retrospectively included in the study. The mean maternal age was 32 years ranging between 22 and 45 years. The mean gestational age at examination was 31 weeks, ranging between 22 and 38 weeks. The clinical characteristics of the 2 groups are shown in Table 1. Of the 115 patients, 75 (66.09%) were diagnosed as PAS disorders, including 14 of placenta accreta, 48 of placenta increta and 13 of placenta percreta.

Table 1 Maternal characteristics in the study groups
Full size table

Patients with PAS disorders were older compared to those without PAS disorders (p < 0.05). When compared to patients without PAS disorders, patients with PAS disorders were more likely to have prior CS and placenta previa (p < 0.05). The number of prior dilation and curettage, gravidity and parity did not differ between patients with and without PAS disorder (p > 0.05).

Performance of DWI parameters

DWI parameter comparisons showed that f, D, D*, and MD were significantly higher (p = 0.011, 0.015, 0.001 and 0.01, respectively) in patients with PAS disorders (Table 2, Fig. 4). Multiple comparisons showed f, D* and MD were significantly higher (p = 0.015, 0.001 and 0.008, respectively) in patients with placenta percreta than those in patients without PAS disorders (Table 3 and Fig. 5). On multiple logistic regression analysis, D* was an independent risk factor in predicting placenta percreta (p = 0.018). For predicting placenta percreta, D* demonstrated an AUC of 0.778 (95%CI 0.666–0.890) with a cutoff value of 39.07 × 10−3mm2/s with Youden's index of 0.49 sensitivity of 73% and, specificity of 76% (Fig. 6).

Table 2 Comparison of DWI parameters between patients with and without PAS disorders (n = 115)
Full size table

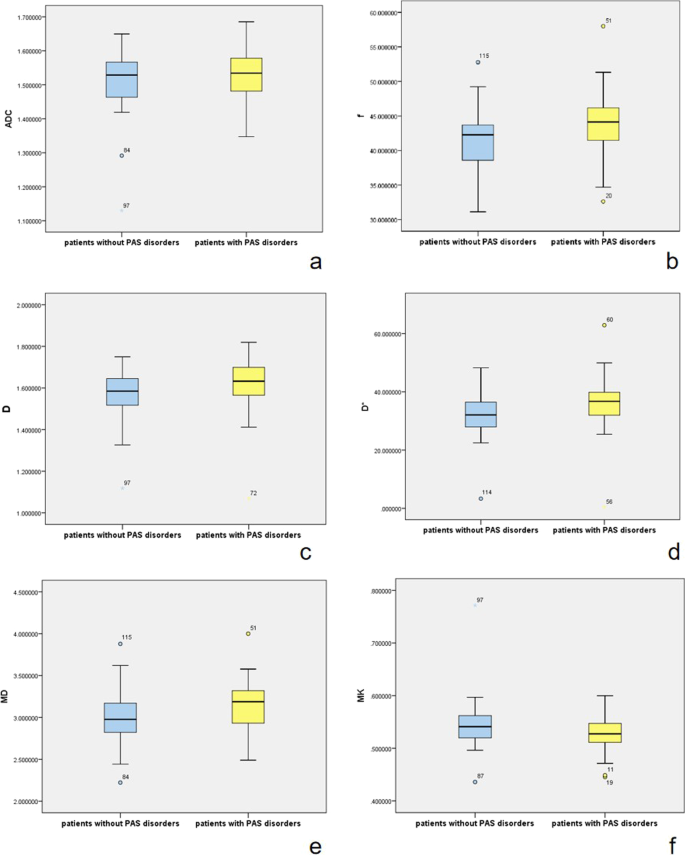

Fig. 4
figure 4

Box and whisker plots of ADC, D, D*, f, MD, and MK for patients with and without PAS disorders (a–f). The plots show that f, D, D*, and MD are significantly higher (d–f) in patients with PAS disorders

Full size image
Table 3 Comparison of DWI parameters between patients with different grades of PAS disorders (n = 115)
Full size table
Fig. 5
figure 5

Box and whisker plots of ADC, D, D*, f, MD, and MK for patients with and without placenta percreta (a–f). The plots show that f, D* and MD are significantly higher (d–f) in patients with placenta percreta

Full size image
Fig. 6
figure 6

ROC curves for predicting patients with placenta percreta. A combination of number of D* and focal exophytic mass shows the best overall performance

Full size image

Performance of MRI features

Table 4 presents the diagnostic accuracy of different MRI features. T2 dark bands, placental heterogeneity, focal exophytic mass, abnormal vascularization of the placental bed, myometrial interruption, bladder tenting and parametrial vessel sign were associated with placenta percreta. On multiple logistic regression analysis, focal exophytic mass remained as independent risk factor for predicting placenta percreta (p = 0.001). Focal exophytic mass demonstrated an AUC of 0.804 with sensitivity of 72.7% and specificity of 88.1% (Fig. 6).

Table 4 Diagnostic performances of different features for association with placenta percreta (n = 115)
Full size table

Performance of combination of DWI parameters and MRI features

We combined D* and focal exophytic mass for predicting placenta percreta, producing the sensitivity of 92%, specificity of 74%, and AUC of 0.880 (95% CI 0.8–0.96) (Figs. 6, 7).

Fig. 7
figure 7

Illustration of D* and focal exophytic mass in patients with placenta percreta, increta and accreta. Figure 6a was a coronal HASTE image showing a 39-year-old woman with placenta previa and percreta. Focal exophytic mass can be seen (white arrow); Fig. 6b was D* map of the placenta with D* of 49.33 × 10−3 mm2/s. Figure 6c was a sagittal HASTE image showing a 30-year-old woman with placenta percreta. Focal exophytic mass can be seen (white arrow), Fig. 6d was D* map of the placenta with D* of 37.95 × 10–3 mm2/s. Figure 6e was a sagittal HASTE image showing a 40-year-old woman with placenta previa and increta. Focal exophytic mass cannot be seen. Figure 6f was D* map of the placenta with D* of 37.36 × 10–3 mm2/s. Figure 6g was a coronal HASTE image showing a 25-year-old woman with placenta previa and accreta. Focal exophytic mass cannot be seen. Figure 6h was D* map of the placenta with D* of 32.15 × 10–3 mm2/s

Full size image

Discussion

Our results showed D* and focal exophytic mass were independent risk factors from DWI parameters and MRI features, respectively, in predicting placenta percreta. A combination of these two risk factors yielded the best performance with AUC of 0.880, sensitivity of 92% and specificity of 74%.

Placenta percreta is suggested when the villous tissue penetrates through the entire uterine wall, breaching the serosa and invading into surrounding organs [20]. Myometrium invasion increases the risk of postpartum hemorrhage, urologic injury and hysterectomy, when bladder invasion is present, maternal and neonatal mortality rates increased to 9.5% and 24%, respectively [21]. Despite various signs of PAS been suggested by SAR, the diagnosis of placenta percreta remains difficult [5]. On the one hand, not all accreta lesions presented with the typical morphological findings from MRI images; on the other hand, adherent and invasive placentation usually co-exist in the same bed and may further evolve with advancing gestation, resulting in a failure of accurately assessing the depth of myometrial invasion using one sign or a combination of several signs [22, 23].

Although T2 dark bands, placental heterogeneity, focal exophytic mass, abnormal vascularization of the placental bed, myometrial interruption, bladder tenting and parametrial vessel sign were associated with placenta percreta from our study, focal exophytic mass was the independent risk factor from the above MRI features for predicting placenta percreta. Focal exophytic mass usually is located toward the bladder or laterally toward the parametrium and is very specific for placenta percreta [24, 25]. The invasion of placental percreta can be limited to the uterine serosa, or outside the uterus to the bladder, when placental tissue involves the entire myometrial thickness abutting the bladder serosa, with a pressure effect or some nodularity of the bladder wall, the diagnosis of placenta percreta could be made [25].

IVIM is based on the conception that the distribution of water molecule in a voxel can be described using two compartments, the water molecular diffusion and blood microcirculation in the capillary network. In placental imaging, f is likely to represent the moving blood volume fraction compared with the total voxel volume, D* represents the movement of blood in the intervillous spaces and in the fetal capillaries within the villi and D represents the diffusion motion of pure water molecules [26, 27]. At low b values, the perfusion component predominates and is characterized by f and D*, while at high b values, the diffusion effect predominates and is characterized by D. Invasion of the placental villi into the myometrium will lead to vasodilation of the radial and arcuate uterine vasculature and neovascularization in the accreta lesions [22, 28]. Thus, placental perfusion increased in PAS disorders. The increase in D indicated the less restricted extracellular space in PAS disorders.

Different from conventional DWI, DKI is a non-Gaussian model that is believed to quantify non-Gaussian diffusion arising from diffusion barriers including cell membranes and organelles, or other complex and restricted structures in tissue using high b values [29]. Therefore, DKI may better describe the complicated water diffusivity in living tissues. MD is the corrected apparent diffusion coefficient (ADC) that accounts for non-Gaussian water diffusion and is analogous to the true water diffusion coefficient, D from IVIM, so MD and D were both significantly higher in patients with PAS disorders. In patients with placenta percreta, f, D* and MD were significantly higher than those in patients without PAS disorders, suggesting marked increase in placental vascularization and passive water molecular movement in percreta lesions.

In our study, D* remained as an independent risk factors from DWI in predicting placenta percreta, reflecting the prominent increase in microcirculatory perfusion in the capillary network in the placenta percreta. Chen et al.’ study showed a focal outward placental bulge with distorted outline of the uterus and bridging vessels running perpendicularly across through the focal bulging placenta, and serosal layer had 100% specificity in diagnosing placenta percreta [30]. Our results showing D* and focal exophytic mass the independent risk factors for placenta percreta may imply these bridging vessels are associated with increased microcirculatory perfusion in focal exophytic mass in placenta percreta. D* had moderate sensitivity and specificity, while focal exophytic mass had high specificity but low sensitivity. We further combined the two risk factors for predicting placenta percreta, resulting an AUC of 0.880, sensitivity of 92%, and specificity of 74%.

In PAS disorders, the placenta changed in both function and morphology. Morphological changes usually had accompanying functional changes including perfusion and diffusion. A comprehensive evaluation of the placenta can lead to more accurate prenatal diagnosis. Our findings about placenta percreta suggested when the chorionic villi penetrated through the myometrium to the uterine serosa or beyond the uterine serosa, the microcirculatory perfusion in the capillary network would increase accordingly. A combination of D* and focal exophytic mass can be used to identify cases at higher risk of placenta percreta to plan an appropriate surgical management.

This study had some limitations. First, it was retrospective, with a small sample size, and we had only 13 patients of placenta percreta, limiting the power of statistical analysis; thus, future studies with larger sample sizes, including more patients with placenta percreta, are needed. Second, the ROI delineation was performed by one radiologist. We did not calculate the intraclass correlation coefficient (ICC) between different readers. Our previous studies about PAS disorders using IVIM and DKI confirmed the high reproducibility of the ROI measurement [10, 11]. We believe that the recognition of MRI features of PAS requires experience; therefore, the radiologists evaluating MRI images in our study were experienced in obstetrical imaging. Third, we did not perform a comparison with US findings. Our patients were referred on the basis of suspicion for PAS from an uncertain US result, and some of US images were not available second to the tertiary referral nature of our practice.

Our study is the first one that tries to differentiate placenta percreta using both morphological features from MRI and functional parameters from DWI. Our results showed D* and focal exophytic mass were independently associated with placenta percreta. A combination of D* and focal exophytic mass can be used to differentiate placenta percreta, thus allowing for multidisciplinary care, planned preterm delivery, appropriate treatment options and improving patient prognosis.

Availability of data and materials

The datasets generated during and analyzed during the current study are not publicly available due to PACS system regulated by Sichuan Provincial People’s Hospital but are available from the corresponding author on reasonable request.

References

  1. Silver RM (2015) Abnormal placentation. Obstet Gynecol 126:654–668

    Article  PubMed  Google Scholar

  2. O’Brien JM, Barton JR, Donaldson ES (1996) The management of placenta percreta: conservative and operative strategies. Am J Obstet Gynecol 175:1632–1638

    Article  CAS  PubMed  Google Scholar

  3. Silver RM, Landon MB, Rouse DJ et al (2006) National institute of child health and human development maternal-fetal medicine units network. Maternal morbidity associated with multiple repeat cesarean deliveries. Obstet Gynecol 107:1226–1232

    Article  PubMed  Google Scholar

  4. Marcellin L, Delorme P, Bonnet MP (2018) Placenta percreta is associated with more frequent severe maternal morbidity than placenta accreta. Am J Obstet Gynecol 219:193-e1

    Article  Google Scholar

  5. Jha P, Pōder L, Bourgioti C et al (2020) Society of Abdominal Radiology (SAR) and European Society of Urogenital Radiology (ESUR) joint consensus statement for MR imaging of placenta accreta spectrum disorders. Eur Radiol 30:2604–2615

    Article  PubMed  Google Scholar

  6. Bourgioti C, Zafeiropoulou K, Fotopoulos S et al (2018) MRI features predictive of invasive placenta with extrauterine spread in high-risk gravid patients: a prospective evaluation. AJR Am J Roentgenol 211(3):701–711

    Article  PubMed  Google Scholar

  7. Ghezzi CL, Silva CK, Casagrande AS, Westphalen SS, Salazar CC, Vettorazzi J (2021) Diagnostic performance of radiologists with different levels of experience in the interpretation of MRI of the placenta accreta spectrum disorder. BJR 94:20210827

    Article  PubMed  PubMed Central  Google Scholar

  8. Le Bihan D (1988) Intravoxel incoherent motion imaging using steady-state free precession. Magn Reson Med 7:346–351

    Article  PubMed  Google Scholar

  9. Jensen JH, Helpern JA, Ramani A, Lu H, Kaczynski K (2005) Diffusional kurtosis imaging: the quantification of non-Gaussian water diffusion by means of magnetic resonance imaging. Magn Reson Med 53:1432–1440

    Article  PubMed  Google Scholar

  10. Lu T, Wang Y, Guo A et al (2022) Monoexponential, biexponential and diffusion kurtosis MR imaging models: quantitative biomarkers in the diagnosis of placenta accreta spectrum disorders. BMC Pregnancy Childbirth 22:349

    Article  PubMed  PubMed Central  Google Scholar

  11. Lu T, Wang Y, Deng Y, Wu C, Li X, Wang G (2022) Diffusion and perfusion MRI parameters in the evaluation of placenta accreta spectrum disorders in patients with placenta previa. Magn Reson Mater Phys Biol Med 35:1009–20

    Article  CAS  Google Scholar

  12. Xiao Z, Zhong Y, Tang Z et al (2018) Standard diffusion-weighted, diffusion kurtosis and intravoxel incoherent motion MR imaging of sinonasal malignancies: correlations with Ki-67 proliferation status. Eur Radiol 28:2923–2933

    Article  PubMed  Google Scholar

  13. Cui Y, Yang X, Du X, Zhuo Z, Xin L, Cheng X (2018) Whole-tumour diffusion kurtosis MR imaging histogram analysis of rectal adenocarcinoma: correlation with clinical pathologic prognostic factors. Eur Radiol 28:1485–1494

    Article  PubMed  Google Scholar

  14. Ding Y, Tan Q, Mao W et al (2019) Differentiating between malignant and benign renal tumors: do IVIM and diffusion kurtosis imaging perform better than DWI? Eur Radiol 29:6930–6939

    Article  PubMed  Google Scholar

  15. Wan Q, Deng Y, Lei Q et al (2019) Differentiating between malignant and benign solid solitary pulmonary lesions: are intravoxel incoherent motion and diffusion kurtosis imaging superior to conventional diffusion-weighted imaging? Eur Radiol 29:1607–1615

    Article  PubMed  Google Scholar

  16. Yang M, Yan Y, Wang H (2018) IMAge/enGINE: a freely available software for rapid computation of high-dimensional quantification. Quant Imaging Med Surg. https://doi.org/10.21037/qims.2018.12.03

    Article  PubMed  PubMed Central  Google Scholar

  17. Sato T, Mori N, Hasegawa O, Shigihara T, Fujimori K, Tasaki K (2017) Placental recess accompanied by a T2 dark band: a new finding for diagnosing placental invasion. Abdom Radiol (NY) 42(8):2146–2153

    Article  PubMed  Google Scholar

  18. Ueno Y, Kitajima K, Kawakami F et al (2014) Novel MRI finding for diagnosis of invasive placenta praevia: evaluation of findings for 65 patients using clinical and histopathological correlations. Eur Radiol 24:881–888

    Article  PubMed  Google Scholar

  19. Srisajjakul S, Prapaisilp P, Bangchokdee S (2021) Magnetic resonance imaging of placenta accreta spectrum: a step-by-step approach. Korean J Radiol 22(2):198–212

    Article  PubMed  Google Scholar

  20. Society of Gynecologic Oncology. American College of Obstetricians and Gynecologists, Society for Maternal-Fetal Medicine

  21. Smith ZL, Sehgal SS, Van Arsdalen KN, Goldstein IS (2014) Placenta percreta with invaison into the urinary bladder. Urol Case Rep 2:31–32

    Article  PubMed  PubMed Central  Google Scholar

  22. Jauniaux E, Collins S, Burton GJ (2018) Placenta accreta spectrum: pathophysiology and evidence-based anatomy for prenatal ultrasound imaging. Am J Obstet Gynecol 218(1):75–87

    Article  PubMed  Google Scholar

  23. Solheim KN, Esakoff TF, Little SE, Cheng YW, Sparks TN, Caughey AB (2011) The effect of cesarean delivery rates on the future incidence of placenta previa, placenta accreta, and maternal mortality. J Matern Fetal Neonatal Med 24(11):1341–1346

    Article  PubMed  Google Scholar

  24. Familiari A, Liberati M, Lim P et al (2018) Diagnostic accuracy of magnetic resonance imaging in detecting the severity of abnormal invasive placenta: a systematic review and meta-analysis. Acta Obstet Gynecol Scand 97:507–520

    Article  PubMed  Google Scholar

  25. Thiravit S, Lapatikarn S, Muangsomboon K, Suvannarerg V, Thiravit P, Korpraphong P (2017) MRI of placenta percreta:differentiation from other entities of placental adhesive disorder. Radiol Med 122:61–68

    Article  PubMed  Google Scholar

  26. Gowland P (2005) Placental MRI. Semin Fetal Neonatal Med. 10:485–490

    Article  PubMed  Google Scholar

  27. Moore RJ, Issa B, Tokarczuk P et al (2000) In vivo intravoxel incoherent motion measurements in the human placenta using echo-planar imaging at 0.5 T. Magn Reson Med. 43:295–302

    Article  CAS  PubMed  Google Scholar

  28. Chantraine F, Blacher S, Berndt S et al (2012) Abnormal vascular architecture at the placental-maternal interface in placenta increta. Am J Obstet Gynecol 207:188.e1-188.e9

    Article  PubMed  Google Scholar

  29. de Santis S, Gabrielli A, Palombo M, Maraviglia B, Capuani S (2011) Non-Guassian diffusion imaging: a brief practical review. Magn Reson Imaging 29(10):1410–1416

    Article  PubMed  Google Scholar

  30. Chen X, Shan R, Zhao L et al (2018) Invasive placenta previa: placental bulge with distorted uterine outline and uterine serosal hypervascularity at 1.5T MRI-useful features for differentiating placenta percreta from placenta accreta. Eur Radiol 28:708–717

    Article  PubMed  Google Scholar
