Morphologic CT and MRI features of primary parotid squamous cell carcinoma and its predictive factors for differential diagnosis with mucoepidermoid carcinoma
Insights into Imaging volume 13, Article number: 119 (2022)
Primary parotid squamous cell carcinoma (SCC) is a rare entity with a poor prognosis. Pathologically, the diagnosis of it requires the exclusion of parotid mucoepidermoid carcinoma (MEC). Currently, the imaging features of primary parotid SCC and the predictive indicators for differential diagnosis of the two entities have not been well reported. Our purpose was to identify the imaging characteristics of primary parotid SCC and to determine the predictive factors for its’ differential diagnosis.
Thirty-one participants with primary parotid SCC and 59 with primary parotid MEC were enrolled. Clinical, CT and MRI features were reviewed and compared by univariate analysis. Then, multinomial logistic regression was used to determine the predictors to distinguish parotid SCC from MEC. Most primary parotid SCCs exhibited irregular shape, ill-defined margin, incomplete or no capsule, heterogeneous and marked or moderate enhancement, necrosis, local tumor invasiveness (LTI). Age, maximal dimension, shape, degree of enhancement, gradual enhancement, necrosis, and LTI were different between the primary parotid SCCs and MECs in univariate analysis (p < 0.05). While in multinomial logistic regression analysis, only age and necrosis were the independent predictors for distinguishing parotid SCC from MEC, and this model exhibited an area under curve of 0.914 in ROC curve analysis.
Primary parotid SCC has some distinct imaging features including the large tumor size, irregular shape, ill-defined margin, and particularly the marked central necrosis. Patients with age ≥ 51.5 years and necrosis on the image of the primary tumor in the parotid gland could be more likely to be SCCs than MECs.
Primary parotid SCC has some distinct imaging features such as the large tumor size, irregular shape, ill-defined margin, and obvious central necrosis.
Age ≥ 51.5 years and necrosis on image are predictors for discriminating parotid SCC from MEC.
The obtained logistic regression model is a good predictor for differential diagnosis of SCC from MEC.
Primary parotid squamous cell carcinoma (SCC) is a rare entity with an incidence varying from 0.1 to 10% in salivary malignancies [1,2,3]. Primary parotid SCC usually conveys a poor prognosis even with surgery and postoperative radiotherapy [1,2,3]. At present, the pathological characteristics, therapy and prognosis of primary parotid SCCs have been well described [1,2,3]. However, to date, only one literature has reported the MRI findings of primary parotid SCCs in a small sample size of just 7 patients . Therefore, the imaging characteristics of primary parotid SCCs need be comprehensively described in a larger series.
In addition, it has been recommended that the diagnosis of primary parotid SCC must exclude high-grade mucoepidermoid carcinoma (MEC) or metastatic parotid SCC firstly [5, 6]. For metastatic parotid SCC, a comprehensive review of the medical history and careful examination are essential to distinguish the primary from metastatic SCC of parotid gland, because of the similar histologic features and immunoprofiles between them . For MEC of parotid gland, as one of the most common parotid malignancies, it is especially important to distinguish it from primary SCC because of its much better prognosis than the latter [8, 9]. Currently, the imaging features of primary MEC in the parotid gland have been well described [10,11,12,13]. Nonetheless, there is no literature about the predictive imaging indicators for differential diagnosis of primary parotid SCC from MEC, to our best knowledge.
In the present study, we retrospectively analyzed the imaging features of primary parotid SCC and compared the imaging features between primary parotid SCC and MEC. The purpose of this work is to determine the imaging features of primary parotid SCC, with an emphasis to determine the predictive factors for differential diagnosis of primary parotid SCC from MEC.
Materials and methods
Thirty-one participants with pathologically proved primary parotid SCC (by surgery in 28 participants and by biopsy in 3 participants) and 59 participants with pathologically proved primary parotid MEC (by surgery in 54 participants and by biopsy in 5 participants) were retrospectively enrolled in this study from June 2013 to March 2020. The criteria inclusions were as follows: had a pathologically proved diagnosis of parotid SCC or parotid MEC; MRI or CT examinations of the neck; no previous history of SCC in other locations during the clinical course and no evidence of SCC or MEC in other regions. The study was approved by the institutional review board of Sun Yat-Sen Memorial Hospital, and patient informed consent was exempted for this type of review.
CT and MR imaging
Plain and contrast-enhanced CT and / or MRI examinations were carried out before initial treatment in all participants. Of the 31 participants with primary parotid SCC, 13 had CT examination and 18 had MRI examination. Of the 59 patients with MEC, 35 patients had CT and 24 had MRI examinations.
Of the 48 patients with CT examinations, 29 patients were scanned on a 64-slice spiral CT (Toshiba Aquilion 64, Toshiba Medical Systems, Japan), 8 patients on a 64-slice spiral CT (LightSpeed VCT, GE Medical Systems, USA) and 11 patients on a dual-source CT scanner (SOMATOM Force, Siemens Healthineers, Germany). The major scan parameters were as follows: tube voltage/ current = 120 kV/120–250 mA, pitch = 1–1.2, field of view = 200–240 mm, matrix = 512 × 512. A contrast-enhanced CT scan was conducted after intravenous injection of nonionic contrast material (iopamiro, Shanghai Bracco Sine Pharmaceutical corporation), with a dosage of 1.0 ml/kg at a rate of 3 ml/s. 2–5 mm thick axial and coronal multiplanar reconstructions were obtained with soft tissue kernel.
MRI examination was conducted using a 1.5 T scanner (Signa Horizon LX Highspeed, General Electric Medical Systems, USA) in 14 patients or a 3.0 T scanner (Achieva, Philips Medical Systems, Netherlands) in 28 patients using a head neck synergy coil. The imaging sequences were transverse and coronal T2WI (TR/TE = 3500/100 and 2643/90 ms, respectively), transverse and sagittal T1WI (TR/TE = 50/15 and 628/18 ms, respectively) For the contrast-enhanced scan, gadopentetate dimeglumine (Magnevist, Bayer-Schering Pharma AG, Berlin, Germany) was intravenously injected at a dose of 0.1 mmol/kg, then the images of transverse, sagittal, and coronal T1WI were acquired.
Two experienced radiologists (C.Z. and X.B., with 14 and 11 years of experience in diagnostic imaging, respectively) blinded to the pathologic information, independently evaluated all images. The radiologic features of tumor location, maximal dimension, shape, margin, capsule, contrast enhancement pattern, degree of enhancement, gradual enhancement, hemorrhage, cyst, necrosis, local tumor invasiveness (LTI), and cervical lymphadenopathy were analyzed. Tumor location was classified as superficial part, deep part, and mixed part of parotid gland. Tumor shape was categorized into round / oval or lobulated or irregular. Margin was considered well-defined or ill-defined. Enhancement patterns were graded as heterogeneous or homogeneous. Degrees of enhancement were classified as mild, moderate and marked enhancement. Mild enhancement was defined as the degree of enhancement is ≤ adjacent muscle; moderate enhancement was > the muscle but < the mucosa on MRI or the submandibular gland on CT images; marked enhancement was similar to the enhancement of mucosa on MR imaging or the submaxillary gland on CT. Gradual enhancement was defined as a tumor having more obvious enhancement on venous phase images than on arterial phase. Intratumor necrosis and cyst were determined on enhanced CT or MRI. Necrosis was defined as a region that exhibited no enhancement (CT value less than 5 HU) with an irregular border. Cyst was defined as a well-defined and rounded region which had no enhancement, with a thin, regular and smooth wall. The degree of necrosis was categorized as absent, mild (necrosis less than half of the lesion), and severe (necrosis more than half of the lesion). LTI was defined as invasion of the subcutaneous tissue, masticator massetric space, or bone. The diagnosis cervical lymphadenopathy was derived from necrosis and size criteria .
To identify the diagnosis value of clinical and radiologic parameters, the patients were classified into two groups: group 1 with primary parotid SCC, and group 2 with primary parotid MEC. Statistical analysis was conducted by using software (SPSS, version 22.0, Chicago, IL, USA). The receiver operating characteristic (ROC) curve analysis demonstrated that the optimal cutoff value of age was 51.5 years. The clinical and radiologic parameters were classified as follows: age (≥ 51.5 years or > 51.5 years), sex (male or female), tumor location (superficial part, deep part, or mixed part), shape (round / lobulated or irregular), margin (well-defined or ill-defined), capsule (complete, incomplete, or no), contrast enhancement pattern (homogeneous or heterogeneous), degree of enhancement (mild, moderate, marked), necrosis (absence, mild, or severe), and the absence or presence of gradual enhancement, hemorrhage, cyst, LTI and cervical lymphadenopathy. Comparison the frequency of above variables between the two groups was used χ2 test in univariate analysis. Then, multinomial logistic regression was used to determine the predictors to distinguish parotid SCC from MEC. Diagnostic power was evaluated by ROC curve analysis. Odds ratios (OR) with confidence intervals (CI) were then calculated for each risk factor. p < 0.05 was assigned statistically significant.
All patients with primary parotid SCC comprised 19 males and 12 females between 32 and 88 years (mean age = 61.5 years). Otherwise, patients with primary parotid MEC comprised 26 males and 33 females between 5 and 72 years (mean age = 38.0 years). Specially, 4 children with primary parotid MEC were found in our series. The mean age of the adult patients with primary parotid MEC was 40.0 years. Age was significantly different between the two groups (p < 0.05). The optimal cutoff value for the age was 51.5 years by ROC curve analysis. However, sex was no significant difference between the two groups.
Imaging features of primary parotid SCC and univariate analysis
The CT and MRI features of the two parotid gland cancers are summarized in Table 1, and the representative CT and MRI images of the two groups are shown in Figs. 1, 2, 3 and 4. For primary parotid SCC, 58% of the lesions were located in the superficial part of parotid gland, 32.2% were in the mixed part and 9.7% were in the deep part. The maximal dimension of SCCs was 1.0 to 7.6 cm with a mean of 4.12 cm. The lesion was round/ oval in 9/31 (29%) patients, lobulated in 13/31 (41.9%), and irregular in 9/31 (29%). Tumor margin was ill-defined in 20 patients (64.5%), but well-defined in 11 patients (35.5%). Most lesions (71%) were solitary, 93.5% were heterogeneous enhancement, 19.4% were gradual enhancement, 74.2% presented cyst, only 6.5% presented hemorrhage and 61.3% presented LTI. There was no capsule in 12 (38.7%) patients with SCC, incomplete capsule in 18 (58.1%) and complete capsule in only 1 (3.2%) patient. SCC had marked enhancement in 16/31 (51.6%) patients, moderate enhancement in 14/31 (45.2%) ones, and mild enhancement in 1/31 (3.1%). SCC had no necrosis in 4/31 (12.9%) patients, mild in 9/31 (29.0%) ones, severe in 18/31 (58.1%).
The imaging features including maximal dimension, shape, degree enhancement, gradual enhancement, necrosis and LTI were different between the two groups of parotid gland cancers (p < 0.05). However, the location, margin, capsule, enhancement pattern, and lymphadenopathy were not significantly different between the primary parotid SCC and MEC.
Predictive clinical and imaging factors for differential diagnosis

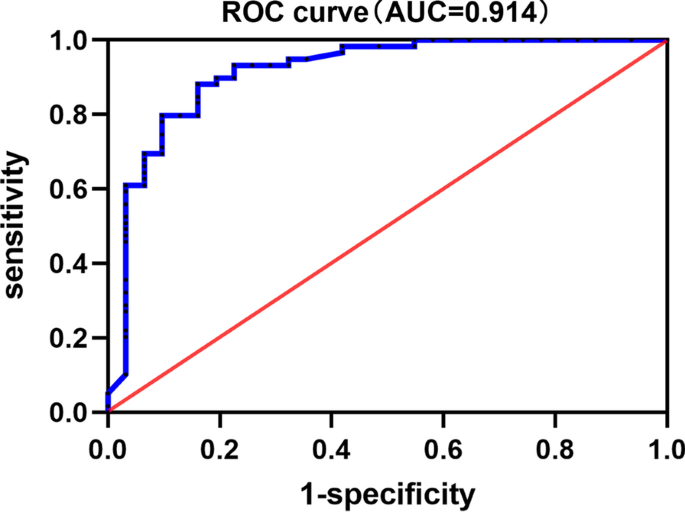

Only age and necrosis were independent predictors for differential diagnosis of the primary parotid SCC and MEC in multinomial logistic regression analysis (Table 2). Moreover, patients with age ≥ 51.5 years were more likely to be patients with SCC than those with MEC (OR = 18.04) (p < 0.001). Lesions with mild or severe necrosis were more likely to be found in patients with SCC than those with MEC (OR = 6.27, 10.22 respectively) (p < 0.05). The AUC of our logistic regression model in ROC curve analysis was 0.914 (95%CI: 0.845–0.984), suggesting that this model had a good ability to differentiate primary parotid SCC from MEC (Fig. 5).
In this study, our results indicated that primary parotid SCC has some distinct imaging features such as a large tumor size, an obvious invasive nature with irregular shape and ill-defined margin, and the presence of apparent central necrosis. Besides that, patients with age > 51.5 years and tumor necrosis on image are independent predictors to be primary parotid SCC. The AUC of multinomial logistic regression model in ROC curve analysis was 0.914, which suggested that it had good power to identify primary parotid SCC from MEC. Thereby, we considered that the combined use of preoperative imaging and clinical features in our model could effectively identify the high-risk patients with primary parotid SCC, accordingly more aggressive management or a wider excision can be advocated. [6, 15]
Primary parotid SCC is a rare aggressive malignancy with a worse outcome than the other common malignant tumors in parotid gland . It is well established that the fine-needle biopsy, as a minimally invasive method, is useful for the diagnosis of parotid gland tumors . However, it may be often difficult to correctly diagnose primary parotid SCC due to the insufficient specimens, tumorous heterogeneity and similar pathologic findings with primary parotid MEC. CT and MRI were useful for the diagnosis and differential diagnosis of primary SCC in the parotid gland. Nevertheless, literature regarding the imaging characteristics of primary parotid SCC and the differential diagnosis of it from MEC are still limited. Previously, only one study has described MRI features of primary parotid SCC in a small number of 7 cases. The results indicated that primary parotid SCC commonly shows a large tumor size, tumor necrosis, ill-defined margin, extra-parotid infiltration and low to intermediate signal intensity on T2WI . In our study, we reported the highest number of patients with primary parotid SCCs so far and analyzed more imaging factors, such as tumor location, size, shape, margin, capsule, contrast enhancement pattern, degree of enhancement, gradual enhancement, hemorrhage, cyst, necrosis, LTI, and cervical lymphadenopathy. The present study yielded similar results to the previous study. The tumors of primary parotid SCCs in our series tended to have more invasive growth patterns, including the large tumor size, lobulated/irregular shape, ill-defined margin, incomplete or absent tumor capsule, local tumor invasiveness and heterogeneous enhancement. Besides these above non-specific imaging features, in our opinion, central necrosis (especially the obvious necrosis) may be the relative characteristic imaging feature for the diagnosis of primary parotid SCCs. In our study, 87.1% of patients had tumors with central necrosis on CT or MRI, and more than half of patients (58.1%) had tumors with obvious central necrosis (> 50% necrosis of the tumor). This finding was similar to several previous studies, which have shown that the large cervical SCCs tended to generate central necrosis in either the primary tumors or metastatic lymph nodes. [18, 19]
To date, the predictive imaging factors for differential diagnosis of primary parotid SCC from MEC have not been reported. In the present work, we compared the clinical and imaging features between primary parotid SCC and MEC. The results showed that only age and tumor necrosis were independent predictors for differential diagnosis of primary SCC from MEC in parotid gland. Clinically, it is well known that parotid SCC was most common in males and old people (> 60 years). [2, 3, 6] In our series, 61.3% of our participants with primary parotid SCC were males with an average age of 61.5 years, similar to these reports. [2, 3, 6] Only age was an independent predictor for distinguishing the two histological groups, while the sex distribution was not different between the two malignancies. Patients with primary parotid MEC in our series had an average age of 38.0 years, which is younger than some previous reports. [10,11,12] This might be due to a selection bias since patients in our series concluded pediatric cases . Patients with primary parotid SCC were older than that with primary parotid MEC in the present study. The optimal threshold for age was 51.5 years according to ROC curve analysis. Moreover, patients with age ≥ 51.5 years were more likely to be primary parotid SCC than those with primary parotid MEC.
In the present study, the imaging features including size, shape, degree enhancement, gradual enhancement, necrosis and LTI in lesions were found to be different between the primary parotid SCC and MEC in univariate analysis. However, in multinomial logistic regression analysis, only tumor necrosis detected on CT or MRI was an independent imaging predictor for differential diagnosis of primary SCC from MEC in parotid gland. Patients with mild or severe necrosis on CT/MRI were more likely to be patients with primary parotid SCC than those with MEC. Tumors in primary parotid SCCs tend to have central necrosis, compared with that in the primary parotid MEC. The obvious tumor necrosis of primary parotid SCCs was in line with other cervical SCCs, which were validated by microscopic pathologic features of degenerative tissue and cellular collapse . The SCCs of the head and neck frequently have areas of central necrosis, surrounded by regions of low oxygen concentration (hypoxic regions). The hypoxic regions of the tumor commonly expressed hypoxia-inducible factor-1α and programmed death ligand 1, which may induce a more aggressive nature and a poorer prognosis of primary parotid SCCs than other common malignant parotid tumors .
There are some limitations in our study. First, this study has its retrospective nature with limited patients because primary SCCs in parotid gland are rare. The 31 patients with primary parotid SCC in our cohort were included just according to the medical records. Unavoidably, a few patients might forget to mention a previous removal of SCC of the scalp or other locations many years ago, which might result in a selection bias. Second, no advanced CT and MRI techniques such as dual-source or spectral CT, functional MRI imaging (including DWI, dynamic contrast-enhanced MRI) were used in this study. CT spectral quantitative parameters are useful for differentiating the tumors of parotid gland . Additionally, DWI has high accuracy, good sensitivity and moderate specificity for the diagnosis of malignant parotid tumors . Therefore, future prospective research with a larger study size or using state-of-the-art CT and MRI is demanded.
Primary parotid SCC has some distinct imaging features such as a large tumor size, an obvious invasive nature with irregular shape and ill-defined margin, and particularly the marked central necrosis. Patients with age ≥ 51.5 years and necrosis on the image are independent factors for distinguishing SCCs from MECs in parotid gland. The prediction model based on the imaging and clinical factors has the potential to preoperatively detected high-risk patients of the primary parotid SCC.
Availability of data and materials
The datasets used and analyzed during the current study are available from the corresponding author on reasonable request.
Squamous cell carcinoma
Local tumor invasiveness
Receiver operating characteristic
Wang L, Li H, Yang Z, Chen W, Zhang Q (2015) Outcomes of primary squamous cell carcinoma of major salivary glands treated by surgery with or without postoperative radiotherapy. J Oral Maxillofac Surg 73:1860–1864
Fang Q, Wu J, Liu F (2019) Oncologic outcome and potential prognostic factors in primary squamous cell carcinoma of the parotid gland. BMC Cancer 19:752
Xiao M, Liu J, You Y, Yang X, Wang Y (2021) Primary squamous cell carcinoma of the parotid gland: clinicopathological characteristics, treatment, and prognosis. Int J Oral Maxillofac Surg 50:151–157
Takahashi H, Kashiwagi N, Chikugo T, Nakanishi K, Tomita Y, Murakami T (2014) Squamous cell carcinoma originating in the parotid gland: MRI features with histopathological correlation. Clin Radiol 69:41–44
Flynn MB, Maguire S, Martinez S, Tesmer T (1999) Primary squamous cell carcinoma of the parotid gland: the importance of correct histological diagnosis. Ann Surg Oncol 6:768–770
Lee S, Kim GE, Park CS et al (2001) Primary squamous cell carcinoma of the parotid gland. Am J Otolaryngol 22:400–406
Jo U, Song JS, Choi SH, Nam SY, Kim SY, Cho KJ (2020) Primary squamous cell carcinoma of the salivary gland: immunohistochemical analysis and comparison with metastatic squamous cell carcinoma. J Pathol Transl Med 54:489–496
Rajasekaran K, Stubbs V, Chen J et al (2018) Mucoepidermoid carcinoma of the parotid gland: a National Cancer Database study. Am J Otolaryngol 39:321–326
Janz TA, Camilon PR, Nguyen SA, Levi JR, Lentsch EJ (2018) Has the management of pediatric mucoepidermoid carcinoma of the parotid gland changed? Laryngoscope 128:2408–2414
Kashiwagi N, Dote K, Kawano K et al (2012) MRI findings of mucoepidermoid carcinoma of the parotid gland: correlation with pathological features. Br J Radiol 85:709–713
Gong X, Xiong P, Liu S, Xu Q, Chen Y (2012) Ultrasonographic appearances of mucoepidermoid carcinoma of the salivary glands. Oral Surg Oral Med Oral Pathol Oral Radiol 114:382–387
Gamoh S, Akiyama H, Tsuji K et al (2018) Non-contrast computed tomography and magnetic resonance imaging features of mucoepidermoid carcinoma in the salivary glands. Oral Radiol 34:24–30
Shah GV (2002) MR imaging of salivary glands. Magn Reson Imaging Clin N Am 10:631–662
van den Brekel MW, Stel HV, Castelijns JA et al (1990) Cervical lymph node metastasis: assessment of radiologic criteria. Radiology 177:379–384
Mezi S, Pomati G, Botticelli A et al (2020) Primary squamous cell carcinoma of major salivary gland: “Sapienza Head and Neck Unit” clinical recommendations. Rare Tumors 12:2036361320973526
Akhtar K, Ray PS, Sherwani R, Siddiqui S (2013) Primary squamous cell carcinoma of the parotid gland: a rare entity. BMJ Case Rep 15(2013):bcr2013009467
Liu CC, Jethwa AR, Khariwala SS, Johnson J, Shin JJ (2016) Sensitivity, specificity, and posttest probability of parotid fine-needle aspiration: a systematic review and meta-analysis. Otolaryngol Head Neck Surg 154:9–23
Baik SH, Seo JW, Kim JH, Lee SK, Choi EC, Kim J (2019) Prognostic value of cervical nodal necrosis observed in preoperative CT and MRI of patients with tongue squamous cell carcinoma and cervical node metastases: a retrospective study. AJR Am J Roentgenol 213:437–443
Fruehwald-Pallamar J, Czerny C, Mayerhoefer ME et al (2011) Functional imaging in head and neck squamous cell carcinoma: correlation of PET/CT and diffusion-weighted imaging at 3 Tesla. Eur J Nucl Med Mol Imaging 38:1009–1019
Chen TC, Wu CT, Wang CP et al (2015) Associations among pretreatment tumor necrosis and the expression of HIF-1alpha and PD-L1 in advanced oral squamous cell carcinoma and the prognostic impact thereof. Oral Oncol 51:1004–1010
Li L, Zhao Y, Luo D et al (2018) Diagnostic value of single-source dual-energy spectral computed tomography in differentiating parotid gland tumors: initial results. Quant Imaging Med Surg 8:588–596
Chen J, Liu S, Tang Y et al (2021) Performance of diffusion-weighted imaging for the diagnosis of parotid gland malignancies: A meta-analysis. Eur J Radiol 134:109444
Ethics approval and consent to participate
The study was approved by the ethics committee of Sun Yat-Sen Memorial Hospital, and patient informed consent was waived for this type of review.
Consent for publication
Written informed consent was waived by the institutional review board.
All the authors declare that they have no competing interests.
