Postmortem brain 7T MRI with minimally invasive pathological correlation in deceased COVID-19 subjects

Abstract

Background

Brain abnormalities are a concern in COVID-19, so we used minimally invasive autopsy (MIA) to investigate it, consisting of brain 7T MR and CT images and tissue sampling via transethmoidal route with at least three fragments: the first one for reverse transcription polymerase chain reaction (RT-PCR) analysis and the remaining fixed and stained with hematoxylin and eosin. Two mouse monoclonal anti-coronavirus (SARS-CoV-2) antibodies were employed in immunohistochemical (IHC) reactions.

Results

Seven deceased COVID-19 patients underwent MIA with brain MR and CT images, six of them with tissue sampling. Imaging findings included infarcts, punctate brain hemorrhagic foci, subarachnoid hemorrhage and signal abnormalities in the splenium, basal ganglia, white matter, hippocampi and posterior cortico-subcortical. Punctate brain hemorrhage was the most common finding (three out of seven cases). Brain histological analysis revealed reactive gliosis, congestion, cortical neuron eosinophilic degeneration and axonal disruption in all six cases. Other findings included edema (5 cases), discrete perivascular hemorrhages (5), cerebral small vessel disease (3), perivascular hemosiderin deposits (3), Alzheimer type II glia (3), abundant corpora amylacea (3), ischemic foci (1), periventricular encephalitis foci (1), periventricular vascular ectasia (1) and fibrin thrombi (1). SARS-CoV-2 RNA was detected with RT-PCR in 5 out of 5 and IHC in 6 out 6 patients (100%).

Conclusions

Despite limited sampling, MIA was an effective tool to evaluate underlying pathological brain changes in deceased COVID-19 patients. Imaging findings were varied, and pathological features corroborated signs of hypoxia, alterations related to systemic critically ill and SARS-CoV-2 brain invasion.

Key points

  • Minimally invasive autopsy was an effective tool to evaluate underlying pathological brain changes in deceased COVID-19 patients.

  • Imaging findings were varied, and pathological features corroborate signs of hypoxic injury, alterations related to systemic critically ill and SARS-CoV-2 brain invasion

  • SARS-CoV-2 RNA was detected with RT-PCR and with immunohistochemistry even in the samplings of brains with normal postmortem MRI.

Background

COVID-19 has dramatically evolved from a mysterious pneumonia to global pandemic of a multisystem disease with more than five million deaths worldwide so far.

Neuropsychiatric symptoms are an important concern in COVID-19 patients. Neurological symptoms in COVID-19 include headache, dizziness, seizures, anosmia, ageusia, focal deficits (quadriparesis, hemiparesis, aphasia), confusion and post-extubation delayed awakening. Post-COVID neuropsychiatric complains are also frequent. Disease mechanisms, however, remain incompletely understood. The proposed mechanisms include direct nervous tissue viral aggression, host response, hypoxia, stroke, critically ill patients’ related injuries, treatment side effects or a combination of these factors.

Since Renaissance, autopsy has been used as a tool to investigate disease pathophysiology. In a pandemic scenario, however, exposure of autopsy teams to a highly contagious agent must be avoided.

In this context, our service has performed ultrasound-guided minimally invasive autopsies (MIA-US) to obtain tissue samples from several organs, while reducing risks of contamination [1]. Since ultrasound is limited to evaluate the adult brain, we associated 7T magnetic resonance imaging (MRI), computed tomography (CT) and transethmoidal brain sampling to further investigate SARS-CoV-2 brain-related injuries.

The aim of the present study is to describe imaging and histopathological findings in deceased COVID-19 patients whose brains were assessed with this approach.

Material and methods

In the current COVID-19 pandemic, Hospital das Clínicas da Faculdade de Medicina da USP (HCFMUSP), a tertiary teaching public hospital in the city of São Paulo, Brazil, was assigned as the reference service to treat severely ill COVID-19 patients. Severe illness was defined as acute respiratory distress syndrome with computed tomography characteristic findings of COVID-19 involvement, hypoxemia requiring supplementary oxygen (e.g., nasal catheter or mechanical ventilation) and patients with comorbidities. Cases were confirmed with SARS-CoV-2 RNA detection by reverse transcriptase–polymerase chain reaction (RT-PCR) in respiratory samples, following the Charité protocol, validated in our institution [1, 2].

Autopsies were performed in the Pathology Department of Faculdade de Medicina da Universidade de São Paulo and in the “Image Platform in the Autopsy Room” (PISA) facilities (https://pisa.hc.fm.usp.br/) in the same institution, after written consent from the first‐degree relative. Data collection was performed in April and May of 2020. Epidemiological, clinical and laboratory data were collected from relatives and medical records. This work and protocol were approved by HCFMUSP Ethical Committee (protocol #3951.904).

Postmortem brain MRI was acquired in a 7T Siemens Magnetom scanner (Siemens, Erlangen, USA) with a 32-channel coil (Nova Medical, Wilmington, USA). Corpses were wrapped in appropriate plastic bags before entering the scanner. 3DMP2RAGE (TE 1.9 ms, TR 6000 ms, 0.75 mm isotropic voxels), coronal T2 (TE 60 ms, TR 4170 ms, 0.23 mm in plane resolution, 2 mm thickness), axial T2 (TE 61 ms, TR 7000 ms, 0.45 mm in plane resolution, 2 mm thickness), FLAIR (TE 82 ms, TR 7100 ms, 0.55 mm in plane resolution, 3.5 mm thickness), DWI and SWI (TE 14 ms, TR 23 ms, 0.2 mm in plane resolution, 1.3 mm thickness) images were acquired. A total body CT image was also acquired before MRI, and US-guided tissue sampling was performed after MRI. MR and CT images were analyzed by two independent neuroradiologists (M.G.M.M. and E.F.C.) and reviewed for consensus.

Brain sampling was performed via transethmoidal route (Fig. 1), using Tru-Cut® semiautomatic coaxial needles of 14G, 20 cm long. At least three fragments were obtained in each case. The first fragment was stored at -80 °C and used for RT-PCR analysis [1, 2]. The other fragments were fixed in 10% buffered formalin, embedded in paraffin and stained with hematoxylin and eosin (H&E). Although the same region was attempted, angle of access might have changed a little between the subjects. Histological analysis was performed by two independent pathologists (A.N.D.N. and V.R.P.), with posterior consensus agreement. Immunohistochemical (IHC) reactions were performed using an anti-SARS-CoV-2 nucleocapsid protein (mouse monoclonal antibody [6H3] GeneTex cat. GTX-632269, GeneTex Inc., Irvine, CA, USA, 1:500 dilution) and anti-SARS-CoV-2 Spike S2 protein (MP Biomedicals, code 08720402, Irvine, Califórnia, USA, 1:500 dilution). The antigen retrieval was performed with 10 mM citrate buffer pH 6.0. IHC reactions were amplified by alkaline phosphatase conjugated polymers (Polink AP Broad, GBI Labs, Bothell, WA, USA) and revealed with fast red chromogen (GBI Permanent Red, GBI Labs, Bothell, WA, USA). The primary antibodies were first tested in lung samples from patients with COVID-19 pneumonia, and negative controls included tissue samples of brains from patients with cardiovascular diseases and other viral infections, obtained from our autopsy archive. The IHC reactions resulted negative in all the negative controls.

Fig. 1
figure 1

Coronal (a) and sagittal (b) CT reconstructions illustrating the Tru-Cut needle during a transethmoidal brain tissue sampling

Results

Minimally invasive autopsies with brain MRI were performed in 7 deceased COVID-19 patients, with brain tissue sampling in 6 of them. (Patient 3’s family did not consent to cerebral tissue sampling.) Table 1 displays the main clinical, radiological and pathological encountered features. One case (case 4) was previously described, focusing on cardiac complications attributed to COVID-19 [3] and on the spectrum of severe COVID-19 in children [4]. COVID-19 infection was confirmed in all cases by positive SARS-CoV-2 RNA detection in naso/oropharyngeal swabs, collected antemortem in 5 cases, and postmortem in 2. All cases disclosed typical COVID-19 lung CT findings, with greater than 50% percent lung involvement. Mean age was 44 years (ranging from 11 to 74 years), 4 were women, one of whom was in the third trimester of pregnancy. Mean body mass index was 28.7 (15.2–48.4). One patient had acute neurological symptoms (case 2), presenting with new onset epileptic seizures (previous history of depression). Among the other patients, three presented headaches as an initial symptom. Mean D-dimer was 16,308 ng/mL FEU (1,023—1200,881 ng/mL FEU, reference range < 500 ng/mL FEU), and C reactive protein was 146 mg/L (49–240 mg/L, reference range < 5,0 mg/L). All patients were very critically ill, with acute respiratory distress syndrome and mechanical ventilation, associated with acute kidney failure and refractory shock. One patient received thrombolytic treatment (case 3), and two received anticoagulants (cases 3 and 7). Death was attributed to severe COVID-19 in all cases.

Table 1 Clinical, radiological and pathological central nervous system features in seven fatal COVID-19 cases

Brain imaging (CT and MRI) studies were normal in one subject (patient 6) and abnormal in the other six. One patient had cortical–subcortical probably chronic infarcts with petechial hemorrhages (two large infarcts—right frontal and left parietal, and two smaller infarct—left cerebellar and right frontal) (Fig. 2). One patient had bilateral frontal and parietal subarachnoid hemorrhage, and signal abnormalities in both corticospinal tracts, bilateral basal ganglia, hippocampi and cortical/subcortical parietal bilaterally, and in the right frontal lobe (Fig. 3). Increased T2 and FLAIR signal associated with punctate hemorrhagic foci was identified in the splenium of corpus callosum in patient 4 (Fig. 4c, d). Patient 5 had some nonspecific multifocal white matter abnormalities with increased T2 and FLAIR signal, and some punctate hemorrhagic foci in the right frontal white matter (Fig. 5a, b). Periventricular punctate hemorrhagic foci were noted in patient 7 (Fig. 5c, d). One subject had diffuse edema and patchy white matter focal abnormalities. This patient did not undergo cerebral sampling (family did not consent) (Fig. 4a, b).

Fig. 2
figure 2

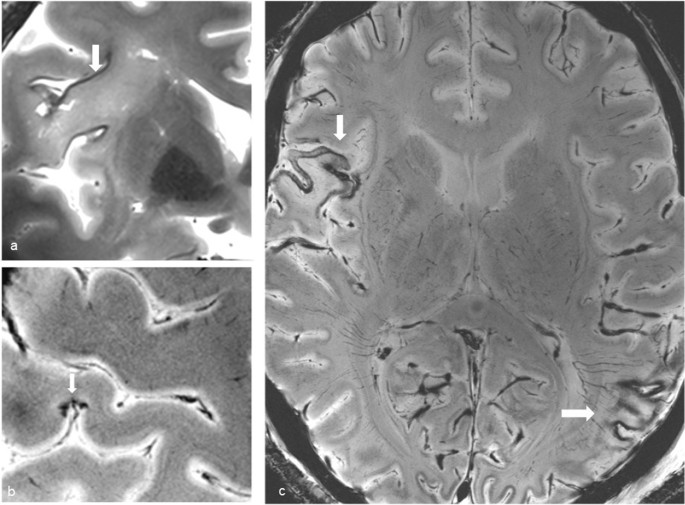

Coronal T2 (a) and axial SWI (b, c) of patient 1 showing two large (right frontal and left parietal) cortical–subcortical infarcts with petechial cortical hemorrhage, and a smaller right frontal cortical infarct (b). Previous brain imaging unavailable, so timing of the infarct could not be established; imaging features do not indicate an acute lesion; previous heart failure could favor chronic lesions

Fig. 3
figure 3

Patient 2. Bilateral subarachnoid hemorrhages (white arrows) in frontal and parietal sulci on CT (a) and axial T2 (c), signal abnormalities in the corticospinal tracts (white arrowheads b, d), bilateral basal ganglia (b—black arrowheads), hippocampi (d—black arrows), bilateral cortical/subcortical parietal lobes, and more subtle in the right frontal lobe (c, e—black arrowheads)

Fig. 4
figure 4

Diffuse edema (CT a) and some patchy white matter focal abnormalities (axial T2 b) (black arrow) in patient 3. Patient 4 had splenial signal abnormality (white arrowhead) with high T2 signal (c) with punctate hemorrhagic foci on SWI (d) (white arrow)

Fig. 5
figure 5

Nonspecific multifocal white matter abnormalities with increased signal on FLAIR (a) and punctate hemorrhagic foci in the right white matter on SWI (b) of patient 5. Patient 7 showed some periventricular punctate hemorrhagic foci on SWI (c, d)

Histological brain analysis showed reactive gliosis, congestion and cortical neuron eosinophilic degeneration, and axonal disruption in all six cases (Fig. 6). Other findings included edema (5 cases), discrete perivascular hemorrhages (5), cerebral small vessel disease (3), perivascular hemosiderin deposits (3), Alzheimer type II glia (3), abundant corpora amylacea (3), foci of ischemic area (1), foci of periventricular encephalitis (1), fibrin thrombi (1) and periventricular vascular ectasia (1) (Fig. 6). IHC reactions were positive with the two primary antibodies, labeling endothelial cells and microglial cell in 6 out of 6 patients (Fig. 6). SARS-CoV-2 RNA was detected by RT-PCR in the brain specimens in 5 out of 5 cases (100%). Two specimens were not evaluated (patient 3 did not have tissue sampled, as previously explained, and patient 4 did not have frozen tissue). Other autopsy findings included typical COVID-19 pneumonia (diffuse alveolar damage, pneumocyte cytopathic changes, fibrin thrombi and increased megakaryocytes in septal vessels), acute tubular necrosis and visceral congestion.

Fig. 6
figure 6

Histological findings in the brain in six fatal COVID-19 cases. a Eosinophilic degeneration of cortical neurons (“red neurons”) secondary to hypoxia; b white matter edema and congestion; c, d periventricular vessel with small fibrin clot (arrows), perivascular edema and red cells perivascular leakage (asterisk); e fibrin clot within (arrow) a vessel with lipohyalinosis and perivascular hemosiderin deposits, compatible with previous small vessel disease and cerebral microhemorrhages; f fibrin within a vessel with perivascular edema and discrete perivascular bleeding (arrow); g Alzheimer type II glia in periventricular area; h foci of periventricular neutrophilic infiltrate and recent hemorrhages (arrows); i Bielschowsky's silver stain revealing axonal disruption and thickening. jm Immunohistochemistry reaction detected SARS-CoV-2 nucleocapsid protein in the cytoplasm of endothelial cells (j, l) and microglial cells (k, m), (arrows), (alkaline phosphatase). a–h: H&E stain

Discussion

We showed brain postmortem high-resolution images of COVID-19-deceased patients, with histological correlations.

Cerebrovascular abnormalities were the most common findings, detected in five patients: one stroke (although timing was not established), one subarachnoid hemorrhage (although she had also undergone thrombolytic therapy for pulmonary embolism) and three patients with microhemorrhage. They are the most commonly described CNS imaging finding in COVID-19 patients [5], and potential mechanisms include endothelial damage linked to the angiotensin-converting enzyme 2 (ACE2) receptor, hypercoagulable state and cardiomyopathy [7].

A recent meta-analysis of 108,571 patients with COVID-19 [9] showed that acute cerebrovascular disease occurred in 1.4%, with acute ischemic stroke accounting for 88% of those and intracerebral hemorrhage for 12%. They were more frequent in older subjects, in those who were severely infected and had preexisting vascular risk factors. Compared to individuals who experienced a stroke without the infection, patients with COVID-19 and stroke were younger, had higher National Institutes of Health Stroke Scale/Score (NIHSS), higher frequency of large vessel occlusion and higher in-hospital mortality rate. The pattern of large vessel occlusion and multi-territory infarcts suggests that cerebral thrombosis and/or thromboembolism could be possible causative pathways for the disease. Hemorrhage could be associated with arterial wall damage and rupture related to SARS-CoV-2 affinity for ACE2 receptors, which are expressed in brain endothelial and arterial smooth muscle cells. Alternatively, hemorrhagic infarcts could be related to the inflammatory response [8].

Intra-axial susceptibility abnormalities suggestive of microhemorrhage were the most common finding (74%) in a consecutive cohort of COVID-19 patients [10] and have also been reported in postmortem brain analysis in COVID-19 patients [11]. Nonetheless, these abnormalities have also been described in critically ill patients, patients using extracorporeal membrane oxygenation (ECMO) and in high-altitude hypoxia, and are not, therefore, specific to COVID-19. In our samples, microvascular brain damage was detected in three cases on MRI (and in 5 cases in pathology, 3 of them being the ones with MRI findings). Pathological analysis was superior to imaging in detecting perivascular hemorrhages, possibly due to higher spatial resolution (pathologically detected microhemorrhages were very small and adjacent to the vessel, and together, they were smaller than the in-plane resolution of the SWI acquisition (0.20 mm), making it impossible to differentiate one another: For example, in Fig. 6e there is hemosiderin adjacent to the vessel, and together, they measure 0.15 mm; in Fig. 6f, the vessel and adjacent hemorrhage measure 0.10 mm). Besides this issue, the SWI artifact related to blood products is usually bigger than the blood products themselves, being another explanation why these small perivascular hemorrhages could not be differentiated from the vessels in the MRI. This is particularly a problem in the in situ postmortem brain 7T MRI, because the intravessel susceptibility signal (from postmortem intravessel stasis/thrombi) is very strong in this scenario, as shown in Fig. 4d for example. Although a previous paper showed underestimation of CMBs by postmortem MRI brain compared to histology, in up to 24%[12], another study using 7T showed better correlation with MRI, especially for those in the cortico-subcortical regions (using ex situ images, which have much smaller intravessel SWI, because much of the blood has been washed away during fixation). Another issue is that, besides the resolution, MRI might also show false positives. The same study using 7T MRI and postmortem histology showed that in the deep white matter 42% of microhemorrhages were not detected, while 31% of T2* hyposignals were not due to microhemorrhages, but due to vessels filled with postmortem thrombi [13], adding even more nuances to this diagnosis.

One patient (patient 2) had other imaging findings besides hemorrhage. Posterior cortical–subcortical abnormalities could represent posterior reversible encephalopathy (PRES), which have been described in COVID-19-deceased patients [14], and possibly related to endothelial cell damage due to viral ACE receptor binding. Clinical features were also compatible with PRES, that is commonly associated with seizures. An alternative explanation for these imaging findings would be hypoxic changes. Imaging findings in the basal ganglia could represent PRES, encephalitis, metabolic-related changes or hypoxic injury. One of the sampled fragments included part of the basal ganglia. Histological analysis of that fragment did not disclose any evidence of encephalitis, such as perivascular infiltrates, glial nodules or cytopathic changes. Most of the histological changes in this case appear to represent systemic illness responses and hypoxic injury. Hippocampal changes could also be related to hypoxia. Clinical history corroborates hypoxic injury, since, in addition to prolonged mechanical ventilation related to hypoxia, the patient also suffered four episodes of cardiorespiratory arrest during hospitalization. Corticospinal tract signal abnormalities have not been previously described in COVID-19 patients, although paraparesis has been reported. Wallerian degeneration resulting from cortical hypoxia is a possible explanation. These findings were supported by axonal thickening and disruption on Bielschowsky stain. The axonal lesion (so-called Wallerian-like degeneration) is well described and associated with ischemic lesion in experimental and clinical studies [15, 16]. Although it can be difficult to distinguish from traumatic brain lesion, the other histopathological changes and the clinical context can help in differential evaluation [16, 17]. A direct point-to-point correlation between imaging and histology findings was not possible, limiting interpretation of imaging and pathology findings.

A focal lesion in the splenium of the corpus callosum was identified in patient 4, which may occur in diverse clinical scenarios, such as epilepsy, encephalitis and drug-related, and has been described in COVID-19 patients [18], especially in children with MIS-C (multisystem inflammatory syndrome in children) [19]. These lesions are usually transitory and are characterized by increased T2 and FLAIR signal, with diffusion restriction. Some authors propose that cytokine‐mediated edema may underlie this finding [20] which would be in agreement with this prevalence in children with MIS-C. Hemorrhagic foci, such as seen in this case, are not frequently associated with these transitory lesions, but have been previously described in COVD-19 patients [21].

Finally, white matter hyperintense lesions were detected in two patients (Patients 3 and 5). The lesions usually represent a nonspecific finding, which may be related to chronic white matter small vessel disease. Acute white matter abnormalities have been reported in COVID-19 patients [22], especially centrum semi-ovale lesions showing restricted diffusion, sometimes associated with globus pallidus lesions [23], representing either ADEM-like lesions or, most likely, ischemic/vasculitic lesions [22, 23]. In one case, tissue sampling was not performed, and in the other one, histological analysis showed chronic small vessel changes. Small vessel disease is a common finding in patients with hypertension and diabetes, underscoring the relevance of preexisting conditions as risk factors for an unfavorable outcome.

Previously reported imaging findings in COVID-19 patients, such as meningeal enhancement (that cannot be adequately assessed by postmortem studies), gyral swelling and diffuse white matter signal abnormalities were not detected in our series [10].

Regarding the clinical scenario, all patients were critically ill, in the intensive care unit, with respiratory failure requiring mechanical ventilation, associated with renal failure evolving to refractory shock. Headache, a commonly described complaint, was reported by three subjects as initial symptoms. One patient, who showed the most prominent abnormal imaging finding, presented with new onset seizures leading to hospital admission.

Of all the patients in our series, only one underwent in vivo brain imaging (normal head CT). This is a limitation of this study. Corresponding in vivo imaging would be ideal to better differentiate postmortem aspects from in vivo findings. Typical postmortem brain findings and challenges include: different T1, T2 and ADC due to a combination of factors like lower temperature and decomposition (that can be affected by postmortem interval, ambient, etc.); loss of grey–white matter differentiation mainly on CT, but with some blurring on MRI, due to fluid shift and cerebral autolysis; drastically different susceptibility-weighted image due to a darker vessel signal mainly related to blood stasis (which is even more exacerbated in 7T imaging); gas appearing linked to putrefaction; no intravenous contrast administration (although postmortem angiography might be done—in which case brain enhancement might be normally expected) [24]; hyperdensity (or clot signal on MRI) of the dural venous sinuses, sometimes in a dependent position; increase in brain volume and loss of definition of sulci, which may be due to a combination of vasogenic and cytotoxic edema and may be more pronounced in death with prolonged duration of the agonal state, leading to a longer hypoxic state, than in acute death [25, 26]; and in more advanced deterioration “softening” of brain tissue and settling of the tissue against the dependent part of the skull [27,28,29,30]. Obtaining in vivo neuroimaging, especially MRI, in critically ill COVID-19 patients, with high infectious potential is limited, leading to underestimation of neurological involvement in these patients.

The pathological analysis of our samples showed reactive gliosis, congestion and cortical neuron eosinophilic degeneration, axonal disruption and the presence of SARS-CoV-2 antigens in the endothelial cells and microglia and RNA detection in all analyzed cases. Edema was identified in 5 cases (perivascular scarce neuropil, forming “vacuoles”), exudation of fibrin and hemosiderin (meaning that an extravascular leak of red cells has occurred, days before the death) (Fig. 6c–f). This is a most probably diffuse multifactorial pathological process, involving the endothelial cells, leading to extravascular leakage: SARS-CoV-2 infection of endothelial cells, as we show positive detection of the N-antigen in the cytoplasms of those cells (Fig. 6j, l); hypoxia and shock. Alzheimer type II astrocyte was identified in 3 patients. It represents a common change in (and an important marker for) patients with metabolic impairments, notably renal and hepatic failure [31, 32]. Although their origin and relation to clinical manifestations is unclear, some studies (specially experimental ones) propose that these cells arise in the same pathophysiological background as the neurological manifestations (changes in glutamine and ammonia levels) [33]. Only one case showed mixed periventricular inflammatory infiltrates (Patient 7). Neuropathological studies on COVID-19 are scarce so far. One case report disclosed findings suggestive of both vascular and demyelinating processes [34]. Another study included 18 brains from deceased COVID-19 patients [35] and showed mainly hypoxic injury in the cerebrum and cerebellum, with neuronal loss in the cerebral cortex, hippocampus, and cerebellar Purkinje cell layer. These findings are concordant with ours. In two cases, rare foci of perivascular lymphocytes were detected, and leptomeningeal inflammation was detected in one brain specimen. Similar findings were seen in brains from 43 COVID-19 fatal cases [36]. The commonest finding was reactive microglia (86%), with inflammatory infiltrate by T cytotoxic cells, mainly in the brainstem, cerebellum and leptomeninges. They also detected SARS-CoV-2 in the brain of 53% of the patients, and inflammatory reaction was not associated with SARS-CoV-2 immunohistochemistry positivity (using anti-nucleocapsid protein and anti-spike protein primary antibodies) in the brain. Possible explanations would be that SARS-CoV-2 could infect specific central nervous system compartments; infection may not be associated with local inflammatory reaction, in an immune evasion mechanism, or producing different types of central nervous system involvement [37]. Our series corroborates previous neuropathological studies that disclosed hypoxic injury [35], alterations related to the critical multiorgan failure condition of these patients, such as hemorrhagic foci and splenial lesions, as well as SARS-CoV-2 brain invasion, detected by immunohistochemistry and/or RNA detection.

We can highlight that IHC reactions were positive even in the samplings of brain with normal postmortem MRI.

Pathological–imaging correlation was limited due to the features of postmortem transethmoidal tissue sampling, since it was not possible to conduct a guided sampling of the representative area in a real-time correlation between imaging findings and anatomopathological examination. Thus, some imaging findings may not be represented in pathological samples. However, imaging and pathological findings complemented each other, since MRI included the whole brain (albeit with limited direct viral analysis, spatial resolution, etc.), while pathology was able to examine microscopic details, as well as IH and RT-PCR. In addition, these correlation links in vivo findings (which can be achieved with imaging studies), with pathological analysis (that are only possible with biopsies or postmortem), thus helping establish a better understanding of the in vivo imaging findings.

The sample size of the study was small, so more extensive studies are needed to have a better understanding of the overall neuropathological burden. Future directions include different tissue sampling approaches to try to address all imaging findings in postmortem examination in the autopsy room, additive histological techniques (e.g., electron microscopy and immunofluorescence), as well as extensive brain analysis of patients with different forms and moments of the disease.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

ACE2:

Angiotensin-converting enzyme 2

ADEM:

Acute disseminated encephalomyelitis

COVID-19:

Coronavirus disease

ECMO:

Extracorporeal membrane oxygenation

IHC:

Immunohistochemical

MIA:

Minimally invasive autopsy

MIS-C:

Multisystem inflammatory syndrome in children

NIHSS:

National Institutes of Health Stroke Scale/Score

PRES:

Posterior reversible encephalopathy

RNA:

Ribonucleic acid

RT-PCR:

Reverse transcription polymerase chain reaction

References

  1. Duarte-Neto AN, Monteiro RAA, da Silva LFF et al (2020) Pulmonary and systemic involvement in COVID-19 patients assessed with ultrasound-guided minimally invasive autopsy. Histopathology 77:186–197. https://doi.org/10.1111/his.14160

    Article  PubMed  Google Scholar

  2. Corman VM, Landt O, Kaiser M et al (2020) Detection of 2019 -nCoV by RT-PCR. Euro Surveill 25:1–8

    Google Scholar

  3. Dolhnikoff M, Ferreira Ferranti J, de Almeida Monteiro RA et al (2020) SARS-CoV-2 in cardiac tissue of a child with COVID-19-related multisystem inflammatory syndrome. Lancet Child Adolescent Health 4:790–794. https://doi.org/10.1016/S2352-4642(20)30257-1

    Article  PubMed  Google Scholar

  4. Duarte-Neto AN, Caldini EG, Gomes-Gouvêa MS et al (2021) An autopsy study of the spectrum of severe COVID-19 in children: from SARS to different phenotypes of MIS-C. EClinicalMedicine 35:100850. https://doi.org/10.1016/j.eclinm.2021.100850

    Article  PubMed  PubMed Central  Google Scholar

  5. Chougar L, Shor N, Weiss N et al (2020) Retrospective observational study of brain MRI findings in patients with acute SARS-CoV-2 infection and neurologic manifestations. Radiology 297:E313–E323. https://doi.org/10.1148/radiol.2020202422

    Article  PubMed  Google Scholar

  6. Katal S, Balakrishnan S, Gholamrezanezhad A (2020) Neuroimaging and neurologic findings in COVID-19 and other coronavirus infections: a systematic review in 116 patients. J Neuroradiol 48(1):43–50

    Article  Google Scholar

  7. Hess DC, Eldahshan W, Rutkowski E (2020) COVID-19-related stroke. Transl Stroke Res 11(3):322–325

    CAS  Article  Google Scholar

  8. David Spence J, de Freitas GR, Pettigrew LC et al (2020) Mechanisms of stroke in COVID-19. Cerebrovasc Dis 49:451–458

    Article  Google Scholar

  9. Nannoni S, de Groot R, Bell S, Markus HS (2021) Stroke in COVID-19: a systematic review and meta-analysis. Int J Stroke. https://doi.org/10.1177/1747493020972922

    Article  PubMed  Google Scholar

  10. Klironomos S, Tzortzakakis A, Kits A et al (2020) Nervous system involvement in COVID-19: results from a retrospective consecutive neuroimaging cohort. Radiology. https://doi.org/10.1148/radiol.2020202791

    Article  PubMed  Google Scholar

  11. Lee M-H, Perl DP, Nair G et al (2020) Microvascular injury in the brains of patients with covid-19. N Engl J Med. https://doi.org/10.1056/NEJMc2033369

    Article  PubMed  PubMed Central  Google Scholar

  12. Haller S, Montandon ML, Lazeyras F et al (2016) Radiologic-histopathologic correlation of cerebral microbleeds using pre-mortem and post-mortem MRI. PLoS One. https://doi.org/10.1371/journal.pone.0167743

    Article  PubMed  PubMed Central  Google Scholar

  13. de Reuck J, Auger F, Cordonnier C et al (2011) Comparison of 7.0-T T2*-magnetic resonance imaging of cerebral bleeds in post-mortem brain sections of Alzheimer patients with their neuropathological correlates. Cerebrovasc Dis 31:511–517. https://doi.org/10.1159/000324391

    Article  PubMed  Google Scholar

  14. Coolen T, Lolli V, Sadeghi N et al (2020) Early postmortem brain MRI findings in COVID-19 non-survivors. Neurology 95:e2016–e2027. https://doi.org/10.1212/WNL.0000000000010116

    CAS  Article  PubMed  Google Scholar

  15. Nukada H, Dyck PJ (1987) Acute ischemia causes axonal stasis, swelling, attenuation, and secondary demyelination. Ann Neurol. https://doi.org/10.1002/ana.410220306

    Article  PubMed  Google Scholar

  16. Zuo M, Guo H, Wan T et al (2019) Wallerian degeneration in experimental focal cortical ischemia. Brain Res Bull 149:194–202. https://doi.org/10.1016/j.brainresbull.2019.04.023

    CAS  Article  PubMed  Google Scholar

  17. Geddes JF, Whitwell HL, Graham DI (2000) Traumatic axonal injury: practical issues for diagnosis in medicolegal cases. Neuropathol Appl Neurobiol. https://doi.org/10.1046/j.1365-2990.2000.026002105.x

    Article  PubMed  Google Scholar

  18. Edjlali M, le Gal A, Louvet M et al (2020) Teaching NeuroImages: Cytotoxic lesions of the corpus callosum (CLOCCs) in encephalopathic patients with COVID-19. Neurology. https://doi.org/10.1212/WNL.0000000000010880.10.1212/WNL.0000000000010880

    Article  PubMed  Google Scholar

  19. Lindan CE, Mankad K, Ram D et al (2020) Neuroimaging manifestations in children with SARS-CoV-2 infection: a multinational, multicentre collaborative study. Lancet Child Adolesc Health Mar 5:167–177. https://doi.org/10.1016/S2352-4642(20)30362-X

    Article  Google Scholar

  20. Tetsuka S (2019) Reversible lesion in the splenium of the corpus callosum. Brain Behav 9:1–10. https://doi.org/10.1002/brb3.1440

    Article  Google Scholar

  21. Fitsiori A, Pugin D, Thieffry C et al (2020) COVID-19 is associated with an unusual pattern of brain microbleeds in critically Ill patients. J Neuroimaging. https://doi.org/10.1111/jon.12755

    Article  PubMed  PubMed Central  Google Scholar

  22. Toledano-Massiah S, Badat N, Leberre A et al (2020) Unusual brain MRI pattern in 2 patients with COVID-19 acute respiratory distress syndrome. AJNR Am J Neuroradiol. https://doi.org/10.3174/ajnr.a6817

    Article  PubMed  PubMed Central  Google Scholar

  23. Watts JT, Gaddamanugu S (2020) Suspected central nervous system vasculitis in the setting of severe COVID-19: a case report. Neurographics. https://doi.org/10.3174/ng.2000042

    Article  Google Scholar

  24. Jackowski C, Persson A, Thali MJ (2008) Whole body postmortem angiography with a high viscosity contrast agent solution using poly ethylene glycol as contrast agent dissolver. J Forensic Sci. https://doi.org/10.1111/j.1556-4029.2008.00673.x

    Article  PubMed  Google Scholar

  25. Graham DI (1977) Pathology of hypoxic brain damage in man

  26. Hardy JA, Wester P, Winblad B et al (1985) The patients dying after long terminal phase have acidotic brains; implications for biochemical measurements on autopsy tissue. J Neural Transm. https://doi.org/10.1007/BF01251916

    Article  PubMed  Google Scholar

  27. Offiah CE, Dean J (2016) Post-mortem CT and MRI: appropriate post-mortem imaging appearances and changes related to cardiopulmonary resuscitation. Br J Radiol 89

  28. Smith AB, Lattin GE, Berran P, Harcke HT (2012) Common and expected postmortem CT observations involving the brain: mimics of antemortem pathology. AJNR Am J Neuroradiol. https://doi.org/10.3174/ajnr.A2966

    Article  PubMed  PubMed Central  Google Scholar

  29. Boon BDC, Pouwels PJW, Jonkman LE et al (2019) Can post-mortem MRI be used as a proxy for in vivo? A case study. Brain Commun. https://doi.org/10.1093/braincomms/fcz030

    Article  PubMed  PubMed Central  Google Scholar

  30. Christe A, Flach P, Ross S et al (2010) Clinical radiology and postmortem imaging (Virtopsy) are not the same: specific and unspecific postmortem signs. Leg Med. https://doi.org/10.1016/j.legalmed.2010.05.005

    Article  Google Scholar

  31. Albrecht J (1996) Astrocytes and ammonia neurotoxicity. In: Aschner M, Kimelberg H (eds) The role of glia in neurotoxicity. CRC Press, Boca Raton, pp 137–153

    Google Scholar

  32. Ellison D, Love S, Chimelli LM et al (2012) Neuropathology E-book: a reference text of CNS pathology. 2012 Nov 21. Elsevier Health Sciences

  33. Jayakumar AR, Rao KVR, Murthy CRK, Norenberg MD (2006) Glutamine in the mechanism of ammonia-induced astrocyte swelling. Neurochem Int 48:623–628. https://doi.org/10.1016/j.neuint.2005.11.017

    CAS  Article  PubMed  Google Scholar

  34. Reichard RR, Kashani KB, Boire NA et al (2020) Neuropathology of COVID-19: a spectrum of vascular and acute disseminated encephalomyelitis (ADEM)-like pathology. Acta Neuropathol 140:1–6. https://doi.org/10.1007/s00401-020-02166-2

    CAS  Article  PubMed  PubMed Central  Google Scholar

  35. Solomon IH, Normandin E, Bhattacharyya S et al (2020) Neuropathological features of covid-19. N Engl J Med 383:989–992. https://doi.org/10.1056/NEJMc2019373

    Article  PubMed  Google Scholar

  36. Matschke J, Lütgehetmann M, Hagel C et al (2020) Neuropathology of patients with COVID-19 in Germany: a post-mortem case series. Lancet Neurol 19:919–929. https://doi.org/10.1016/S1474-4422(20)30308-2

    CAS  Article  PubMed  PubMed Central  Google Scholar

  37. Crunfli F, Corasolla Carregari V, Veras FP et al (2020) SARS-CoV-2 infects brain astrocytes of COVID-19 patients and impairs neuronal viability. medRxiv
