Trends of interventional radiology procedures during the COVID-19 pandemic: the first 27 weeks in the eye of the storm

Abstract

Objectives

While the Novel Coronavirus (COVID-19) pandemic looks to persist, institutions promote delaying procedures. Understanding trends and demands of interventional radiology (IR) procedures in the infected and COVID-free populations are needed in long-term planning. We detail IR procedure trends in the first 27 weeks of the pandemic and compare with the pre-pandemic era.

Methods

In this IRB approved retrospective electronic case review, all IR patients in our institution from 1 January to 9 July 2020, the same period in 2019 pre-pandemic and the Severe Acute Respiratory Syndrome (SARS-CoV) outbreak were included. IR procedures were classified using Interventional Radiology—Procedure Acuity Scale (IR-PAS) and category of IR procedures. Along with descriptive frequencies, the Mann–Whitney U test and Chi-square test of independence were performed.

Results

During the pandemic, 3655 IR procedures were performed compared to 3851 procedures pre-pandemic. No statistically significant difference in weekly IR caseloads across IR-PAS tiers between both periods (p = .088) and category of procedure (p = .054) were noted. General intervention procedures remained the largest proportion and musculoskeletal procedures the minority, in both periods. More general intervention radiology and oncology procedures were performed during the COVID-19 pandemic compared to the SARS-CoV outbreak. Thirty-four (0.93%) IR procedures were performed on 30 COVID-19 patients. There was no IR procedure-related COVID-19 cross-transmission.

Conclusions

Demand for IR procedures among COVID-free patients remains high, and IR procedures involving COVID-19 represents a fraction of the IR caseload. A sustainable model in providing timely IR services to COVID-free patients needs to be considered.

Key points

  • The demand for IR procedures for COVID-free patients remains high during this pandemic.

  • The optimization of healthcare resources and adherence to standard infection control protocols by an IR department can yield similar operational capacity compared to pre-pandemic periods.

  • Given the potential prolongation of the COVID-19 pandemic and future infectious diseases outbreaks, more sustainable IR procedural guidelines should be considered rather than active postponement of treatments.

Introduction

Singapore was one of the first countries outside of China to be affected by the Novel Coronavirus (COVID-19) [1], with the first confirmed case detected on the 23rd January 2020, and a surge in cases 3 months later [2]. At the time of writing, a total of 47,126 confirmed COVID-19 cases, with a single-day peak of 1400 new cases in mid-April 2020 [3]. COVID-related mortality, however, remains one of the lowest in the world at 0.1% (27 COVID-related deaths) [4].

Like during the Severe Acute Respiratory Syndrome (SARS-CoV) outbreak in 2003 [5], our hospital was designated as the main acute care center for the COVID-19 pandemic. Our institution is a 1,700-bed tertiary academic hospital and is co-located with the National Centre for Infectious Disease (NCID), a purpose-built facility for infectious diseases, with an additional 330 beds, including 30 intensive care unit beds [6]. The interventional radiology (IR) service provides IR coverage to both the main hospital and the NCID, the latter housing a dedicated negative pressure angiography suite, CT fluoroscopy and ultrasound procedure rooms.

At the peak of the pandemic, our inpatient bed surge capacity was increased to 1475 beds for COVID-19 patients in NCID and the main hospital combined, with another estimated 700 beds available for COVID-free patients. This represented a 30% increase in operational beds compared to the pre-pandemic period. Our dedicated COVID-19 emergency department saw a single-day peak attendance of 520 patients in March 2020 for COVID-related attendance. Throughout the pandemic, our institution catered for up to 70% of all COVID-19 patients requiring hospitalization, with the highest daily inpatient admission of 900 patients in April 2020.

Literature detailing personal protection, workflow and resource management specific to COVID-19 exist [7,8,9,10,11]. However, literature describing the actual impact on IR services and COVID-free patient care remains limited [12, 13]. While deliberate postponement of "non-essential" procedures would be intuitive in the onset of any major outbreak, this approach is not sustainable in a protracted pandemic. The negative impact of pandemic-related treatment delays on COVID-free patients are increasingly being recognized [14,15,16], and poses many challenges for the post-pandemic recovery. Understanding the healthcare demands of COVID-free patients during this pandemic will aid planning for a prolonged pandemic and future outbreaks.

Throughout the pandemic, IR services needed to balance between infection risk and resource optimization, against the delay of care for COVID-free patients [14,15,16]. Guidelines for procedural prioritization and acceptable delays such as the Procedure Acuity Scale (IR-PAS), by The Society of Intervention Radiology [17], which was adapted from the American College of Surgeons Elective Surgery Acuity Scale, were developed [18]. The American College of Surgeons also published COVID-19 Guidelines for Triage of Vascular Surgery Patients, relevant to endovascular treatments [19]. These references aided our strategy in providing IR service on two separate fronts; maintaining IR services to COVID-free patients and IR support to COVID-19 patients. This study aims to review the trend of IR procedures in our institution during the first 27 weeks of the pandemic compared to the pre-pandemic era.

Materials and methods

This is an institutional ethics board-approved study. Waiver of consent was approved. We retrospectively reviewed the electronic medical records of all patients who underwent IR procedures in our institution from the 1st January 2020 to 9th July 2020 (COVID-19 pandemic) and the corresponding period in 2019 (pre-pandemic) (Fig. 1). The study period was specifically chosen to include the earliest official notice of COVID-19’s emergence by the World Health Organization [20] up till the appropriate incubation period after the nation's eight-week circuit breaker (heightened safe distancing measures, also commonly known as "lock-down") was lifted [21]. The corresponding pre-pandemic period was chosen as it contained the traditional annual lull periods due to major cultural holidays in the country. Specific filters were applied in on Picture Archiving and Communication system to identify patients who underwent IR procedures, and their online electronic medical records were reviewed. IR procedures on COVID-19 patients were identified using the NCID database. Cases of cross-transmission between patients and IR medical staff related to IR procedures were also obtained from our hospital surveillance system. No exclusion criteria were defined.

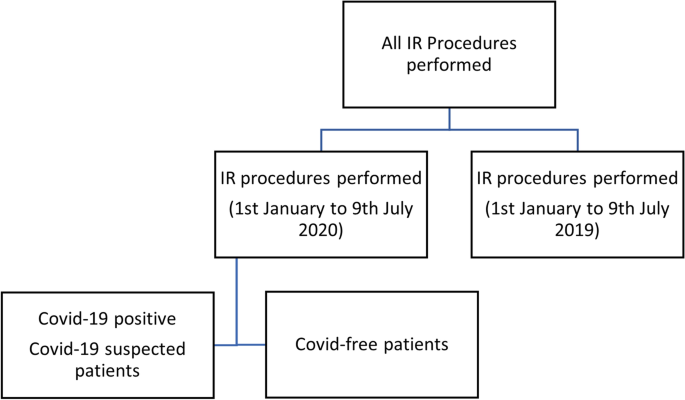

Fig. 1
figure1

Flow diagram: flow diagram describing the recruitment of patients into the study. The study period was chosen to include the earliest official notice of COVID-19’s emergence by the World Health Organization up till the appropriate incubation period after the nation's eight-week circuit breaker. The corresponding pre-pandemic period in 2019 was chosen as it contained the traditional annual lull periods due to major cultural holidays in the country

The trend of IR procedures was analyzed for any difference between the pre-pandemic and the COVID-19 pandemic period, using the IR-PAS classification (quantitative) into the three distinct tiers according to the procedure's acuity (Table 1), and broadly classified into four categories of IR procedures (qualitative). A table detailing all 3 tiers of the IR-PAS classification can be found in the Additional file 1. The four categories of IR procedures were: Vascular intervention, Interventional oncology, Musculoskeletal intervention, and General intervention (Table 2). Vascular procedures included treatment for peripheral vascular disease, dialysis access dysfunction, and aortic repair. Oncological procedures included diagnostic biopsies, tumor ablation, and transarterial therapies. Musculoskeletal procedures include spine augmentations and various joint injections. General interventional procedures consist of central line insertions (dialysis catheters, chemotherapy ports, etc.), emergency embolization, drainage procedures, nephrostomies, and biliary/gastrointestinal/genitourinary tract stenting. A comparison of the IR procedures performed on COVID-19 patients was made to our prior experience during the SARS-CoV outbreak [5]. All patients were screened and individuals fulfilling the relevant criteria were tested for COVID-19. COVID-19 cases were all confirmed using polymerase chain reaction in accordance with our institutional guidelines [22].

Table 1 (2020 and 2019: IR procedures classified based on IR-PAS classification)
Table 2 (2020 and 2019: categories of IR procedures)

A commercially available statistics program (IBM SPSS Statistics Grad Pack 27.0) was used for analysis. Statistical tests were two-sided. The Mann–Whitney U test was used to determine differences in the median number of IR procedures performed across all IR-PAS tiers during the COVID-19 pandemic and pre-pandemic period. The Chi-square test of independence was performed to examine the relation between the categories of IR procedures and the time periods (pre-pandemic and pandemic). A p value of < 0.05 was considered significant.

Results

There was a 5.1% decrease in the total IR procedures performed during the pandemic (n = 3655) versus the pre-pandemic period (n = 3851). Distributions of the weekly number of IR procedures were similar across all IR-PAS tiers, as assessed by visual inspection (Figs. 2, 3). There was no statistical significance between the median weekly IR procedures (pandemic 133.00, SD = 22.175 vs. pre-pandemic 142.50, SD = 27.075, p = 0.088). No statistical significance was found when comparing the weekly median number of IR procedures in the different Tiers; Tier 1: 27.00 (SD = 6.299) vs 26.00 (SD = 6.142), Tier 2:57.00 (SD = 12.556) vs 64.50 (SD = 13.492), Tier 3: 48.00 (SD = 8.871) vs 53.00 (SD = 10.423), during the COVID-19 pandemic and pre-pandemic period respectively. The median IR procedures performed were not statistically significant between both periods across all IR-PAS tiers (Table 1).

Fig. 2
figure2

Weekly number of COVID-19 cases with weekly IR procedures performed classified based on IR-PAS classification: graphs describing the weekly number of COVID-19 patients in Singapore (with labels demarcating key events), and the weekly number of IR procedures performed across all IR-PAS tiers

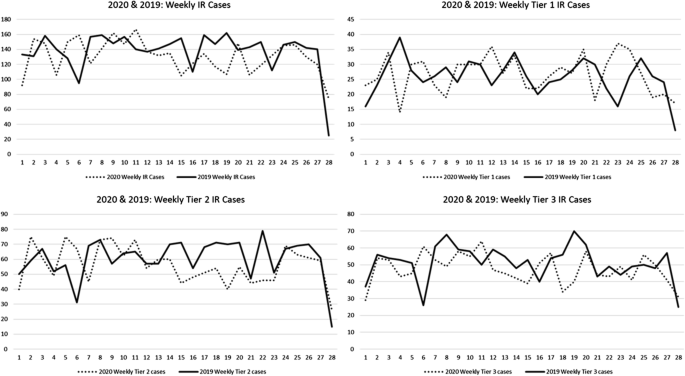

Fig. 3
figure3

2020 and 2019: weekly number of IR procedures based on IR-PAS classification: Graphs illustrating the weekly number of IR procedures performed across all tiers, during the COVID-19 pandemic (2020) and pre-pandemic (2019)

When comparing the categories of IR procedure between the pre-pandemic and the pandemic period, the trend was similar, with General IR (pandemic 69.5% vs. pre-pandemic 66.9%) procedures accounting for the majority of IR procedures, followed by vascular intervention IR (pandemic 18.2% vs. pre-pandemic 19.3%), interventional oncology IR (pandemic 12.1% vs. pre-pandemic 13.0%) and musculoskeletal intervention IR (pandemic 0.4% vs. pre-pandemic 0.7%). All expected cell frequencies were greater than 5. No statistically significant association between the time periods and categories of IR procedures performed were noted (p = 0.054). The association was small (Cohen, 1988), Cramer's V = 0.032. The results are summarized in Table 2.

COVID-19 patients constitute only 0.93% of all IR procedures, with 34 IR procedures performed on 30 patients. The most common procedures being peripherally inserted central catheters for vascular access (n = 7) and therapeutic para/thoracocentesis (n = 7) (Table 3), similar to that during the SARS-COV outbreak [5]. There was no record of COVID-19 cross-transmission between patients or to medical staff in all the IR procedures during the study period.

Table 3 IR procedures performed during the COVID-19 pandemic at NCID and the SARS-CoV outbreak

Discussion

This study highlights key trends with the potential to evoke change in current proposed procedural guidelines [17,18,19]. The demand for IR procedures in COVID-free patients remains high during this pandemic. While postponement of procedures might be feasible in a relatively shorted outbreak such as SARS-CoV, these measures might prove detrimental to patients as the pandemic is slated to persist. The adherence to standard infection control protocols and strategic deployment of resources (elaborated in the subsequent paragraph) proved effective in maintaining operational capability and controlling disease spread. The vast majority of patients undergoing IR procedures were in fact COVID-free. This emphasizes the need for procedural planning to consider the needs of COVID-free patients. Key differences exist between the SARS-CoV outbreak and the COVID-19 pandemic. There were notably less infected patients during the SARS-CoV outbreak (n = 238) [23, 24]; compared to the COVID-19 pandemic (n = 47,126). The SARS-CoV outbreak lasted approximately three months in Singapore, compared to the current pandemic into its 6th month. Unlike the COVID-19 pandemic, our institution treated SARS-CoV patients solely for the entire outbreak duration. This limited us to comparing IR procedures between the two outbreaks to only the infected patients (Table 3). Comparing the differences in IR procedures between the two outbreaks, we note the lack of a tandem increase in the number of IR procedures performed for the infected patients despite the increase in patient load. We postulate this to be due to the intensivists performing more critical care procedures (e.g., venous accesses and thoracocentesis) in this pandemic compared to the SARS-CoV outbreak. In addition, more complex IR procedures were performed for patients' pre-existing condition (e.g., hepatic tumor embolization) and previously unknown coronavirus related manifestations (e.g., thoracic endografting for aortic thrombosis with distal embolization).

To balance infection risks and timely delivery of care for the COVID-free patients, we utilized the strategy of "list compression". Firstly, Tier 1 cases were deferred for an additional month, and this created vacancies in the schedule. The vacated schedules were then utilized to bring forward Tier 2 cases, effectively reducing their waiting times. This is reflected in similar total IR caseloads between the two study periods (Table 1). This strategy is consistent with treatment prioritization principles [17, 19], optimizes available resources, and averts post-pandemic rebound of case backlogs. Additionally, it allowed expedited treatment of Tier 2 cases under the specter of the sudden cessation of services, should the pandemic worsen. A caveat to this approach given the fluid nature in a pandemic, was that majority of our Tier 2 cases were outpatient-based treatments that do not burden inpatient resources and could be rescheduled at short notice. The only exception to our approach was to indefinitely defer treatments (e.g., aortic arch repairs) deemed to have a high potential of occupying intensive care resources, until a suitable time after the pandemic's peak. Furthermore, manpower diversion to COVID-19 related efforts was mitigated by additional staffing, due to curtailment of research and teaching activities, as well as overseas travel/vacation restrictions. Non-essential travel of physicians and patients was mitigated by telemedicine, including the use of telemedicine for nuclear medicine physicians for the administration of radioembolization [25].

Since the pandemic began, calculated measures were made to manpower deployment to allow the Interventional Radiology team to function at full pre-pandemic capacity. The 12 Intervention Radiologists were divided into 2 teams, with only 1 team performing procedures at any week. Manpower for nurses and radiographers in the Interventional Radiology team were increased during the pandemic (12 nurses and 14 radiographers during the pandemic versus 10 nurses and 13 radiographers pre-pandemic). These steps were established to cope with additional processes in infection control. The manpower deployment is summarized in Table 4.

Table 4 Manpower deployment during the COVID-19 pandemic

Limitations exist to the broad application of our results. Unlike many other countries, our mortality and need for intensive care among COVID-19 patients remain the lowest in the world [4]. While we modeled our capacity preparation on countries that experienced COVID-19 peaks before us (such as Italy and the United Kingdom), our healthcare system was never overwhelmed. Additionally, the NCID with its IR facilities, served as a surge capacity and a physical buffer for the first 15 weeks into the pandemic, a resource not available in most institutions. Our practice, particularly the infection control policies and related resources, were also shaped by our prior experience as the designated hospital for the SARS-CoV outbreak in 2003 and the H1N1 pandemic in 2009. Our experience, therefore, can be expected to be different from other centers. Potential bias in the patient load exists, particularly in the postponement of procedures by patients in view of the pandemic. These phenomena could affect the various sub-group analyses performed.

To conclude, our study showed that COVID-19 patients accounted for a small fraction of IR procedures, while the demand for IR procedures for the COVID-free patients remained high and similar to pre-pandemic levels. Application of treatment prioritization guidelines, when combined with standard infection control measures, can allow safe and timely delivery of care to COVID-free patients in caseload volumes similar to pre-pandemic levels. These findings should be considered in the operational planning of a sustainable care delivery model in IR, considering the expected prolonged COVID-19 pandemic and in subsequent infectious disease outbreaks.

Availability of data and materials

The datasets used and analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

COVID-19:

Novel coronavirus

IR-PAS:

Interventional Radiology—Procedure Acuity Scale

NCID:

National Centre for Infectious Diseases

SARS-CoV:

Severe Acute Respiratory Syndrome

References

  1. 1.

    World Health Organization (2020) Novel coronavirus (2019-nCoV) situation report- 4. 24 January 2020

  2. 2.

    Ministry of Health Singapore (2020) Updated on Covid-19 (coronavirus disease 2019) local situation. https://www.moh.gov.sg/covid-19

  3. 3.

    Ministry of Health Singapore. Covid-19 situation report 2020. https://covidsitrep.moh.gov.sg/

  4. 4.

    Johns Hopkins University of Medicine. Mortality analyses 2020. https://coronavirus.jhu.edu/data/mortality

  5. 5.

    Lau TN, Teo N, Tay KH et al (2003) Is your interventional radiology service ready for SARS? The Singapore experience. Cardiovasc Intervent Radiol 26(5):421–427

    Article  Google Scholar

  6. 6.

    National Centre for Infectious Diseases (2020) About NCID. https://www.ncid.sg/About-NCID/Pages/default.aspx

  7. 7.

    Gogna A, Punamiya S, Gopinathan A et al (2020) Preparing IR for COVID-19: the Singapore experience. J Vasc Interv Radiol 31(6):869–875

    Article  Google Scholar

  8. 8.

    Too CW, Wen DW, Patel A et al (2020) Interventional radiology procedures for COVID-19 patients: how we do it. Cardiovasc Intervent Radiol 43(6):827–836

    Article  Google Scholar

  9. 9.

    Qanadli SD, Zech CJ, Monnard E, Binkert C, Denys A, Pfammater T (2020) Interventional radiology workflow during the COVID-19 pandemic: recommendations of the Swiss Society of Vascular and Interventional Radiology. Swiss Med Wkly 150:w20261

    PubMed  Google Scholar

  10. 10.

    De Gregorio MA, Guirola JA, Magallanes M et al (2020) COVID-19 outbreak: infection control and management protocol for vascular and interventional radiology departments-consensus document. Cardiovasc Intervent Radiol 43(8):1208–1215

    Article  Google Scholar

  11. 11.

    Barral M, Dohan A, Marcelin C et al (2020) COVID-19 pandemic: a stress test for interventional radiology. Diagn Interv Imaging 101(6):333–334

    CAS  Article  Google Scholar

  12. 12.

    Manna S, Voutsinas N, Maron SZ et al (2020) Leveraging IR’s adaptability during COVID-19: a multicenter single urban health system experience. J Vasc Interv Radiol 31(7):1192–1194

    Article  Google Scholar

  13. 13.

    Cahalane AM, Cui J, Sheridan RM et al (2020) Changes in interventional radiology practice in a tertiary academic Center in The United States during the coronavirus disease 2019 (COVID-19) pandemic. J Am Coll Radiol 17(7):873–877

    Article  Google Scholar

  14. 14.

    Masroor S (2020) Collateral damage of COVID-19 pandemic: delayed medical care. J Card Surg 35(6):1345–1347

    Article  Google Scholar

  15. 15.

    Sud A, Jones M, Broggio J et al (2020) Collateral damage: the impact on outcomes from cancer surgery of the COVID-19 pandemic. Ann Oncol 31(8):1065–1074

    CAS  Article  Google Scholar

  16. 16.

    Soreide K, Hallet J, Matthews JB et al (2020) Immediate and long-term impact of the COVID-19 pandemic on delivery of surgical services. Br J Surg

  17. 17.

    Radiology SoI. Society of Interventional Radiology. COVID-19 case classification 2020. https://www.sirweb.org/practice-resources/toolkits/covid-19-toolkit/covid-19-case-classification/

  18. 18.

    Radiology SoI. COVID-19 postponed procedures 2020. Updated 27 April 2020. https://www.sirweb.org/practice-resources/toolkits/covid-19-toolkit/covid-19-postponed-procedures/

  19. 19.

    Surgeons ACo. Covid-19 Guidelines for triage of vascular surgery patients 2020. https://www.facs.org/covid-19/clinical-guidance/elective-case/vascular-surgery

  20. 20.

    World Health Organization. Rolling updates on coronavirus disease (COVID-19) 2020. https://www.who.int/emergencies/diseases/novel-coronavirus-2019/events-as-they-happen

  21. 21.

    World Health Organization (2020) Coronavirus disease 2019 (COVID-19): Situation report–73. https://www.who.int/docs/default-source/coronaviruse/situation-reports/20200402-sitrep-73-covid-19.pdf?sfvrsn=5ae25bc7_6

  22. 22.

    Young BE, Ong SWX, Kalimuddin S et al (2020) Epidemiologic features and clinical course of patients infected with SARS-CoV-2 in Singapore. JAMA 323(15):1488–1494

    CAS  Article  Google Scholar

  23. 23.

    Leong HN, Earnest A, Lim HH et al (2006) SARS in Singapore–predictors of disease severity. Ann Acad Med Singapore 35(5):326–331

    PubMed  Google Scholar

  24. 24.

    Tan CC (2006) SARS in Singapore–key lessons from an epidemic. Ann Acad Med Singapore 35(5):345–349

    PubMed  Google Scholar

  25. 25.

    Quek L, Kannivelu A, Pua U (2020) (90)Yradioembolization: telemedicine during COVID-19 outbreak, opportunity for prime time. J Nucl Med 61(6):780

    CAS  Article  Google Scholar

Download references

Acknowledgements

The authors would like to show our appreciation and gratitude for all staff in our department (Department of Diagnostic Radiology, Tan Tock Seng Hospital) as well as our colleagues in the institution for contributing in the fight against the COVID-19 pandemic.

Funding

The authors state that this work has not received any funding.

Author information

Affiliations

Authors

Contributions

Both authors were actively involved in the data collection and polishing, data analysis and writing of the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Uei Pua.

Ethics declarations

Ethics approval and consent to participate

Ethics approval was obtained from the National Healthcare Group Domain Specific Review Board. Waiver of consent was also obtained. NHG DSRB Ref: 2020/00777.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Additional file 1:

A table detailing all 3 tiers of the IR-PAS classification.
