Thyroglossal duct pathology and mimics
Insights into Imaging volume 10, Article number: 12 (2019)
Congenital anterior neck masses comprise a rare group of lesions typically diagnosed in childhood. Most commonly, lesions are anomalies of the thyroglossal duct, namely the thyroglossal duct cyst, along with ectopic thyroid tissue. Although usually suspected based on clinical examination, imaging can confirm the diagnosis, assess the extent, and evaluate for associated complications. Imaging characteristics on ultrasound, CT, and MRI may at times be equivocal; differential considerations include branchial cleft cyst, dermoid/epidermoid, laryngocele, thymic cyst, lymphatic malformation, and metastatic disease. Thus, understanding of the embryologic course of thyroid development is crucial with recognition of critical landmarks such as the foramen cecum, hyoid bone, thyroid cartilage, and strap musculature to aid in the diagnosis of an anterior neck mass.
Thyroglossal duct cyst is the most common congenital neck mass.
Critical anatomic landmarks of thyroglossal duct anomalies and ectopic thyroid tissue include the foramen cecum at the tongue base, hyoid bone, thyroid cartilage, and strap musculature.
Important differentiating feature of thyroglossal duct cyst is close association to the posterior aspect of the hyoid bone.
Suprahyoid thyroglossal duct cysts are usually midline, while infrahyoid thyroglossal duct cysts may be paramidline.
Orthotopic thyroid tissue is absent in 70–80% of patients with lingual thyroid, and therefore, an important consideration in preoperative planning.
In the evaluation of anterior neck masses in children and young adults, thyroglossal duct anomalies are on top of the differential diagnosis. Subsequent diagnostic imaging with initial ultrasound examination followed by definitive CT and MR examinations assist in diagnosis and assessment of anatomical extent and complications, as well as pretreatment planning. In addition, knowledge of the course of the embryologic thyroid improves diagnostic accuracy. Critical anatomic landmarks of thyroglossal duct anomalies and ectopic thyroid tissue include the foramen cecum at the tongue base, hyoid bone, thyroid cartilage, and strap musculature.
The purpose of this article is to review the common and variant forms of thyroglossal duct anomalies. Anatomy of the embryologic descent of the thyroid gland will first be reviewed, followed by the imaging characteristics of thyroglossal duct cyst and ectopic thyroid tissue. Variant forms and complications of thyroglossal duct cysts will also be reviewed. To strengthen diagnostic accuracy of thyroglossal duct anomalies, similar appearing cystic anterior neck masses will be discussed with focus on key differentiating features.
Anatomy and embryology

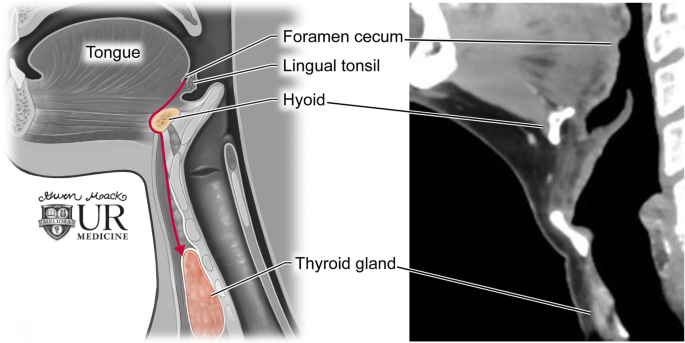

The thyroglossal duct is a transient epithelial lined midline channel serving as the path of descent of the thyroid primordium from the foramen cecum, located at the junction of the anterior two-thirds and posterior third of the tongue, down to the thyroid cartilage where definitive thyroid formation occurs . The inferior portion of the duct may develop into the pyramidal lobe and the remainder involutes by the 10th week of gestation (Fig. 1).
Role of imaging
Although benign anterior neck masses such as thyroglossal duct cysts are often diagnosed clinically, the clinical presentation of infected cysts, thyroglossal duct carcinoma, or other pathologic mimics may be indistinguishable, necessitating diagnostic imaging. In children or adults with low clinical suspicion for tumor, imaging evaluation may begin with ultrasound. However, if there are atypical sonographic features (i.e., solid component or abnormal vascularity) or high clinical suspicion for tumor, CT or MR imaging is recommended to document an orthotopic thyroid gland and to evaluate for and characterize the features and extent of neoplastic processes . In selected cases, diffusion-weighted or dynamic contrast-enhanced MR imaging can be performed in evaluation of vascular malformations, abscess, or suspicious cervical lymph nodes .
Thyroglossal duct cyst
If a portion of the thyroglossal duct persists, cystic lesions may arise following cycles of infection and/or inflammation as it is lined with secretory epithelium . Cysts can form anywhere along the course of the duct; however, about 65% of cysts occur at the infrahyoid level . The cyst is histologically composed of epithelial lining of squamous or pseudostratified ciliated columnar epithelium with or without ectopic thyroid gland tissue . As secretions and debris accumulate, suprahyoid cysts can enlarge, push through the floor of the mouth and penetrate down into the anterior neck with resultant symptoms leading to clinical presentation. Thyroglossal duct cysts are the most common non-odontogenic cyst in the neck and most common pediatric cystic neck anomaly and are therefore important to recognize .

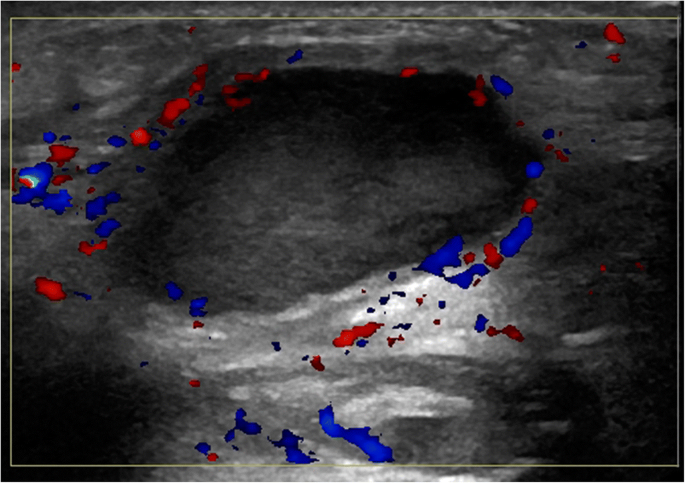

On imaging, suprahyoid thyroglossal duct cysts are generally midline simple or complex cystic structures, while infrahyoid cysts are commonly paramedian in location. CT will show a smooth, thin-walled hypoattenuating mass (Figs. 2 and 3). On MRI, the lesion will be high signal on T2-weighted images, and low to intermediate signal on T1-weighted images, depending on the degree of proteinaceous or hemorrhagic contents (Figs. 2 and 4) . Ultrasound is also sometimes used for evaluation, especially in the pediatric population, which will show a well-circumscribed anechoic to hypoechoic structure with posterior through transmission; there may be some internal debris (Fig. 5) .
During development, the thyroglossal duct wraps inferiorly around the hyoid bone; therefore, a cystic lesion in close association within the hyoid can clue one into the diagnosis (Figs. 2 and 6) [5, 9]. On rare occasions, the duct may become trapped and incorporated into the second and third arch components of the hyoid bone. As such, the Sistrunk resection involves removal of the hyoid body, as well as the entire thyroglossal duct tract and a portion of the tongue base to minimize local recurrence (Fig. 7) .
Infected thyroglossal duct cyst
Some thyroglossal duct cysts may not appear as simple thin-walled unilocular lesions. Presence of internal high attenuation, internal debris, and septations generally correlates with prior infection. In active or recent infection, patients may complain of tenderness at the site of a rapidly growing neck mass. Subsequent imaging reveals a thick-walled cyst with rim enhancement and inflammatory changes of the surrounding subcutaneous tissues (Fig. 8). Internal contents may vary, with higher complexity reflecting proteinaceous debris, which may be seen in acute or remote infection . In advanced cases, abscess formation can occur (Fig. 9); these will show restricted diffusion on MR imaging if there is doubt on ultrasound or CT . Fistula formation may develop in severe infections with external cyst rupture or recurrence after resection, although congenital fistula in the newborn have been reported related to complete persistence of the thyroglossal tract after birth (7). Acquired fistulas can be distinguished apart from congenital cases based on later age of presentation (late childhood to early adulthood) and focal irregularity; focal enlargement of the tract on fistulography may represent the site of a ruptured cyst or prior resection .
Malignancy in a thyroglossal duct cyst
Coexisting carcinoma is rare, occurring in less than 1% of patients and usually arises from thyroid remnants entrapped within the cyst during development. Often these carcinomas are incidentally diagnosed on surgical pathology as the initial disease burden may be microscopic with slow growth. Although thyroglossal duct cysts are anomalies commonly occurring in the pediatric population, coexisting carcinoma usually occurs in patients 40 years of age or older . All subtypes of thyroid carcinoma have been described in thyroglossal duct cysts with the exception of medullary carcinoma due to lack of parafollicular cells in the thyroid anlage. The vast majority of cases represent papillary carcinoma, similar to orthotopic thyroid malignancy. Despite the lack of established predisposing factors, radiation therapy is considered a risk factor along with a female predominance.

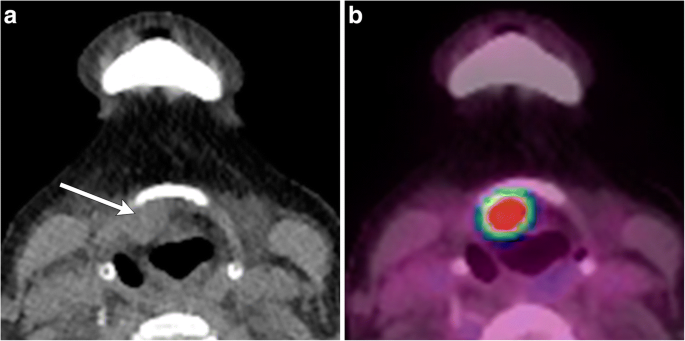

On imaging, commonly described features include enhancing wall nodularity and calcifications within the thyroglossal duct cyst (Figs. 10 and 11). Calcification is not usually appreciated on MR imaging, requiring a supplementary CT examination [4, 6]. Calcifications are a more specific indicator of malignancy than solid components, as the latter can also be seen in inflammatory processes. Rarely, a purely solid midline or paramidline lesion may be malignant and should be considered when there is associated central FDG avidity or the presence of suspected regional metastatic lymphadenopathy (Fig. 12) . Fine needle aspiration cytology may be obtained of suspicious solid components to confirm the diagnosis .
Mimics of thyroglossal duct cysts
There are many mimics of thyroglossal duct cysts, and it is important to recognize these as each has different clinical implications. Close attention to the age of presentation, location of the lesion, association with surrounding structures, and internal architecture can clue one into the correct diagnosis (Table 1).
Branchial cleft cysts
Branchial cleft cysts are congenital lesions which usually present after upper respiratory infection and most commonly arise from the second branchial cleft. These typically are located laterally in the anterior neck, adjacent to the anterior surface of the sternocleidomastoid muscle and lateral to the carotid space and posterior to the submandibular gland, often associated with a sinus tract or fistula. A lateral suprahyoid thyroglossal duct cyst can be distinguished by the presence of a medial tail-like component extending into the hyoid bone (Fig. 13). A second branchial cleft cyst may occasionally demonstrate a beak sign; however, the curved rim of the lesion will tend to extend between the internal and external carotid arteries [16, 17].
Dermoid and epidermoid cysts
Dermoid and epidermoid cysts represent a part of the spectrum of congenital and acquired cystic malformations sharing the common characteristic of a squamous epithelial lining. Dermoid cysts will be differentiated by internal calcific and fat content (Fig. 14). Epidermoid cysts will show diffusion restriction . Dermoid and epidermoid cysts arise from dermal elements of the first and second branchial arches, and therefore are located at base of tongue and superficially within the subcutaneous tissues of the anterior neck. In contrast, thyroglossal duct cysts are classically in a deeper location, embedded within strap musculature and in close proximity to the hyoid bone .
Saccular cysts and laryngoceles are considered congenital dilatations of the saccule of the laryngeal ventricle in the supraglottic larynx. They are classified as internal, external, or mixed based on relationship of saccular dilatation to the thyrohyoid membrane. Both these and thyroglossal duct cysts can extend through the thyrohyoid membrane; however, thyroglossal duct cysts do not involve the laryngeal ventricle. Additionally, laryngoceles may be fluid-filled, or have air-fluid levels due to airway communication (Fig. 15) [1, 16].
Thymic cysts are rare cystic lesions arising from the persistent thymopharyngeal duct, which extends from the pyriform sinus to anterior mediastinum. They are located in the lateral infrahyoid neck, predominantly occurring on the left side (Fig. 16). They can be distinguished based on the close association with the carotid sheath, sometimes splaying the carotid artery and jugular vein; the classic dumbbell or bilobed appearance can be seen with extension into the anterior mediastinum .
Necrotic lymph nodes

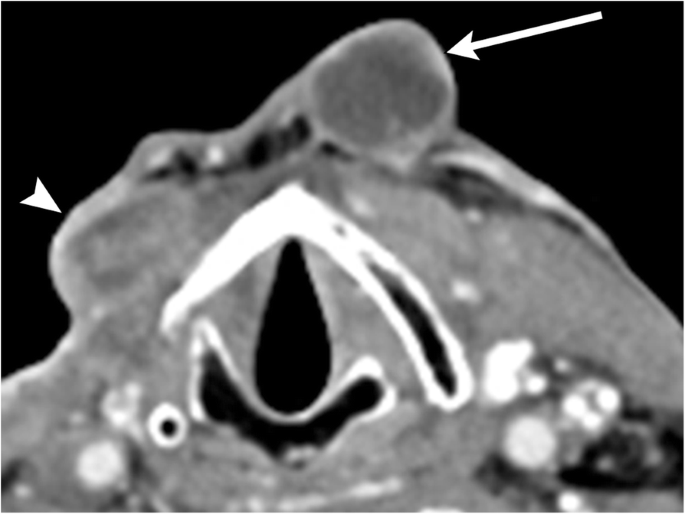

Nodal metastases of head and neck neoplasms account for about 80% of cystic neck masses in adults over 40 years of age . Most commonly arising from papillary thyroid carcinoma or head and neck squamous cell carcinoma, necrotic metastatic lymph nodes are important to identify as they significantly alter prognosis and management. Hallmark imaging findings include multiple, enlarging, round masses with central cystic necrosis, eccentric solid component(s), and disruption of the usual fatty hilar architecture (Fig. 17). Multiplicity and irregular central cystic changes can be used to distinguish from congenital cystic neck anomalies. Punctate calcifications may suggest metastases originating from papillary thyroid carcinoma. Hypermetabolism can be confirmed on PET imaging. Additionally, advanced MR imaging with diffusion-weighted or dynamic contrast-enhanced sequences have been shown to differentiate benign from malignant nodes based on low ADC value or enhancement kinetics, respectively [19, 20]. Further discussion of these techniques is beyond the scope of this article.
Arising from sequestration of variably sized embryonic lymphatic channels, lymphatic malformations can occur in almost any location with a predilection in the head and neck, along the jugular vessels. Classified based on size of lymphatic cavities, these infiltrative lesions are most commonly seen in children by age two with commensurate growth and compression of surrounding neck structures leading to clinical presentation. Lobulated, multiseptated cystic appearance may appear similar to an infected thyroglossal duct cyst; however, the presence of fluid-fluid levels from recent hemorrhage, trans-spatial growth pattern, and presence of traversing venous vessels are key distinguishing features of lymphatic malformations (Fig. 18) . In conjunction with conventional MR, dynamic contrast-enhanced MR imaging can be performed to distinguish low flow lesions such as lymphatic malformations from high-flow lesions such as arteriovenous malformation or fistula. The presence of late peak enhancement, dilated venous spaces, and lack of flow voids are suggestive of low-flow malformations, while early peak enhancement and presence of flow voids are indicative of high-flow malformations .
Ectopic (lingual) thyroid

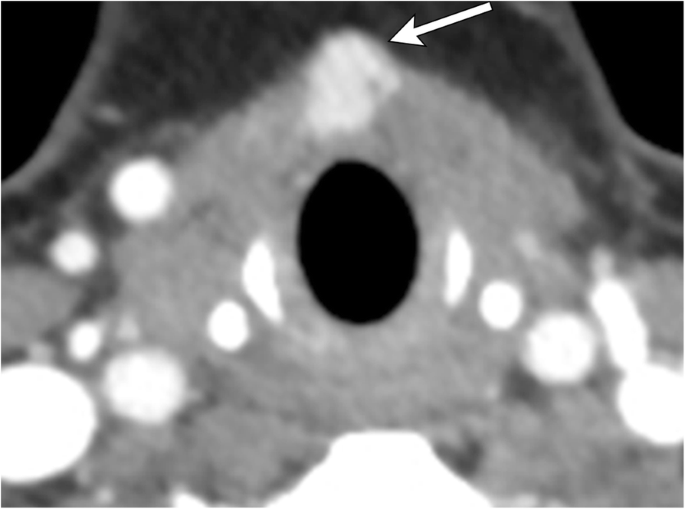

As eluded to earlier, thyroid tissue remnants can be found anywhere along the midline tract of the thyroglossal duct, extending from the foramen cecum to the thyroid cartilage (Fig. 19). Ectopic thyroid tissue depositing lateral to the expected midline course is rare [1, 23]. About 90% of reported cases occur at the base of the tongue, and therefore, are called lingual thyroid . Usually asymptomatic and incidentally discovered, a lingual thyroid may come to clinical attention with development of dysphagia and stridor, most commonly in children .

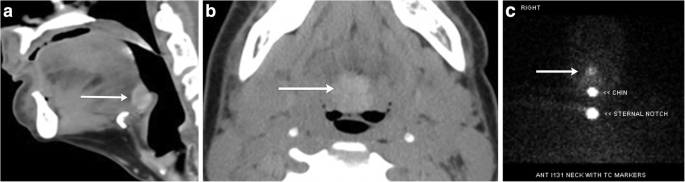

A lingual thyroid demonstrates the same imaging characteristics as normal thyroid tissue: high attenuation structure relative to adjacent muscle on CT with diffuse enhancement and high signal on T1-weighted images with variable enhancement on MRI [1, 23]. As expected, lesions of normal thyroid tissue such as nodules can also be seen in lingual thyroid and serve as key diagnostic clues . It is important to closely inspect the thyroid bed in cases of lingual thyroid when surgery is planned for removal, as orthotopic tissue is absent in about 70–80% of cases; a patient with little or no thyroid tissue in the expected bed warrants supplemental thyroid hormone after surgery . Radionuclide technetium 99 m-pertechnetate or radioiodine imaging (utilizing I123 or I131) can confirm the diagnosis of ectopic thyroid tissue (Fig. 20) .
Accurate assessment of anterior neck masses requires awareness of the embryological path of thyroid development for recognition of thyroglossal duct anomalies, variants, and complications. Knowledge of differentiating features of other cystic neck masses is important due to different clinical implications.
