A practical guide for planning pelvic bone percutaneous interventions (biopsy, tumour ablation and cementoplasty)
Insights into Imaging volume 9, pages 275–285 (2018)
Percutaneous approaches for pelvic bone procedures (bone biopsies, tumour ablation and cementoplasty) are multiple and less well systematised than for the spine or extremities. Among the different imaging techniques that can be used for guidance, computed tomography (CT) scan is the modality of choice because of the complex pelvic anatomy. In specific cases, such as cementoplasty where real-time evaluation is a determinant, a combination of CT and fluoroscopy is highly recommended. The objective of this article is to propose a systematic approach for image-guided pelvic bone procedures, as well as to provide some technical tips. We illustrate the article with multiple examples, and diagrams of the approaches and important structures to avoid to perform these procedures safely.
• Pelvic bone procedures are safe to perform if anatomical landmarks are recognised.
• The safest approach varies depending on the pelvic level.
• CT is the modality of choice for guiding pelvic percutaneous procedures.
• Fluoroscopy is recommended when real-time monitoring is mandatory.
• MRI can also be used for guiding pelvic percutaneous procedures.
Percutaneous approaches for the spine  or extremities  have been well described in the literature. On the other hand, approaches to the pelvic bone are more complex and poorly systematised. There are several percutaneous procedures aimed at pelvic bone: biopsies of primary bone tumours and metastases [3, 4], percutaneous tumour ablation [5,6,7], cementoplasty [8,9,10,11,12,13] and percutaneous screw fixation [14, 15]. All these techniques can be used alone or in combination  using the same approaches. The objective of this article is to propose a systematic approach to perform image-guided pelvic bone procedures in the safest way and discuss their technical aspects.
The bony pelvis is a ring formed by the sacrum and the innominate bones joined by the pubic symphysis and the sacroiliac joints. It contains several visceral structures of the genitourinary and lower digestive systems and many vessels and nerves transiting between the pelvis and the lower limbs. Different modalities can be used for guiding pelvic bone percutaneous interventions.
Computed tomography (CT) scanner
CT has been found to provide the most convenient and safest guidance modality . Gantry angulation can be used to facilitate needle placement. Unless using the highly radiating CT fluoroscopy, its main drawback is the absence of real time imaging and control in the Z-axis, which are important in some procedures, such as cementoplasty. This disadvantage can be solved by combining the CT scanner with a C-arm fluoroscopy [10, 12, 18]. In this setting, CT would be typically used for guiding needle placement, while the fluoroscopy allows real-time evaluation of cement distribution during the injection. CT scanner can also be used to guide biopsies by identifying anatomical landmarks when lesions are only visible with other imaging techniques such as magnetic resonance imaging (MRI) or positron emission tomography (PET) scan [16, 19].

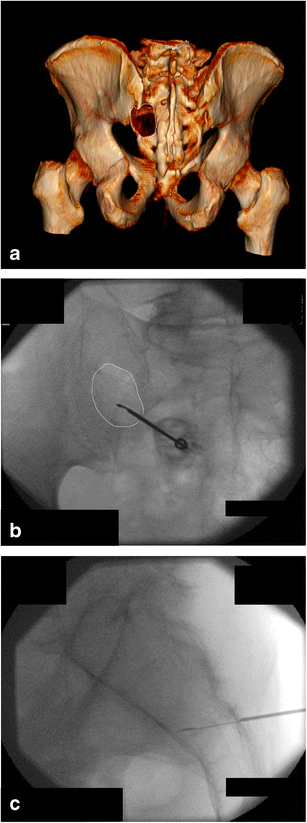

The complex anatomy of the pelvis is rather difficult to appreciate with fluoroscopy. In some cases, bi-plane fluoroscopy provides enough guiding information as it allows multiplane imaging  (Fig. 1). The development of flat panel detectors and cone beam CT also allows real-time imaging and capability for three-dimensional reformations with lower radiation doses than CT [20,21,22]. Although the image quality of the multiplane reformations is inferior to a conventional CT scanner, it is usually appropriate for guiding bone procedures safely [21, 23].
MRI guidance could be especially valuable when tumour lesions are not seen with other modalities . The absence of ionising radiation makes it an option for procedures in particular situations such as pregnancy. Because of its high soft tissue contrast, it can show chemical and thermal variations during tumour ablation procedures [5, 20]. However, its main disadvantages remain its higher cost, longer procedure times and limited availability. In addition, the material used during MR-guided interventions should be ideally compatible, which makes it more expensive, or used with special precautions [5, 20, 24].
On occasions, ultrasound can be used to guide pelvic bone biopsies, particularly in the presence of tumour extension to the soft-tissues (Fig. 2) . Among its advantages are its availability, low cost, absence of ionising radiation, and real-time and multiplane imaging [16, 20, 24].
Electromagnetic navigation allows real-time device tracking . Needle position information in the magnetic field is processed and placed on a preprocedural imaging (CT or MRI), which is used as a map. Generally, fluoroscopy or CT scan images are acquired to confirm the final needle placement in the target, as the main pitfall is the potential mismatch with the preprocedural images .
Other techniques, such as laser guidance, can facilitate needle placement [21, 22]. After CT or cone beam CT images are obtained, the target point is defined and a straight path from the skin is selected [21, 22]. A laser beam indicates the chosen entry site on the skin and the needle orientation [21, 22].
Approaches and essential landmarks
The safest approach for a percutaneous pelvic bone procedure varies depending on the level, as different important-to-avoid structures exit the pelvis through diverse foramina and vary their relative position. The following descriptions of safe approaches are based on CT scan, as it is the recommended modality for guiding percutaneous pelvic bone procedures . Four main levels can be considered:
Iliac wings level
At this level, the bone landmarks are the iliac wings with the superior anterior iliac spine and the posterior iliac tuberosity, the sacrum and the sacroiliac joints. The important structures to notice and avoid when performing a bone procedure are the iliac vessels and femoral nerve, the lumbosacral trunk, the sacral nerves and all the pelvic visceral structures (Fig. 3). Five different approaches are routinely performed:
In the supine position, an anterolateral approach through the anterior superior iliac spine to a target in the iliac wing (Fig. 4)
In the prone position, a posterior approach through the iliac tuberosity to a target in the iliac bone (Fig. 5)

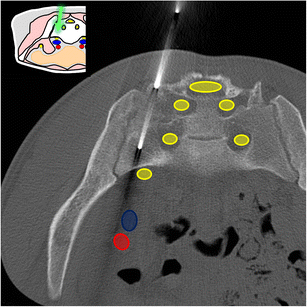

In the prone position, a posterior approach through the sacrum to a target in the sacral wing or body (Figs. 6 and 7)
In the prone position, a posterolateral approach through the sacroiliac joint (trans-sacroiliac) to a target in the sacral body or to biopsy the sacroiliac joint (Fig. 8)
In the prone position, a direct posterior or posterolateral approach (Fig. 9)
Acetabular roof level
At this level, the bone landmarks are the acetabular roof, sacrum and coccyx. Attention should be paid to the pelvic visceral structures, the femoral nerve and external iliac vessels anteriorly, and the internal iliac vessels and gluteal branches, sacral plexus and structures exiting the pelvis through the greater sciatic notch posteriorly (Fig. 10).

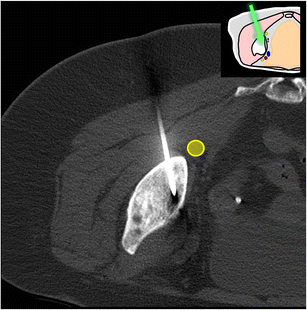

If the femoral head is not visible, anterolateral, lateral or posterolateral approaches are safe (Figs. 11 and 12).
We recommend to avoid the anterior approach as the femoral nerve and vessels are lying just anterior and the risk of traversing the peritoneum exists. A posterior approach must be planned very carefully because many vessels and nerves transit through the greater sciatic foramen.
For coccygeal biopsies, a posterior approach is safe, paying attention to visceral structures lying anterior to the coccyx (Fig. 13).
Hip joint level
At this level, the bony landmarks are the anterior and posterior walls of the acetabulum and the femoral head. Special attention must be paid to the femoral nerve and vessels anteriorly and to the sciatic nerve posteriorly (Fig. 14).
Anterior (Fig. 15) and posterior (Figs. 16 and 17) approaches must be carefully planned. Important anterior and posterior structures could be avoided laterally or medially depending on the level.
Ischial tuberosity and pubic symphysis level
At this level, the bony landmarks are the ischial tuberosities, pubic symphysis and femoral neck. Femoral nerves and vessels anteriorly and sciatic nerve posteriorly, between the ischial tuberosity and the femur, should be avoided (Fig. 18).
For every pelvic bone procedure, great care should be taken to avoid pelvic viscera, vessels and nerves during the approach to the lesion. Depending on the kind of procedure, other potential risks must be considered, such as non-target ablation and extraosseous cement leakage.
A well-planned approach for percutaneous bone biopsies is essential to obtain a representative sample of the lesion and to minimise procedural risks [4, 16, 24,25,26].
If a primary bone lesion is biopsied, gluteal muscles and rectus femoris should be avoided, as they are essential in a limb-sparing procedure and the needle tract would have to be resected [16, 26,27,28].
When a pelvic bone metastasis is favoured, intramuscular needle path is less determinant, albeit cases of tumour seeding along the needle path after core biopsy have been reported . A direct access through gluteal muscles can be used provided that no major vessels or nerves lie in the needle path. However, reducing the length of the path in the soft tissues decreases the risk of bleeding. Moreover, iliac lesions tend to have a longer diameter in the wing axis and more material can be sampled by accessing the lesion along its greater axis.
The choice of the needle depends on the mineralisation of the lesion and the presence of a cortical breach . A 14- to 16-G soft tissue cutting biopsy needle is the favoured choice whenever possible. A 10- to 16-G bone biopsy needle is indicated for dense lesions and when the cortex is intact. A coaxial technique is recommended because it allows keeping bone access to take several samples and occasionally perform percutaneous embolisation, and also protects the needle path from tumour dissemination [24, 25].
The number of samples required depends on the pathology department of each institution [3, 16, 24]. Usually two or three samples in formalin are enough [3, 24,25,26]. More samples may be needed when using smaller-gauge needles, mainly in paediatric patients . If a lymphoma is suspected, a sample in saline serum should be sent to allow the realisation of flow cytometry . Because infection is an occasional mimicker of bone tumours, systematically sending one or two samples for microbiological analysis is a good practice in uncertain cases .
Percutaneous tumour ablation
Percutaneous tumour ablation can be curative or palliative [5,6,7, 30]. There are several techniques available with different indications: ethanol, laser, radiofrequency, microwave and cryoablation [5,6,7, 30].
For a safe procedure, it is essential to carefully plan the approach in order to obtain a good coverage of the target lesion and avoid neighbouring critical structures [6, 7]. Frequently, insertion of several applicators is needed to obtain adequate lesion coverage (Fig. 21). MRI has the unique ability to monitor chemical and thermal variations in the treated area. With cryoablation, CT can also demonstrate the formation of an “ice ball” as a hypodensity in the treated area, although this is much more evident in the soft tissues than within the bone (Fig. 22) [5, 7, 16, 20, 30].
Different techniques have been described to prevent thermal damage to adjacent critical structures (mainly nerves and visceral structures), such as temperature monitoring to prevent overheating or overcooling, carbon dioxide gas or liquid dissection to increase the distance between the target area and critical structures and counteract temperature changes [30,31,32]. Covering the skin with sterile gloves filled with warm saline can also be helpful to prevent frost bites during cryoablation of superficial lesions (Fig. 22) .
Pelvic cementoplasty is used for pain management and bone reinforcement in certain cases of pelvic bone fractures and metastasis [8,9,10,11,12,13,14,15,16]. A well-planned approach will be determinant for optimising bone filling with acrylic surgical cement, while reducing the risk of extraosseous leakage (Figs. 16, 19 and 23). Treatment of extensive lesions may require the insertion of several needles to optimise bone filling . After needle positioning, a pasty cement is injected under real-time imaging control in order to stop the injection when a satisfactory filling is obtained or a leakage is detected [10,11,12,13, 16]. Extraosseous cement leakage in the vicinity of neural structures (typically, sacral canal and foramina, and posterior aspect of the acetabulum) and into the hip joint should be avoided [9, 10, 12, 13]. Neural pain due to cement leakage next to a nerve can be treated with cortisone infiltrations around the affected nerve [10, 13]. Symptomatic leakage to the hip joint may uncommonly require surgical removal of the cement .
Percutaneous screw fixation
Pelvic fixation with percutaneous screws can be used as a treatment for non-displaced fractures or to prevent fractures in patients with lytic metastases (Fig. 24) [14, 15]. The approach and the screw length can be safely planned with CT. In cases of osteolytic metastases, this technique is ideally combined with cementoplasty to allow a better fixation and support .
All these described techniques can be used alone or in combination to obtain better pain control and mechanical support [5, 15, 16]. When combining techniques, it is usually feasible to use the same coaxial access to the target area, in order to reduce the risk of complications along the approach and to reduce the procedural time (Figs. 11, 12, 19 and 24).
In conclusion, pelvic bone procedures are safe to perform with an adequate knowledge of the anatomical landmarks. We described and illustrated multiple approaches to the most frequent targets at different levels of the pelvic bone. These approaches can be used for biopsies, percutaneous tumour ablation, cementoplasty, percutaneous osteosynthesis, or a combination of them. The principles of the different procedures and some practical and safety tips have been discussed as well.
Peh W (2006) CT-guided percutaneous biopsy of spinal lesions. Biomed Imaging Interv J 2:e25
Liu PT, Valadez SD, Chivers FS, Roberts CC, Beauchamp CP (2007) Anatomically based guidelines for core needle biopsy of bone tumors: implications for limb-sparing surgery. Radiographics 27:189–205
Toomayan GA, Major NM (2011) Utility of CT-guided biopsy of suspicious skeletal lesions in patients with known primary malignancies. AJR Am J Roentgenol 196(2):416–423
Errani C, Traina F, Perna F, Calamelli C, Faldini C (2013) Current concepts in the biopsy of musculoskeletal tumors. ScientificWorldJournal 2013:538152
Moser T, Buy X, Goyault G, Tok C, Irani F, Gangi A (2008) Image-guided ablation of bone tumors: review of current techniques. J Radiol 89:461–471
Kurup AN, Callstrom MR (2010) Image-guided percutaneous ablation of bone and soft tissue tumors. Semin Intervent Radiol 27:276–284
Munk PL, Murphy KJ, Gangi A, Liu DM (2011) Fire and ice: percutaneous ablative therapies and cement injection in management of metastatic disease of the spine. Semin Musculoskelet Radiol 15:125–134
Cotten A, Duquesnoy B (1995) Percutaneous cementoplasty for malignant osteolysis of the acetabulum. Presse Med 24:1308–1310
Weill A, Kobaiter H, Chiras J (1998) Acetabulum malignancies: technique and impact on pain of percutaneous injection of acrylic surgical cement. Eur Radiol 8:123–129
Iannessi A, Amoretti N, Marcy PY, Sedat J (2012) Percutaneous cementoplasty for the treatment of extraspinal painful bone lesion, a prospective study. Diagn Interv Imaging 93:859–870
Sun G, Jin P, Liu XW, Li M, Li L (2014) Cementoplasty for managing painful bone metastases outside the spine. Eur Radiol 24:731–737
Masala S, Konda D, Massari F, Simonetti G (2006) Sacroplasty and iliac osteoplasty under combined CT and fluoroscopic guidance. Spine (Phila Pa 1976) 31:E667–E669
Frey ME, Depalma MJ, Cifu DX, Bhagia SM, Carne W, Daitch JS (2008) Percutaneous sacroplasty for osteoporotic sacral insufficiency fractures: a prospective, multicenter, observational pilot study. Spine J 8:367–373
Deschamps F, de Baere T, Hakime A et al (2016) Percutaneous osteosynthesis in the pelvis in cancer patients. Eur Radiol 26:1631–1639
Pusceddu C, Fancellu A, Ballicu N, Fele RM, Sotgia B, Melis L (2017) CT-guided percutaneous screw fixation plus cementoplasty in the treatment of painful bone metastases with fractures or a high risk of pathological fracture. Skelet Radiol 46:539–545
Hillen TJ, Baker JC, Jennings JW, Wessell DE (2013) Image-guided biopsy and treatment of musculoskeletal tumors. Semin Musculoskelet Radiol 17:189–202
Traina F, Errani C, Toscano A et al (2015) Current concepts in the biopsy of musculoskeletal tumors. J Bone Joint Surg Am 97:e7
Gangi A, Kastler BA, Dietemann JL (1994) Percutaneous vertebroplasty guided by a combination of CT and fluoroscopy. AJNR Am J Neuroradiol 15:83–86
Hillen TJ, Talbert RJ, Friedman MV et al (2017) Biopsy of CT-occult bone lesions using anatomic landmarks for CT guidance. AJR Am J Roentgenol 209:214–221
Guth SBX, Guermazi A, Gangi A (2009) Procedure basics and technique guidance. In: Gangi A, Guth S, Guermazi A (eds) Imaging in Percutaneous musculoskeletal interventions. Springer, New York, pp 1–14
Braak SJ, van Strijen MJ, van Leersum M, van Es HW, van Heesewijk JP (2010) Real-time 3D fluoroscopy guidance during needle interventions: technique, accuracy, and feasibility. AJR Am J Roentgenol 194:W445–W451
Chehab MA, Brinjikji W, Copelan A, Venkatesan AM (2015) Navigational tools for interventional radiology and interventional oncology applications. Semin Intervent Radiol 32:416–427
Huegli RGT, Jacob AL, Messmer P (2009) Closed reduction and percutaneous fixation of pelvic fractures. In: Gangi A, Guth S, Guermazi A (eds) Imaging in percutaneous musculoskeletal interventions. Springer, New York, pp 343–366
Le HB, Lee ST, Munk PL (2010) Image-guided musculoskeletal biopsies. Semin Intervent Radiol 27:191–198
Exner GU, Kurrer MO, Mamisch-Saupe N, Cannon SR (2017) The tactics and technique of musculoskeletal biopsy. EFORT Open Rev 2:51–57
Espinosa LA, Jamadar DA, Jacobson JA et al (2008) CT-guided biopsy of bone: a radiologist’s perspective. AJR Am J Roentgenol 190:W283–W289
Anderson MW, Temple HT, Dussault RG, Kaplan PA (1999) Compartmental anatomy: relevance to staging and biopsy of musculoskeletal tumors. AJR Am J Roentgenol 173:1663–1671
Schwartz HS, Spengler DM (1997) Needle tract recurrences after closed biopsy for sarcoma: three cases and review of the literature. Ann Surg Oncol 4:228–236
Moser T, Ehlinger M, Chelli Bouaziz M, Fethi Ladeb M, Durckel J, Dosch JC (2012) Pitfalls in osteoarticular imaging: how to distinguish bone infection from tumour? Diagn Interv Imaging 93:351–359
Filippiadis DK, Tutton S, Mazioti A, Kelekis A (2014) Percutaneous image-guided ablation of bone and soft tissue tumours: a review of available techniques and protective measures. Insights Imaging 5:339–346
Buy X, Tok CH, Szwarc D, Bierry G, Gangi A (2009) Thermal protection during percutaneous thermal ablation procedures: interest of carbon dioxide dissection and temperature monitoring. Cardiovasc Intervent Radiol 32:529–534
Tsoumakidou G, Buy X, Garnon J, Enescu J, Gangi A (2011) Percutaneous thermal ablation: how to protect the surrounding organs. Tech Vasc Interv Radiol 14:170–176
Some of the diagrams included in the article have been presented partially in the RSNA 2007 electronic educational exhibit: Moser T, Buy X, Tok C, Irani F, Dietemann J, Gangi A. Image-guided interventions of the pelvic girdle: practical radioanatomy for a safe approach to a complex region. Radiological Society of North America 2007 Scientific Assembly and Annual Meeting, 25-30 November 2007, Chicago. http://archive.rsna.org/2007/5005869.html

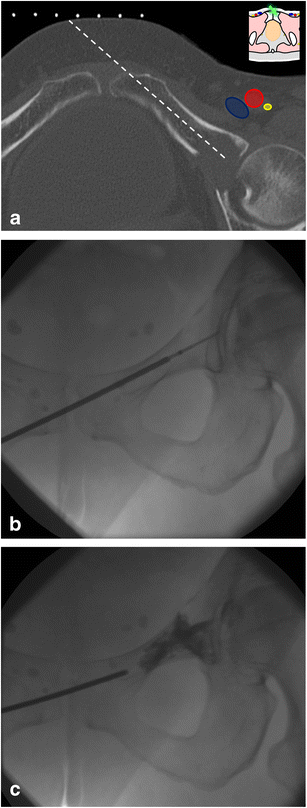

Two images of Fig. 19 (b and c) have been previously published in a Case Report: Bauones S, Freire V, Moser TP (2015) Retrograde transpubic approach for percutaneous radiofrequency ablation and cementoplasty of acetabular metastasis. Case Rep Radiol 2015:146963
