Ultrasonographic features
Ultrasonography is the most commonly used imaging modality for assessment of pelvic genital organs. The major role of US is to confirm the presence of a mass and determine its organ of origin [4]. By assessment of the internal architecture and echogenicity of the ovarian mass, the differential diagnosis may be limited. However, echogenic, fluid-filled masses may occasionally simulate solid lesions and are encountered in the differential diagnosis of MCT [8].
MCTs may show a variety of appearances sonographically because of their variable composition. However, they usually have a non-specific appearance. The sonographic appearance of ovarian cystic teratoma has been described to have “virtually limitless combinations” of different echo patterns [17]. Therefore, the diagnosis of MCT may be difficult by sole use of US. Sonographically, MCTs may seem as purely or predominantly cystic, solid or a complex mass with high reflection and acoustic shadowing [4]. There are also some specific sonographic signs that allow the diagnosis of MCT. These sonographic signs refer to different echo patterns such as the “thin echo pat-tern” or “dense echo pattern” or their combination [4]. When two or more characteristic signs are present, the diagnosis of MCT can be made with a high positive predictive value [5].
Shadowing echodensity (Rokitansky nodule or dermoid plug)
The Rokitansky nodule is the most common sonographic typical finding and is seen as a densely echogenic protuberance projecting into the cystic lumen (Fig. 1) [5]. This nodule, which is also called a dermoid plug, may show acoustic shadowing due to hair, teeth and the fat content (Fig. 2) [18]. Although it is described as a rounded solid mass, a bridge across the cyst or a thickened segment of the wall, it may rarely appear completely cystic (Fig. 3) [19, 20]. The Rokitansky nodule is a common site of malignant transformation and should be sectioned appropriately during pathologic analysis [1].
Diffuse or regional high-amplitude echoes
This finding is the second common manifestation of MCT [5]. It results from the presence of mixed sebaceous material and hair [2]. The increased echogenicity may be diffuse throughout the mass or focal with accompanying sound attenuation (Fig. 4) [21]. In 8% of cases, diffuse or regional high-amplitude echoes may be seen without recognisable sound attenuation [5]. As a differential diagnosis, haemorrhage can also produce bright echoes. However, other distinctive features of the haemorrhage (such as fibrinous strands or a retracting clot) differentiate blood-containing masses from MCT [5].
Tip of the iceberg sign

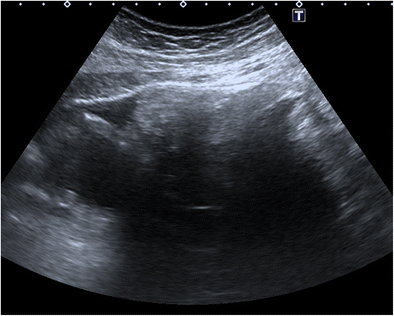

This sign refers to the sonographic appearance of a mass with an amorphous echogenic focus in the near field that causes posterior shadowing and thus obscures the posterior portion of the lesion and any structures behind it (Fig. 5) [22]. This analogy to icebergs is appropriate in this instance because only a small volume of an iceberg (i.e. one tenth of the total volume) remains above the water [23]. Similarly, most of the volume of an MCT is obscured and invisible at US because of the strong posterior acoustic shadowing. The echogenic focus is actually a mixture of fatty liquid, matted hair and cellular debris, which can be identified on both transabdominal and transvaginal US scans [22]. The presence of highly reflective and attenuating hair within the sebaceous material and multiple tissue interfaces within this mixture produce the characteristic acoustic shadowing [22, 24]. This appearance is referred to as a characteristic sign of a dermoid cyst [22, 23].
In fact, acoustic shadowing is an attenuation error artefact that can be used by the clinician to determine the composition of a structure [25]. When the ultrasound beam encounters a strongly attenuating or highly reflective structure, which is the hair-sebaceous material mixture in MCT, the strength of the beam distal to this structure diminishes and becomes weaker than the beam in the surrounding field. This phenomenon is recognised as a shadow deep to highly attenuating structures [25].
As a diagnostic pitfall, the echogenic dermoid plug can resemble bowel gas or faecal material in the colon so that it can be easily overlooked or dismissed, particularly when sound attenuation obscures the posterior wall of the lesion creating the tip of the iceberg sign [26]. Therefore, when there is a palpable mass present clinically that is not seen on US, the examiner should look for an echogenic dermoid plug that was initially misinterpreted as bowel gas. As a clue, bowel gas and faecaloid material typically appear more reflective, with acoustic noise and ring-down artefact, than a dermoid plug, which attenuates sound more gradually over a greater depth [26]. In addition, an echogenic shadowing structure should be watched for evidence of peristalsis.
Dot-dash sign
The classic sonographic appearance of echogenic hair floating within an MCT is described as the “dot and dash” sign, which has the highest positive predictive value (98%) [5]. This sonographic feature refers to hyperechoic lines and dots arising from hairs in different orientations within the imaging plane, which is also called the “dermoid mesh” sign (Fig. 6) [27]. These lines and dots metaphorically resemble the diagrammatic representation of International Morse Code characters, with “dots” representing echoes generated by hairs perpendicular to the scan plane and “dashes” representing echoes from hairs parallel to the scan plane [28]. Haemorrhagic cysts present a potential pitfall since fibrinous strands in a haemorrhagic cyst may mimic this appearance [5].
Fat-fluid or fluid-fluid level
Sebum floating above aqueous fluid forms a fat-fluid level separated by a linear interface that changes position with gravity. However, a layered appearance in a cyst on US is not specific for MCT. Fat-fluid or fluid-fluid levels have prognostic significance only when identified in combination with at least one additional sonographic feature associated with MCT [5].
The histological composition of the fatty component, varying from pure liquid sebum to adipose tissue intermixed with hair, desquamated epithelium or fibrous tissue, results in different acoustic properties [29]. When there is pure sebum in the cyst, it may be observed as a hypoechoic or anechoic image [4]. Inclusion of water droplets due to the emulsifying role of the sebum and the presence of lipophilic contaminations, such as desquamated epithelial cells, give the sebum an echogenic appearance at US [30]. In addition, serous fluid may be anechoic or echogenic because of proteinaceous material or debris. The most common arrangement in this context is an anechoic sebum layered above a hyperechoic aqueous/debris-containing layer. Less frequently, supernatant hyperechoic sebum forms a layer with dependent hypoechoic aqueous fluid (Fig. 7) [21]. Also, a bright fluid interface may be seen with supernatant and dependent hypoechoic layers [29].
Floating balls sign
Intracystic hyperechoic floating balls are an uncommon pathognomonic feature of MCT (Fig. 8) [21]. In the literature, this sign, which is also called the “meat ball” sign, is described in few case reports or case series [31–33]. The size of the balls varies up to 4 cm and these globules are usually found in large MCTs. These balls are hyperechoic because of cheese-like sebaceous material, keratin and hair, with keratin being the major component [31, 34]. In addition, these globules float within the cyst because their specific gravity is equal to or less than the cyst fluid at body temperature. When examined dynamically with US, movement of these balls may be seen when changing the patient’s position [21]. Absence of blood flow in the Doppler US within these mobile spherules allows differentiation from solid mural nodules [31].
Comet tail appearance

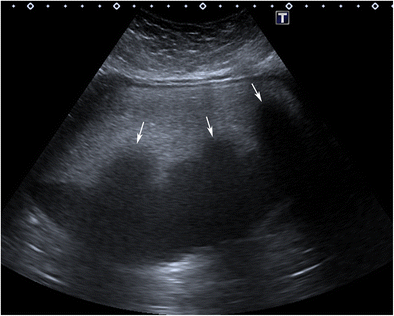

When hair makes a level with fluid, a comet tail appearance forms [7]. Due to attenuation of the sound beam in tufts of hair, a dark comet tail appears behind it (Fig. 9). This sign is different from a sonographic comet tail artefact, which is a form of reverberation [25]. The comet tail appearance is actually an acoustic shadowing, a form of attenuation error artefact, which is similar to the “tip of the iceberg” sign. However, in the comet tail appearance, an echogenic focus is not seen on the tip. In addition, hair balls create this appearance, which does not seen hyperechogenic as in the floating balls sign, and their posterior borders are not seen because of shadowing.
CT imaging features
CT has an excellent sensitivity (93–98%) because of detecting fat in the diagnosis of MCT [4]. When US is nondiagnostic, CT examination of a teratoma is helpful in both demonstrating fat and subtle calcifications, in addition to delineating the effect of the mass on surrounding structures [19].
Intratumoral fat
The presence of fat inside an ovarian tumour appears to be specific to ovarian cystic teratoma [6]. Fat may be seen as a round mass floating in the interface between two liquid components, a layering component, a floating mass intermingled with hair or a component in the cyst wall or Rokitansky nodule (Fig. 10) [6].
Fat displays lower attenuation than water on CT images; therefore when the proportion of fat within a voxel is large enough, the corresponding image pixel seems dark, with a density number ranging from −144 to −20 HU [4]. Although fat is simply identified by CT when it is macroscopic, detecting fat may be difficult when it is in minute quantities. On the other hand, mixing of sebaceous material with hair and debris increases the density of fat and, due to the water density of this mixture, fat may be overlooked [35].
The Rokitansky nodule (dermoid plug)
On the CT image, a Rokitansky nodule can look like a rounded structure protruding into the cystic lumen, mural thickening, a bridge across the cyst or sometimes only a tooth (Fig. 11) [35]. The Rokitansky nodule is important because of the possibility of malign transformation. Contrast enhancement of a Rokitansky nodule should raise the possibility of malignant transformation, which does not always indicate malignancy [36]. In addition to an enhancing nodular soft tissue component, an obtuse angle between the soft tissue and the inner wall of the cyst, and extracapsular tumour growth with extension into an adjacent structure should be carefully examined for differentiation of malign from benign teratoma [36].
Tooth/calcification
It is possible to see curvilinear or globular calcification in the Rokitansky protuberance, in the wall of the MCT or in/near the septa (Fig. 12) [6]. In general practice, suggestive patterns of MCT include a fatty mass with curvilinear calcification and water density mass containing solid tissue components and globular calcification [19]. Calcification with very high HU values (higher than bone) suggests the presence of enamel and a tooth-like structure. When the ovarian MCT does not include fat or calcification, CT may not be helpful in the differential diagnosis [19].
Fat-fluid level
Two different liquid components can be clearly demonstrated by measuring their attenuation values on CT. Supernatant fatty layers of lower attenuation, similar to that of subcutaneous fat, and dependent fluid layers of higher attenuation are classically seen on CT (Fig. 10b) [29]. Sometimes, a floating nodule appearance may be seen with a fat-fluid level, which is accepted as pathognomonic for cystic teratoma [29, 37].
Floating balls sign
A striking uncommon finding of MCT is numerous small spherical structures within the cyst (Fig. 13) [31]. Usually, these are discrete, uniformly sized mobile globules. The reason for the uniformity in the size of the globules is not known, but it is thought that each globule forms by the aggregation of sebaceous material around a tiny focus of debris, some desquamative material or fine hair shafts [38]. Differences in the physical and thermal properties of the material being deposited around each nidus create discrete masses rather than an amorphous mass [38]. Furthermore, the specific gravity of the globules is low because of fatty composition; therefore, they float in the most gravity-independent position within the cyst fluid or in the interface when there is a fat-fluid level [33]. Some spherules may have a 2–3-mm-thick outer sebaceous shell and a less dense central core [31]. In addition, peripheral low density of the floating balls on CT occurs as a result of decreased attenuation of the x-ray beam as it passes through the outer sebaceous/fat shell [33].
MR imaging features
Intratumoral fat
On MR imaging, intratumoral fat shows high intensity on T1-weighted images and a signal drop on fat-saturated T1-weighted images (Fig. 14) [15]. Since tissues with a short T1 value (i.e. endometrioma) can display signal characteristics similar to those of fat, fat suppression sequences are an indispensable adjunct to standard sequences in gynaecological MR imaging [39]. The most widely used method to distinguish fat from blood is the frequency selective fat saturation technique [40]. Also chemical shift imaging (in/opposed phase, Dixon methods) is commonly used and is the most sensitive technique to detect minor fat (Fig. 15) [4, 39]. On the other hand, the STIR (short TI inversion recovery) sequence is not chemical shift-specific; therefore, it should be used with non-fat-saturated T2-weighted images because low signal intensity on STIR suggests either a suppressed fatty component or haemorrhage [2]. MR imaging may fail to visualise very small fatty areas (mean diameter about 1 mm) when compared with CT, which can be explained by a better signal/noise ratio in CT, the thinner CT slices and possibly magnetic field inhomogeneities in the boundary of the calcified structures [39].
Chemical shift artefact
Teratomas may show reversed chemical shift artefact, which is a boundary artefact perpendicular to the direction of the frequency encoding gradient [8]. This artefact can be used to detect fat and distinguish it from haemorrhage [2]. It is seen as foci or areas of very high signal intensity in T2-weighted images at the interfaces of fatty tissue and non-fatty tissue, and a low-intensity band is seen on the opposite side of the tumour (Fig. 16). This atypical artefact may be seen in and/or around the tumour and is characteristic in the diagnosis of ovarian teratomas [8].
Fat-fluid level

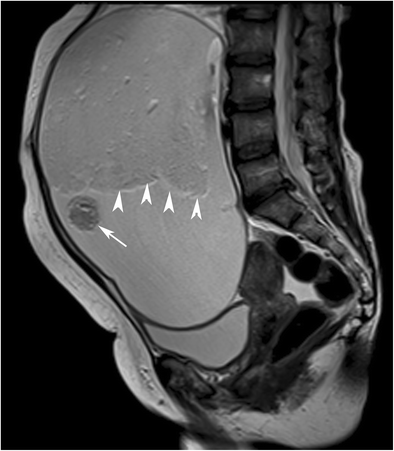

On MRI, fat and fluid may show layering with high signal intensity of the supernatant fatty layer on T1-weighted images and low signal intensity on fat-suppressed T1-weighted images (Fig. 17). On T2-weighted images, the supernatant and dependent layers show variable signal intensities [29]. Complete layering as a fat-fluid level may not be seen if the viscosity of the fatty fluid is high (Fig. 18). Rarely, one single ball made up of debris, fat and hair may be seen floating in the interface of the fat-fluid level (Fig. 19) [37].
The Rokitansky nodule (dermoid plug)
Morphological features of the Rokitansky nodule (i.e. size, number, relationship with the cyst wall, shape and content) can easily be evaluated with MRI (Figs. 20 and 21). On dynamic contrast-enhanced MR imaging, Rokitansky nodules of benign MCTs display variable enhancement patterns, which may correlate with the specific content of solid tissue in the nodule [41].
Tuft of hair
Matted hair, which usually constitutes the major part of the layered debris, is gravity dependent and may show mobility when changing the patient’s position (Fig. 21) [4]. This tuft of hair is usually mixed with whitish, cheese-like material and pronounced on MR images because of chemical shift artefact. With increasing amounts of hair, the intensity becomes lower on T2-weighted images [8].
Palm tree-like protrusion
Protrusions, which are usually located at the point of contact with residual ovarian tissue, vary from small nodules to polipoid palm tree-like masses projecting into the cyst cavity (Fig. 22) [8]. The internal pattern resembling a palm tree is typical for teratomas [42]. The palm tree-like protrusion consists predominantly of desquamated, degenerated epithelial cells mixed with hair and the signal intensity varies according to the proportion of hair and cheese-like material [8].
Floating balls sign
Floating globules usually have a nidus composed of debris, desquamative material or fine hair shafts that is hyperintense on T2-weighted and hypointense on T1-weighted images [4]. The outer portion, which is formed by aggregation of sebaceous material around the nidus, has the opposite signal intensity compared to the inner part. These spherules may also contain macroscopic or microscopic fat, which can be detected by fat-suppression techniques or in phase-opposed phase imaging (Fig. 23). Sometimes floating small fatty particles, which are important for the diagnosis of teratomas without a major fat component, may also be seen without a nidus.
Intratumoral keratinoid material
The keratinoid substance is a scleroprotein that originates from the cytoskeletal structure of the epidermis. Radiologically it exhibits low signal on T1- and high signal on T2-weighted images resembling serous fluid [9]. However, diffusion- weighted imaging (DWI) can distinctly separate these two substances. Restriction of Brownian movement of water molecules within the keratinoid substance results in a high signal on DWI and a low ADC value (Figs. 24 and 25) [9]. Therefore, in a limited population of MCTs, particularly when fat is not obvious, DWI may serve as an adjunct tool for the correct diagnosis [43].
