- Pictorial Review
- Open Access
Imaging findings of the orbital and intracranial complications of acute bacterial rhinosinusitis
© The Author(s) 2015
- Received: 18 March 2015
- Accepted: 17 July 2015
- Published: 8 August 2015
In patients with acute bacterial rhinosinusitis severe orbital and intracranial complications can occur. This review will illustrate the anatomic relationship between the paranasal sinuses and the orbital and intracranial compartments. Subsequently, the spectrum of orbital and intracranial complications of rhinosinusitis and related imaging findings will be discussed and illustrated by case material from daily practice.
• Acute bacterial rhinosinusitis can cause severe orbital and intracranial complications.
• If orbital or intracranial complications are suspected, cross-sectional imaging is mandatory.
• Infection can spread from the ethmoid sinus to the orbit through the lamina papyracea.
• Frontal sinusitis can spread intracranially through dehiscences or osteomyelitis.
• Radiologists must recognize imaging findings of complications of acute bacterial rhinosinusitis.
- Paranasal sinuses
- Acute bacterial rhinosinusitis
Acute bacterial rhinosinusitis frequently evolves from a viral upper respiratory infection (URI). Of all children seeking medical attention for respiratory symptoms, 6 % -7 % have acute bacterial rhinosinusitis . The most common bacterial agents causing this infection are streptococcus pneumoniae, haemophilus influenza and moxarella catarrhalis. Early identification of children with complications of acute bacterial rhinosinusitis is crucial since it can cause life-threatening illness by the spread of infection to the orbits and central nervous system. In clinical practice, orbital complications are encountered most frequently . These typically occur in otherwise healthy young children (age < 5 years) presenting with acute ethmoiditis. If left untreated, orbital complications can result in permanent blindness of the affected side . Clinical symptoms include a swollen eye with or without proptosis or impaired function of the extraocular muscles (i.e. gaze impairment). Intracranial complications are less common but have a higher morbidity and mortality rate . They typically occur in previously healthy adolescent males presenting with rhinosinusitis in combination with severe headache, photophobia, seizures, or other focal neurologic findings . If there is clinical suspicion of orbital or intracranial complications, cross-sectional imaging of the orbit and brain is mandatory .
This review will focus on the complications of acute bacterial rhinosinusitis by firstly reviewing the anatomic relationship of the paranasal sinuses to the orbital and intracranial compartments. Secondly, the various complications and their imaging characteristics will be discussed and illustrated using examples from daily practice.
The roof of the orbit is formed by the frontal bone (i.e. pars orbitalis or orbital plate). Within this bone, the frontal sinus develops. Dorsally, the frontal sinus is directly adjacent to the anterior cranial fossa. Like the lamina papyracea, the frontal sinus may have bony dehiscences that can form a direct route for the spread of infection. Three common sites of congenital dehiscence are: 1) behind the trochlear fossa, 2) behind the supraorbital notch, and 3) at the junction of the middle and outer thirds of the sinus floor (Fig. 2). In addition, acquired dehiscences can exist, for example due to trauma .
Besides the spread of infection through the described dehiscences and canals there are two other mechanisms of spread that play an important role in the complications of bacterial rhinosinusitis. Firstly, there can be a bacterial thrombophlebitis through valveless veins causing spread of infection to the cavernous sinus [8, 12]. Secondly, there can be direct extension of infection through osteomyelitis .
The transition from uncomplicated URI to acute bacterial rhinosinusitis is not straightforward. There is considerable overlap between the symptoms and clinical findings of both entities. Imaging has not been shown to be helpful in distinguishing acute bacterial rhinosinusitis from viral URI. In children younger than 3 years with untreated, uncomplicated, rhinosinusitis or in patients of any age who have an uncomplicated cold for less than 10 days, imaging is not indicated [1, 5]. Especially in the paediatric population soft tissue swelling of the paranasal sinuses on CT and MRI is very common. Extensive mucosal thickening is present in up to 68 % of cases [13, 14]. Generally, rhinosinusitis is a diagnosis based on clinical symptoms. However, distinguishing self-limiting infection from rhinosinusitis with orbital or intracranial complications can be challenging. If complications are clinically suspected contrast-enhanced CT (ceCT) and/or MRI (ceMRI) of the paranasal sinuses should be obtained . To date, there are no head-to-head comparisons of the diagnostic accuracy of ceCT to ceMRI in evaluation of complicated rhinosinusitis in children. Since bony sinus anatomy can be best depicted by CT, CT is often the imaging modality of first choice . In addition CT is widely available, fast, and provides high spatial resolution images. Because of the speed of the acquisition, sedation is usually not required. An important disadvantage of ceCT is the use of ionizing radiation. Especially in children, exposure to radiation should be kept at a minimum. An important disadvantage of ceMRI is that it requires patient sedation in young children. In addition, MRI may not be available around the clock in all hospitals. However, some reports have illustrated that abnormalities responsible for the clinical symptoms are better seen on ceMRI. This seems to be especially true for intracranial complications [16, 17]. In patients that do not require sedation, ceMRI may be preferred over ceCT. If ceCT shows no abnormalities, but the patient has persisting symptoms suspicious for orbital or intracranial complications ceMRI should be obtained .
The acquisition of an orbital ceCT at our institution is done with 0.9 mm slice thickness, 0.45 mm increment, 120 kV, 55 mAs, 140 FOV, and a 512 × 512 matrix. The CT is acquired 2 minutes after manual injection of 100 ml of iodinated contrast material. Two mm thick axial and coronal slices are reconstructed using filtered backprojection with a soft tissue kernel. In addition, multiplanar reconstructions can be made in any plane from the thin slice source data.
An MRI protocol of the orbit should comprise at least coronal T2 STIR, axial T1, and axial and coronal T1 SPIR after gadolinium with a slice thickness of 3 mm or less and a pixel size of 1 mm or less . In addition diffusion-weighted imaging (DWI) has shown to be helpful in the evaluation of orbital infection .
The MRI protocol for intracranial complications should in addition to contrast enhanced T1 weighted (T1w) images comprise DWI, and fluid attenuated inversion recovery (FLAIR) images. DWI is known to be highly sensitive to pus formation and FLAIR can be helpful in detecting oedema and leptomeningitis [20–22].

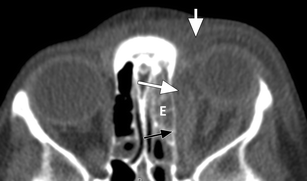

The orbital complications of rhinosinusitis have been classified by Chandler et al. into five categories: 1) preseptal cellulitis; 2) orbital cellulitis; 3) subperiosteal abscess; 4) orbital abscess; and 5) cavernous sinus thrombosis . Chandler 1 to 3 is primarily treated with intravenous antibiotics. However, if the patient develops loss of vision or shows progressive signs of systemic disease within 24-48 hours, additional functional endoscopic sinus surgery will be performed . Chandler 4 and 5 are directly treated with functional endoscopic sinus surgery and orbital drainage in addition to intravenous antibiotics. In case of cavernous sinus thrombosis anticoagulation therapy can be applied. This is however controversial since intracranial haemorrhage may occur .
On ceMRI, both subperiosteal and orbital abscesses are seen as T1 isointense, T2 hyperintense fluid collections with rim enhancement. In addition, the presence of pus will result in restricted diffusion on DWI .

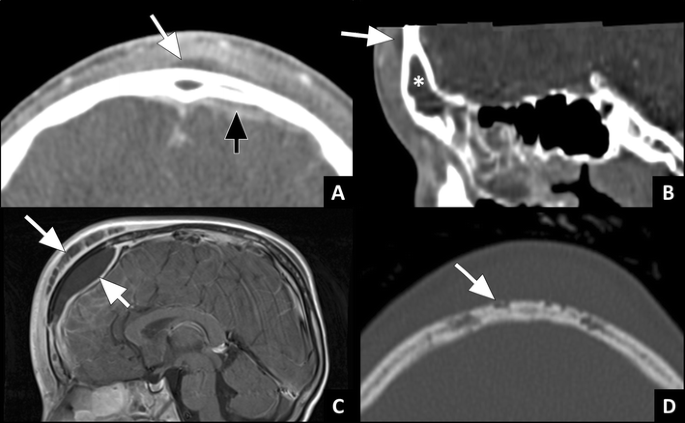

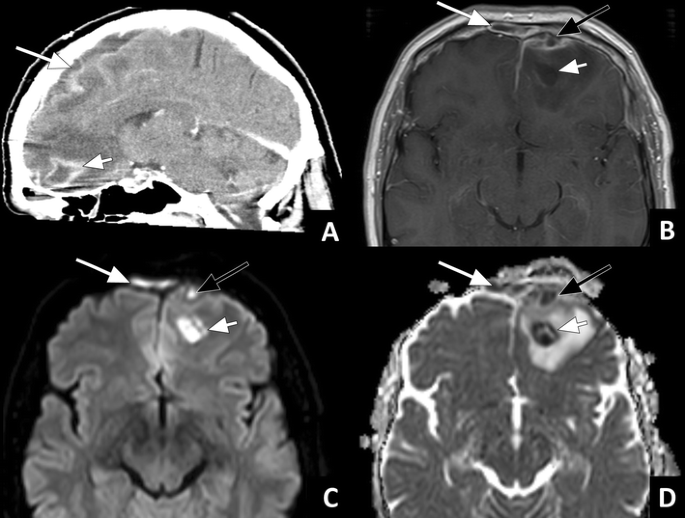

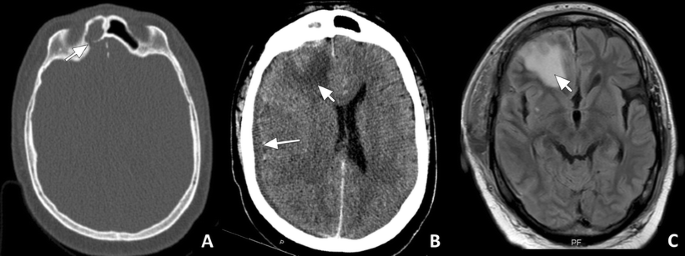

Besides cavernous sinus thrombosis, intracranial complications that can occur in patients with acute bacterial rhinosinusitis are: subdural empyema, epidural empyema, cerebritis, brain abscess, and meningitis . Patients usually present with severe headache in combination with photophobia, seizures, or other focal neurologic findings . If intracranial complications occur, functional endoscopic sinus surgery is mandatory. In the presence of empyema and brain abscess, neurosurgical intervention is required.
Complications arising from acute bacterial rhinosinusitis can result in life-threatening illness. Knowing the anatomic relationship of the paranasal sinuses to the orbital and intracranial compartment and the mechanisms of infectious spread, is paramount for early diagnosis of these complications. In addition, the radiologist needs to be aware of the specific imaging findings of orbital and intracranial complications of acute bacterial rhinosinusitis, including cavernous sinus thrombosis.
