The emerging role of magnetic resonance imaging and multidetector computed tomography in the diagnosis of dilated cardiomyopathy

Abstract

Magnetic resonance imaging and multidetector computed tomography are new imaging methods that have much to offer clinicians caring for patients with dilated cardiomyopathy. In this article we briefly describe the clinical, pathophysiological and histological aspects of dilated cardiomyopathy. Then we discuss in detail the use of both imaging methods for measurement of chamber size, global and regional function, for myocardial tissue characterisation, including myocardial viability assessment, and determination of arrhythmogenic substrate, and their emerging role in cardiac resynchronisation therapy.

Introduction

The term “cardiomyopathy” identifies a heterogeneous group of cardiac diseases characterised by direct myocardial involvement leading to impaired cardiac function. Since the term was introduced by Harvey and Brigden in the 1960s, substantial progress has been made, in terms of understanding the pathophysiological substrate, underlying causes and peculiarities, and most importantly, in defining a classification system for cardiomyopathies. Primary cardiomyopathies include those with genetic, acquired or mixed causes, and refer to a disease that is predominantly limited to the myocardium, whereas secondary cardiomyopathies are characterised by myocardial involvement that is part of a generalised or diffuse systemic disorder. In addition, several cardiovascular diseases not regarded as cardiomyopathies may also affect the myocardium, causing systolic or diastolic dysfunction and hampering differentiation from heart muscle diseases [1]. Although with the current arsenal of diagnostic imaging tools, the diagnosis of cardiomyopathies has been facilitated, in many cases the correct diagnosis remains challenging and sometimes elusive. Nevertheless, these techniques have significantly contributed towards an increased awareness of cardiomyopathies among clinicians, and they have an increasing impact on patient management and risk stratification. Transthoracic echocardiography is currently the first-line imaging technique for the diagnosis, evaluation and decision-making in cardiomyopathy patients. In the last decade, magnetic resonance imaging (MRI) and, to a lesser extent, multidetector (or multirow) computed tomography (MDCT) have become increasingly important in the diagnosis of cardiomyopathies. In particular, the comprehensive approach of MRI, including non-invasive tissue characterisation, makes it indispensable in the work-up of many cardiomyopathies.

Dilated cardiomyopathy

Dilated cardiomyopathy (DCM) is the most common cardiomyopathy worldwide with a prevalence of 40–50 cases per 100,000. DCM is currently classified as primary (genetic, acquired or mixed), secondary (e.g. infiltrative or autoimmune) and idiopathic. Genetic inheritance is likely to play a role in the development of the disease in 20-35% of patients, but also acquired conditions like metabolic abnormalities, inflammatory and infectious processes, neuromuscular diseases and a large variety of cardiotoxic agents (chemotherapeutic agents, alcohol, illicit drugs) can lead to DCM [14]. Independently of the underlying cause, DCM is characterised by an increase in diameter and volume of the left or both ventricles, leading to progressive dilatation and impaired systolic function that is not secondary to or cannot be exclusively justified by abnormal loading conditions (e.g. valve disease, hypertension) or by the concomitant coronary artery disease (CAD) (Figs. 1 and 2) (Movie 1) [13]. Thus, the term DCM represents a final common pathway that is the end result of myocardial damage.

Fig. 1
figure 1

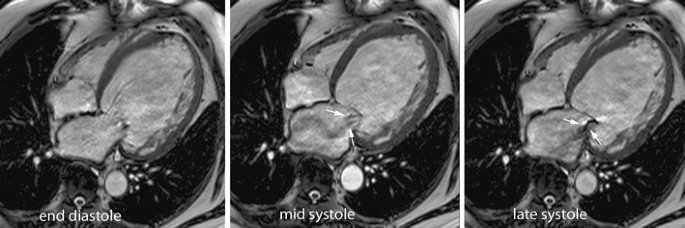

Extreme form of dilated cardiomyopathy in a 63-year-old man. SSFP cine MRI in a four-chamber view at end-diastole (left), mid-systole (mid), and late-systole (right) (see Movie 1). The left ventricle (LV) end-diastolic volume is 877 ml with an ejection fraction of 12%. The right ventricle (RV) end-diastolic volume is 248 ml with an ejection fraction of 42%. Presence of an important mitral regurgitation secondary to dilatation of the mitral valve ring. The regurgitation is visible during systole (white arrowheads in the middle and right panels). Velocity-encoded MRI shows a regurgitant volume of 45 ml through the mitral valve

Fig. 2
figure 2

LV volume overload due to aortic regurgitation in 21-year-old man with Marfan’s disease. Diastolic SSFP cine MR image in a three-chamber view (a) and LV outflow tract view (b). Velocity-encoded cine MRI just below the level of the aortic valve at systole (c) and diastole (d). Dilated LV with an end-diastolic volume of 500 ml, a stroke volume of 255 ml and an ejection fraction of 51%. Cine MRI (a, b) shows important aortic regurgitant jet (arrows). Velocity-encoded cine MRI shows non-closure of the aortic valve leaflets during diastole (d) with a regurgitant fraction of 43%

Pathophysiological and histological aspects

Independently of the underlying cause, DCM is characterised by an increase in ventricular chamber size. As demonstrated by the Frank-Starling mechanism, this serves as a first compensatory step aiming to maintain an appropriate stroke volume. However, above a critical sarcomere stretch, the efficiency of interaction between actin and myosine filaments decreases, resulting in impairment of stroke volume. Myocardial fibre elongation increases the ventricular radius, causing eccentric ventricular hypertrophy, with decreased wall thickness to chamber diameter ratio and increased ventricular sphericity. According to the Laplace law, these changes increase significantly myocardial wall stress with increased oxygen demand and subsequent worsening of the left ventricular (LV) systolic performance [5]. The main histological features of DCM are myocyte elongation, myocardial apoptosis and hypertrophy of the remaining myocytes [6]. Additionally, there is an excessive collagen deposition and decreased capillary density, with both reactive (interstitial and perivascular) and reparative (replacement) patterns of fibrosis [7, 8]. Myocardial fibrosis is considered the result of damage due to microvascular ischaemia and myocardial wall inflammation. The cellular and extracellular changes result in a normal, thinned or slightly thickened myocardial wall (Fig. 1).

Clinical manifestation

The clinical presentation of DCM is variable, but the severity of symptoms is usually related to the grade of systolic impairment. Although patients can be asymptomatic, especially in the early phases of the disease, most of them have symptoms of left heart failure, such as dyspnoea and effort-related fatigue. In some cases, severe LV systolic dysfunction and advanced heart failure symptoms are present in patients with normal or mildly dilated ventricles (less than 10-15% above normal range), i.e. mildly dilated forms of DCM [1]. Sudden cardiac death can be the first clinical evidence of DCM and it is due to sustained ventricular tachycardia and ventricular fibrillation. It is deemed that the more severe the systolic dysfunction and the degree of replacement fibrosis, the larger the arrhythmogenic substrate that can provoke malignant arrhythmias. Other potentially life-threatening manifestations of DCM are non-sustained ventricular arrhythmias, conduction abnormalities, syncope and embolic events. As the disease progresses, right heart failure may develop, and it is considered an aggravating factor (Fig. 3) [9, 10]. Thus, right ventricular (RV) dilatation and dysfunction can be present, but are not requirements for the diagnosis of DCM.

Fig. 3
figure 3

Extreme form of dilated cardiomyopathy in an 11-year-old girl involving both ventricles, and clinically presenting with severe symptoms of heart failure. SSFP cine MR image in the axial plane at end-diastole (a) and end-systole (b). Late gadolinium enhancement (LGE) MRI in the midventricular short-axis plane (c) and axial plane (d). Note the important dilatation of both ventricles, i.e. LV end-diastolic volume of 324 ml, RV end-diastolic volume of 520 ml with an ejection fraction of 9% and 7% for the LV and RV respectively. LGE MRI shows diffuse strong subepicardial enhancement in the LV (white arrows in c, d), along the subendocardium of the RV (black arrows) (d), and of the RV free wall (white arrowheads) (d). Unfortunately the patient died while on the waiting list for a cardiac transplant

MRI and MDCT

The requirements for appropriate imaging in cardiomyopathies nowadays exceed the pure diagnostic objective, whereby assessment of the more intricate aspects, such as depiction of underlying aetiology, risk assessment, therapy planning and determination of prognosis, are becoming increasingly important. MRI, because of its non-invasive nature, its excellent spatial, contrast and temporal resolution, and capability for tissue characterisation, has become a well-validated and widely accepted technique for studying DCM patients. In addition, the constant improvement in MDCT technology, especially since the introduction of the 64-row systems, offers reliable imaging of the heart and coronaries, offering new, yet incompletely explored approaches to studying DCM patients (Fig. 4). Several studies have independently shown that MDCT is highly appropriate for excluding coronary artery disease, yielding excellent negative predictive values [1114]. Moreover this technique enables the characterisation of the coronary venous system, which may be of great help in the planning of cardiac resynchronisation therapy (CRT). In patients with contra-indications for MRI, such as those with permanent cardiac implantable devices, MDCT is an interesting diagnostic alternative.

Fig. 4
figure 4

Ventricular assist device in a 62-year-old man with end-stage DCM. MDCT showing four axial slices through the heart and upper thorax (a-d), volume-rendered view (e). Note the presence of a severely dilated LV with thin walls. The LV is shortcut by the assist device between the left atrium and right subclavian artery (arrow in b, d). The course of the ventricular assist device can be well appreciated on the volume-rendered view (arrowheads in e)

Cine MRI is nowadays considered the reference technique for accurately measuring cardiac chamber size, ventricular function and myocardial mass (Figs. 1 and 3) [10, 1518]. Moreover, derived parameters, such as myocardial wall thickness, wall thickness to chamber radius ratio and regional functional parameters (e.g. systolic wall thickening and wall motion), can be reliably assessed. DCM-related pathological conditions such as thrombus formation or valve dysfunction can be depicted by cine MRI as well. Techniques such as myocardial tagging have been shown to be very helpful in understanding the altered myocardial deformation patterns in DCM patients [19, 20]. MRI can be used for myocardial tissue characterisation, using T2-/T2*-weighted sequences and/or contrast-enhanced MRI. These sequences may even replace endomyocardial biopsy in some diseases (e.g. iron deposition cardiomyopathy). T2-weighted sequences allow increased myocardial free water content to be depicted, which occurs in the setting of acute myocardial infarction or in other diseases characterised by inflammation, such as acute myocarditis. Affected regions will appear bright compared with the normal myocardium. In the case of diffuse myocardial oedema, some authors recommend to measure the difference in signal intensity between myocardium and skeletal muscle (Fig. 5) [21]. T2*-weighted sequences are of great value for the diagnosis of myocardial iron deposition diseases, leading to a shortening of T2* relaxation time (Fig. 6). This parameter can be used to predict complications such as heart failure and arrhythmias and can be used to initiate and monitor chelation therapy [22, 23]. Compared with normal myocardium, in pathological myocardium the gadolinium contrast kinetics are altered, secondary to changes in distribution volume and/or wash-out of gadolinium. For the diagnosis of focal myocardial disease, such as necrosis/fibrosis, contrast-enhanced imaging using fast gradient-echo sequences with a preparatory inversion pulse [the so-called “late gadolinium enhancement” (LGE) or “delayed enhancement” technique] have been shown to be of great value [24]. Although initially applied to depict myocardial necrosis/fibrosis in the setting of acute or chronic myocardial infarction, the LGE MRI technique allows several non-ischaemic patterns of myocardial enhancement to be described in a wide range of myocardial diseases [25]. A weakness of the LGE MRI technique, however, is that it is optimised for depicting focal myocardial pathological conditions, and therefore it may fail to show diffusely spread disease, such as diffuse myocardial fibrosis, found in patients with DCM [26]. Comparing global myocardial enhancement with skeletal muscle enhancement early after gadolinium administration is of use to depict generalised myocardial hyperaemia, which can be found in patients with myocardial inflammation not only in the acute phase but also in chronic forms of myocarditis (Fig. 5) [27, 28]. Besides, myocardial T1 mapping techniques are appealing for the depiction of diffuse myocardial fibrosis, and represent a valuable addition to the LGE MRI technique. Shortening of the myocardial T1 relaxation time is related to the amount of myocardial collagen deposition [26, 29, 30]. Performing fast gradient-echo sequences using multiple increasing inversion times (e.g. 50–1,000 ms) before and after contrast-medium administration at the blood/myocardium equilibrium phase, allows the decay in myocardial signal intensity to be measured, and T1 maps to be generated with the use of curve fitting techniques (Movie 2). Although this technique is promising, further investigation is needed to test its robustness in assessing patients in mainstream clinical practice. Finally, a free bonus of the LGE MRI technique is that concomitant cardiac disease, such as pericardial inflammation or thrombus formation, can be accurately depicted as well [3133].

Fig. 5
figure 5

MRI approach for depiction of changes in global myocardial tissue characteristics. Midventricular short-axis T2-weighted short inversion-time inversion-recovery (STIR) fast spin-echo (left), T1-weighted fast spin-echo before (middle) and at 4 min after administration of 0.2 mmol of gadolinium DTPA/kg body weight (right). Calculation of the ratio of the differences in signal intensity between myocardial and skeletal muscle using T2-weighted STIR fast spin-echo allow generalised myocardial oedema to be depicted (left), while the changes in signal intensity early after contrast medium administration allow myocardial hyperaemia to be visualised (right)

Fig. 6
figure 6

Hereditary haemochromatosis in a 56-year-old man. T2*-weighted sequences show significantly decreased myocardial T2* (13 ms) (normal value at 1.5 Tesla: 33.3 ± 7.8 ms). The patient showed no evidence of systolic or diastolic dysfunction

Even if MDCT is not yet considered as a first-line imaging technique for the evaluation of LV performance and volumes, it is important to mention that in patients undergoing an MDCT examination for coronary artery evaluation, reliable information about cardiac morphology and function can be obtained without any additional radiation exposure [3437]. Although nowadays the prospective trigger mode is preferable because of the significant reduction in irradiation dose, reliable data regarding ventricular volumes and function can be obtained using retrospective electrocardiogram (ECG) gating. Several papers reported good agreement among MDCT and echocardiography, and MRI and invasive catheter ventriculography, with good interobserver agreement [3841].

Cardiac volumes and ventricular function

As the LV ejection fraction is the strongest prognostic determinant in heart failure patients, while LV volume and mass are independent predictors of mortality and morbidity, a first primordial step in assessing DCM patients is the reliable quantification of the severity of chamber dilatation and dysfunction. Often stroke volumes are within normal limits or only modestly decreased despite the severely impaired ejection fraction. The LV enlargement may furthermore dilate the mitral valve ring, dislocate the papillary muscles, and impair leaflet coaption, thereby causing mitral valve regurgitation and putting additional load on the already diseased ventricle (Fig. 1). Except for mildly dilated forms of DCM, the LV and/or RV show a moderate to severe degree of dilatation with a severely impaired ejection fraction (e.g. lower than 20%) (Figs. 1 and 3). The volumetric measurement of the ventricles is usually performed in the cardiac short-axis plane (MRI) or using reconstructed images in the cardiac short-axis plane (MDCT). For MDCT evaluation of LV function, end-diastole is usually identified as the image with the maximum diameter (approximately at 85% of RR diameter), while the minimum diameter (about 25% of RR) corresponds to end-systole. Software has been developed to semi-automatically determine ventricular volumes and function, and myocardial mass.

In DCM patients, the atria may be enlarged as well, but this is usually less pronounced than the ventricular dilatation. Left atrial dilatation can be related to mitral valve regurgitation and/or to increased LV filling pressure, emphasising the need for assessment of diastolic (dys)function in DCM patients. Phase-contrast (or velocity-encoded) cine MRI is an accurate technique for quantifying the severity of valve regurgitation and for providing information on diastolic function. Although MDCT can provide MR-equivalent high-quality morphological views of the mitral valve, and even show valve motion, it provides no or at most limited information regarding the severity of regurgitation. However, the superb morphological visualisation of the mitral valve and subvalvular apparatus provide a means of better characterising the mechanism(s) of mitral valve regurgitation. Moreover, slow or turbulent flow in dilated cavities facilitates thrombus formation. Both MRI and MDCT can be regarded as excellent tools for depicting this potentially harmful complication (Fig. 7).

Fig. 7
figure 7

Small thrombus in the LV apex in a male patient with a moderately dilated cardiomyopathy. Vertical long-axis SSFP cine MRI (left), contrast-enhanced MRI early after contrast medium administration using a long inversion time (i.e. 550 ms) (right). The thrombus is hardly visible on cine MRI (left) but is well depicted as a hypointense rounded nodular structure on the contrast-enhanced image (right)

Myocardial contractility

Myocardial contraction abnormalities are invariably present in DCM patients, visible as hypokinetic to dyskinetic wall motion, diminished to absent systolic wall thickening, and a variable degree of ventricular dyssynchrony often with abnormal systolic motion of the interventricular septum and apical rocking (Movie 3). Cine MRI is without any doubt the reference tool for assessing myocardial wall motion and thickening patterns, and has potential in the assessment of ventricular dyssynchrony. Regional abnormalities are usually described using the 17-segment AHA approach.

Myocardial tissue characterisation

Accurate myocardial tissue characterisation is pivotal in DCM patients. For example, as reported by Bello et al. [42], the response to b-blockade therapy was significantly better with functional improvement and reversed ventricular remodelling in heart failure patients without evidence of myocardial scarring by LGE MRI than those with myocardial scarring. A first aim is to exclude myocardial damage due to CAD as the underlying cause of ventricular dilatation and dysfunction [4345]. The presence and pattern of myocardial LGE provides crucial information regarding the ischaemic or non-ischaemic origin. Ischaemic LGE involves the subendocardium with a variable transmural extension in a coronary artery perfusion territory (Fig. 8). In non-CAD-related DCM, myocardial LGE presents most commonly as a linear or patchy midwall enhancement. It may involve the subepicardial part of the myocardium and the right ventricle as well, and importantly it does not respect a perfusion territory (Fig. 3) [4446]. It should be emphasised, however, that most DCM patients present no myocardial LGE [45]. Finally, a small percentage of DCM patients show a CAD-like pattern of enhancement, despite a lack of obstructive CAD on coronary angiography. A likely hypothesis is that these patients had concomitant CAD with recanalisation of the occlusive coronary artery or had an embolic event. Ventricular remodelling and dysfunction will be influenced significantly by the extent of CAD-related myocardial scarring. Although use of MDCT has been reported to depict CAD-related myocardial scarring in chronic infarct patients, currently this application is not routinely used [47].

Fig. 8
figure 8

Extensive transmural anteroapical infarction in 46-year-old man. LGE MRI in the vertical long axis (a). End-diastolic SSFP cine MRI in the horizontal long-axis in the first week (b), at 1 year (c), and at 5 years post-infarction (d). Note the progressive increase in LV end-diastolic volume with thinning of the LV wall, reflecting adverse ventricular remodelling

Although LGE MRI is able to depict subtle forms of myocardial scarring (<1 g) [48], this sequence is of limited value in depicting diffuse myocardial fibrosis, probably explaining why most DCM patients in the study by McCrohon et al. [45] showed normal LGE MRI. Recently, substantial progress has been made with the development of myocardial T1 mapping techniques. Diffuse collagen deposition increases the extracellular space, causing an increased interstitial accumulation of gadolinium at steady state, thus reducing the myocardial T1 relaxation time [26, 29, 30, 49, 50]. Several groups have reported in DCM patients a tight relation between the expansion in extracellular space (reflecting myocardial fibrosis) and the impairment in myocardial blood flow, ventricular dilatation and ventricular dysfunction [29, 5052].

It is believed that approximately 5-10% of patients with acute myocarditis progress towards DCM and ultimately will need cardiac transplantation [1, 53]. While the role of MRI in the diagnosis of acute myocarditis is well established, with recently published recommendations by an expert committee (“Lake Louise Criteria”) [27], the role of MRI in chronic myocarditis is less well defined, but is probably important because patients with DCM secondary to chronic myocarditis may show a favourable response to immunomodulatory therapy. De Cobelli et al. [54] reported in patients with biopsy-proven chronic myocarditis a similar focal pattern of enhancement as in patients with acute myocarditis in up to 70% of a group of patients with chronic inflammation at endomyocardial biopsy. Moreover, patients with persistent chronic myocarditis frequently showed generalised myocardial oedema and increase in global myocardial enhancement. On the other hand, focal myocardial LGE, probably reflecting myocardial scarring, had low sensitivity and specificity in depicting chronic myocarditis [28, 55]. Finally, Mahrholdt et al. [53] evaluated patients with acute myocarditis at the 3-month follow-up and reported a significant reduction in the extent of midwall/subepicardial focal myocardial enhancement representing residual inflammation or fibrotic scarring.

Left ventricular non-compaction cardiomyopathy

In DCM patients, myocardial trabeculations, along the LV free wall, often appear more prominent than in healthy subjects [56]. The exact mechanism is unclear but may represent a compensatory phenomenon. Differentiation between DCM and left ventricular non-compaction cardiomyopathy (LVNC) may be challenging, especially in mild forms of LVNC (Fig. 9) [57, 58]. Nowadays recognised as a distinct cardiomyopathy, LVNC is thought to be caused by intrauterine arrest of the process of compaction of the loosely interwoven meshwork of myocardial fibres [59, 60]. As a result, LVNC patients present with prominent trabeculations, deep intertrabecular recesses and a thin epicardial compacta. An alternative hypothesis suggests that the prominent trabeculations represent an adaptive mechanism to compensate for abnormally contracting myocardium [61]. Most commonly, the apical and midventricular part of the inferior and lateral LV wall are affected (Fig. 10) [62]. Attempts to define diagnostic morphological criteria for LVNC have been shown to be challenging, mainly due to the lack of an easy-to-use parameter enabling the differentiation of LVNC patients from normal subjects or other disease entities [6163]. In brief, criteria have been defined taking into account the two-layered appearance of the myocardial wall, the ratio of non-compacted to compacted myocardium, the number of visible trabeculations apically to the papillary muscles, and the presence of deep intertrabecular spaces visualised on colour Doppler imaging. In a recent study by Kohli and co-workers, it was shown that these diagnostic criteria are likely too sensitive with up to a quarter of heart failure patients and 8% of control subjects fulfilling one or more criteria for LVNC [64, 65]. On the other hand, other papers, including MRI findings, suggest that the echocardiographic criteria might be too strict, and that techniques such as MRI may enhance detection of more subtle forms of LVNC [60, 66, 67]. The superior spatial and contrast resolution of MRI makes this technique appealing for the detection of LVNC. The location and extent of the trabecular network, and the thickness of the trabeculations and compacta can be well visualised using a combination of cine MRI in different cardiac imaging planes. In addition, these sequences allow the impact of morphological abnormalities on regional and global function to be assessed. LGE MRI may reveal underlying myocardial disease such as replacement fibrosis [68, 69]. In 2005, Petersen et al. [70] established MRI criteria for the diagnosis of LVNC, similar to the above-mentioned echocardiographic criteria. An NC/C ratio >2.3 in diastole distinguished LVNC from normals, athletes and a series of cardiac diseases with a sensitivity and specificity of 86 and 99% respectively. Jacquier et al. [71] proposed to quantify the percentage of trabeculated LV myocardium, and reported in normals 12 ± 5% trabeculated myocardium vs 32 ± 10% in LVNC patients. Although promising, the applicability of the above MRI criteria in daily clinical practice needs further confirmation.

Fig. 9
figure 9

Dilated dysfunctional LV in a 19-year-old woman. SSFP cine MRI in the horizontal long axis at end-diastole (a) and end-systole (b), and in the vertical long-axis at end-diastole (c) and end-systole (d). The LV end-diastolic volume is 260 ml with an ejection fraction of 11%. Note an extreme thinning of the myocardial wall, in particular of the interventricular septum, and the presence of thick pronounced trabeculations in the LV apex. Although MRI enables the morphological abnormalities to be depicted accurately, it remains challenging in this patient to differentiate between an LV non-compaction cardiomyopathy and a DCM with compensatory trabecular hypertrophy

Fig. 10
figure 10

Typical example of LV non-compaction cardiomyopathy. Four-chamber SSFP cine MR image at end-diastole. Note the presence of an increased number of trabeculations along the LV lateral wall and LV apex (arrowheads)

Myocardial viability assessment

Obstructive CAD may cause myocardial ischaemia and dysfunction, and initiate compensatory ventricular remodelling with progressive dilatation, which ultimately may lead to ischaemic heart failure (Fig. 8). The crucial question to solve in these patients is whether percutaneous or surgical coronary revascularisation will improve function in the dysfunctional regions and ultimately improve patient outcome [72]. As the myocardial substrate underlying the dysfunction in the setting of CAD is heterogeneous, including stunned, ischaemic, hibernating, necrotic and scarred myocardium, the goal of myocardial viability assessment is to determine the ischaemic substrate. It is important to emphasise that different ischaemic substrates can be present within the same coronary perfusion territory [73, 74]. Only the viable substrates may recover function following reperfusion. Even if there are not yet any prospectively controlled studies on the effects of revascularisation, there is a substantial amount of clinical evidence that patients with reversible LV dysfunction may benefit from a revascularisation procedure [75, 76].

The role of MDCT in these patients is mainly focused on visualisation of coronary artery plaques, but no information is provided regarding the viability of the myocardium downstream of the coronary atherosclerotic plaque. MRI is nowadays emerging as one of the preferential techniques for characterising the ischaemic substrate and determining myocardial viability. Three different approaches, or a combination of approaches, can be used for MRI myocardial viability assessment, i.e. end-diastolic wall thickness, contractility reserve and scar imaging (Fig. 11). First, measurement of end-diastolic wall thickness relies on the premise that infarction with subsequent scarring leads to wall thinning, and the magnitude of wall thinning is related to the degree of infarct transmurality [77, 78]. A wall thickness of 6 mm has been proposed as a cut-off to differentiate between non-viable and viable segments. This approach has excellent sensitivity (95%, range 94-100%), but poor specificity (41%, range 19-53%) for predicting functional recovery [7679]. Patients may present “preserved” segmental wall thickness but not recover function following revascularisation, which is probably caused by the presence of subendocardial scarring in this segment. For this reason, the use of the thickness of the non-enhanced rim on LGE MRI may be superior to end-diastolic wall thickness in predicting recovery [80]. Contractile reserve assessment, using low-dose dobutamine stress MRI is the second approach to assessing myocardial viability. Whereas the contractility of normal viable myocardium increases during dobutamine stress, the response of ischaemic, dysfunctional myocardial segments depends on the myocardial substrate (Fig. 12) [78, 8183]. This approach has good specificity (83%, range 70-95%) but moderate sensitivity (74%, range 50-89%) [6871]. The third approach relies on the use of LGE MRI to depict the presence and transmural extent of myocardial scarring. Lack of myocardial LGE in dysfunctional myocardium is indicative of viability, and these segments have a high probability of functional recovery post-revascularisation. On the other hand, the probability of functional recovery is inversely related to the transmural extent of myocardial LGE [84, 85]. Despite excellent sensitivity (95%, range 91–99%), LGE MRI has low specificity (45%, range 37–54%). In particular, for subendocardial infarcts, LGE MRI does not provide information on whether the non-enhanced epicardial rim contains normal, viable or jeopardised myocardium [79]. In order to increase diagnostic accuracy, an integrated MRI approach can be used. For instance, adding low-dose dobutamine stress MRI in a second step after LGE MRI may be helpful in determining the myocardial substrate of the non-enhanced epicardial rim. As mentioned above, determining the thickness of the non-enhanced epicardial rim may provide additional value regarding viability [80] with a cut-off value of 3 mm yielding good diagnostic accuracy for the differentiation between viable and non-viable segments.

Fig. 11
figure 11

Different MRI approaches to assessing myocardial viability. Above in this figure is shown a short-axis slice through the left ventricle. The black myocardium represents normal, viable myocardium while the white myocardium represents chronic dysfunctional myocardium. Three approaches or a combination of approaches can be used to determine the myocardial substrate underlying the chronic dysfunction

Fig. 12
figure 12

Relation between myocardial substrate and functional response during low-dose and high-dose dobutamine stress in an animal model with chronic myocardial ischaemia. Whereas contractility gradually increases with increasing doses of dobutamine in normal, remote myocardium, the response to stress is blunted in chronic ischaemic but viable (no MI) segments. The response to dobutamine stress in segments containing scarred myocardium depends on the degree of transmurality, being worse in segments with a scar transmurality of more than 50% (MI++) (Ming Wu, adapted from [66])

Arrhythmogenic substrate

As sudden cardiac death due to ventricular arrhythmias may be the first clinical manifestation of DCM, identification of patients at risk who may benefit from implantable cardioverter defibrillator (ICD) implantation or from an ablation procedure is of primordial importance. Several papers have shown that non-ischaemic cardiomyopathy patients with midwall myocardial LGE involving more than 25% of wall thickness are at high risk at inducible ventricular tachycardia and should be referred for definitive anti-arrhythmic device therapy [8689]. LGE MRI adds predictive value especially in the DCM patients with a mildly to moderately decreased ejection fraction, those with abnormal myocardial enhancement having potential benefit from prophylactic ICD placement [90]. In a recent study by Hombach et al. [10] that included 141 DCM patients, midwall myocardial LGE was not an independent prognostic factor, stressing the need for large prospective studies on this topic [10]. Bogun et al. used LGE MRI to plan an appropriate mapping and ablation strategy in a small group of DCM patients [91]. The location of the scar (endocardial versus epicardial) was an important factor in determining the optimal approach to ablation. However, the success of catheter ablation was low in patients with a scar located in the midwall.

Cardiac resynchronisation therapy

In patients with DCM, ventricular dilatation and replacement fibrosis lead to a heterogeneous excitation spread across the LV wall with a delay in intraventricular conduction and a left bundle branch block morphology on the ECG. Segmental wall motion analysis shows hypokinesis to dyskinesis with a variable degree of dyssynchrony [92, 93]. Ventricular dyssynchrony worsens systolic performance, impedes ventricular filling, and causes paradoxical septal motion during early systole. Cardiac resynchronisation therapy (CRT) consists of the implantation of a biventricular pacemaker in order to improve synchronicity of myocardial contraction leading to improved ventricular performance. In properly selected patients, CRT implantation is associated with improvement of symptoms and a decrease in mortality and hospitalisation for heart failure. However, up to 40% of CRT-treated patients show no benefit from CRT, urging the need for better identification of responders to CRT treatment.

MRI is a promising tool for identifying and selecting patients eligible for CRT [93, 94]. MRI has the advantage of integrating functional/dyssynchrony imaging with morphological and tissue characterisation imaging. Novel MRI techniques such as DENSE (displacement encoding with stimulated echoes) and TVM (tissue velocity mapping) are appealing for the quantification of the degree of dyssynchrony throughout the LV. In addition, LGE MRI enables the depiction of myocardial scar presence and extent. The higher the scar burden, the lower the chance of CRT response [9597]. Moreover, as reported by Chalil et al. [98] correct placement of CRT leads is crucial. Positioning of the pacing lead in the scarred myocardium is followed by a lack of CRT response. MRI is currently the best technique for guiding the interventional cardiologist to correctly position CRT leads. The lead should be placed in the myocardium displaying the latest activation. On the other hand, scar stimulation by pacing prevents correct impulse transmission, and consequent inhibition of myocardial contractility.

Another clinically relevant application for MRI and MDCT is the identification of coronary venous anatomy (Fig. 13). In particular, MDCT is a fast and very useful technique in CRT therapy planning. As mentioned above, CRT leads should be placed in the area of latest activation. Once this has been identified, visualisation of the vein tributary to that segment is mandatory. If there is no evidence of a coronary vein on MDCT/MRI in these segments, the transvenous approach is not recommended because it would result in an erroneous lead placement. In these cases, a surgical approach with epicardial lead positioning is preferable. The efficacy of MDCT in depicting coronary venous anatomy, including anatomical variants, is excellent, showing good agreement with anatomical studies and invasive venography [99, 100].

Fig. 13
figure 13

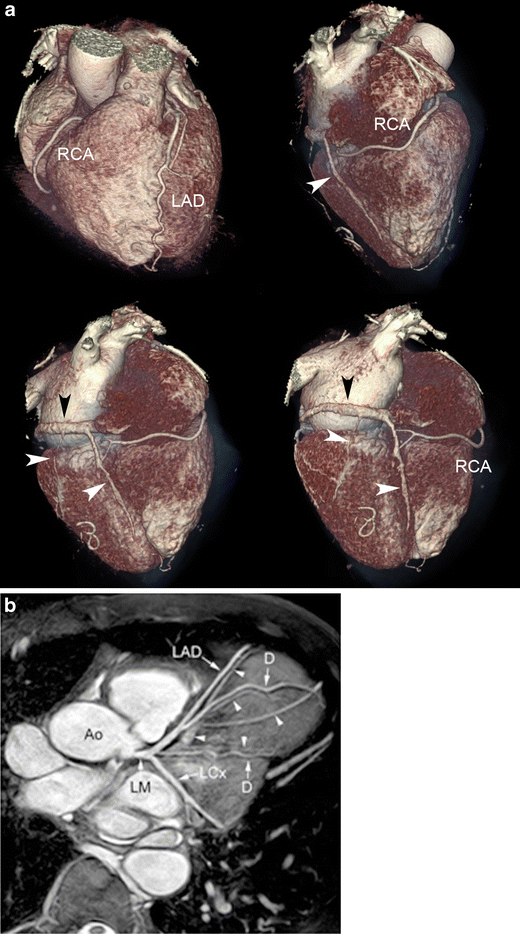

MDCT with volume-rendered images (a) and MR coronary angiography (b) showing the heart and the coronary artery and venous system (arrowheads). Ao aorta, D diagonal branch, LAD left anterior descending coronary artery, LCx left circumflex coronary artery, LM left main coronary artery, RCA right coronary artery

Coronary artery imaging

As previously mentioned, the ventricular dilatation associated with systolic dysfunction can be due to DCM or secondary to coronary artery disease. In the last two decades, coronary artery imaging by MRI and MDCT has been extensively studied as an alternative to invasive catheter angiography. Despite high initial expectations, it has nowadays become evident that MRI has a limited role in depicting coronary artery plaques [101]. Supported by encouraging results of several single-centre and multicentre trials, MDCT is now considered a reliable method for the detection and, in particular, for the exclusion of CAD [12, 102]. However, it should be emphasised that MDCT still faces many challenges, in particular imaging of heavily calcified plaques and stent imaging, although further improvement can be expected with newer generation equipment [103].

Conclusions

In the end, the role of an imaging method is to provide accurate information for the clinician, to minimise the degree of uncertainty in the diagnosis and patient management, and to improve patient outcome. MRI is becoming generally accepted as an important imaging technique in patients with DCM offering the clinician not only accurate information regarding the severity of ventricular dilatation and dysfunction but also regarding myocardial tissue composition, which is important in establishing the underlying cause, in predicting the risk of future events, and in selecting eligible candidates for CRT. The fast and continuous progress in MDCT technology has enabled accurate information regarding coronary artery and venous anatomy to be provided, but this technique has the potential to offer a broader cardiac assessment, including tissue characterisation and functional assessment.
