- Open Access
Kawasaki disease: a review with emphasis on cardiovascular complications
© European Society of Radiology 2010
- Received: 19 April 2010
- Accepted: 12 July 2010
- Published: 30 July 2010
Kawasaki disease (KD) is an acute systemic vasculitis that is currently the leading cause of acquired heart disease in childhood in the United States. Cardiovascular complications are the major cause of morbidity, are responsible for virtually all deaths from KD and should be evaluated as soon as possible after the acute phase to establish the baseline status, in order to predict disease progression and determine adequate treatment. In selected patients, electrocardiography (ECG)-gated cardiac computed tomography (CT) and magnetic resonance (MR) imaging are valuable non-invasive techniques that can be used to help diagnose the cardiovascular complications associated with KD. In this article, we review the epidemiology, aetiology and pathogenesis, histopathology, clinical features, cardiovascular complications and imaging, focusing on the role of cardiac CT and MR on the initial assessment and follow-up of the cardiovascular complications of KD.
- Kawasaki disease
- Cardiovascular complications
- Acute vasculitis
Kawasaki disease (KD) is a self-limiting acute vasculitis that was first described in 1967 by Dr Tomisaku Kawasaki, a Japanese paediatrician. Although more than 40 years have passed since the original description of the clinical signs of this disease, the diagnosis remains challenging and the aetiology unclear.
This illness predominantly affects infants and young children of all ethnic backgrounds and is more frequent during winter and spring [1–3]. Nevertheless, it is clearly more prevalent in the Asian population . In Japan, an annual incidence of 112 up to 175 cases per 100,000 children <5 years old has been reported, whereas in the United States an annual incidence of 20–25 cases per 100,000 children <5 years old has been estimated [1–5]. There is a slightly increased prevalence in boys, with a male-to-female ratio of 1.3-1.7:1 and 76–80% of the children are <5 years old [2, 3].
A genetic predisposition has been suggested by higher rates of KD in the siblings as well as in the children of parents with a history of KD in childhood [1–5]. A recent study suggests that polymorphism in some alleles of B and C in HLA class I are associated with KD in Korean children .
Cardiovascular sequelae are the leading cause of morbidity and are responsible for virtually all deaths as a result of coronary vasculitis associated with a hypercoagulable state, leading to myocardial infarct and sudden death [1–3, 5]. However, with proper treatment, the mortality rate is less than 1% in either Japan or the United States, with the peak mortality occurring between the 15th and 45th days [2, 4].
The aetiology of KD remains unknown, although the clinical presentation—self-limiting illness manifested by an abrupt onset of fever, rash, exanthema, conjunctival injection and cervical adenopathy—and the epidemiological features—a seasonal peak in winter and spring, age distribution and a geographic wave-like spread of illness during epidemics—strongly suggest an infectious cause [1–4]. Nevertheless, after four decades of searching for a causal agent the researchers have failed to yield an infectious cause and have only reported a long list of pathogens that they have ruled out.
The hypothesis of a superantigen leading to up-regulation of the immune response has been supported by some studies and refuted by others [1, 2, 4]. In a recent study, Leung et al.  failed to demonstrate a significant difference in the prevalence of toxin-producing strains between patients with KD and febrile controls.
An alternative hypothesis suggests the involvement of an oligoclonal antibody response for a conventional antigen, with the immunoglobulin A plasma cells playing a vital role .
Nevertheless, significant progress in finding the aetiology of KD is still expected in the near future.
KD is a systemic vasculitis that is more severe in small and medium arteries, and veins to a lesser extent, with inflammatory lesions in virtually all organs [3, 8]. The earlier inflammatory changes are observed in the endothelium [1, 2, 4]. More advanced inflammatory lesions are consistent with oedema and inflammatory cell infiltrate in the subendothelial space, characterised by an influx of neutrophils in the first 10 days after onset with a rapid transition to mononuclear cells with lymphocytes (predominantly CD8+ T cells) [1–3, 5]. In more severely affected vessels, the inflammatory lesions tend to progress leading to necrosis of smooth muscle cell media [2, 5]. Destruction of internal and external elastic laminae may be seen in severely affected vessels. Loss of integrity of the wall vessel results from these changes, which may lead to the formation of aneurysms [1, 2, 5].
After several weeks to months, the inflammatory changes of active vasculitis disappear and fibrous connective tissue, consisting of collagen and elastic fibres, begins to form within the vessel wall. The lesions in the coronary arteries continue to develop through an active process of remodelling characterised by myointimal proliferation and neoangiogenesis [1–5]. Over time the vessel may become stenotic or occluded, as a result of either progressive stenosis or superimposed thrombosis .
Diagnostic criteria for KDa
Fever persisting at least 5 days and the presence of at least four of the following five principal clinical features:
1. Changes in extremities:
Acute: erythema and oedema of hands and feet
Subacute: membranous desquamation of fingertips and periungual peeling
2. Polymorphous exanthema
3. Bilateral, painless bulbar conjunctival injection without exudate
4. Changes in lips and oral cavity: erythema and cracking of lips, strawberry tongue, diffuse injection of oral and pharyngeal mucosae
5. Cervical lymphadenopathy (>1.5 cm in diameter), usually unilateral
Fever is usually the first sign of KD and is classically high (>39°C) and remittent [1–4]. With proper treatment, the fever usually resolves within 2-3 days, but without it may persist for several weeks, with an average of 11 days . Typically, the other clinical signs appear over a period of several days (>5 days).
Erythema and oedema of hands and feet confined to the palms and soles usually occurs in the acute phase, with the desquamation beginning in the periungual region within 10-20 days [1–3]. Deep transverse grooves across the nails (Beau’s lines) may appear 1–2 months later [1, 2].
Changes in the lips and oral cavity include erythema, fissuring, peeling, cracking and bleeding of the lips, strawberry tongue and diffuse injection of oral and pharyngeal mucosae without associated mucosal ulcerations or pharyngeal exudates (Fig.1) [1–3].
Cervical lymphadenopathy is the least common of the main clinical features and is present in only 50–70% of the cases compared with other principal clinical features that are present in 90% of cases [2, 3]. It is usually unilateral, non-suppurative and limited to the anterior cervical triangle .
Recurrent episodes, defined as a new onset of illness after 3 months, can occur in 1% of the children .
Some patients with KD do not fulfil all the classic criteria for the clinical diagnosis. Children with fever and fewer than four of the other features of the illness present the so-called atypical or incomplete KD . The atypical KD is also more common in young children and, as the recognition of this variant can be quite difficult, they are at greatest risk of developing coronary artery aneurysms (CAA) and fatal outcomes have occurred [2, 9]. The diagnosis in these cases has usually been made through detection of CAA by echocardiography .
KD should be considered in the differential diagnosis of children with high fever of unexplained cause lasting more than 5 days with any of the principal clinical features of this disease, so that the proper treatment can be provided reducing the frequency and severity of cardiac complications. Nevertheless, as the diagnostic criteria are not specific to KD, other diseases with similar clinical features should be excluded.
A series of other features are typical of KD, although they are not included in the diagnostic criteria.
In the acute phase, the principal clinical features are typically accompanied by leukocytosis with neutrophil predominance and by elevated sedimentation rate and elevations in the levels of other acute-phase reactants [1–4]. Normocytic anaemia is also common in the acute phase .
A low platelet count at presentation has been associated with the development of severe coronary disease and myocardial infarction . In later phases, usually after the second week, thrombocytosis is a characteristic finding [2, 3].
Mild to moderate elevations in serum transaminases and hypoalbuminaemia are also common findings .
Changes in chest radiographs are frequent. Umezawa et al.  found that 14.7% of children with KD had abnormal findings, including reticulogranular pattern in 89.5%, peribronchial cuffing in 21.1%, pleural effusion in 15.8%, atelectasis in 10.5% and air trapping in 5.3%.
At ultrasound examination, gallbladder hydrops (5%), which is generally self-limiting, and enlarged kidneys with increased renal echoes and enhanced cortico-medullary differentiation may be seen .
Cardiovascular manifestations of KD
Manifestations (in order of frequency):
Coronary artery aneurysms
Pericarditis with pericardial effusion
Systemic arterial aneurysms
Mild aortic root dilatation
Several scoring systems have been developed in order to identify the risk factors for CAA, particularly giant CAA [17, 18]. Duration of fever has been consistently reported as a powerful risk factor [1, 17, 18]. Younger patient age, particularly less than 1 year of age, male sex and delayed diagnosis and treatment have also been associated with development of CAA [1, 17, 18]. Laboratory-detected conditions, including leukocytosis, thrombocytopaenia, lower haemoglobin or haematocrit and lower serum albumin, are also prominent risk factors [7, 17, 18].
Treatment with a high dose of intravenous gamma globulin combined with aspirin has been proved to be highly effective in reducing the clinical manifestations as well the prevalence of CAA to less than 5%, although its mechanism of action remains unknown . However, about 10% of patients do not respond favourably to this treatment, which represents an important clinical dilemma because of the increased risk of developing CAA .
The contribution of KD in childhood to the development of coronary artery disease in the long term is still controversial and remains a source of concern. Recent studies have shown that changes in lipid profile and endothelial dysfunction persist for a long time after the resolution of the illness [10, 20]. Noto et al.  recently demonstrated that patients with a history of KD have long-term structural and functional alterations that increase the propensity towards subclinical atherosclerosis with age. The current recommendation of the American Heart Association is to follow all patients with a history of KD .
Myocarditis is the most common non-coronary complication and is present in 50–70% of patients in the acute phase [1, 2]. Pericarditis with pericardial effusion also frequently occurs in about 25% of patients in the acute phase . Valvular disease, especially mitral regurgitation, may result from papillary muscle dysfunction or secondary to rupture of the chordae tendineae , myocardial infarct or valvulitis, and has been reported in about 1% of patients [22, 23]. Mild aortic root dilatation is also common in the acute phase and may be associated with aortic regurgitation .
Cardiac imaging is a critical part of the evaluation of all patients with KD disease as the major sequelae are related to CAA. The coronary anomalies should be evaluated as soon as possible after the acute phase to establish the initial size and shape of the aneurysms in order to predict disease progression and determine adequate treatment. Evaluation of the coronary arteries should include quantitative assessment of the internal vessel diameters, as well as the number and location of the aneurysms, and absence or presence of intraluminal thrombus .
Echocardiography remains the technique of choice for the assessment of the coronary abnormalities because it is non-invasive, widely available and has high sensitivity and specificity for the detection of proximal abnormalities in the coronary tree [1, 2]. However, the visualisation of coronary arteries cannot always be performed by echocardiography owing to technical limitations, such as limited field of vision or inadequate acoustic window, because as a child grows and the body size increases it becomes progressively more difficult or there are intrinsic limitations (inability to delineate the distal coronary segments or low sensitivity in demonstrating intraluminal thrombus). In these cases, other techniques—including angiography, computed tomography (CT) and magnetic resonance (MR)—may be of value for the assessment of coronary abnormalities.
Although selective coronary angiography remains the “gold standard” for the assessment of coronary abnormalities, its invasiveness, high cost, the need for hospitalisation and potential complications (haematomas, dissections, vascular rupture, arrhythmias and death) —especially because most patients with KD are children—should be weighed against the expected benefits.

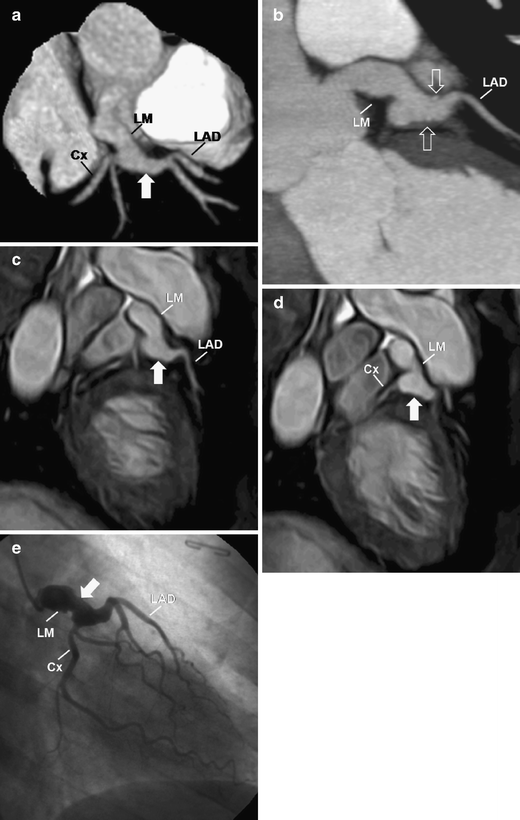

In selected patients, CT and MR are attractive non-invasive alternatives for the initial evaluation of coronary abnormalities, as well as for the surveillance of coronary abnormalities, as both are efficient at detecting CAA.

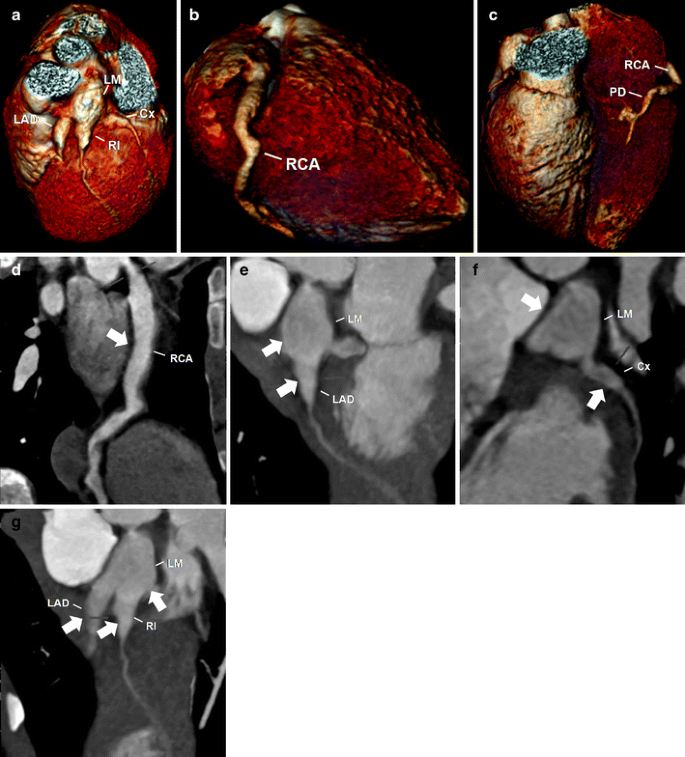

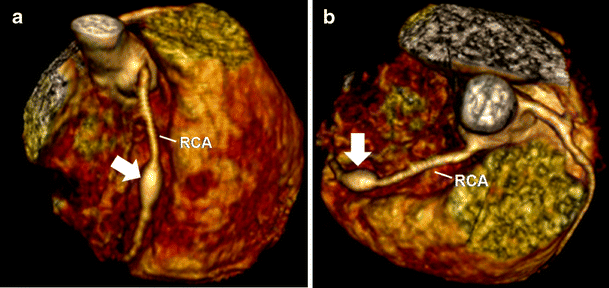

Several recent studies have demonstrated the feasibility of coronary CT angiography for the assessment of coronary artery disease with high diagnostic accuracy: high negative predictive values ranging from 95 to 100% [26–30]. Coronary CT angiography with ECG-gating is fast, widely available and offers excellent spatial resolution, allowing the assessment of virtually all coronary segments, including the distal segments, thus providing an accurate characterisation or a confident exclusion of CAA, as well as of the presence of an intraluminal thrombus (Fig. 4).
However, as this illness affects mainly children, the dose of radiation remains a major concern. Nevertheless, several strategies to reduce radiation exposure have been developed, including tube modulation, the use of lower tube voltages and of prospective electrocardiographic (ECG) triggering, allowing the reduction of effective radiation dose to the range of 1.3-4.2 mSv [31–34]. Recent studies have demonstrated that the use of prospective ECG-triggered high-pitch spiral acquisition using dual-source CT can reduce even more the effective radiation dose to less than 1 mSv [35–37].
Comparison of coronary CT angiography and MR imaging in the diagnosis of KD
When to use
Coronary CT angiography
Uses ionising radiation
Initial diagnostic work-up in patients with inadequate acoustic window
Excellent spatial resolution
High sensitivity and specificity for detection of coronary abnormalities, including distal segments
No ionising radiation
Relatively long examination times
Follow-up in patients with known CAA and with inadequate acoustic window
Excellent temporal resolution
Low spatial resolution
Potential role as complementary examination in the assessment of cardiovascular non-coronary complications
As cardiovascular sequelae are a major factor in morbidity and mortality cardiovascular imaging plays a vital role in the evaluation of all patients with KD. Although echocardiography remains the primary imaging technique in the evaluation of cardiovascular complications, especially in the acute phase, in selected patients cardiac CT and MR allow a non-invasive and reliable assessment of cardiovascular complications, as well as at follow-up, especially after childhood. Invasive coronary angiography should be reserved for patients with more complex coronary lesions or for therapeutic measures.
